Learning to Plot Function Curves Using R: A Comprehensive Tutorial

Visualizing mathematical functions is a fundamental skill essential across numerous disciplines, including data science, statistics, and engineering. The powerful statistical programming environment known as R provides analysts with sophisticated and flexible tools to plot a function curve, translating complex algebraic relationships into intuitive graphical representations. This comprehensive guide details the two most prevalent and robust methods for generating these plots: leveraging the efficient, built-in capabilities of Base R and utilizing the highly customizable approach offered by the ggplot2 package.

Mastering the art of plotting function curves is indispensable for interpreting statistical models, exploring the characteristics of data distributions, and effectively communicating analytical insights. Whether you are a novice user beginning your journey with R or an experienced programmer seeking refined visualization techniques, understanding these methods will significantly enhance your analytical toolkit. Throughout this tutorial, we will utilize a simple cubic function, y = x³, as our running example, meticulously demonstrating the implementation and customization steps for both the Base R and ggplot2 frameworks.

Method 1: Visualizing Functions Using Base R’s curve()

The curve() function, a core component of Base R graphics, provides the most straightforward and resource-efficient method for visualizing mathematical expressions over a defined range. Its primary advantage lies in its directness; it allows users to plot functions instantly without the preliminary step of defining a separate data frame or managing multiple graphical layers. This simplicity makes the curve() function ideal for quick exploratory analysis, immediate visual feedback, and educational purposes where the focus remains squarely on the behavior of the mathematical relationship itself.

The fundamental syntax of the curve() function requires only two primary inputs: the mathematical expression to be plotted and the specified start and end points for the x-axis domain. Beyond these core requirements, the function accepts a variety of optional arguments that allow for enhanced clarity, such as labeling axes and fine-tuning the overall appearance of the resulting plot. These flexible parameters ensure the function remains a versatile tool capable of handling a wide array of basic plotting needs. Below, we provide a clean illustration of how to plot our target function, x^3, specifying a range from x=1 to x=50, highlighting the function’s core usage and elegance.

curve(x^3, from=1, to=50, xlab='x', ylab='y')

In this initial demonstration, the expression x^3 explicitly represents the mathematical function y = x³ that we aim to visualize graphically. The from and to parameters are crucial, as they precisely delineate the lower and upper bounds of the x-axis, defining the domain across which the function will be evaluated and plotted. Furthermore, the xlab and ylab arguments ensure that the axes are clearly and descriptively labeled. Providing clear axis labels is crucial for the interpretability of the graph, making the plot immediately understandable to any audience and serving as a best practice in data visualization.

Method 2: Leveraging ggplot2 and stat_function()

For analysts who prioritize structure, layering, and sophisticated aesthetics in their data visualizations, the ggplot2 package is the gold standard within the R ecosystem. Built upon the philosophical foundation of the “grammar of graphics,” ggplot2 enables users to construct complex plots layer by layer, providing exceptional flexibility and granular control over every single visual element. When plotting a function curve within this framework, the primary mechanism utilized is the stat_function() geometric object, which is purpose-built for rendering mathematical expressions.

The approach in ggplot2 differs fundamentally from that of Base R‘s curve() function. ggplot2 mandates a structured environment, typically requiring a data frame as the foundational input to establish the plot’s aesthetic mappings and coordinate system, even if the data frame itself is minimal and only serves to define the x-axis range. Crucially, the mathematical relationship itself must be explicitly defined as a distinct function object in R before it can be referenced by the stat_function() geom. This structured methodology guarantees consistency, enhances code reusability, and facilitates the creation of highly detailed and layered visualizations.

library(ggplot2)

df <- data.frame(x=c(1, 100))
eq = function(x){x^3}

#plot curve in ggplot2
ggplot(data=df, aes(x=x)) +
  stat_function(fun=eq)

In the sequence above, we first use the library() call to load the necessary ggplot2 package into the current R session. Next, we construct a minimal data frame named `df`, which is designed solely to establish the domain (x-range) from 1 to 100 over which the function will be visualized. The cubic relationship, y = x³, is then formally defined and assigned to the variable `eq` as a standard R function object. The ggplot() command initializes the plot environment, mapping the `x` variable from the `df` data frame to the x-axis aesthetic. Finally, the stat_function() layer is added, instructing the plot to render the curve by calling the defined function `eq` via the fun argument.

Example 1: Customizing Function Plots with Base R

To fully appreciate the utility of the curve() function, we must move beyond its basic usage and explore its customization capabilities. The function is inherently versatile, allowing for the direct plotting of explicit mathematical expressions. Its straightforward nature ensures that visualizations can be generated rapidly, making it the ideal choice when the focus is purely on the shape and behavior of the function rather than complex, multi-layered plot components. We continue our practical demonstration by plotting the curve of the function y = x³ over the previously defined range.

The following code block executes the basic plot, which establishes the foundational visualization. We provide the mathematical expression x^3, set the domain using from=1 and to=50, and ensure clear communication by defining the axis labels with xlab=’x’ and ylab=’y’. Executing this code generates a simple but clear depiction of the rapidly increasing cubic curve, demonstrating the efficiency inherent in the Base R approach.

#plot curve using x-axis range of 1 to 50
curve(x^3, from=1, to=50, xlab='x', ylab='y')

Beyond the simple generation of the curve, the curve() function provides access to numerous graphical parameters inherited from Base R‘s plotting system, allowing for deep customization of the visual output. These options enable users to tailor the plot’s appearance to specific preferences, ensuring the visualization is both accurate and suitable for publication or presentation requirements. Key parameters control the visual attributes of the line itself, significantly influencing the plot’s aesthetic impact and readability.

• lwd: This argument dictates the line width of the plotted curve. By using higher numerical values, you can create thicker, more visually prominent lines, drawing immediate attention to the function’s path.
• col: This parameter controls the line color. Colors can be specified using standard names (e.g., ‘blue’, ‘black’), precise hexadecimal codes (e.g., ‘#0000FF’), or indices from R’s predefined color palettes.
• lty: This argument determines the line style or type. Available options include ‘solid’ (the default), ‘dashed’, ‘dotted’, ‘dotdash’, ‘longdash’, and ‘twodash’, offering diverse ways to represent the line visually.

Applying these customization arguments is straightforward and dramatically increases the communicative power of your plots. The example below demonstrates the implementation of a custom line width, a distinctive color, and a specific line style to the function curve. This level of aesthetic control is invaluable, enabling the creation of plots that are not only quantitatively sound but also visually persuasive and tailored to the context of the analysis.

#plot curve using x-axis range of 1 to 50
curve(x^3, from=1, to=50, xlab='x', ylab='y', lwd=3, col='red', lty='dashed')

By adjusting the numerical and character values assigned to lwd, col, and lty, users can precisely achieve the visual aesthetic required for their specific analytical and presentation needs. This inherent flexibility remains a core strength of Base R graphics, allowing for the generation of personalized and professional-grade plots optimized for clarity and impact.

Example 2: Advanced Styling with ggplot2

We now transition to plotting function curves using the highly declarative and visually oriented ggplot2 package. While ggplot2 requires a more extensive preparatory setup than Base R, its layered grammar offers unparalleled advantages for creating publication-quality graphics with consistent styling and complex annotations. We will once again plot the function y = x³ to demonstrate how the package’s structured approach is implemented in practice.

The core process requires three foundational steps before rendering the curve: loading the package, defining the plotting domain, and explicitly defining the mathematical function. This structured approach ensures that the ggplot2 environment has all the necessary context—the data boundaries, the aesthetic mappings, and the function definition—to accurately render the curve using the stat_function() geometric object.

library(ggplot2)

#define data frame
df <- data.frame(x=c(1, 100))

#define function
eq = function(x){x^3}

#plot curve in ggplot2
ggplot(data=df, aes(x=x)) +
  stat_function(fun=eq)

In this implementation, the library() call ensures ggplot2 is accessible. The small data frame `df` establishes the x-axis limits from 1 to 100, providing the necessary foundation for the plot. The function y = x³ is then defined as `eq`. The ggplot() command initializes the plot, specifying `df` and mapping `x` to the horizontal aesthetic. The critical step is adding stat_function(fun=eq), which acts as a layer, instructing ggplot2 to calculate and render the curve based on the provided function definition over the established x-range.

A significant advantage of ggplot2 is its centralized aesthetic control. Parameters such as lwd (line width), col (line color), and lty (line style) can be seamlessly integrated into the stat_function() call, allowing users to modify the curve’s appearance within the overall plot structure. This integration ensures that the customized aesthetics adhere to the cohesive visual identity established by the ggplot2 theme and subsequent layers, offering greater consistency than traditional Base R graphics.

library(ggplot2)

#define data frame
df <- data.frame(x=c(1, 100))

#define function
eq = function(x){x^3}

#plot curve in ggplot2 with custom appearance
ggplot(data=df, aes(x=x)) +
  stat_function(fun=eq, lwd=2, col='red', lty='dashed')

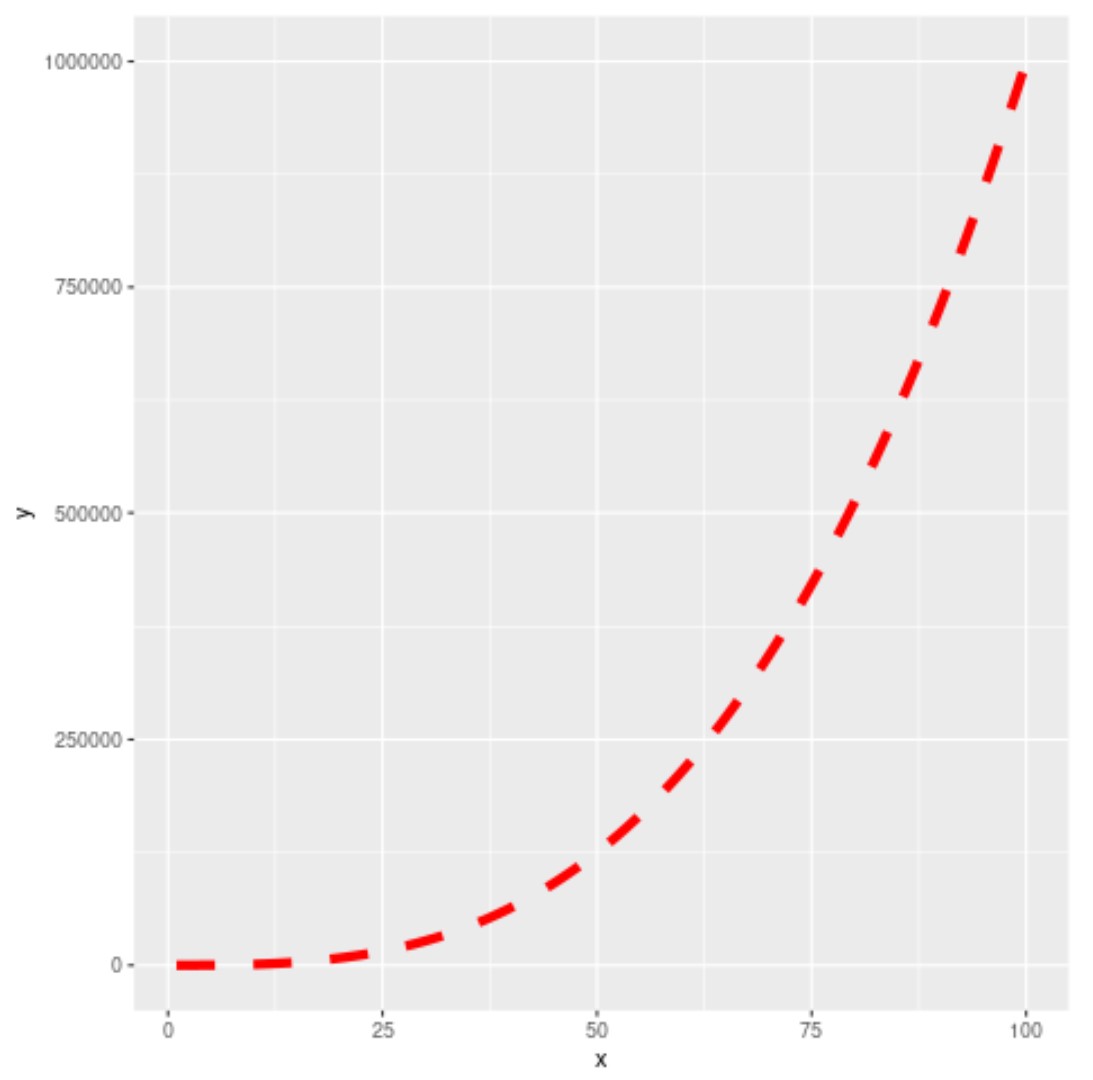

By directly manipulating these aesthetic parameters within the layer, users can produce visually distinct curves. For example, setting `lwd=2` creates a noticeably thicker line, `col=’red’` applies a vibrant red hue, and `lty=’dashed’` renders the curve as a dashed line. These modifications are crucial for highlighting specific analytical points or adhering to publication guidelines that require distinct visual markers.

For analysts requiring more intricate control, such as adding shading or incorporating mathematical notation directly onto the plot, consulting the official ggplot2 documentation is highly recommended. This resource details the extensive array of options available for generating complex and sophisticated visualizations suitable for rigorous academic or professional reporting.

Conclusion: Choosing the Right Tool

The ability to accurately plot function curves in R is a core competency for anyone working in quantitative fields. Both Base R‘s curve() function and ggplot2‘s stat_function() provide robust methods for visualizing complex mathematical relationships, yet they cater to distinct needs and preferences.

Base R excels in scenarios demanding speed and simplicity. It offers a quick, efficient solution for exploratory data analysis and rapid prototyping where minimal code overhead is desired. Conversely, ggplot2 is the superior choice for projects requiring highly customized, aesthetically refined, and publication-quality graphics, leveraging its powerful layered grammar to provide unparalleled control over every visual aspect of the plot.

Ultimately, the selection between these two powerful methodologies hinges on the specific complexity of the visualization, the level of aesthetic control required, and the user’s familiarity with the respective plotting environments. Mastering both techniques ensures versatility, allowing the analyst to clearly and accurately communicate underlying mathematical relationships and validate statistical models effectively across diverse analytical contexts.
