Learn How to Customize Chart Borders in R Using the ‘bty’ Option

Mastering R’s Graphical Parameters and the Essential ‘bty’ Option

The R programming language is fundamentally recognized as the premier environment for advanced statistical computing and generating complex data visualization. To transition from standard, default plots to truly professional and publication-ready visual representations, users must acquire a deep understanding of R’s core graphical parameters. At the heart of this comprehensive customization system lies the exceptionally versatile par() function. This function acts as the central control panel, allowing developers and analysts to precisely set, modify, or query hundreds of graphical settings that collectively define the aesthetic and structural properties of all plots created within the current graphical device. By mastering these key parameters, users gain granular control over elements such as text size, intricate color palettes, margin specifications, and the fundamental structure of the plotting region itself, ensuring outputs meet the highest standards of clarity and design.

Among the vast array of controls managed by the par() function, the bty option serves a unique and disproportionately influential purpose: it specifically governs the style of the bounding box, or border, that meticulously frames each individual chart. While the border might initially appear to be a minor aesthetic component, its strategic utilization can profoundly impact a visualization’s readability, perceived professionalism, and overall structural integrity, especially within complex reports or academic submissions. A thoughtfully selected border style is crucial for clearly delineating the plot boundaries from surrounding elements, minimizing visual distraction, and ensuring that the output adheres perfectly to specific corporate branding guidelines or required publication standards for statistical graphics. Effective manipulation of the bty parameter empowers the user to fine-tune the visual context of their presented data with unparalleled precision, creating polished and cohesive graphical narratives.

While R’s default plot settings are often entirely adequate for rapid exploratory data analysis (EDA), the advanced customization of graphical parameters—and specifically the bty setting—becomes absolutely essential when preparing visualizations intended for wider public consumption, formal academic journals, or high-stakes corporate presentations. This detailed guide is engineered to walk you through the complete range of options available for the bty parameter, offering clear, practical demonstrations on how to implement them effectively to significantly elevate the quality of your R visualizations. We will thoroughly examine the techniques required for applying distinct border styles to individual plots within sophisticated multi-panel layouts, alongside methodologies for establishing a consistent, global border theme across an entire sequence of charts, thereby guaranteeing visual harmony and maximum clarity throughout your comprehensive data analysis project.

A Comprehensive Guide to ‘bty’ Box Style Values

The powerful bty argument, which is integrated into R’s foundational par() function, provides access to six distinct single-character values. Each of these characters corresponds directly to a unique and predefined border style, offering users maximum flexibility in establishing the frame around their plots. Gaining a clear understanding of the specific visual impact delivered by each option is critical for effectively choosing the presentation that is most appropriate for your data’s narrative and aligning with your project’s specific design requirements. Whether the need is for a traditional, fully enclosed frame that emphasizes structure or a highly minimalist, open configuration that reduces visual weight, the bty parameter is equipped with a tailored solution for virtually every aesthetic demand in data presentation.

The subsequent comprehensive list meticulously details the six possible character values that can be assigned to the bty option. For each value, we provide a clear explanation of the resulting visual appearance and offer recommendations for its most effective practical application within professional R graphics environments. Recognizing these differences allows for deliberate design choices that enhance data communication:

• o: This character represents the system default setting in R. It constructs a robust, complete box, drawing border lines along all four sides (top, bottom, left, and right). This option delivers a traditional and strong enclosure, making it the ideal choice for standalone figures or when a clear, unambiguous boundary is essential for defining the precise limits of the plot area.
• n: The ‘n’ setting is shorthand for no box. When this value is explicitly selected, all borders are entirely suppressed and removed, resulting in a completely unframed plot area. This is the preferred selection for highly sophisticated, minimalist graphical designs, or when integrating plots seamlessly into documents where the surrounding context already provides sufficient structural definition, thus eliminating any unnecessary visual clutter.
• 7: This value generates a highly specific partial border, drawing lines exclusively on the top and right sides of the designated plot region. This intentional asymmetrical framing offers a distinctly contemporary aesthetic, subtly guiding the viewer’s eye along the upper and right boundaries without imposing the full constraints of a complete enclosure. It is often employed strategically to achieve a visually lighter effect in dense or complex data visualizations.
• L: Specifying the ‘L’ character results in a border drawn exclusively along the bottom and left sides. Conceptually similar to the ‘7’ option, ‘L’ provides a powerful partial frame that strongly anchors the x-axis and clearly demarcates the y-axis. This particular style proves highly effective when the analytical focus relies predominantly on the relationships defined by the origin and the positive extent of the two axes.
• C: The ‘C’ option creates a three-sided enclosure, drawing borders along the top, left, and bottom sides, while intentionally leaving the right boundary entirely open. This open side can be strategically utilized to imply an expansive or directional flow in the data, potentially being very useful in sequential data presentations.
• U: Finally, the ‘U’ character draws a border along the left, bottom, and right sides, leaving the top edge completely open. This option provides a solid, well-defined base and clear vertical limits while maintaining an open upper region. It is most often employed in visualizations where the data or analytical context extends toward an undefined upper limit.

Each of these six character options imparts a highly distinctive visual identity to your charts, furnishing substantial flexibility in how you choose to frame and contextualize your data stories. The selection of the optimal choice is contingent upon a careful consideration of your specific design objectives, the intrinsic nature of the data that is being presented, and the overarching aesthetic requirements of the final deployment. The practical examples detailed in the subsequent sections will vividly illustrate the precise coding mechanics required to implement each of these sophisticated options within R effectively.

Practical Application: Establishing the Baseline with Default Box Styles

To fully grasp the extensive versatility and control offered by the bty option, it is essential to first establish a solid visual baseline using R’s standard graphical settings. We will commence this practical demonstration by generating a structured grid of plots that intentionally utilizes the system’s default box style. This initial comparison will serve as the necessary reference point to clearly highlight the dramatic visual impact achieved through subsequent border modifications. We employ the par() function, specifically leveraging the mfrow argument, to define a complex multi-plot layout consisting of three rows and two columns. This highly efficient 3×2 grid configuration represents a common and effective strategy for performing side-by-side comparisons of several related datasets or different derived metrics from the same primary data source.

The following R code snippet demonstrates the necessary preparation of this defined layout and the subsequent generation of six elementary scatterplots. Each plot visualizes a simple sequence of numerical indices against their corresponding values, distinguished uniquely by various colors and distinct plotting characters (which are meticulously controlled by the pch argument). Crucially, because we deliberately omit any specific bty argument in this initial setup, R automatically applies its inherent default border style to every single plot generated on the currently active graphical device.

# Define the plot area as a grid with three rows and two columns
par(mfrow = c(3, 2))

# Create six individual plots
plot(1:5, pch=19, col='red')
plot(1:10, pch=19, col='blue')
plot(1:20, pch=19, col='green')
plot(1:5, pch=19, col='purple')
plot(1:10, pch=19, col='black')
plot(1:20, pch=19, col='pink')

A thorough inspection of the resulting visual output confirms a critical observation for R’s base graphics system: every single scatterplot is uniformly framed by a complete, continuous four-sided box. This visual consistency confirms that the automatic default setting for the bty option, which corresponds internally to the ‘o’ character, has been applied globally throughout the plot sequence. While this standard framing provides a clear, highly functional boundary, ensuring excellent visual separation within the multi-plot array, it may frequently not align with contemporary design requirements, especially when a lighter, more streamlined, or minimalist presentation is desired for sophisticated statistical graphics. This established baseline provides the crucial context required for fully appreciating the power of the granular customization techniques demonstrated in the following section.

Customizing Individual Plot Borders for Granular Control

While R simplifies the plotting process by automatically applying the ‘o’ box style when no explicit setting is defined, the architecture of R’s base graphics permits a far more refined and sophisticated level of control over visualization aesthetics. It is not only possible but frequently advantageous to specify a unique and distinct box style for each individual plot residing within a multi-panel layout. This granular customization capability is immensely valuable when the primary goal is to visually differentiate between various types of data displays, strategically highlight specific analytical findings, or systematically explore diverse aesthetic presentations to determine the most visually impactful design for the audience. The implementation methodology involves executing the par()(bty=…) command immediately preceding each separate call to the plot() function, thereby momentarily setting the graphical parameter specifically and exclusively for the single plot being generated next.

The following refined code block meticulously illustrates this precision control over the plotting environment. We maintain the previously established 3×2 grid structure and proceed to generate six distinct scatterplots. However, in this iteration, each plot is explicitly assigned one of the six available bty options in sequence. For maximum clarity and immediate visual comparison, we have incorporated a descriptive main title into every plot. This title unambiguously labels the specific bty option applied (‘o’, ‘n’, ‘7’, ‘L’, ‘C’, or ‘U’), allowing viewers and analysts to instantly correlate the input code with the resulting visual differences in border structure and style.

# Define the plot area as a grid with three rows and two columns
par(mfrow = c(3, 2))

# Create six plots with unique box styles
par(bty='o')
plot(1:5, pch=19, col='red', main='Complete Box')

par(bty='n')
plot(1:10, pch=19, col='blue', main='No Box')

par(bty='7')
plot(1:20, pch=19, col='green', main='Top and Right')

par(bty='L')
plot(1:5, pch=19, col='purple', main='Bottom and Left')

par(bty='C')
plot(1:10, pch=19, col='black', main='Top, Left, Bottom')

par(bty='U')
plot(1:20, pch=19, col='pink', main='Left, Bottom, Right')

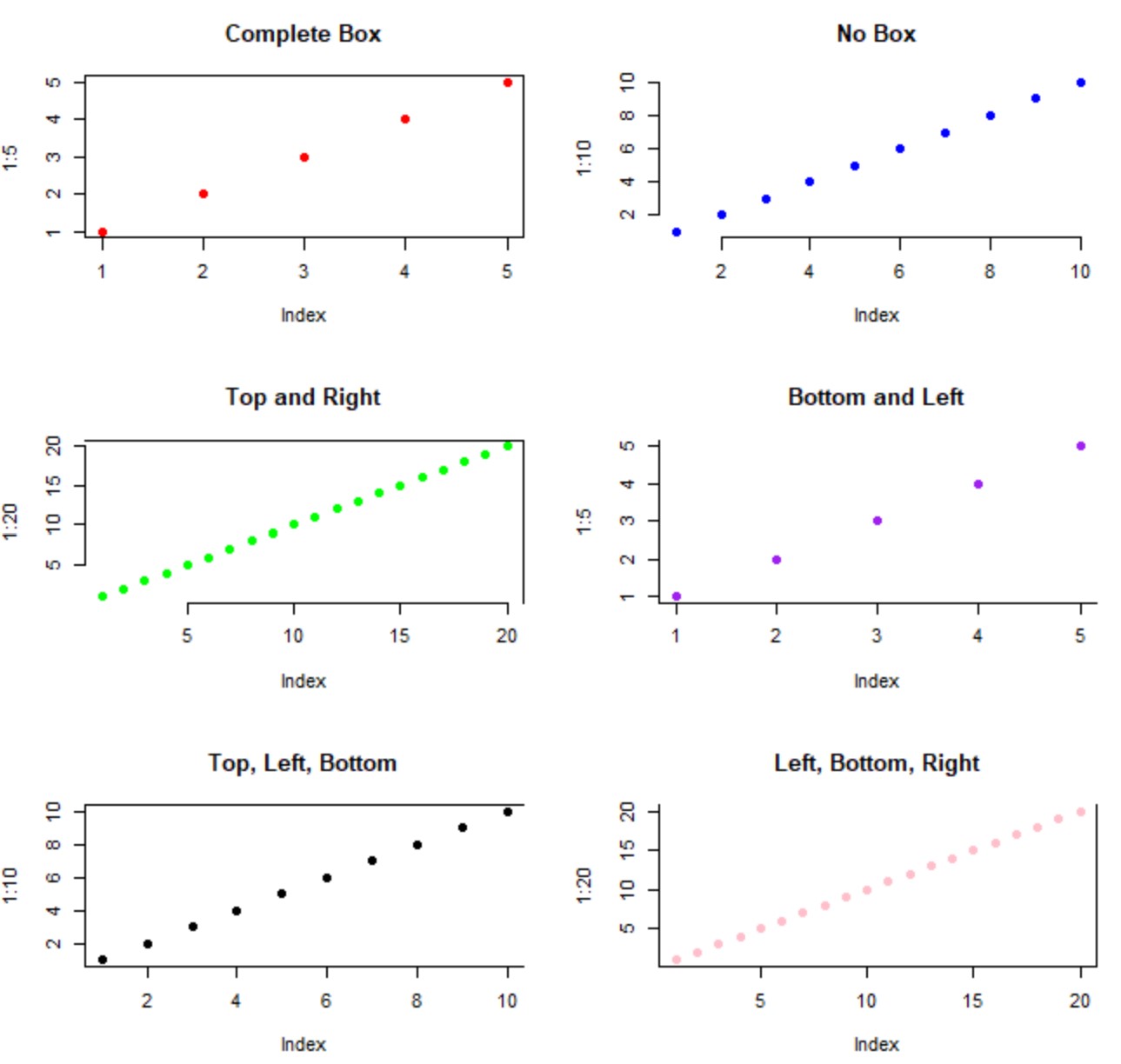

The resultant visual output definitively confirms that each of the six plots now exhibits a distinctly different box style, precisely aligning with the respective bty option that was specified immediately prior to its execution. This highly dynamic, side-by-side comparative demonstration clearly emphasizes the profound power of fine-tuning graphical parameters within the R programming language. By selectively manipulating the border types on a per-plot basis, users can effectively tailor the visual narrative of each individual data element, significantly enhancing its impact and ensuring its perfect alignment with overarching analytical goals or highly specific design requirements of the project. This inherent capacity for plot-by-plot customization is an indispensable and advanced tool for creating highly professional, visually compelling, and analytically accurate data reports.

Applying Global Box Styles for Consistent Visual Aesthetics

While the capability to set individual bty values offers critical granular control, the vast majority of substantial analytical projects necessitate and demand stringent visual consistency across all generated plots within a defined graphical device. Manually repeating the par()(bty=…) command before every single plot() call can rapidly evolve into a cumbersome, repetitive, and highly error-prone process, especially when working with production pipelines involving dozens or hundreds of charts. Fortunately, R provides a much more efficient, elegant, and maintainable solution: defining a global bty setting directly within the initial par() function call that is responsible for establishing the multi-plot layout. This method guarantees complete visual uniformity and dramatically simplifies the underlying code base, enhancing both its readability and long-term maintenance efficiency.

By strategically integrating the bty argument alongside other foundational parameters, such as the mfrow directive (which governs the structural grid dimensions), you effectively establish a global default box style that will override R’s internal standard. This singular setting is then applied uniformly to all subsequent plots drawn on that specific graphical device. This global application remains active and consistent until the parameter is either explicitly modified later in the script or the entire graphical device is completely reset. This feature is particularly crucial when compiling a continuous series of related plots destined for a unified report or a formalized presentation, where maintaining a cohesive visual theme is of paramount importance to the audience’s comprehensive understanding and trust in the data integrity.

Consider the following highly concise and effective code snippet. In this single, powerful command, we simultaneously instruct R to define the plot area as a 3×2 grid structure and to globally enforce the ‘L’ box style (which draws borders exclusively on the bottom and left sides) across every plot that is subsequently created within this defined layout. This unparalleled efficiency allows a single line of foundational code to dictate the border appearance for all future plots, radically streamlining the entire process of achieving a unified and sophisticated visual design without requiring redundant, plot-specific styling declarations.

# Define plot area as three rows and two columns, and use bottom+left box style for each plot
par(mfrow = c(3, 2), bty='L')

If an analyst were to execute the identical sequence of six plot() commands from the previous demonstration immediately following this global definition, all resulting scatterplots would uniformly feature only the bottom and left borders, regardless of any implicit settings. This outcome powerfully illustrates both the efficiency and the inherent elegance of setting foundational graphical parameters globally. This technique not only minimizes potential code complexity but also guarantees that all visualizations adhere strictly and consistently to a chosen aesthetic, enabling developers to allocate significantly more focus to accurate data interpretation and significantly less time managing repetitive styling commands.

Conclusion: Leveraging ‘bty’ for Professional R Graphics

Achieving true proficiency in managing the nuances of graphical parameters within the R programming language, particularly specialized options like bty embedded within the foundational par() function, is an absolutely crucial step for analysts aiming to generate professional-grade and highly impactful data visualizations. The explicit capability to precisely dictate the border style of your plots unlocks significant aesthetic customization potential, allowing you to seamlessly adapt your graphics to strict publication requirements, diverse target audiences, or specific corporate branding guidelines. Whether your project demands the authoritative look of a traditional full frame (‘o’), the modern simplicity of a minimalist approach (‘n’), or the intriguing structure of an asymmetrical border (‘7’ or ‘L’), the bty option provides the necessary control to achieve the exact desired visual outcome that reinforces the data’s message.

When initiating a critical design decision regarding the appropriate bty style, always take into careful consideration the overall context in which the visualization will ultimately be consumed by the audience. For formal, standalone reports or journal submissions, a complete box (‘o’) often successfully conveys a strong sense of structure, completeness, and undeniable data authority. Conversely, for graphics specifically intended to be smoothly embedded within a website or a document that already possesses a strong internal visual framework, the ‘n’ (no box) option helps the plot integrate effortlessly without visually competing or adding unnecessary visual noise. Asymmetrical choices such as ‘7’ or ‘L’ can be strategically employed to introduce dynamic visual interest or to subtly guide the viewer’s immediate attention along the most critical axes. Iterative experimentation and testing across different audiences remains the best and most reliable practice for discovering the most effective and communicative visual presentation for your specific dataset.

Beyond the fundamental control offered by bty, the powerful par() function encompasses a rich and extensive variety of other integrated parameters that are essential for any advanced user to explore. These include options for meticulously fine-tuning plot margins, precisely controlling text and title sizes, and defining specific color palettes and line types. Developing a robust, foundational understanding of these integrated graphical parameters will dramatically enhance your capacity to generate truly high-quality, articulate, and analytically sound plots in R. Always maintain clarity, factual accuracy, and visual simplicity as your highest priorities in visualization design, ensuring that every deliberate design choice, including the chosen box style, actively supports and amplifies the data’s core narrative rather than distracting from its essential message.
