Learning R: A Comprehensive Guide to Scaling Plot Elements with the `cex` Command

Mastering Scaling: The Introduction to the cex Family in R Plots

When generating high-quality visualizations using the powerful base graphics system in R, achieving optimal clarity and impact relies heavily on the precise scaling of graphical components. The family of arguments revolving around cex (character expansion) provides the essential tools needed to fine-tune the relative size of nearly every element within your plot. This capability is paramount for creating compelling data visualization that effectively communicates complex data relationships to an audience, whether in a detailed report or a large-format presentation. Understanding the mechanics of cex is a cornerstone skill for reproducible, publication-ready graphing in R.

The fundamental cex argument, typically utilized within core plotting functions like the ubiquitous plot() function, manages the size of plotting symbols and general text elements relative to their default dimensions. This sizing mechanism operates on a multiplicative scale, where the adjustment factor directly modifies the base size. By default, R assigns a value of 1 to cex, which represents the standard, unscaled size of the element. Any positive numerical adjustment to this factor directly scales the element proportionally.

This scaling is highly intuitive and provides immediate visual feedback. For instance, if you aim to significantly emphasize your data points, setting cex to a value of 2.5 will increase the size of the targeted elements to two and a half times their original dimensions. Conversely, for situations requiring a minimal visual footprint, specifying a value like 0.33 will drastically reduce the size, rendering the elements only one-third of their standard scale. This simple, multiplicative factor allows data scientists and analysts to quickly experiment with different visual weights, ensuring that the final plot achieves the perfect balance and readability required for the specific analytical context.

Granular Control: Deconstructing the cex Family of Arguments

While the general cex argument offers broad control over plot symbols, the true power of R’s base graphics system lies in its ability to offer distinct, specialized arguments for specific text and graphical components. This set of specialized cex arguments allows for the independent adjustment of text sizes, enabling the creation of a sophisticated and clear visual hierarchy within the plot area. Mastering these individual controls is crucial for designing professional plots where every element serves its intended purpose without visually competing or overshadowing the underlying data.

The specialized arguments ensure that the main narrative—the visualization of the data points—is prioritized, while supporting elements, such as axis labels and titles, remain perfectly legible and appropriately prominent. For example, in a plot intended for a large lecture hall, you might need the main title to be substantially large, but the axis tick marks only moderately increased. Without the specialized cex arguments, achieving this precise differentiation would be impossible, forcing a suboptimal compromise between element prominence and overall plot density.

The following list details the core members of the cex family, outlining their specific targets and crucial roles in plot customization, allowing for fine-grained control over the visual presentation:

• cex: This serves as the primary and default scaling factor, specifically governing the size of plotting symbols—such as the points in a scatterplot or the markers used in a line chart. It applies a uniform scaling factor to all symbol types unless overridden by other specific parameters.
• cex.axis: Dedicated solely to modifying the size of the numerical or categorical text annotations that are displayed alongside the axis tick marks. Adjusting this is essential to ensure that the quantitative scale of the data is instantly readable, particularly when the plot is viewed at varying resolutions or projected sizes.
• cex.lab: Responsible for controlling the size of the descriptive x-axis and y-axis labels (the text explaining the variables). Since these labels define the variables being plotted, their appropriate sizing is vital for the immediate interpretability of the graphic, ensuring they are clear but not overpowering.
• cex.main: This powerful argument governs the size of the main title placed prominently at the top of the plot. Given that the title is the primary identifier of the visualization, cex.main is used to make the title prominent enough to capture immediate attention and convey the central theme.
• cex.sub: Used to adjust the size of any optional subtitle included below the main plotting area. Subtitles typically provide secondary information, metadata, or source attribution, and their sizing should be subtle, complementing the main title without competing for visual dominance.

By strategically applying these distinct scaling factors, you gain comprehensive command over the visual flow and hierarchy of your plot. This fine-grained control allows you to intentionally guide the viewer’s eye, ensuring that the most critical components of the data story are highlighted, while maintaining universal readability across all textual elements.

Setting Up Your Data for Visualization

To effectively illustrate the practical application and behavioral effects of the cex family of arguments, we must first establish a simple, reproducible dataset within R. For this demonstration, we will construct a standard data frame—the foundational, spreadsheet-like data structure in R—which organizes our raw observations into columns and rows. Our data frame will contain two numeric vectors, arbitrarily named x and y, representing a simple bivariate relationship suitable for plotting.

The process of creating this structure is straightforward, utilizing R’s native data.frame() function to bind the two vectors together. This initial organizational step is indispensable in any data analysis workflow, as it transforms raw numerical sequences into a structured object that R’s various statistical and graphical functions can efficiently process. This preparation ensures that subsequent plotting commands are clean, reproducible, and directly interpretable. The following code snippet details the construction and subsequent inspection of our sample data frame, df.

# Create a sample data frame
df <- data.frame(x=c(1, 2, 2, 4, 5, 3, 5, 8, 12, 10),
                 y=c(5, 9, 12, 14, 14, 13, 10, 6, 15, 18))

# View the created data frame
df

    x  y
1   1  5
2   2  9
3   2 12
4   4 14
5   5 14
6   3 13
7   5 10
8   8  6
9  12 15
10 10 18

This resulting data frame, df, now holds 10 paired observations, comprising the raw material ready for graphical analysis. By visualizing these points, we can begin to assess any potential correlation or pattern between the x and y variables. This structured preparation ensures that the subsequent plotting commands are clean, reproducible, and directly interpretable, laying the groundwork for an effective graphical demonstration of the cex parameters.

Creating the Baseline Plot and Understanding pch

With the data successfully structured within the df data frame, the logical next step is to generate a preliminary visual representation. A scatterplot is the ideal choice for this task, as it clearly visualizes the relationship and distribution between two continuous numerical variables. Using the foundational base graphics plot() function in R, we can quickly map our x and y data points onto a two-dimensional plane, establishing our baseline visualization before any specialized scaling modifications are applied.

The R code below executes the creation of this basic scatterplot. We specify the x-coordinates using df$x and the y-coordinates using df$y. Crucially, we introduce two additional arguments: main, which provides a concise title for the plot, and pch, which dictates the type of symbol used for plotting each individual data point. This combination provides a standard, unscaled view of the data distribution, allowing us to observe R’s default sizing behavior.

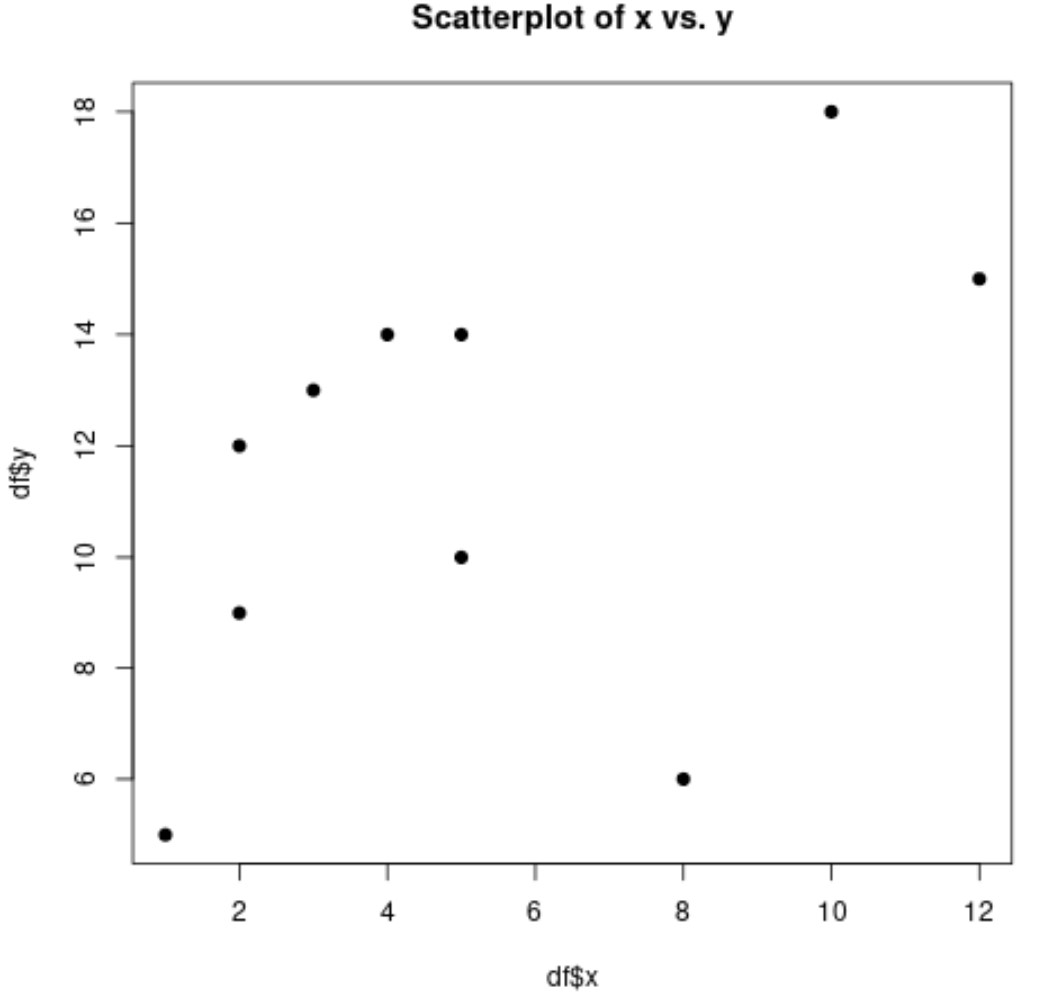

# Create a basic scatterplot of x versus y
plot(df$x, df$y, pch=19, main='Scatterplot of x vs. y')

It is important to elaborate on the role of the pch=19 argument. pch stands for “plot character,” and it is used to select from R’s wide repertoire of plotting symbols. The value 19 specifically corresponds to a solid, filled-in circle, which is often preferred for its high visibility and clean aesthetic. By setting pch, we determine the inherent shape of the data element; subsequently, the cex argument will then control the scale of that chosen shape. This distinction is vital for customization: pch defines the shape, and cex defines the size. In this initial plot, since no cex argument is explicitly defined, all symbols and text elements are rendered at the default scale factor of 1.

Advanced Customization with cex Arguments

While the default graphic provides an accurate statistical representation of the data, the unscaled elements may not meet the aesthetic or readability demands of a formal presentation or academic publication. In the default configuration, all symbols and text elements in an R plot are rendered using a cex factor of 1. To truly enhance the visual communication and establish a clear visual hierarchy, we must strategically deploy the specialized scaling parameters introduced earlier.

The subsequent modification of our baseline scatterplot demonstrates the indispensable utility of the specialized cex arguments. By integrating these arguments directly into the plot() function call, we can achieve precise, independent scaling for each type of component—from the central data points themselves to the surrounding axis annotations. This is the critical stage where the visualization is transformed from a basic output into a carefully designed graphic optimized for clarity, emphasis, and professional appearance.

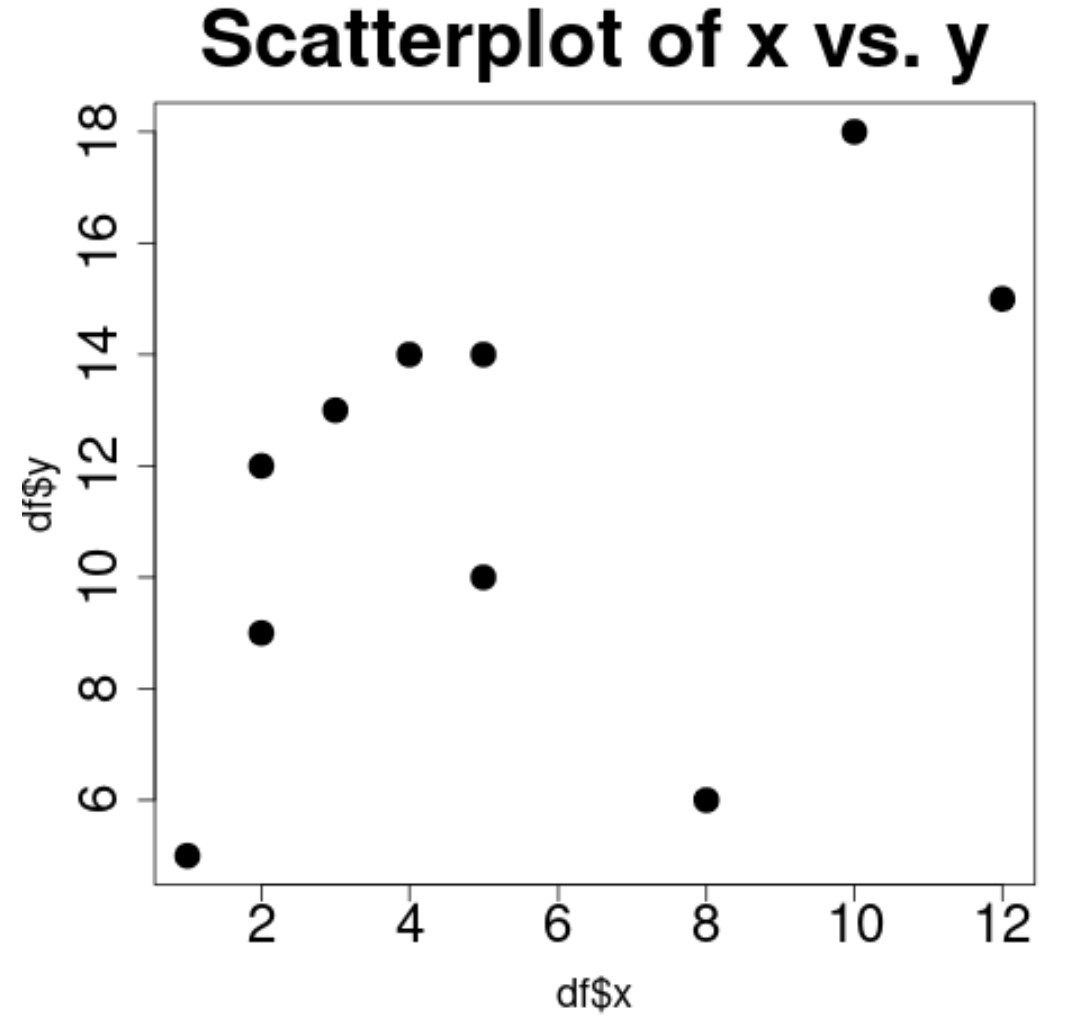

# Create a scatterplot with custom symbol and text sizes
plot(df$x, df$y, pch=19, main='Scatterplot of x vs. y',
     cex=2, cex.main=3, cex.lab=1.5, cex.axis=2)

Analyzing the impact of the newly introduced scaling factors clearly reveals the strategic decisions made in this advanced customization, establishing a definitive visual hierarchy:

• cex=2: The size of the data points is now doubled. This significant increase ensures that the actual observed data receives maximal visual attention, which is particularly useful when presenting results on a projected screen where smaller points might be overlooked.
• cex.main=3: The plot’s main title has been tripled in size, making it the most dominant text element. This strong scaling guarantees that the plot’s subject matter is immediately identified by the viewer, establishing the visual theme emphatically and ensuring maximum prominence.
• cex.lab=1.5: The labels for the X and Y axes were moderately increased by 1.5 times. This ensures that the descriptions of the variables are perfectly readable and larger than the defaults, but critically, they do not compete with the oversized main title or the central data points.
• cex.axis=2: The numerical values displayed along the axis tick marks were doubled. This enhancement is crucial for quickly and accurately reading the underlying quantitative scales of the plot, which is particularly helpful when precision in scale interpretation is necessary for the audience.

This demonstration clearly shows how the precise application of the cex family enables a designer to control the narrative flow and visual weight of a plot, moving far beyond R’s unscaled defaults to create truly impactful data visualization.

Establishing Visual Hierarchy and Best Practices for Plot Sizing

Effective data visualization is fundamentally about visual storytelling, and the careful use of the cex arguments in R is key to ensuring that the narrative is told clearly and persuasively. The primary objective is not simply to make elements bigger, but to use size contrast as a strategic tool for establishing a clear visual hierarchy. This means that the most important elements (the data) should be the most visually prominent, while supporting elements (labels and axes) must remain legible without becoming distracting.

A critical best practice is to always consider the final output context of the visualization. A chart destined for a high-resolution printed academic journal requires vastly different scaling than a chart designed for a presentation slide viewed from the back of a large auditorium. For presentations, larger cex values (e.g., 2.5 or 3 for titles) are often necessary to guarantee legibility at a distance. Conversely, for detailed print figures where space is limited, subtle scaling (e.g., 1.1 or 1.2) may be sufficient, preventing the plot from becoming overcrowded or visually dominant on the page. Always render and review your plot in its intended final format to rigorously test its readability and aesthetic impact.

Furthermore, analysts must avoid the temptation to scale every element equally or excessively. Overly large symbols or text, resulting from high cex values applied uniformly, can lead to visual clutter, where data points overlap or text elements consume too much of the plotting area, rendering the graphic unprofessional and difficult to interpret. Instead, utilize size contrast strategically. Emphasize the primary data with a slightly higher cex, while keeping axis labels and tick marks at a size that confirms the scale without distracting from the main trend being illustrated. Continuous experimentation and an iterative approach—adjusting scaling factors, re-plotting, and reviewing—are essential steps for achieving the professional, balanced visual presentation that accurately reflects the quality of your underlying analysis.

Summary and Further Graphical Control

The mastery of the cex family of arguments—including cex, cex.axis, cex.lab, cex.main, and cex.sub—is a fundamental component of effective data visualization in R’s base graphics system. By leveraging these precise controls, analysts can move beyond generic, default plots and produce graphics that are not only statistically accurate but also highly optimized for visual clarity and professional impact. This specialized ability to manipulate the scale of different plot elements independently ensures that the data’s message is communicated clearly and efficiently to any viewer, regardless of the output medium.

Remember that plotting is both an artistic and scientific endeavor. The optimal cex settings are rarely absolute; they depend heavily on the specific characteristics of the dataset, the chosen plot type, and the ultimate viewing environment. We strongly encourage continuous practice and modification of these parameters. Beyond character expansion, R’s base graphics system offers a vast array of other graphical parameters (e.g., line thickness, colors, margins, font families) that can be combined with cex to achieve even greater customization and polish in your professional graphics, enhancing every layer of the visualization.
