Learning Poisson Distribution Visualization with R: A Step-by-Step Tutorial

Understanding the Poisson Distribution and Visualization in R

The Poisson distribution is a cornerstone of statistical modeling, frequently employed when analyzing the count of events occurring within a fixed span of time or space. Its application relies on the assumption that these events happen at a known, constant mean rate and are independent of previous occurrences. This distribution is indispensable across diverse fields, including actuarial science, quality control, and epidemiology, enabling researchers to calculate the likelihood of observing a specific number of rare events. A critical characteristic to grasp before proceeding to visualization is that the Poisson distribution is inherently a discrete probability distribution. This means the variable can only take on countable, non-negative integer values (0, 1, 2, …).

The entirety of the distribution’s shape is dictated by a single, powerful parameter: lambda ($lambda$). This parameter represents the average rate of occurrence, or the expected number of events within the defined interval. Visualizing a probability distribution is arguably the most effective method for dissecting its properties, particularly how probabilities are dispersed across all potential outcomes. For the Poisson case, our goal is to graphically represent the probability mass function (PMF), which rigorously assigns a specific probability to every possible discrete outcome.

Leveraging the R statistical software environment simplifies this complex process significantly. R offers a comprehensive suite of built-in functions tailored specifically for manipulating and plotting probability distributions, making the visualization both efficient and highly customizable. By transforming numerical probabilities into a graphical format, we gain immediate insight into the distribution’s central tendency, identify the most likely counts, and observe the inherent skewness—a feature particularly noticeable when the lambda value is small. The subsequent sections will detail the precise R commands required to generate, refine, and accurately interpret these crucial statistical plots.

Core R Functions for Calculating the Probability Mass Function

Successfully generating a visualization of the Poisson PMF relies entirely on two fundamental R functions provided within the base installation. These functions manage both the essential statistical calculations—determining the probability values—and the subsequent graphical rendering of the data points. For accurate modeling, users must pay close attention to the input requirements, particularly how the rate parameter lambda shapes the resulting probability curve. Specifying the correct lambda value, which defines the average rate of occurrence for the modeled context, is paramount.

The first and most critical function is the density function for the Poisson distribution: dpois(x, lambda). This function is designed to calculate the exact probability $P(X=x)$ for a given outcome $x$ (the observed number of events) based on the expected rate $lambda$. For plotting, the input parameter x is typically provided as a vector of integers, representing the full range of outcomes we wish to visualize (e.g., from 0 up to 20). When dpois() receives this vector, it returns a corresponding vector of probabilities. These calculated probabilities constitute the necessary data points for the y-axis of our plot, effectively applying the mathematical definition of the Poisson distribution.

Once the probabilities have been calculated, the second essential function comes into play: plot(x, y, type = ‘h’). This is R’s versatile generic plotting function. While plot() can create various graphs, we specifically utilize the argument type = 'h'. The ‘h’ designates a “histogram-like” style, drawing distinct vertical lines from the data points down to the x-axis. This discrete visualization style is the standard and most appropriate method for displaying the PMF, clearly indicating that probability mass exists only at integer values. In this function call, the x argument corresponds to the sequence of event counts (the outcomes), and the y argument corresponds to the probabilities derived from the dpois() calculation.

To summarize, the visualization of the Poisson PMF in R relies on a two-step process using these built-in functions:

• dpois(x, lambda): Used to calculate the discrete probability values for specific outcomes ($x$) given the rate parameter (lambda).
• plot(x, y, type = ‘h’): Used to render the calculated probabilities into a discrete, histogram-like visualization by setting the plot type to 'h'.

Generating the Foundational PMF Plot (Lambda = 5)

The first practical step in creating the visualization is defining the scope of the distribution. Since the Poisson distribution theoretically extends to infinity, we must establish a practical and reasonable range for the number of events, or “successes,” to be represented on the x-axis. Best practice suggests selecting a range that comfortably encompasses the mean ($lambda$) and extends several standard deviations outward, ensuring that the probability tails—where values become statistically negligible—are fully included. For this foundational example, we will model a Poisson distribution where the average rate of occurrence, lambda, is fixed at 5. This parameter value governs the entirety of our subsequent calculations.

We define the range of potential outcomes (successes) as the integers from 0 up to 20. This range is more than sufficient, as the probability of observing 20 events when the mean is 5 is exceedingly small. This sequence of integers is stored in an R vector named success. We then input this vector into the dpois() function, paired with the argument lambda=5. The output vector from dpois() provides the heights of the bars (the calculated probabilities), while the success vector dictates their positions on the horizontal axis. This simple R command sequence encapsulates powerful statistical computation, instantly yielding all necessary probability values.

The final command invokes the plot() function, merging the defined range and the resultant probabilities. It is essential to include type='h' to correctly illustrate the discrete nature of the PMF. This basic plotting technique provides an immediate, clear visual representation of the distribution. We can quickly observe that the peak probability is centered precisely at or near the mean value of 5, and the distribution demonstrates a rapid decay in likelihood as counts move away from the center. The code snippet below demonstrates this foundational visualization approach:

The following code generates the basic plot for a Poisson distribution with lambda = 5:

# Define range of "successes" (x-axis values)
success <- 0:20

# Create plot of probability mass function (y-axis is dpois output)
plot(success, dpois(success, lambda=5), type='h')

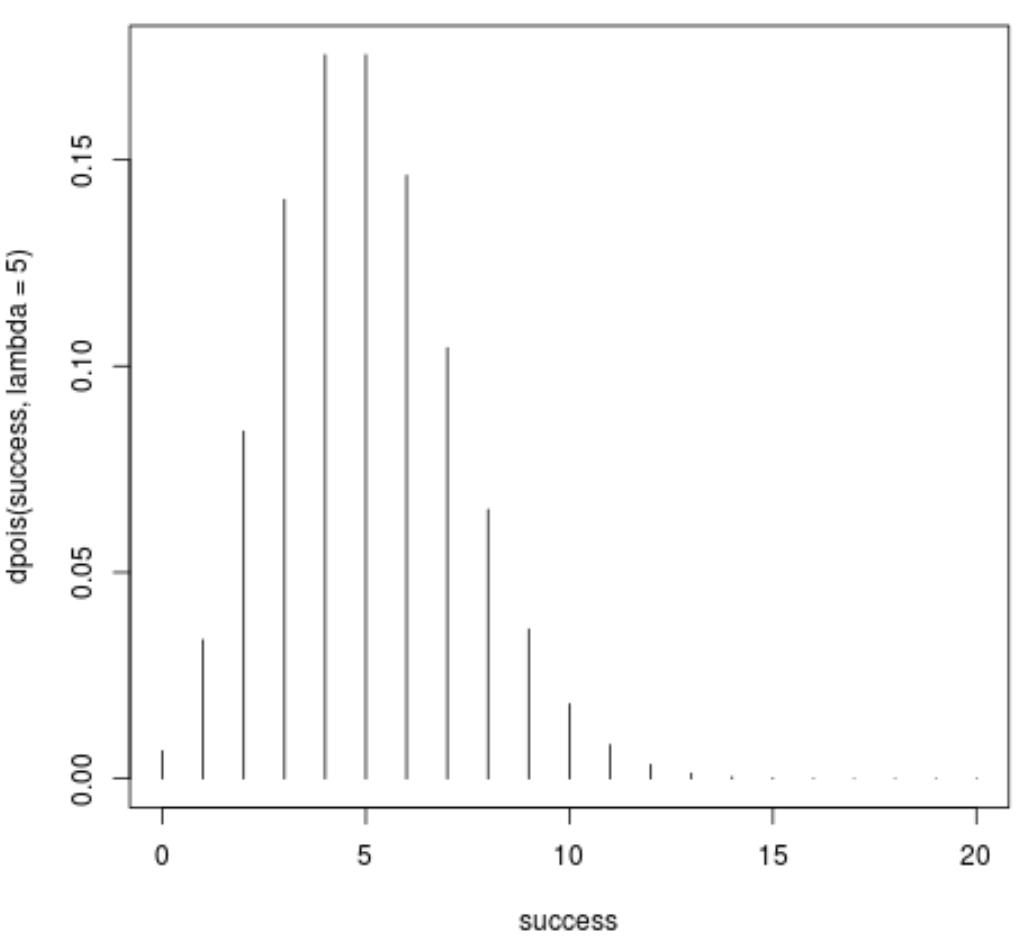

The resulting plot clearly showcases the distribution’s central tendency and spread. The x-axis represents the possible count of events, or “successes,” while the y-axis corresponds to the probability of achieving that exact count given the average rate lambda = 5. As anticipated, the highest probability bar is located at $X=5$.

Enhancing Plot Aesthetics and Readability

While the initial plot accurately conveys the shape of the Poisson distribution, it typically lacks the professional polish required for formal reports, publications, or presentations. Base R plots often utilize generic axis labels (e.g., “success” and “dpois(success, lambda=5)”) and minimal visual styling. To elevate the plot’s clarity and aesthetic quality significantly, we must integrate several standard graphical parameters directly within the plot() function call. R’s base graphics system provides extensive control over titles, axis labels, and visual attributes such as line thickness.

We will strategically employ several arguments: First, the main argument is used to add a descriptive title, which is crucial for contextual clarity. This title should explicitly state that the plot depicts a Poisson Distribution and specify the critical $lambda$ value used. Second, the xlab and ylab arguments replace the ambiguous default names with meaningful descriptions, such as ‘Number of Successes’ and ‘Probability,’ ensuring immediate understanding of the axes. Finally, to enhance the visual impact of this discrete graph, we utilize the lwd argument (line width) to make the vertical lines thicker and more prominent against the background.

Incorporating these aesthetic enhancements transforms the visualization from a raw data output into a polished, informative graphic. Clear labeling and a precise title eliminate potential ambiguity and facilitate rapid, accurate interpretation by the audience. This ability to customize graphical elements is a key strength of R’s plotting capabilities, allowing for tailored outputs suitable for any academic or technical setting. The revised code block below demonstrates how to integrate these parameters into the existing plotting command, yielding a visualization with superior readability and utility:

success <- 0:20

plot(success, dpois(success, lambda=5),
     type='h',
     main='Poisson Distribution (lambda = 5)',
     ylab='Probability',
     xlab ='# Successes',
     lwd=3)

This improved plot now features a professional title, correctly labeled axes, and visually impactful lines, substantially increasing its overall readability and utility. This enhanced visualization is now ready for direct inclusion in technical documentation or academic papers, providing both statistical accuracy and visual appeal.

Extracting and Interpreting the Raw Numerical Probabilities

While a graphical representation provides an excellent qualitative overview of the distribution’s shape and characteristics, detailed statistical analysis, precise reporting, or formal hypothesis testing often necessitates the exact numerical probabilities. The underlying data used to construct the plot is, in fact, the raw output of the dpois() function—the numerical probability mass function itself. Retrieving and examining these values allows for a precise understanding of the likelihood associated with every specific outcome.

Before initiating the probability calculation and display, a crucial housekeeping step within the R environment involves managing scientific notation. By default, R frequently uses scientific notation (e.g., $e-03$) to represent very small probabilities. Although mathematically correct, this format can sometimes obscure immediate readability and comparison, especially when analyzing a long sequence of probability values. By executing the command options(scipen=999), we override R’s default behavior, instructing the system to prioritize fixed decimal notation. This ensures that all output probabilities are displayed as long, easily comparable decimal strings, dramatically improving the clarity of the numerical results.

The code sequence for obtaining the raw probabilities is highly efficient: define the range of successes, suppress scientific notation, and execute the dpois() function. The resulting vector provides the exact probability corresponding to each integer outcome in the defined range. For instance, the first value listed is $P(X=0)$, the second is $P(X=1)$, and so forth. Analyzing this numerical data confirms the visual observations from the plot, revealing that $P(X=4)$ and $P(X=5)$ are the highest probabilities, perfectly consistent with the specified mean $lambda=5$.

The following code obtains the actual numerical probabilities for each number of successes shown in the plot, providing the precise values of the probability mass function:

# Prevent R from displaying numbers in scientific notation
options(scipen=999)

# Define range of successes
success <- 0:20

# Display probability of success for each number of trials
dpois(success, lambda=5)

[1] 0.0067379469991 0.0336897349954 0.0842243374886 0.1403738958143
[5] 0.1754673697679 0.1754673697679 0.1462228081399 0.1044448629571
[9] 0.0652780393482 0.0362655774156 0.0181327887078 0.0082421766854
[13] 0.0034342402856 0.0013208616483 0.0004717363030 0.0001572454343
[17] 0.0000491391982 0.0000144527054 0.0000040146404 0.0000010564843
[21] 0.0000002641211

This numerical output conclusively confirms the visual evidence: the two highest probabilities are associated with $X=4$ and $X=5$, both registering a probability of approximately 0.1755. This observation highlights a key feature of the Poisson distribution: when the parameter $lambda$ is an integer, the probabilities for $X=lambda$ and $X=lambda-1$ are often identical or extremely similar. Mastering the ability to both visualize and numerically extract these probabilities provides a comprehensive and powerful toolkit for working with the Poisson distribution in R.
