Learning Weibull Distributions with R: A Comprehensive Tutorial

Understanding the Weibull Distribution and R’s Core Functions

The Weibull distribution stands as a cornerstone in statistical modeling, recognized as a highly versatile continuous probability distribution. Its primary applications span crucial quantitative fields, including reliability engineering, survival analysis, and extreme value theory. This distribution’s exceptional flexibility stems from its dependence on two core parameters, which enable it to accurately model a vast spectrum of failure rate behaviors. This capability makes the Weibull distribution indispensable for tasks like forecasting product lifespan or rigorously analyzing statistical data where inherent skewness is present. To truly grasp how variations in the defining parameters impact the distribution’s characteristics, practitioners must visually plot its Probability Density Function (PDF) using powerful statistical environments such as R.

Effectively generating a graphical visualization of the distribution’s Probability Density Function in R necessitates the utilization of specialized built-in functions. These functions are explicitly designed to handle complex statistical calculations and manage the subsequent graphical output. Specifically, the process relies on a powerful combination of tools: one function dedicated to the underlying mathematical calculation of density values, and another responsible for coordinating the graphical plotting process. Mastering the interaction and syntax of these foundational tools is the essential first step toward creating accurate, informative, and customized visualizations of this complex distribution.

To successfully plot the PDF for any Weibull distribution, we integrate two primary functions provided by R’s base statistics and graphics packages. The first function serves as the computational engine, calculating precise density values based on the input parameters. The second is a general-purpose utility within R‘s graphics system, designed to evaluate and draw mathematical expressions across a user-defined range of values. Understanding the unique role and syntax of each function is crucial not only for initial plotting but also for subsequent customization and sophisticated analysis.

• dweibull(x, shape, scale = 1): This function is used to calculate the probability density at a specific point x for the specified Weibull distribution. It is the core mathematical component that generates the vertical (density) values necessary to define the curve’s height. The mandatory parameters shape and scale are used to precisely define the characteristics of the distribution being plotted.
• curve(function, from = NULL, to = NULL): This versatile graphical function is utilized to plot expressions, particularly functions that depend on x. When plotting the PDF, we embed the dweibull function call within curve(). This requires clearly specifying the mathematical expression itself (the dweibull command) along with defining the start (from) and end (to) values, which set the horizontal boundaries for the plot’s x-axis range.

Generating the Basic Probability Density Function Plot

Initiating the plotting procedure requires the user to define specific numerical values for the two foundational parameters that govern the Weibull distribution: the shape parameter (conventionally denoted as k or β) and the scale parameter (often denoted as λ). The shape parameter exerts significant control over the curve’s form and skewness, determining whether the distribution approximates an exponential distribution (when shape equals 1) or begins to resemble a normal distribution (when the shape value is approximately 3.4). Conversely, the scale parameter dictates how the distribution is stretched or compressed along the x-axis, fundamentally defining the characteristic life or time scale of the process being analyzed. These essential parameters, combined with the desired visible range for the plot’s x-axis, form the critical inputs for the integrated functionality of dweibull and curve().

To visualize a specific Weibull distribution, for example, one where the shape parameter is set to 2 and the scale parameter is set to 1, we must pass these values directly as arguments into the dweibull function call. Simultaneously, it is imperative that we define the plotting window for the horizontal axis using the from and to arguments within the encompassing curve() function. Setting these limits ensures that the generated graph encompasses the most relevant range of values for observation, thereby preventing the accidental truncation of the curve’s essential features, such as its peak or its tail behavior.

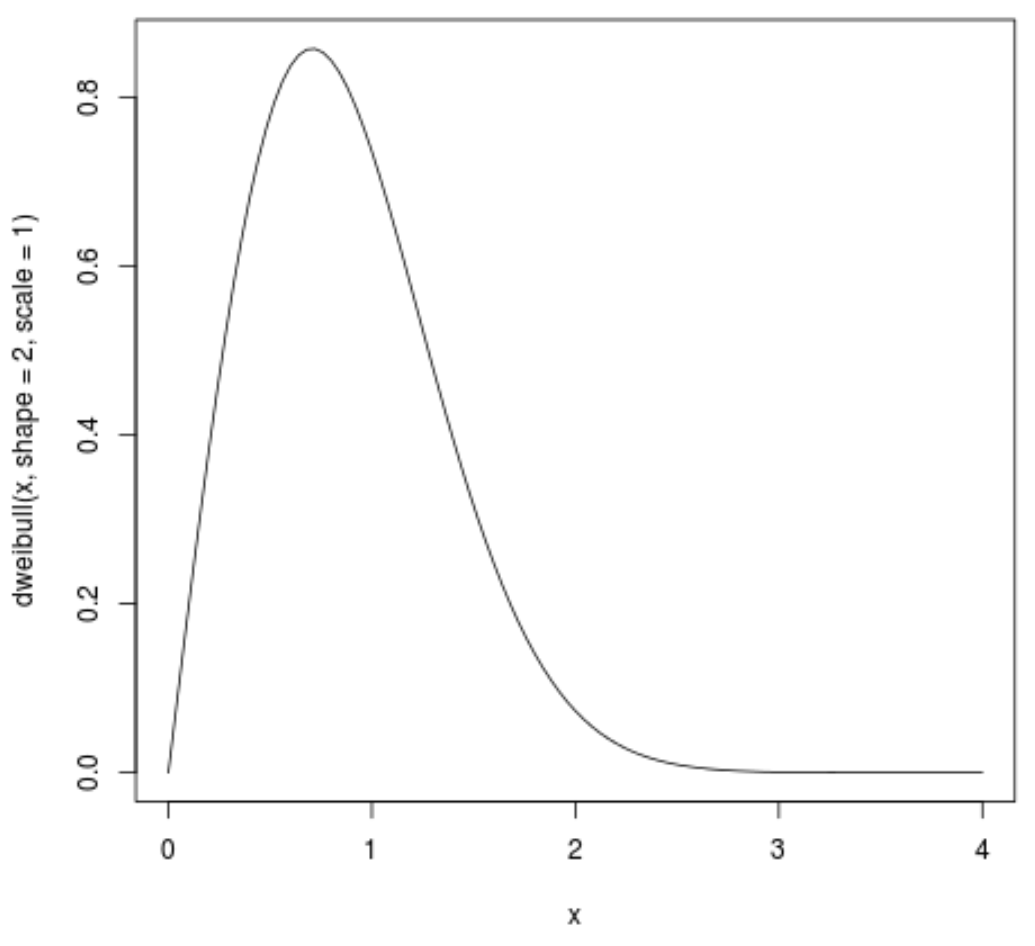

The following concise R code snippet executes the fundamental plotting command. It instructs R to plot the density function corresponding to the specified parameters, restricting the visual scope to x values ranging from 0 to 4. This minimal code is sufficient to generate a simple yet mathematically accurate representation of the distribution’s PDF. It serves as the non-customized foundation upon which more elaborate and professional visualizations are built.

curve(dweibull(x, shape=2, scale = 1), from=0, to=4)

Enhancing Visual Appeal: Customizing Plot Aesthetics

While the basic plot resulting from the initial command is statistically sound, it often lacks the necessary visual clarity and aesthetic sophistication demanded by professional reports, academic papers, or presentations. Fortunately, the curve() function, consistent with R’s base plotting system, supports a multitude of supplementary graphical parameters, frequently referred to as ‘par’ arguments. These optional parameters grant users granular control over virtually every aspect of the plot’s appearance, enabling the transformation of a rudimentary line graph into a polished visual aid that effectively and immediately communicates the underlying data properties. Customization is essential for ensuring plot legibility, differentiating between various data sets, and aligning the visualization with specific institutional or publication style guides.

Key aesthetic enhancements include the addition of a descriptive main title (using the main argument), the clarification of axis labels (such as using ylab to override R’s default function call label), and crucial adjustments to the visual representation of the curve itself. Modifying line characteristics, particularly the thickness (via lwd) and the color (via col), dramatically improves the plot’s visual impact and interpretability. For instance, selecting a distinct color ensures the curve stands out clearly against the background, while increasing the line width (e.g., to 2) guarantees visibility, especially when the plot is subsequently resized or viewed in a printed format. These small, deliberate adjustments collectively yield a visualization that is far more engaging and interpretable than the standard, unformatted R output.

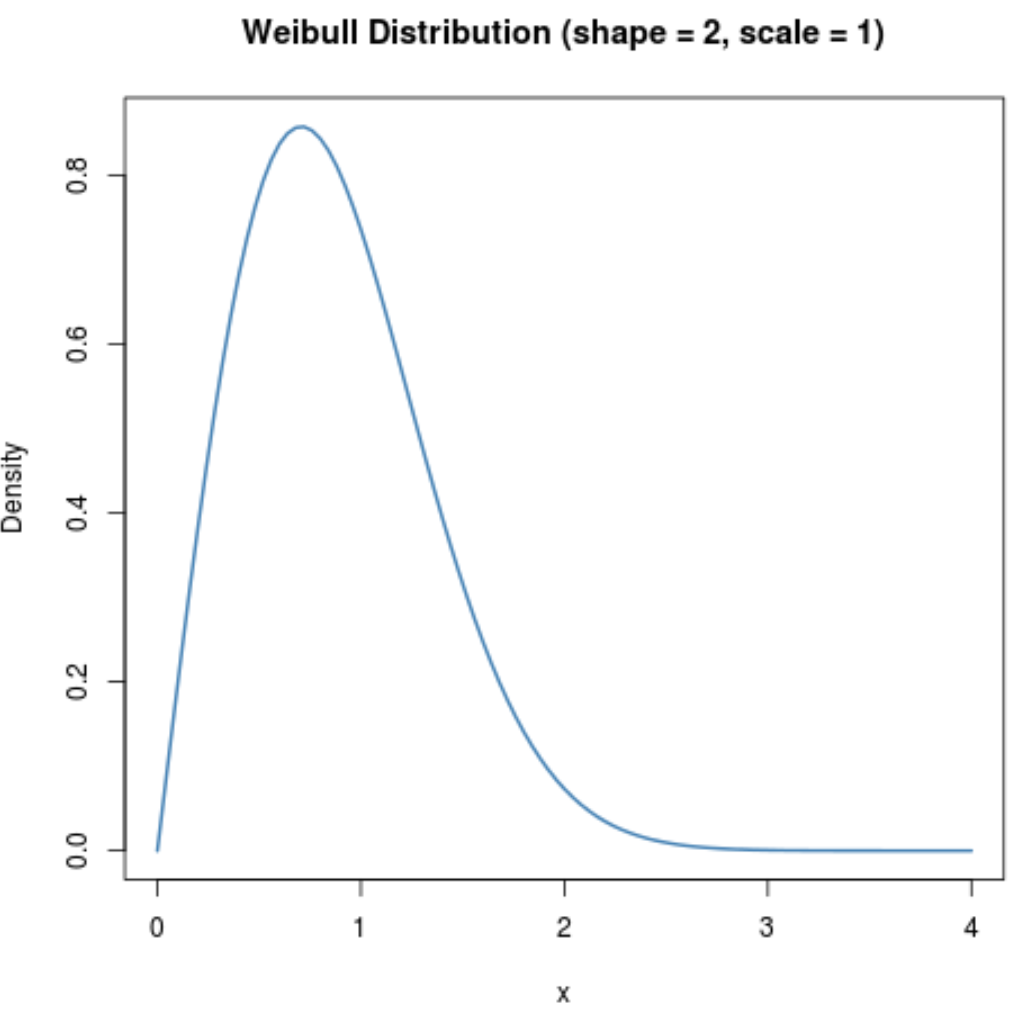

The expanded code provided below demonstrates the implementation of these common graphical modifications. We apply a clear, descriptive title to explicitly state the parameters used for this specific distribution, rename the Y-axis label from the verbose default to a concise ‘Density’, and introduce both an increased line thickness and a modern color choice (‘steelblue’). It is important to note that the comments (indicated by #) included within the R code block serve to explain the purpose of each argument to the reader, though they are ignored during the execution of the function call itself.

curve(dweibull(x, shape=2, scale = 1), from=0, to=4,
    main = 'Weibull Distribution (shape = 2, scale = 1)', #add title
    ylab = 'Density', #change y-axis label
    lwd = 2, #increase line width to 2
    col = 'steelblue') #change line color to steelblue

Comparing Distributions: Plotting Multiple Curves

A crucial and highly valuable application of plotting probability distributions is gaining the ability to visually compare how variations in parameter settings directly influence the curve’s overall behavior. In practical contexts, such as studying component reliability, comparing two distinct distributions—one representing an initial baseline scenario and the other representing a configuration with an improved component—can instantly and powerfully highlight the statistical efficacy of the design change. To execute this visual comparison effectively in R, the first curve is plotted as a standard standalone graph, and then a critical supplementary argument, add = TRUE, is employed when plotting all subsequent curves.

The add = TRUE argument serves a vital function: it explicitly instructs R not to generate a completely new plotting canvas, but rather to draw and overlay the new curve directly onto the existing graphical space. This technique is indispensable for comparison; without it, R would simply overwrite the first distribution with the second, entirely nullifying the purpose of comparative visualization. When overlaying multiple distributions, it becomes mandatory to assign a unique, easily distinguishable color to each curve to guarantee clear visual separation and ease of accurate interpretation. Furthermore, all curves intended for direct comparison must share the exact same defined plotting range (i.e., identical from and to values) to maintain strict consistency and ensure a fair representation within the visualization.

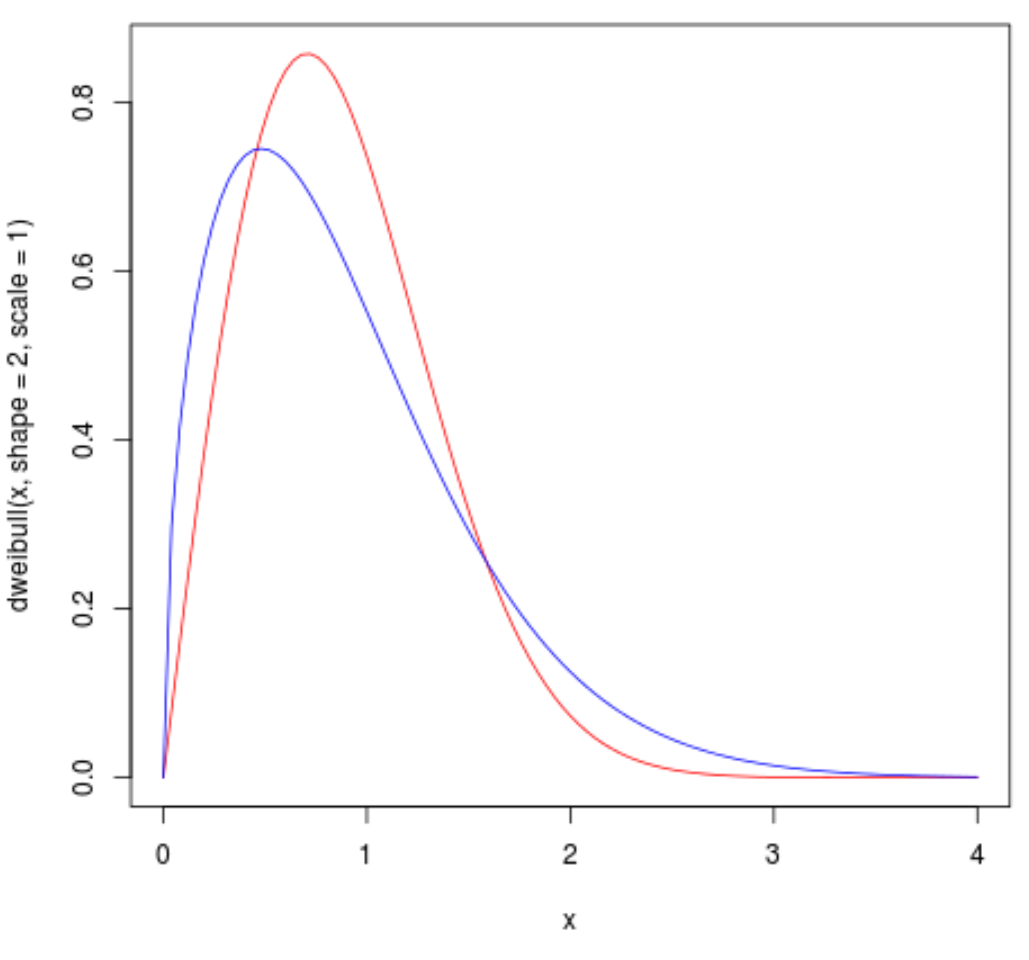

The following example illustrates the process of plotting two distinct Weibull distributions onto the same coordinate plane. The first distribution, shown in red, has a shape parameter of 2, while the second, steeper distribution, shown in blue, has a shape parameter of 1.5. Observe carefully that the initial call to curve() establishes the entire plot area, and the second call critically includes add=TRUE to ensure the overlay occurs correctly. This direct visual comparison immediately reveals how a smaller shape parameter leads to a distribution characterized by a lower peak density and a significantly longer tail.

curve(dweibull(x, shape=2, scale = 1), from=0, to=4, col='red')
curve(dweibull(x, shape=1.5, scale = 1), from=0, to=4, col='blue', add=TRUE)

Interpreting Plots with Legends

When a graph displays multiple curves, simply using distinct colors provides only a partial solution for clarity; without explicit labeling, the viewer cannot reliably associate a specific curve shape with its corresponding underlying parameters. This is precisely why the R function legend() is an indispensable tool. A strategically placed legend acts as a definitive key, mapping the visual elements—such as line colors and styles—directly to the quantitative data they represent (i.e., the specific shape parameter and scale parameter values). The legend() function is exceptionally configurable, affording the user precise control over its exact position, descriptive content, and overall aesthetic appearance.

The syntax for the legend() function requires several precise arguments to accurately define its placement and content. The initial arguments specify the precise coordinates (x and y) where the legend box should begin. Alternatively, for greater ease of placement, common positioning keywords such as “topright,” “bottomleft,” or “center” can often be utilized instead of numerical coordinates. The legend argument is crucial, as it must accept a vector of character strings containing the descriptive text corresponding to each curve. Furthermore, arguments controlling the visual presentation, such such as col (line colors), lty (line type), and lwd (line width), must be provided as vectors that rigorously match the visual properties applied to the actual curves plotted on the graph.

The complete syntax for the legend() function, along with detailed explanations of its most frequently used parameters, is outlined below. Careful management of these parameters is required to ensure the legend is prominent, correctly formatted, and, crucially, does not obscure any critical data points on the plot area.

legend(x, y=NULL, legend, fill, col, bg, lty, cex)

where the primary arguments serve the following purposes:

• x, y: These define the exact coordinates used to establish the legend box’s starting point. If the y coordinate is omitted, the x argument can instead specify a general keyword location (e.g., “topright”).
• legend: This parameter requires a vector of character strings representing the explanatory text that will be displayed adjacent to each line symbol within the legend.
• fill: This is used primarily if the legend is intended to label filled areas (e.g., in bar charts). For standard line plots like the PDF, this argument is typically omitted.
• col: A vector specifying the list of colors corresponding to the lines being described in the legend, which absolutely must match the col arguments used in the curve() function calls.
• bg: Sets the background color for the legend box itself. It is frequently set to “white” to ensure maximum contrast and legibility against the plot area.
• lty: Defines the line style (e.g., solid=1, dashed=2) for the lines displayed in the legend key, matching the visual styles of the plotted curves.
• cex: A numerical value used to scale the size of the text elements contained within the legend box. Values greater than 1 increase the text size proportionally.

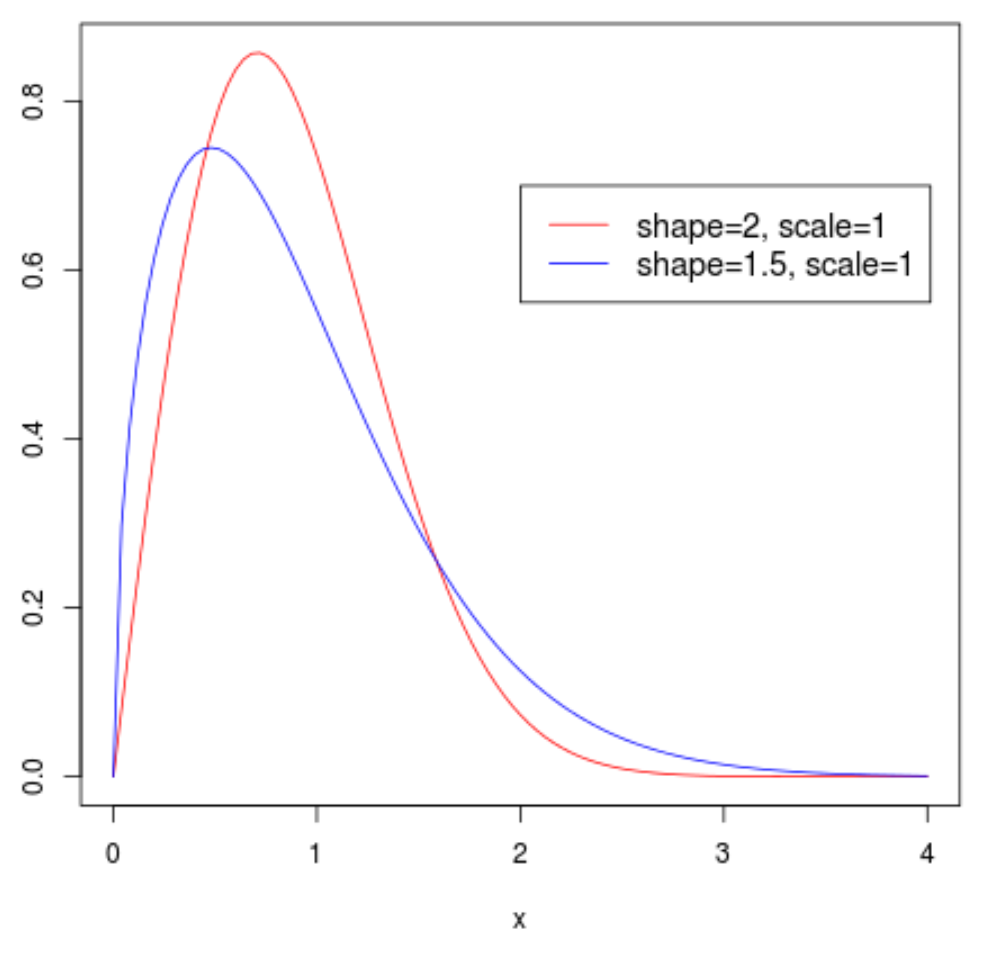

Implementing the legend() function immediately after plotting the two comparative curves provides the final, necessary layer of clarity for a truly professional visualization. The code below first generates the two distinct density plots, and then calls legend(), specifying numerical coordinates (2 on the x-axis, 0.7 on the y-axis) and matching the colors and line types precisely to the data plotted.

#create density plots
curve(dweibull(x, shape=2, scale = 1), from=0, to=4, col='red')
curve(dweibull(x, shape=1.5, scale = 1), from=0, to=4, col='blue', add=TRUE)

#add legend
legend(2, .7, legend=c("shape=2, scale=1", "shape=1.5, scale=1"),
       col=c("red", "blue"), lty=1, cex=1.2)

Advanced Considerations for Weibull Plotting in R

Beyond the fundamental task of plotting the Probability Density Function (PDF), the inherent flexibility of R’s statistical environment and the comprehensive Weibull family of functions enable much deeper statistical visualizations. For instance, researchers frequently require a plot of the Cumulative Distribution Function (CDF), which illustrates the cumulative probability of failure occurring up to a specific time x. This alternative visualization is achieved with minimal effort by substituting the density function dweibull with pweibull (the probability function), while maintaining the familiar curve() framework. Similarly, the quantile function (qweibull) and the random generation function (rweibull) offer other critical statistical perspectives that can be visualized or utilized for advanced simulation purposes, showcasing the powerful completeness of R’s integrated statistical tools.

When applying these techniques to analyze real-world data, selecting the appropriate range defined by the from and to arguments within curve() is critically important. If the chosen range is set too narrowly, the plot risks clipping the essential tails of the distribution, leading to a visualization that is either incomplete or statistically misleading. Conversely, if the range is excessively wide, the curve may appear unnecessarily flattened or compressed, obscuring important details around the peak. Therefore, it is highly beneficial to first calculate and examine the mean and variance of the specific Weibull distribution—which are heavily dependent on the chosen shape parameter and scale parameter—before definitively setting the axis limits. A robust general guideline for distributions defined on positive values is to set the upper limit (to) to approximately three to four times the scale parameter to effectively capture the curve’s essential characteristics without introducing excessive empty space.

In conclusion, the process of generating and customizing Weibull distribution plots in R is straightforward yet immensely powerful, built upon the seamless integration of dweibull and curve(). By mastering the core parameters used for defining the distribution and understanding the versatile graphical parameters available for aesthetic customization, users can consistently create clear, comparative, and professionally presented statistical visualizations suitable for advanced data analysis and robust reporting. The crucial ability to overlay multiple curves and accurately label them using the legend() function elevates raw data visualization into a powerful, explanatory communication tool.
