Learning to Visualize Equations in R: A Step-by-Step Guide

Introduction: The Power of Visualizing Mathematical Models in R

Visualizing mathematical functions is not merely an academic exercise; it is a fundamental pillar of data analysis, scientific research, and engineering. By transforming abstract algebraic relationships into tangible graphical forms, we gain immediate insight into underlying patterns, rates of change, and critical boundary conditions. This visual verification process is essential for understanding complex systems, validating theoretical models, and effectively communicating findings across various disciplines. The R programming language, celebrated globally for its unparalleled capabilities in statistical computing and high-quality graphics generation, offers powerful and flexible tools specifically designed for plotting equations with precision and clarity.

Regardless of whether your work involves modeling the trajectory of a physical object, projecting future economic trends based on mathematical formulas, or simply exploring the behavior of abstract concepts like polynomials or trigonometric waves, the ability to plot these equations is invaluable. Graphical representations bridge the gap between complex numerical calculations and intuitive human comprehension, enabling faster hypothesis generation and more robust conclusions. We transition from reviewing pages of results to observing the shape, slope, and intercept of a curve, providing immediate, actionable insight.

Within R, users typically choose between two highly effective methodologies for visualizing equations. The first relies on the core, built-in Base R graphics system, which is optimized for speed and straightforward use. The second, and increasingly popular, method utilizes the highly acclaimed ggplot2 package, which provides a layered approach based on the elegant Grammar of Graphics philosophy. This guide will meticulously detail both techniques, providing clear, practical examples and best practices to ensure you can confidently and effectively visualize any single-variable equation using R.

The Two Primary Approaches: Base R vs. ggplot2

When considering how to plot mathematical equations in R, the choice between the traditional Base R graphics system and the modern, flexible ggplot2 framework often depends on the required level of customization, the complexity of the visualization, and the user’s preference for syntax. Both systems are robust, but they operate under fundamentally different design philosophies, offering distinct advantages for different plotting scenarios. Understanding these differences is key to optimizing your R workflow and generating the desired visual output efficiently.

The Base R plotting system is frequently praised for its inherent simplicity and low overhead. Since it is native to the R installation, it requires no extra packages to be loaded, making it ideal for rapid prototyping, quick checks, and simple visualizations integrated directly into existing scripts. It offers direct control over graphical parameters through function arguments. For plotting equations specifically, the core Base R utility is the curve() function, which allows users to pass a mathematical expression directly as an argument, defining the plotting range simultaneously.

Conversely, ggplot2, a cornerstone of the Tidyverse ecosystem, operates under the principle of the Grammar of Graphics, which encourages building plots through discrete, layered components such as data mappings, aesthetics, and geometric objects. While this approach may require a slightly more structured setup, the resulting visualizations are often cleaner, more consistent, and easier to modify for publication quality. For plotting mathematical expressions, ggplot2 employs the dedicated statistical transformation layer, stat_function(), which takes an R function object as input and dynamically calculates the necessary points for plotting across the specified domain.

To illustrate the foundational syntax for both methodologies, consider the simple quadratic equation, y = 2x² + 5. The following code blocks provide the basic implementation required to visualize this relationship over a range of x-values, serving as an immediate reference before we delve into the detailed application of each method.

Method 1: Base R Syntax Overview

curve(2*x^2+5, from=1, to=50, , xlab="x", ylab="y")

Method 2: ggplot2 Syntax Overview

library(ggplot2)

#define equation
my_equation <- function(x){2*x^2+5}

#plot equation
ggplot(data.frame(x=c(1, 50)), aes(x=x)) +
  stat_function(fun=my_equation)

Both of these initial code samples are designed to visualize the same underlying mathematical function, y = 2x² + 5, which is a classic quadratic function resulting in a parabola. The subsequent sections will provide step-by-step guidance on implementing these methods, emphasizing customization and flexibility within each framework.

Method 1 Deep Dive: Quick Plotting with Base R’s curve()

The Base R curve() function is the most direct way to plot a mathematical expression in R. Its syntax is remarkably intuitive, requiring only the equation itself and the desired range of x-values. This simplicity makes it a preferred tool for exploratory data analysis or when generating quick, functional graphs without needing extensive aesthetic modification. The primary strength of curve() lies in its ability to accept the mathematical formula directly as its first argument, streamlining the visualization process significantly.

Let us revisit our foundational example: y = 2x² + 5. To visualize this quadratic function across a domain starting at 1 and ending at 50, we simply embed the R-compatible expression into the function call. Essential arguments such as from and to define the domain, while xlab and ylab provide crucial context through axis labeling. The resulting plot is generated instantaneously upon execution.

curve(2*x^2+5, from=1, to=50, , xlab="x", ylab="y")

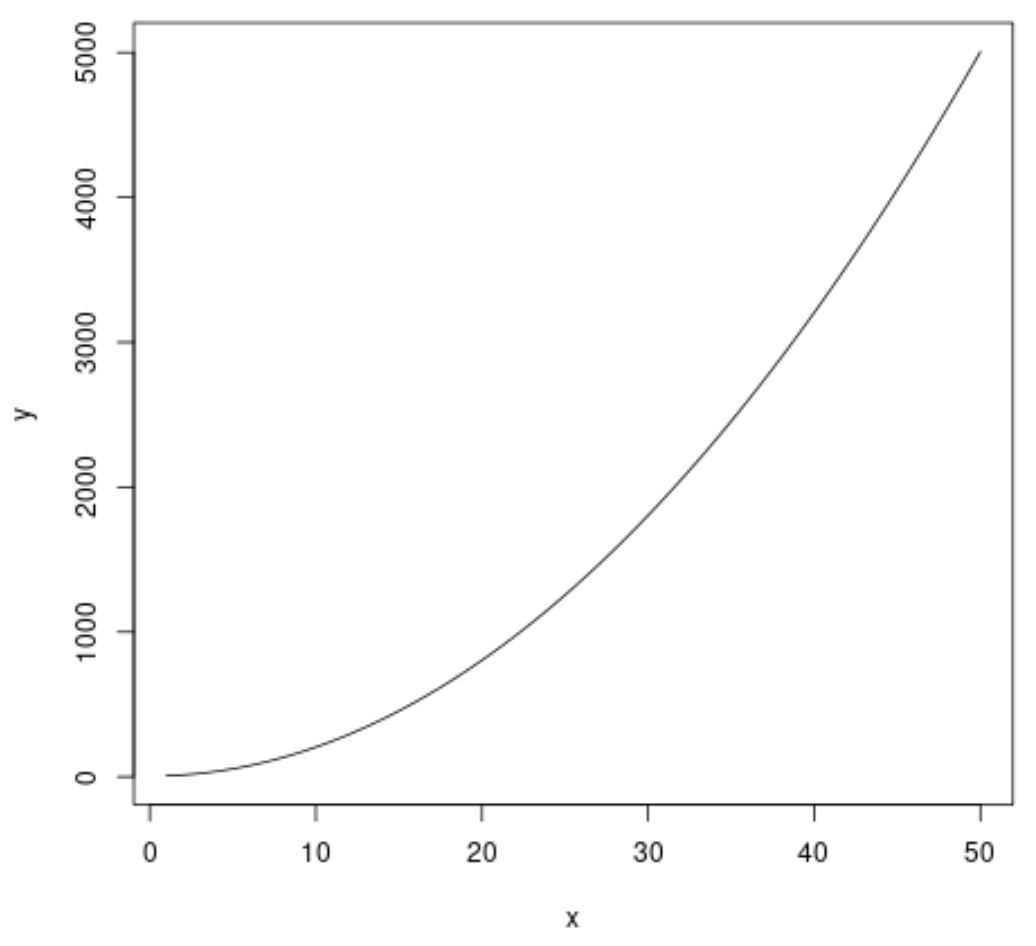

Executing the code above produces a smooth, continuous line that accurately represents the output of the function across the defined interval. The resulting figure immediately conveys the characteristic parabola shape, demonstrating how a small piece of code can yield significant visual understanding.

Furthermore, curve() provides flexibility in how the equation is rendered. While the default behavior is to draw a continuous line (type="l"), you may sometimes prefer to emphasize discrete points along the curve, perhaps to simulate sampled data or highlight specific calculated values. This is achieved by simply altering the type argument to "p" for points. This minor modification fundamentally changes the visual interpretation of the function, presenting the relationship as a set of distinct observations rather than an unbroken trajectory.

curve(2*x^2+5, from=1, to=50, , xlab="x", ylab="y", type="p")

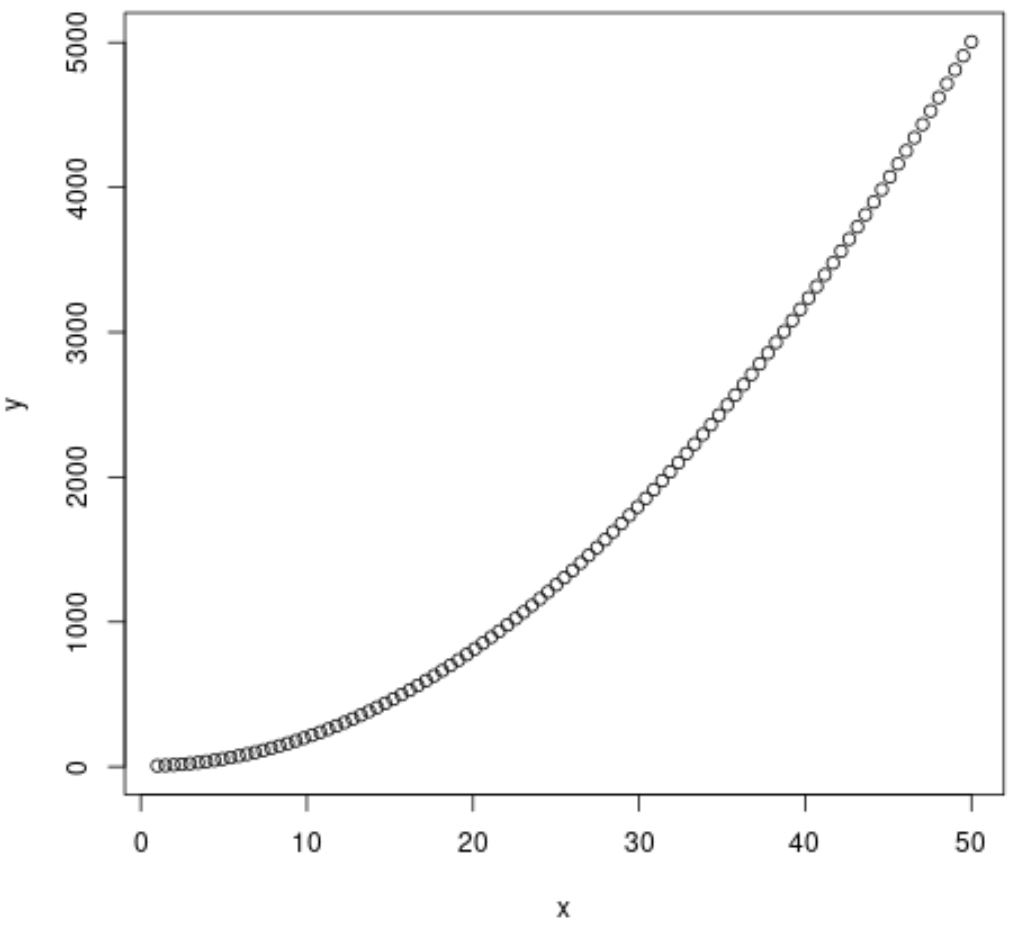

The resulting plot clearly displays the data points calculated by the function at default intervals, offering an alternative visual perspective on the quadratic function‘s behavior:

Method 2 Deep Dive: Layered Graphics using ggplot2 and stat_function()

For visualizations destined for reports, presentations, or publications, the ggplot2 package is the gold standard within the R community. Its structured, layered approach offers exceptional control over every graphical element, ensuring plots are aesthetically consistent and highly customizable. To plot an equation using this framework, we utilize the specialized statistical layer, stat_function(), which seamlessly integrates mathematical expressions into the ggplot structure.

The process of generating a plot with ggplot2 is slightly more involved than with Base R but yields significant benefits in terms of visual refinement. It begins by ensuring the ggplot2 package is loaded. Crucially, the equation itself must first be defined as a standalone R function object. This object is then passed to the stat_function() layer, which handles the calculation of points and the subsequent geometric rendering. Finally, the plot structure is initialized using ggplot(), where the domain for plotting is established.

Let’s implement the visualization of y = 2x² + 5 using the layered syntax:

library(ggplot2)

#define equation
my_equation <- function(x){2*x^2+5}

#plot equation
ggplot(data.frame(x=c(1, 50)), aes(x=x)) +
  stat_function(fun=my_equation)

This code block demonstrates the modularity of ggplot2. First, we establish the canvas and the domain using ggplot(data.frame(x=c(1, 50)), aes(x=x)). The critical step is defining the range (1 to 50) within a data frame, which is then mapped to the x-aesthetic. Second, the + stat_function(fun=my_equation) layer adds the geometric object, instructing ggplot to plot the results of the my_equation function across the defined x-range. This results in the following professional-grade visualization:

The core advantage of this method lies in its extendability. Once the base plot is created, you can easily add layers for titles, different themes, annotations, or even plot secondary functions by adding another stat_function() layer, ensuring that all elements are managed consistently by the Grammar of Graphics framework. To plot any other equation, one simply needs to redefine the mathematical expression within the R function definition, keeping the rest of the plotting structure intact.

Customization and Best Practices for Professional Graphics

While plotting the curve accurately is essential, true mastery of visualization involves leveraging customization options to create informative and publication-ready graphics. Both R graphics systems offer extensive control over the visual aesthetic elements of the plot, which can significantly enhance clarity and professional appeal. Applying best practices, particularly regarding labeling, color choice, and saving formats, is vital for effective communication.

A professional plot must always be fully self-explanatory. This means providing clear axis labels and a descriptive main title. In Base R, these are controlled directly within the curve() call using arguments like main, xlab, and ylab. For ggplot2, the dedicated labs() function is used to handle all textual elements, including title, subtitle, captions, and axis labels, often simplifying complex labeling tasks. Beyond text, you can modify the line itself: for instance, using col="blue", lwd=3 (line width), or lty=2 (dashed line) to make the curve stand out or differentiate it from other elements.

A common requirement is the visualization of multiple functions on the same axes for comparison. In Base R, subsequent calls to curve() must include the argument add=TRUE to overlay the new curve onto the existing plot, allowing analysts to compare the behaviors of different expressions, such as a quadratic versus a linear function. When using ggplot2, this is achieved by simply adding multiple stat_function() layers to the same base plot object. In either case, varying the aesthetic parameters (such as color or line type) for each function is crucial, and a legend must be added to ensure unambiguous identification of each plotted line.

Finally, once the plot is visually perfected, it must be saved in an appropriate format. Base R utilizes device functions such as png(), jpeg(), or pdf() to open a graphics device, followed by the plotting command, and finally closed using dev.off(). This process directs the output to a file instead of the screen. ggplot2 offers a more streamlined approach through the powerful ggsave() function, which intelligently determines the output format (e.g., PDF for high-resolution vector graphics or PNG for web use) based on the file extension provided, simplifying the process of exporting professional-quality graphics.

Conclusion: Choosing the Right Tool for Your Visualization Needs

The ability to effectively plot mathematical equations is an essential skill in quantitative analysis, and R provides two world-class tools to achieve this goal. This guide has demonstrated the practical steps for utilizing both the efficient Base R graphics system, centered around the curve() function, and the sophisticated, layered approach offered by the ggplot2 package and its stat_function() layer.

The Base R methodology stands out for its speed, minimal syntax, and lack of dependency on external packages, making it ideal for exploratory visualization and scripts where performance and simplicity are paramount. Conversely, ggplot2 is the superior choice for complex visualizations, comparative plots, and any graphic that requires meticulous aesthetic control and adherence to a consistent style, ensuring the output is optimized for formal reporting and publication.

To truly master R visualization, analysts must understand when to deploy each tool. Experiment with plotting various functions—including exponential, logarithmic, and trigonometric—and practice applying the customization techniques detailed here. By leveraging the power of both Base R and ggplot2, you can ensure that your mathematical models are not only accurately calculated but also beautifully and clearly communicated.
