Learning to Rotate Text Annotations in ggplot2: A Step-by-Step Guide

Mastering Text Annotation and Orientation in ggplot2

R, through its versatile visualization package ggplot2, offers analysts an exceptionally powerful framework for crafting elegant and informative data visualizations. A mandatory component of effective data storytelling is the inclusion of annotated text, which serves to label specific data points, highlight categories, or embed crucial statistical context directly onto the graph. While adding text is functionally simple, ensuring that these annotations are legible and seamlessly integrated, particularly within plots that feature high data density, presents a significant design challenge.

The principal difficulty encountered when utilizing text annotations is the risk of overlap. When labels stack on top of each other or obscure the underlying data points, the visualization quickly loses its clarity and professional appeal. This issue is particularly prevalent in ggplot2 visualizations where multiple points cluster in proximity. Overcoming this hurdle necessitates precise control over both the text’s position and its orientation.

The ability to strategically rotate and finely position text annotations is, therefore, an invaluable skill in the data scientist’s toolkit. By manipulating the angle of the text, you can efficiently utilize limited plot space, dramatically enhance clarity, and elevate the overall aesthetic quality of your graphs. This comprehensive guide details the essential syntax and practical application for rotating annotated text within your ggplot2 plots, ensuring your visualizations are clean and immediately understandable.

The Essential Parameters for Text Rotation and Justification

The primary mechanism for appending text annotations to a ggplot2 visualization is the geometric object geom_text(). This function enables the placement of text labels at any specified coordinate (x and y) within the plot area. To achieve sophisticated control over the orientation and precise alignment of these labels, geom_text() relies on three fundamental arguments: angle, hjust, and vjust.

The fundamental syntax for integrating rotated text into your plot layer is demonstrated below:

ggplot(df) +
  geom_point(aes(x=x, y=y)) +
  geom_text(aes(x=x, y=y, label=group), hjust=-0.3, vjust=-0.1, angle=45)

In this snippet, the angle argument is responsible for defining the rotational degree of the text. This measurement is taken counterclockwise from the standard horizontal position. Specifying a value of 45 rotates the text 45 degrees, which is often ideal for diagonal clarity. The remaining arguments, hjust (horizontal justification) and vjust (vertical justification), are critical for controlling the text’s alignment relative to its anchoring coordinate (x and y).

The justification arguments operate on a numerical scale, typically ranging from 0 to 1. For hjust, 0 aligns the text to the left of the anchor point, 1 aligns it to the right, and 0.5 centers it. Similarly, vjust uses 0 for bottom alignment, 1 for top alignment, and 0.5 for middle alignment. A powerful technique for preventing text overlap with the data marker is employing values outside this standard range—such as negative values or values exceeding 1. These extreme values effectively shift the text further away from the data point, providing necessary visual separation even after rotation is applied.

Data Preparation for the Visualization Example

To provide a clear, practical illustration of how these rotation and justification arguments work in concert, we will walk through a complete example. Our first step involves constructing a sample data frame within the R environment. This dataset will serve as the foundation for our demonstration, culminating in an improved scatter plot. The hypothetical dataset contains performance metrics for several players, specifically their points scored and assists made.

We define the dataset using the following R commands:

#create data frame
df <- data.frame(player=c('Brad', 'Ty', 'Spencer', 'Luke', 'Max'),
                 points=c(17, 5, 12, 20, 22),
                 assists=c(4, 3, 7, 7, 5))

#view data frame
df

   player points assists
1    Brad     17       4
2      Ty      5       3
3 Spencer     12       7
4    Luke     20       7
5     Max     22       5

The resulting data frame, named df, includes three distinct variables: player, points, and assists. For our visualization, we will map points to the x-axis and assists to the y-axis, using the player names as the text labels we intend to annotate and rotate. This setup allows us to precisely observe the effects of justification and rotation on real data.

Identifying the Problem: The Challenge of Default Unrotated Labels

Before implementing the solution, it is vital to understand the problem posed by default annotation settings. We will first generate a standard scatter plot using ggplot2 without any text rotation or advanced positioning applied. This initial plot clearly illustrates the challenges inherent in densely labeled visualizations.

library(ggplot2)

#create scatter plot with annotated labels
ggplot(df) +
  geom_point(aes(x=points, y=assists)) +
  geom_text(aes(x=points, y=assists, label=player))

This code snippet loads the required library, then initializes the plot. It uses geom_point() to render the data markers and geom_text() to place the player names. Crucially, in this default configuration, the labels are anchored precisely at the point coordinates with zero rotation or offset.

As is immediately visible in the resulting plot, the labels are oriented horizontally and overlap significantly with their corresponding data points. Moreover, where data points are closely situated—such as the marks for “Luke” and “Spencer”—their labels intersect and interfere with each other, making both names difficult to decipher. This lack of visual separation compromises the integrity of the data visualization, confirming the need for advanced text manipulation techniques.

Implementing Rotation and Offset for Optimal Readability

To effectively resolve the issues of overlap and poor readability identified in the previous section, we must apply the angle, hjust, and vjust arguments within our geom_text() call. These modifications will rotate the text and shift the labels just far enough from the data points to ensure clear visual distinction.

We introduce the crucial parameters as follows:

library(ggplot2)

#create scatter plot with annotated rotated labels
ggplot(df) +
  geom_point(aes(x=points, y=assists)) +
  geom_text(aes(x=points, y=assists, label=player), hjust=-.3, vjust=-.1, angle=45) +
  ylim(3, 8)

In this refined code, we set the angle to 45, achieving the desired counterclockwise rotation. Furthermore, the hjust value of -0.3 shifts the text horizontally slightly to the left of the anchor point, while a vjust of -0.1 moves it vertically downward. These slight negative offsets are highly effective when combined with rotation, as they ensure the text labels originate slightly outside the point marker, thus guaranteeing visual separation and preventing any obfuscation of the underlying data.

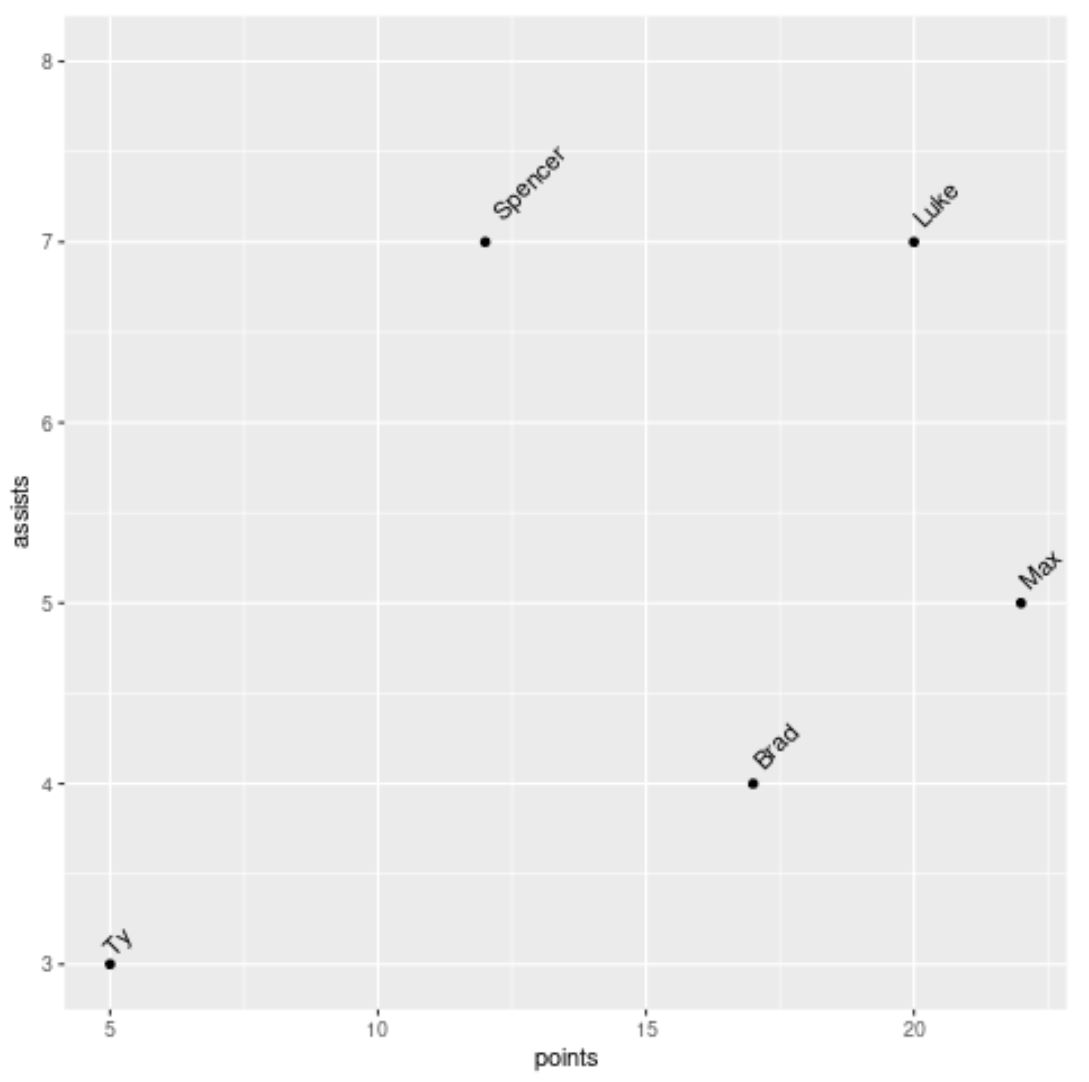

The revised plot clearly demonstrates the efficacy of these adjustments. All labels are now rotated by 45 degrees, and thanks to the strategic horizontal and vertical offsetting, the names are fully legible and do not intersect either the data points or each other. This implementation transforms a cluttered graph into a clean, professional, and easily interpretable data visualization.

Adjusting Plot Limits with ylim to Prevent Truncation

When applying rotation and offsetting techniques to text labels, a common side effect is that the rotated text may extend beyond the default plotting boundaries, resulting in the truncation or clipping of the labels. To counteract this, it becomes necessary to manually adjust the coordinate limits of the axis affected by the text shift. In our enhanced example, you may have noticed the inclusion of the function ylim(3, 8) within the ggplot2 code chain.

The ylim() function allows the user to explicitly set the minimum and maximum limits of the y-axis. In this specific scenario, the upward shift of the label for “Spencer,” caused by the combination of rotation and the negative vjust value, would have pushed a portion of the text outside the original y-axis range. By setting ylim(3, 8), we successfully expanded the vertical viewing area to encompass the full extent of all rotated labels, preventing any undesirable clipping.

This step underscores a critical principle of effective data visualization: modifying one visual element, such as text annotation, frequently requires compensatory adjustments to other plot components, like axis limits, to ensure the final output remains complete and aesthetically sound. Always review the periphery of your plot after making significant rotational or positional changes to guarantee that all elements contribute positively to the overall message without being cut off.

Conclusion: Achieving Precision in ggplot2 Visualizations

The strategic rotation and precise positioning of annotated text represent an essential skill for developing high-quality, professional ggplot2 visualizations. By gaining mastery over the angle, hjust, and vjust arguments within the geom_text() function, you secure granular control over the presentation of your labels, effectively mitigating overlap and significantly boosting plot aesthetics and clarity.

We highly recommend that you continue to experiment with varying values for hjust, vjust, and angle. The optimal configuration is rarely fixed; rather, it depends heavily on the specific density of your data points, the length of your text labels, and the overall design objectives of your visualization.

For those seeking to further advance their R and ggplot2 expertise, exploring resources on advanced thematic customization, complex layer manipulation, and additional annotation features will prove invaluable in enhancing your data visualization repertoire and creating truly impactful graphs.
