Creating Multi-Line Charts in Excel: A Step-by-Step Guide

Why Multi-Line Charts Are Essential for Data Visualization

The ability to visually compare complex trends across several metrics simultaneously is a fundamental requirement for advanced data analysis. In Microsoft Excel, plotting multiple lines on a single graph provides analysts with an immediate and powerful means to track performance evolution, identify correlations, and detect critical divergences between various metrics over time. This technique is indispensable when dealing with sequential or time-series data, where understanding the trajectory of related figures is paramount to deriving meaningful conclusions.

Generating these sophisticated visualizations in Excel is surprisingly streamlined, provided the source data is correctly organized. A multi-line chart effectively transforms raw spreadsheet numbers into a narrative, showing how each data series behaves in relation to the others. The core challenge lies in ensuring Excel correctly identifies the categorical variable (which usually defines the horizontal axis) versus the dependent variables (which are plotted as individual lines).

The independent variable—often time or specific categories—must be clearly set to anchor the visualization along the X-axis. The subsequent values (the dependent variables) then form the distinct lines, allowing for immediate visual comparison. This detailed guide will walk you through the precise steps necessary to create clear, informative multi-line plots, addressing scenarios where data is arranged both vertically (by columns) and horizontally (by rows).

Prerequisites: Structuring Your Data for Optimal Plotting

Successful data visualization begins long before clicking the “Insert Chart” button; it requires meticulous data preparation. For a clear and accurate multi-line line plot, your dataset must satisfy two essential structural criteria: logical arrangement of variables and descriptive headers. Ignoring these steps often leads to confusing or incorrectly rendered charts.

First, the column or row designated as the independent variable must contain consistent, sequential categories or time points. This dimension provides the foundation of the chart, acting as the consistent measure along the horizontal X-axis. Examples include fiscal quarters, specific dates, experimental conditions, or age groups. Second, the remaining columns or rows must contain the dependent variables—the actual numerical values that will be measured and compared.

It is crucial that all variables have clear, unambiguous headers (e.g., “Year,” “Product A Revenue,” “Market Share”). When these headers are included in the selection range, Excel’s charting engine automatically uses them to label the legend and the axes, eliminating the need for extensive manual adjustment later. The following examples demonstrate how Excel interprets these standard data structures and how proper preparation simplifies the visualization process significantly.

Method 1: Generating Charts from Column-Oriented Data

The organization of data into columns is the most conventional structure for multi-line charts, especially when tracking performance over time. In this arrangement, the independent variable (e.g., time) occupies the first column, and each subsequent column represents a distinct dependent variable that will form one line on the graph. This structure is typically recognized by Excel instantly, requiring minimal intervention from the user.

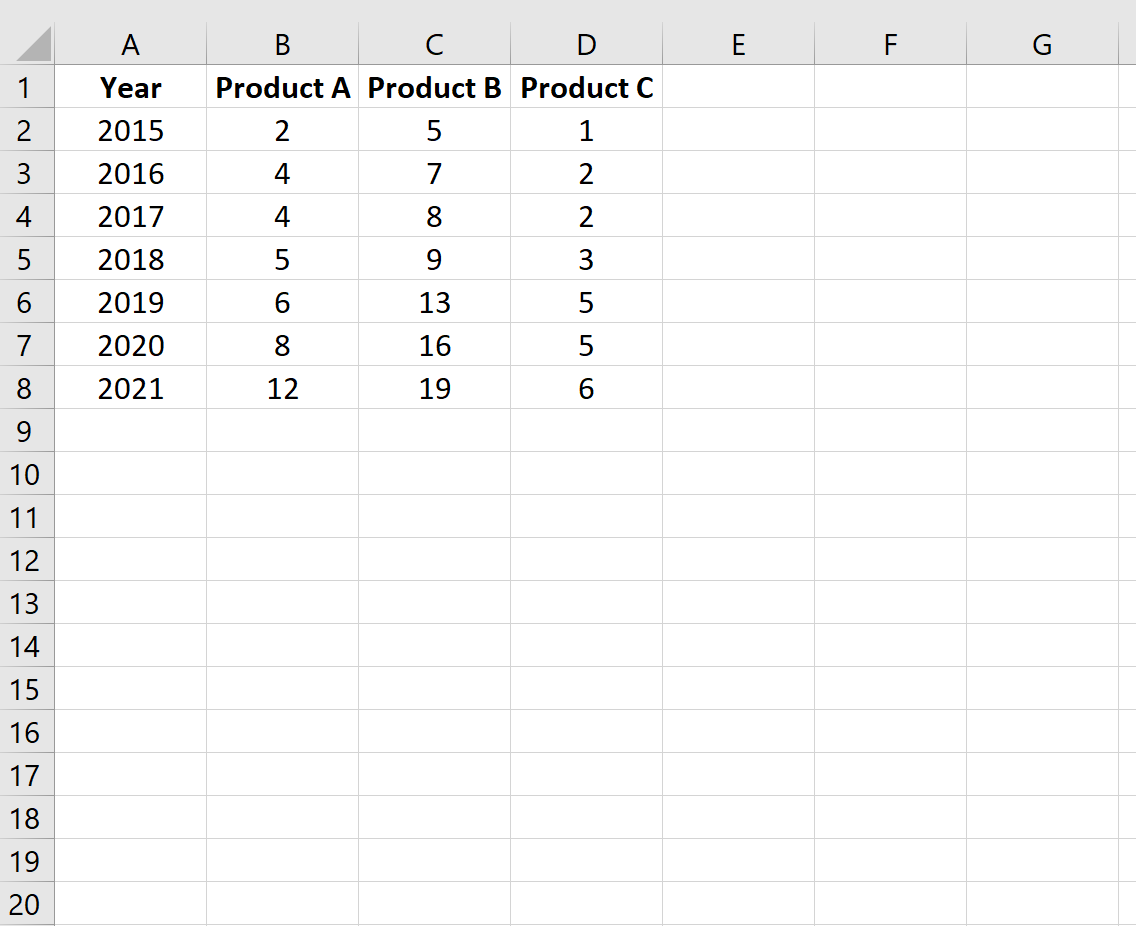

Consider a scenario where we are analyzing the sales performance of three different product lines (Product A, B, and C) spanning several years. The data is logically arranged with the year in the first column and the sales figures for each product in the columns immediately following:

To plot this data effectively, ensuring that each product becomes a unique line, follow these precise, step-by-step instructions. It is vital to include both the categorical labels (years) and the descriptive headers in your initial selection:

• Highlight the cells containing all relevant data, including headers and the years. In this case, highlight the range B1:D8. (Note: Although the image starts at A1, the original instruction specified B1:D8, implying B1 is the first header, which we will adhere to.)
• Click the Insert Tab located along the top ribbon interface.
• Navigate to the Charts group. Click the first chart option within the section titled Insert Line or Area Chart, typically selecting the standard 2-D line option.

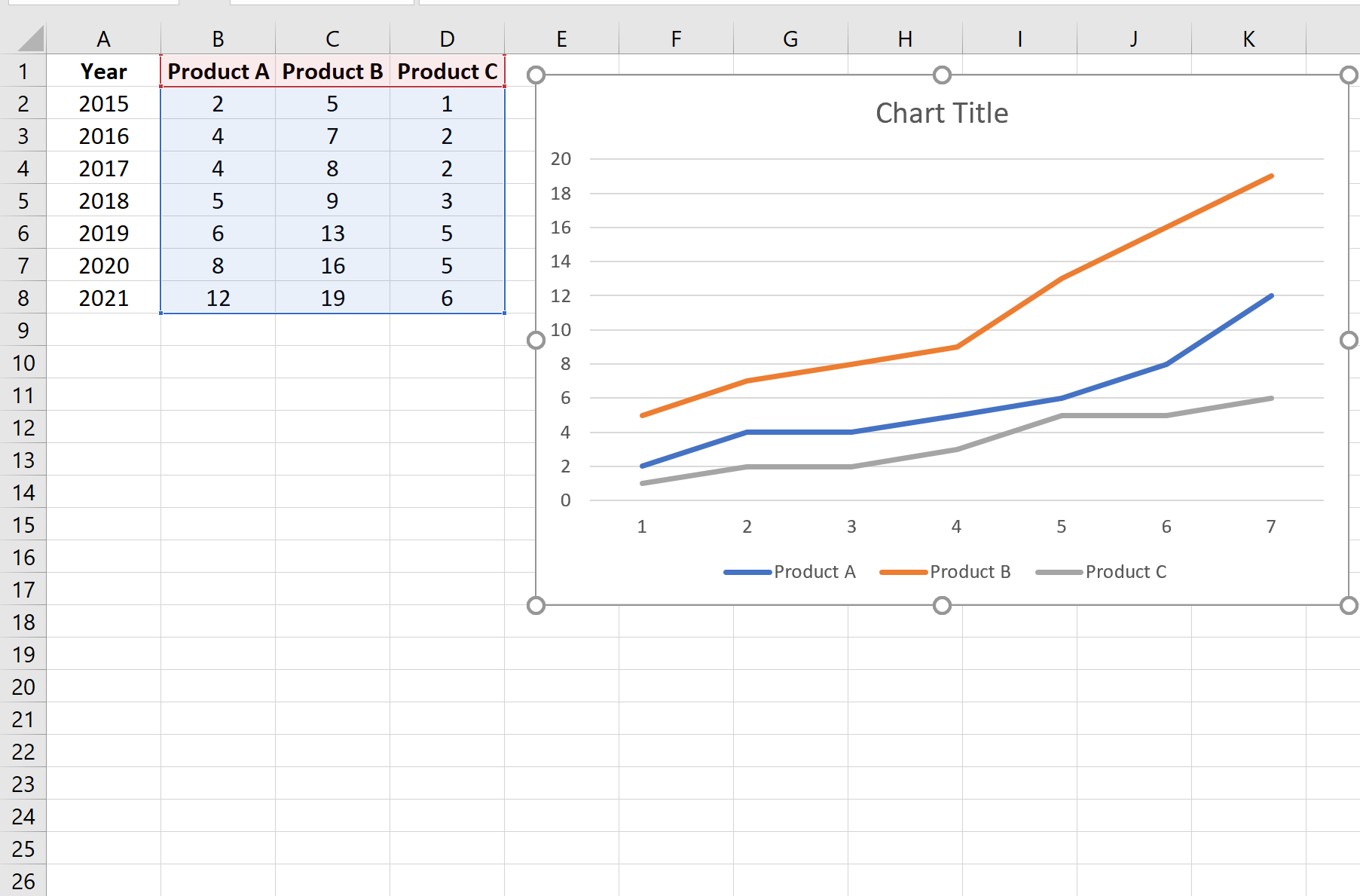

Upon completion, Excel automatically processes the selection, correctly identifying the years as the horizontal axis labels and plotting three unique lines, each representing the sales trajectory of a distinct product:

Method 2: Creating Line Graphs from Row-Oriented Data

While column organization is most common, datasets are sometimes naturally structured with categories arranged horizontally across rows. In this reversed setup, the independent variable (time or category) runs along the first row, and each subsequent row defines a complete data series. Analysts must select the data range carefully, but modern Excel versions are generally intelligent enough to deduce the correct plotting orientation.

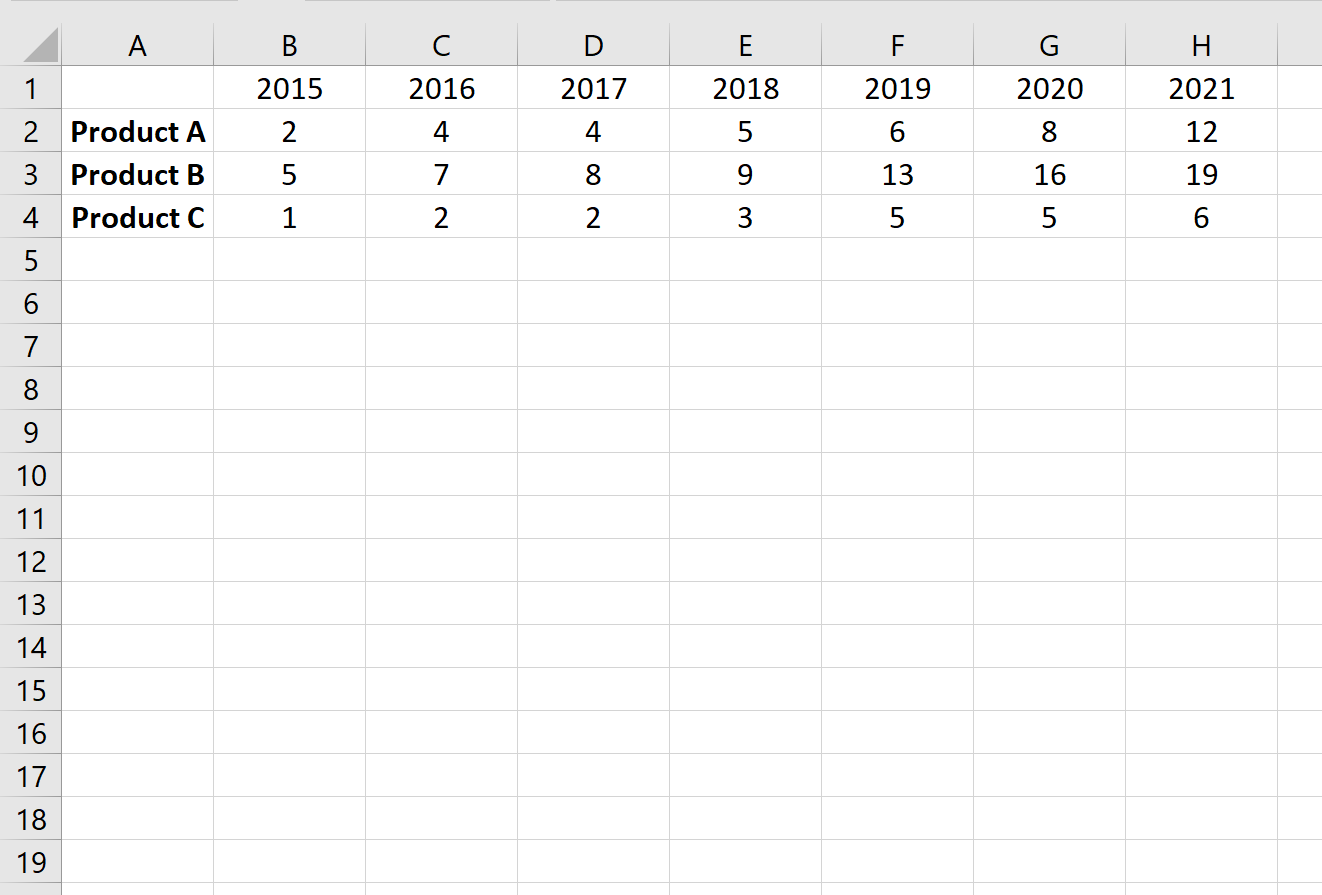

Let us use the same sales data, but restructure it so the years are spread across the top row (H-axis) and the product names are listed vertically in the first column. Each row now functions as a complete series for a specific product:

To plot this row-based data, transforming each product row into a distinct line, the visualization steps are almost identical to the column-based method, focusing on selecting the complete range, including all labels:

• Highlight the entire dataset range, including all headers and values. In this scenario, select the cells in the range A1:H4.
• Click the Insert Tab along the top ribbon.
• In the Charts group, click the first chart option in the section titled Insert Line or Area Chart.

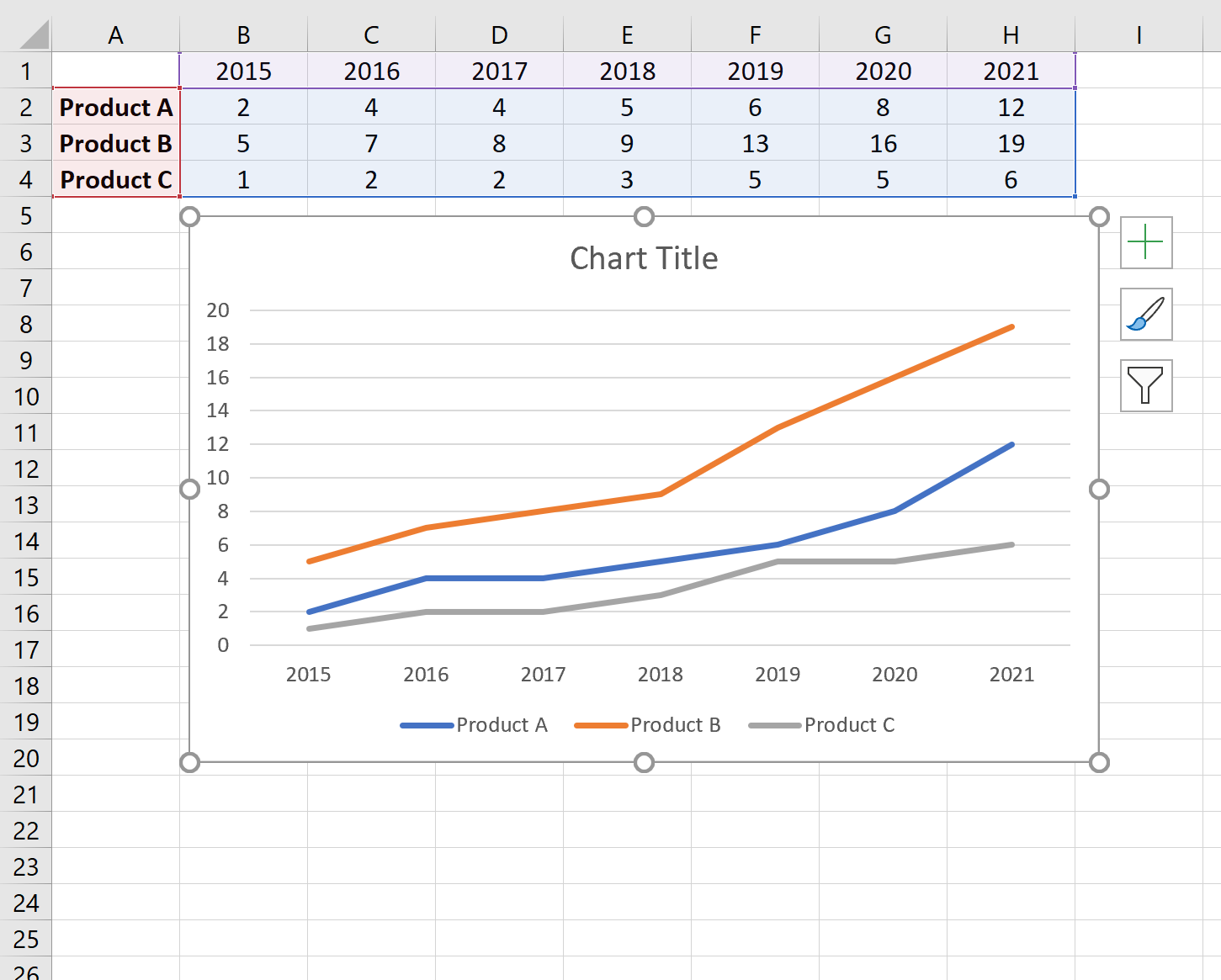

Excel correctly recognizes that the top row contains the appropriate categories for the X-axis (years) because the number of series (products, in this case, three) is significantly smaller than the number of data points per series. It successfully uses the top row for labels and plots the values from the remaining rows as distinct lines. The resulting chart provides the same analytical insight as the column-based plot in Method 1:

Troubleshooting: Forcing the Correct Axis Orientation (Switch Row/Column)

A frequent source of frustration occurs when the data structure is ambiguous—specifically, when the number of data points (rows) is similar to the number of data series (columns). In these borderline cases, Excel may misinterpret your intention, defaulting to plotting the category labels (like years) as the dependent variables and using the series headers (like product names) for the X-axis. This results in a nonsensical visualization for trend analysis.

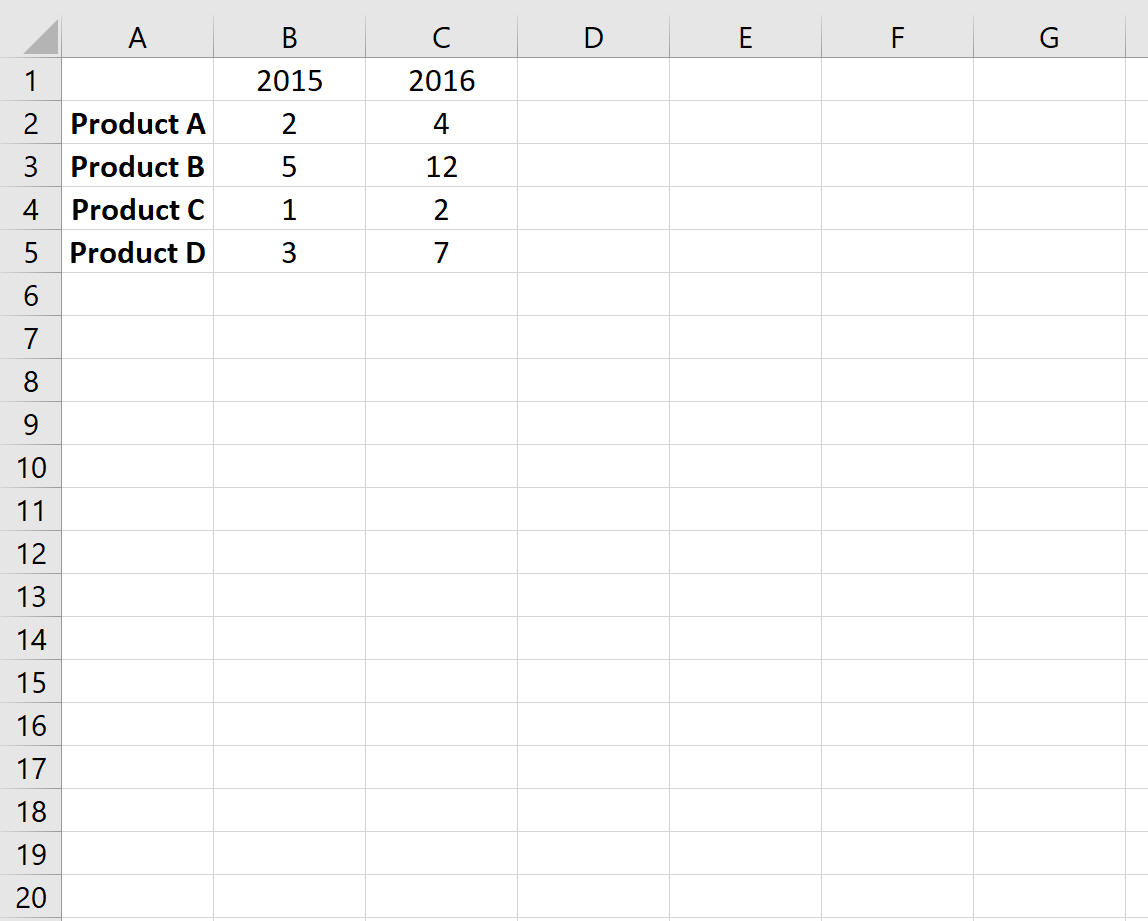

Consider a smaller dataset, structured by columns, but containing only a few years and two products. If you select the range A1:C5 for the following data and attempt to create a chart, Excel might struggle to decide which dimension should anchor the horizontal axis:

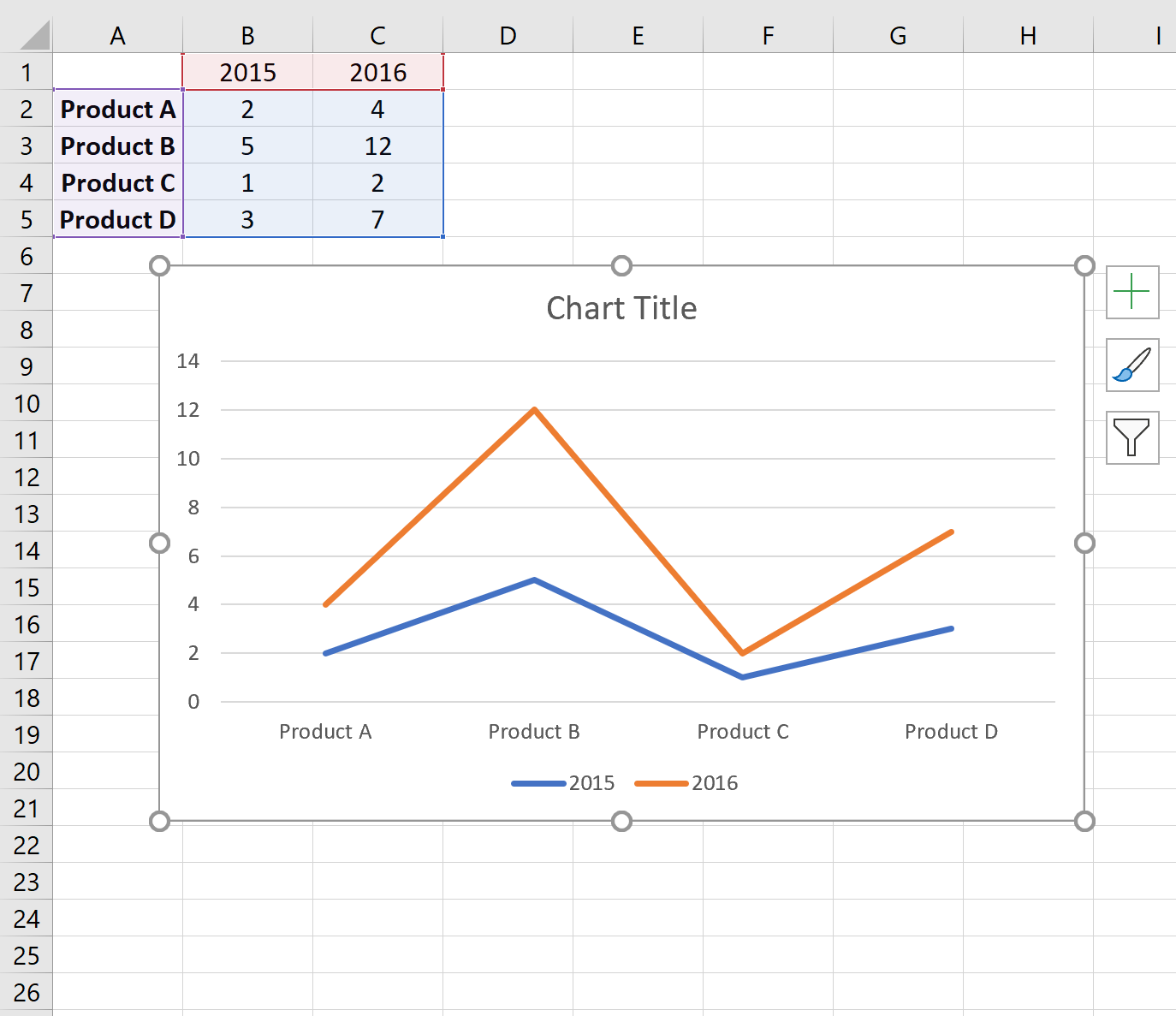

Following the standard chart creation process (Highlight A1:C5 and insert a Line Chart), the initial output often incorrectly places the products (A and B) along the X-axis, treating the years as separate data series, as shown below. This is clearly inaccurate, as we intend to track product sales over time, not track time across different products:

To instantly rectify this common issue, you must manually override Excel’s interpretation by swapping the plot orientation. Click anywhere on the generated chart to reveal the specialized charting tools in the ribbon. Then, locate and click the Switch Row/Column button, which is situated under the Chart Design tab (or simply the Design tab in older versions):

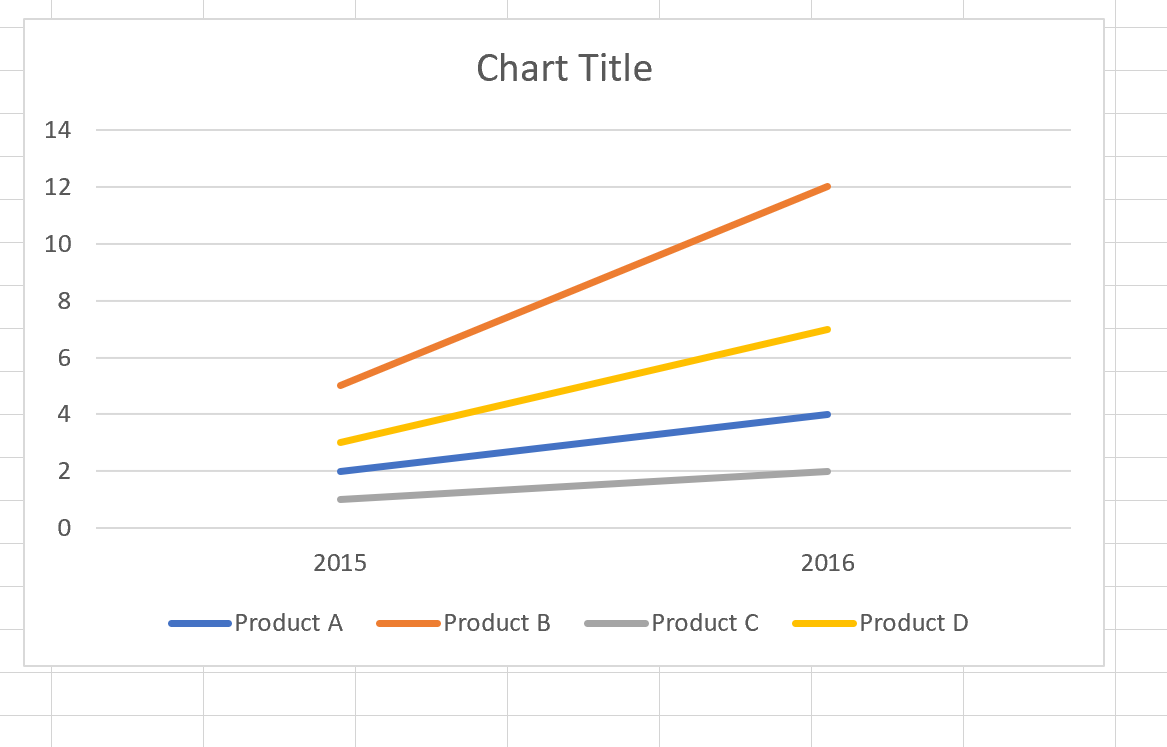

Executing this function reverses the roles of the rows and columns. The independent variable (Years) is correctly assigned to the horizontal axis, and the dependent variables (Product A and Product B) are plotted as distinct data series. The resulting line plot now accurately depicts the sales trends over time, providing the intended analytical view:

Finalizing Your Visualization: Customization and Readability

While the initial creation of a multi-line chart is mechanical, the true value of the visualization is realized through careful customization. A chart must not only be accurate but also immediately readable and clearly communicate its central insight. After generating the plot, several crucial adjustments ensure maximum clarity and professionalism.

First, prioritize clear labeling. The chart title must be descriptive and specific (e.g., “Comparative Sales Performance: Q1 2020 – Q4 2023”). Furthermore, the vertical Y-axis (value axis) must be clearly labeled, including the units of measure (e.g., “Revenue in Thousands of USD”), providing essential context for the magnitude of the data being displayed. The horizontal X-axis should also be checked to ensure dates or categories are displayed logically.

Second, the legend and data series styling demand attention. Since multi-line charts compare several data series, the legend is the interpreter, linking line colors to specific variables. Ensure the legend is placed conveniently and that the colors chosen for the lines are visually distinct—a critical consideration if the chart must be viewable in black and white. All these aesthetic and structural adjustments are managed primarily through the contextual Format tab and the Chart Design tab that appear when the chart is selected.

Conclusion: Mastering Multi-Line Chart Generation

Plotting multiple lines is arguably the most effective way to compare performance and identify temporal patterns across various categories within Excel. Regardless of whether your source data is organized in columns or rows, the foundational method remains the same: select the complete data range, including headers, and choose the appropriate line plot type.

The most crucial practice for any analyst is the immediate verification of Excel’s interpretation. If the initial visualization incorrectly swaps the intended X-axis categories with the dependent variables, the solution is always the same: immediately utilize the Switch Row/Column function. This powerful troubleshooting tool ensures that the chart always maintains a logical structure, driven by the independent variable along the horizontal axis. By adhering to these preparation and customization best practices, you can reliably transform complex spreadsheet data into compelling and actionable visualizations.
