Learn How to Calculate Least Squares Regression in Excel

The Method of Least Squares (OLS) is a cornerstone of modern statistical analysis, providing a robust technique to determine the line of best fit for any observed set of data. This powerful analytical approach operates by minimizing the sum of the squared vertical deviations (known as the residuals) between the actual observed data points and the values predicted by the resulting linear approximation. Successfully implementing this methodology allows analysts to quantify relationships and build predictive models efficiently.

The successful identification of this optimal regression line is fundamental for a wide range of tasks, including accurate forecasting, sophisticated prediction modeling, and achieving a comprehensive understanding of the linear interdependence between two or more variables. While professional statisticians often utilize specialized, complex software for advanced modeling, Microsoft Excel offers highly capable, integrated functionality that enables users to perform this essential analysis rapidly and with remarkable efficiency.

This comprehensive guide is designed to walk you through the precise, step-by-step procedures necessary to implement the least squares methodology directly within Excel. We will leverage Excel’s specialized array function dedicated explicitly to performing linear regression calculations, ensuring you can apply these techniques immediately to your own datasets. The following video provides a concise overview of the theoretical underpinnings of this essential method:

Preparing for Regression: Understanding the LINEST Function Syntax

To accurately fit a regression line using the Method of Least Squares in Excel, our primary tool is the dedicated array function, =LINEST(). This function is engineered not only to calculate the line of best fit but also to return a statistical array describing that line, most importantly including the slope and the y-intercept coefficients. Understanding its structure is vital for correct implementation.

The =LINEST() function is exceptionally versatile; it can easily handle both simple regression line (involving a single independent variable) and the more complex multiple linear regression (involving several independent variables). Because it is classified as an array function, it historically required the specialized input sequence of CTRL+SHIFT+ENTER in older versions of Excel. Modern versions are more forgiving, often requiring only ENTER, especially when only the primary coefficients (slope and intercept) are requested, although we must be prepared for the full array output.

The general syntax for the function is structured clearly, requiring specific inputs for the dependent and independent variables, along with optional parameters to control the output detail:

=LINEST(known_ys, [known_xs], [const], [stats])

The two required arguments are known_ys, which represents the range of the dependent variable (Y), and known_xs, which represents the range of the independent variable(s) (X). The optional arguments provide control over the model: [const] determines if the y-intercept is forced to zero, and [stats] dictates whether a comprehensive set of additional statistical metrics, such as R-squared and standard errors, are returned in the output array.

Step 1: Structuring the Dataset for Excel Analysis

The prerequisite for any successful regression model application is the precise organization of data within the Excel spreadsheet. The Ordinary Least Squares technique requires corresponding pairs of input (X) and output (Y) values. It is highly recommended to clearly label these variables in adjacent columns to facilitate accurate range selection during the formula entry phase.

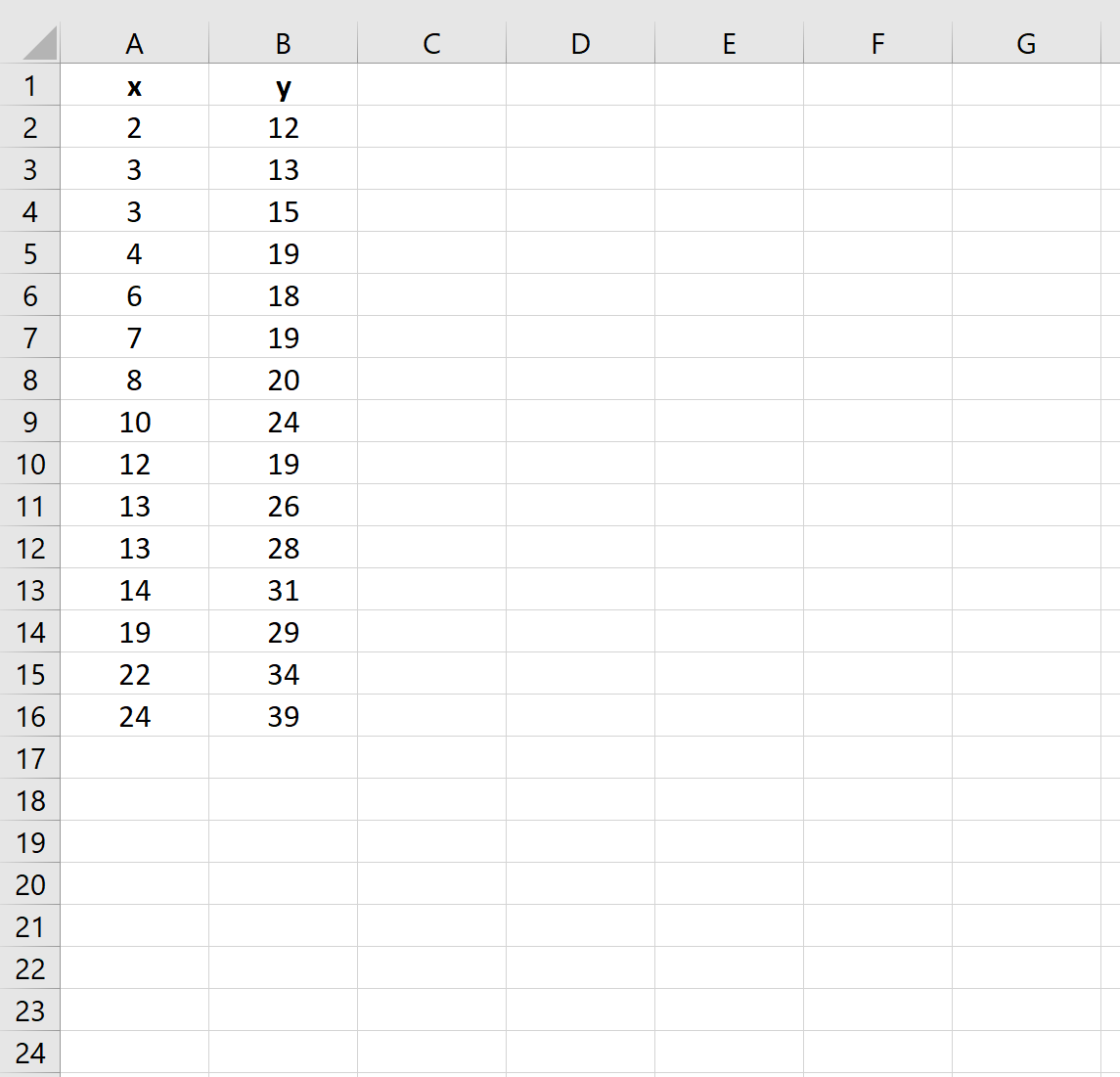

For the purpose of this practical demonstration, we will set up a conventional dataset comprising 15 observations. This dataset illustrates the relationship between a single independent variable (X) and a corresponding dependent variable (Y). This configuration mimics typical scenarios encountered in data analysis where a researcher aims to quantify precisely how variations in the independent variable X systematically influence the dependent variable Y.

As illustrated in the data structure above, Column A contains our known_xs (specifically the range A2:A16), while Column B holds our known_ys (the range B2:B16). We cannot overstate the importance of accurate and meticulous data entry, as it forms the fundamental requirement for generating reliable and valid regression analysis results using the OLS estimation technique.

Step 2: Executing the LINEST Function to Derive Coefficients

Once the dataset is correctly structured, the next crucial step is to apply the =LINEST() function to calculate the parameters of the best-fit line. Before entering the function, you must first select the exact range of cells where the resulting regression coefficients will be displayed. For simple linear regression (involving only one X variable), the primary statistical output will occupy a 1×2 cell range: the slope (m) followed immediately by the y-intercept (b).

The specific formula tailored for this particular dataset, which links the dependent Y values (B2:B16) to the independent X values (A2:A16), is constructed by sequentially specifying the corresponding data ranges:

=LINEST(B2:B16, A2:A16)

This command must be entered into the selected output cell (for example, cell D2). It is absolutely paramount to remember and adhere to the syntax rule that the known_ys (representing the dependent variable) must always be listed as the first argument, preceding the known_xs (representing the independent variable) within the =LINEST() function structure.

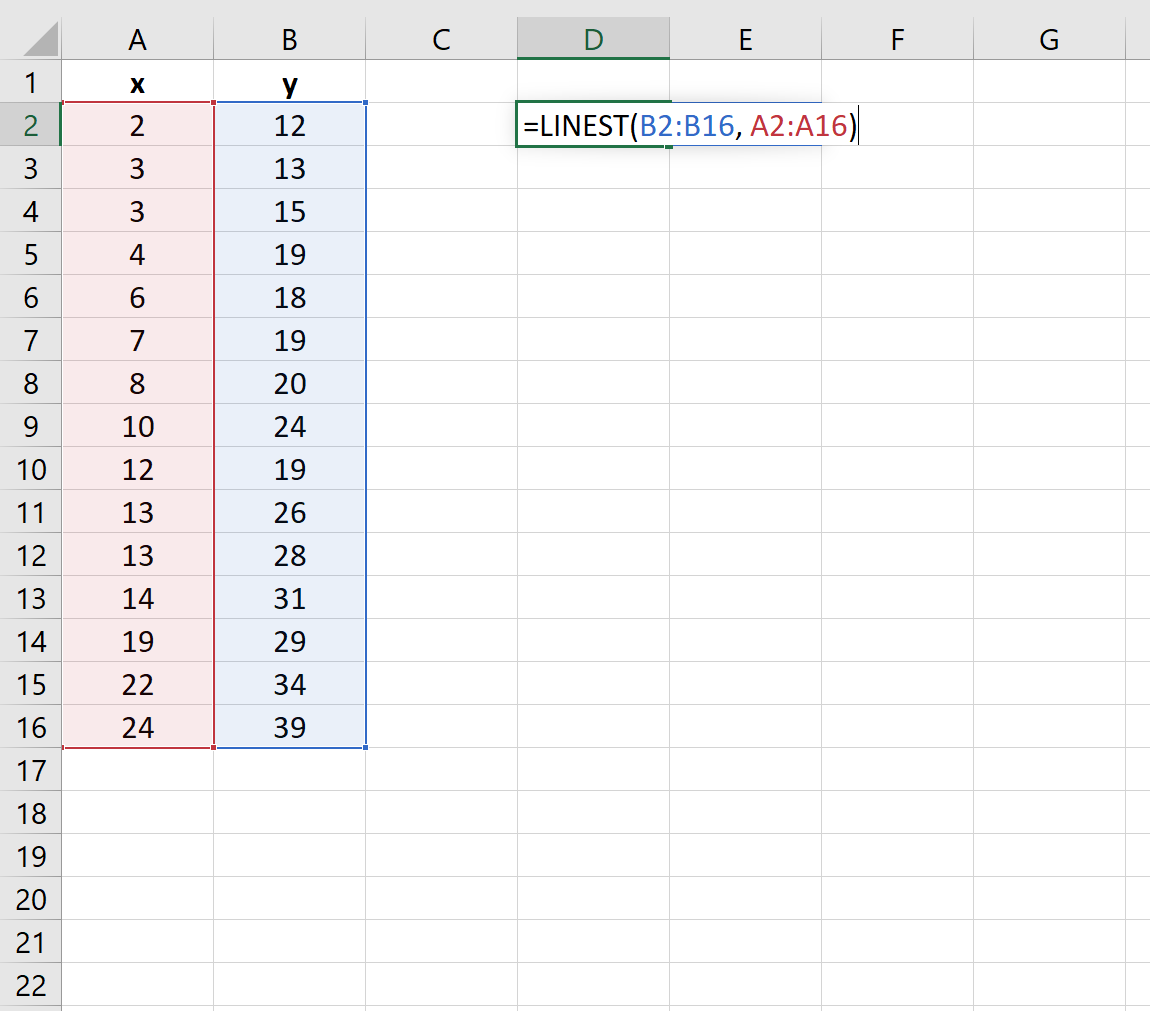

The following visual aid demonstrates the process of entering the function and highlights the designated output area in the spreadsheet:

Upon confirmation via ENTER (or CTRL+SHIFT+ENTER for older array input), Excel rapidly executes the least squares estimation process. It returns the two primary coefficients that define the core of the regression model. In the resulting output array, the value positioned on the left corresponds to the calculated slope (m), and the value on the right represents the y-intercept (b).

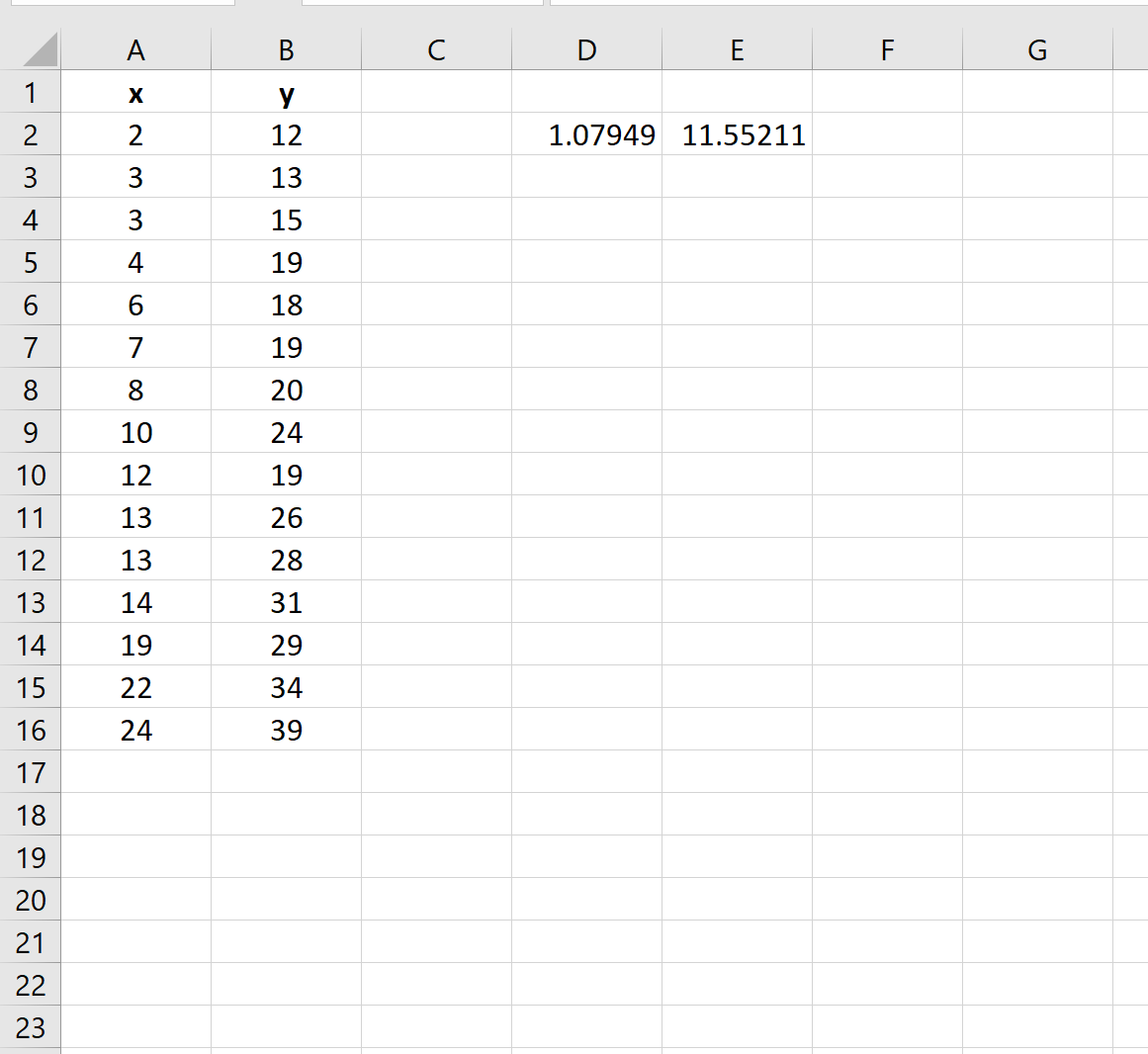

The final resulting output array clearly presents these statistically calculated values in the designated cells, ready for interpretation:

Step 3: Interpreting the Fitted Regression Model

The numerical output generated by the =LINEST() function provides the essential parameters needed to define the fitted regression line mathematically. The standard, universally recognized form for a simple linear regression equation is typically expressed as: y = mx + b, where ‘m’ is the statistically calculated slope and ‘b’ is the calculated y-intercept.

Using the specific coefficients retrieved from our calculation—where the slope (m) is 1.07949 and the y-intercept (b) is 11.55211—we can formally construct the specific equation that accurately represents the linear relationship derived for our dataset:

y = 11.55211 + 1.07949(x)

This equation mathematically encapsulates the line of best fit, determined precisely by the criteria of minimizing the sum of the squared errors (residuals). The interpretation of the slope coefficient (1.07949) is particularly crucial: it signifies that, holding all other factors constant, for every single one-unit increase in the independent variable (X), the model confidently predicts an increase of approximately 1.08 units in the dependent variable (Y), provided the linearity assumption holds true.

Most importantly, this statistically derived mathematical model serves as a powerful tool for prediction. We can immediately use this equation to reliably estimate the expected value of the dependent variable (y) based on any new, given value of the independent variable (x). For example, if we wished to estimate the value of Y when X is equal to 10, the calculation is straightforward:

y = 11.55211 + 1.07949(10) = 22.347

Step 4: Visualizing the Line of Best Fit

While the numerical coefficients establish the quantitative foundation of the model, generating a scatter plot is essential. Visualizing the data confirms the strength and direction of the underlying relationship and provides an immediate, subjective assessment of the quality of the fit. The scatter plot is the standard visualization for linear regression, graphically demonstrating how closely the actual observed data points align with the mathematically estimated regression line.

We can utilize the following methodical procedure within Microsoft Excel to generate a professional-quality scatter plot, complete with the calculated trendline:

• Begin by accurately selecting the entire range of data that encompasses both the independent (X) and dependent (Y) variables, specifically highlighting cells A2:B16.

• Navigate to the Insert tab located within the primary navigation ribbon at the top of the Excel window. In the Charts group, click the icon for Insert Scatter (X, Y) or Bubble Chart. This initial action generates the plot displaying only the raw data points.

• Once the chart object is successfully inserted onto the sheet, click the small plus sign (“+”) icon, which is conveniently situated in the top right corner of the chart area. This action immediately reveals the comprehensive Chart Elements menu.

• Within the resulting dropdown menu, locate and check the box corresponding to Trendline. This crucial step instructs Excel to calculate and display the linear trend based on the least squares method directly onto the scatter plot, providing a powerful visualization of the equation derived in Step 3.

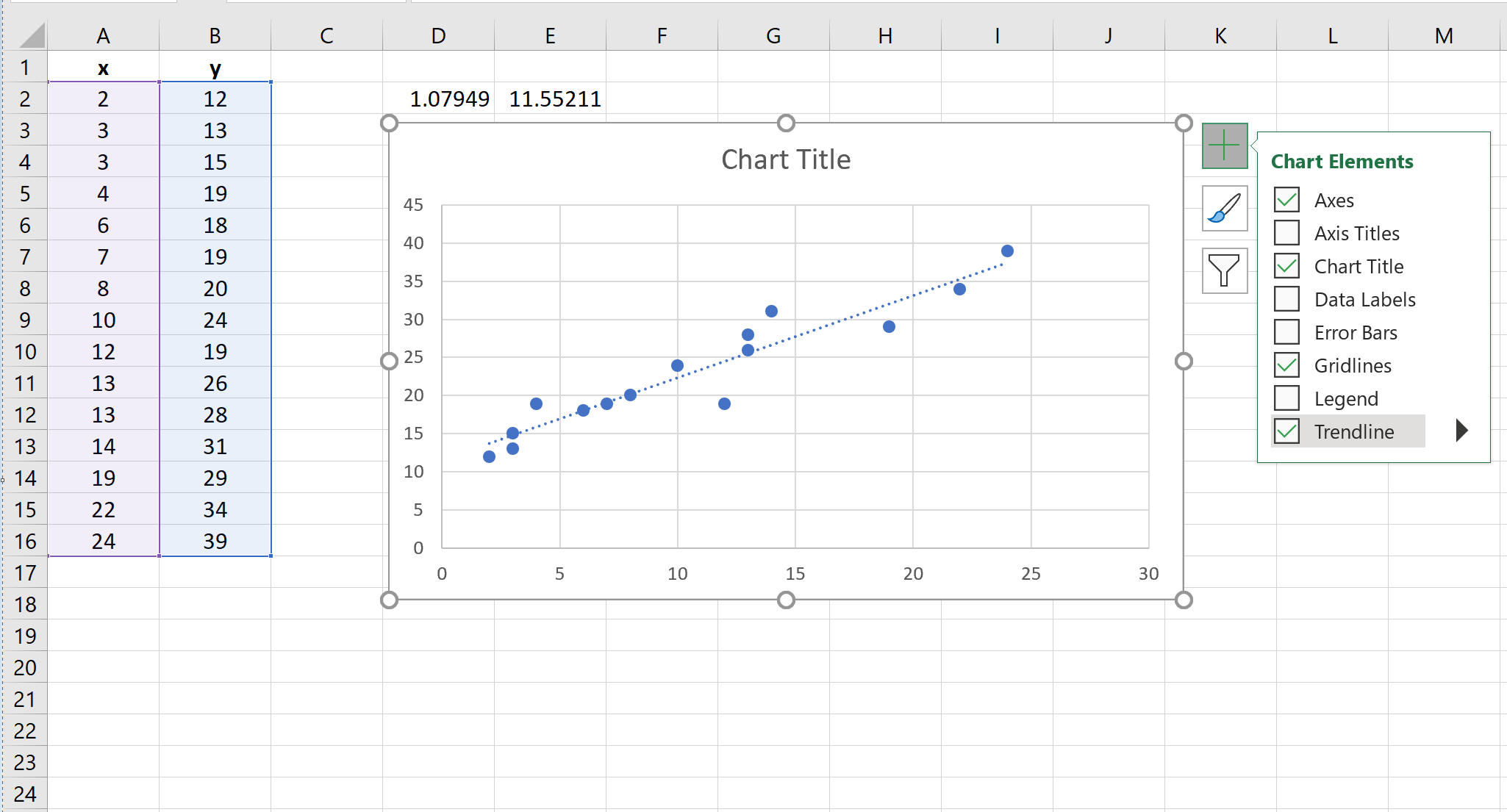

The resulting professional visualization compellingly confirms the strength of the linear relationship and shows the precise placement of the line of best fit relative to the entire set of observed data points:

Advanced Considerations for Robust OLS Modeling

While calculating the primary coefficients yields the core predictive equation, a truly complete and reliable regression analysis demands a thorough assessment of the model’s quality of fit and overall statistical validity. The =LINEST() function is designed to return a wealth of additional statistical information, provided the optional stats argument is explicitly set to TRUE.

Among the most critically important metrics available in the full output array is the R-squared value, which is formally known as the coefficient of determination. This statistic quantifies the proportion of the total variance observed in the dependent variable (Y) that can be reliably explained or predicted by the independent variable(s) (X). A robust R-squared value that approaches 1 (or 100%) strongly indicates a powerful and reliable explanatory capability of the constructed model.

Furthermore, it is essential to recognize that the reliability of the derived regression line fundamentally rests upon several key statistical assumptions that are foundational to the Ordinary Least Squares method. These critical assumptions include: the necessary assumption of linearity, the independence of the error terms, homoscedasticity (meaning the constant variance of the errors), and the approximate normality of the error distribution. If these assumptions are significantly violated or not met, it may unfortunately lead to biased parameter estimates or result in misleading interpretations of the calculated slope and intercept coefficients.

For financial or academic analysts requiring a statistically rigorous evaluation of the model’s certainty, the full output of Excel’s =LINEST() function also furnishes the standard errors for both the slope and the intercept. These standard errors are indispensable inputs for correctly constructing confidence intervals and for performing formal hypothesis testing on the estimated parameters.

Conclusion: Mastering OLS in Excel

The Method of Least Squares remains an absolutely indispensable tool for performing robust quantitative analysis across a diverse spectrum of fields, ranging from finance and engineering to the social sciences and economic modeling. Microsoft Excel provides an immediately accessible and highly functional platform for implementing this sophisticated statistical technique without requiring specialized software.

By effectively mastering the utilization of the =LINEST() function and diligently interpreting the derived statistical coefficients, users are empowered to accurately model linear relationships, rigorously assess the quality of fit of their data, and generate reliable, data-driven predictions from even complex datasets.

For individuals seeking to substantially expand their expertise in statistical modeling within spreadsheet environments, it is highly recommended to consult official Microsoft Excel documentation and advanced statistical textbooks. Such resources can facilitate a deeper exploration of advanced concepts, including multivariate analysis, multiple regression techniques, and detailed residual analysis.
