Power BI Tutorial: Adding Average Lines to Charts for Data Analysis

When designing effective data visualizations, providing the audience with a precise and immediate frame of reference is often paramount to success. A highly effective and frequently required technique is adding an average line, also known as a reference line, to visuals such as a bar chart or column chart within the Power BI reporting environment. This simple addition visually plots the mean value of the measured metric, allowing for instant comparison between individual data points (represented by the columns) and the overall central tendency of the analyzed data set. Providing this immediate visual context significantly enhances interpretability, simplifies the identification of outliers, and helps stakeholders quickly locate high-performing or underperforming segments, as illustrated in the example below:

Fortunately, implementing this powerful analytical feature in Power BI is intuitive and does not necessitate the use of complex DAX expressions or custom measures. The core functionality is seamlessly integrated directly into the visualization tools provided by the platform. Specifically, we leverage the Average line feature, which is housed within the dedicated Analytics Tab—an essential component often represented by a magnifying glass icon—which is available for specific visual types, such as the Clustered Column Chart. This comprehensive guide provides a detailed, step-by-step walkthrough, ensuring you can effectively utilize this critical analytical tool to enrich the narrative and insights presented in your professional reports.

Understanding the Value of Reference Lines

The fundamental objective of incorporating an average line is to anchor the viewer’s perception of the data by establishing a clear, quantifiable baseline. Without a reliable reference point, determining whether a specific data entity, such as a store’s sales figure, is performing ‘well’ or ‘poorly’ requires unnecessary cognitive effort, forcing the viewer to mentally calculate or estimate the average across all visible bars. The average line effectively eliminates this ambiguity instantaneously. By plotting the arithmetic mean of the metric across all relevant categories, this line serves as an immediate benchmark against which every individual performance metric can be objectively measured. This technique is absolutely indispensable in various analytical domains, including performance reporting, quality control analysis, and comparative studies where measuring consistency and identifying deviation from the norm are key metrics.

Moreover, the strategic placement of the average line offers immediate and profound insights into the underlying data distribution. If a significant number of columns cluster conspicuously above the calculated average line, it often signals that the overall mean is being disproportionately lowered by a few entities exhibiting extremely low performance. Conversely, if the majority of the bars fall below the line, the data set might be skewed by a small number of exceptional high performers. Recognizing these distributional patterns quickly is the very essence of effective and informative data visualization. Our goal is to develop a solution that is not only visually appealing but also highly informative, driving efficient and data-driven decision-making based on quantifiable performance metrics within the dashboard environment.

Reference lines act as powerful cognitive shortcuts. They transform raw quantitative data into actionable insight by creating a dichotomy: performance that exceeds the standard versus performance that lags behind. This analytical separation is critical for guiding management attention. For instance, teams can instantly target resources toward improving the below-average segments or, conversely, conduct in-depth analysis of the above-average segments to understand and replicate best practices. The clarity provided by a well-placed average line ensures that the data speaks volumes without requiring extensive textual explanation.

Step 1: Preparing Your Data in Power BI

Before commencing any visual analysis, we must first confirm that the dataset is appropriately loaded, structured, and validated within the Power BI Desktop environment. Effective data preparation is the foundational and most crucial step for any reliable analytical endeavor. For the purpose of this demonstration, we will utilize a sample dataset that captures relevant information pertaining to sales performance across a series of distinct retail locations. It is fundamentally important that the loaded data includes at least one categorical variable, which will define the X-axis (e.g., Store ID), and one continuous numerical variable, which will define the Y-axis (e.g., Total Sales) and is required for proper aggregation and averaging.

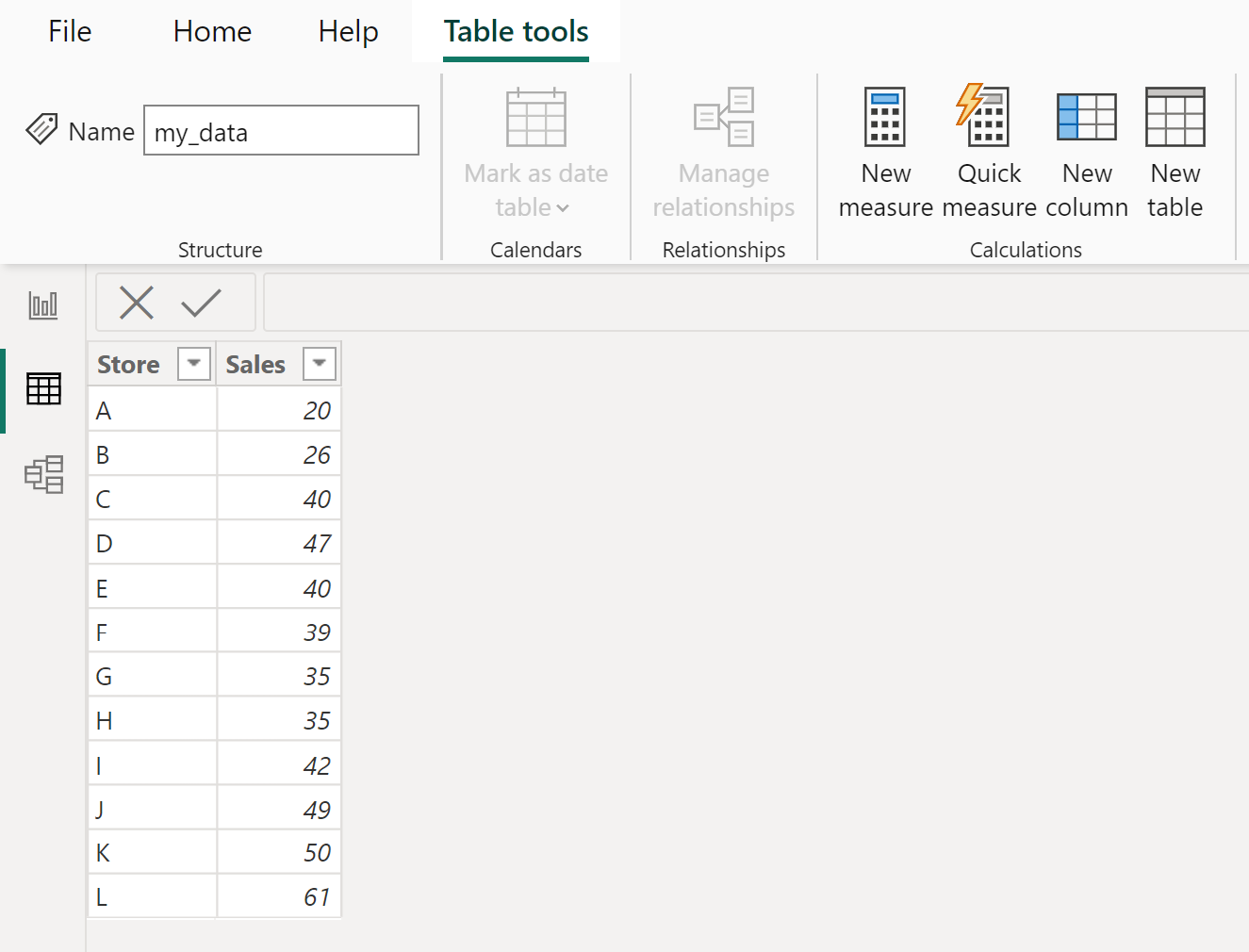

We will proceed by loading a straightforward dataset that records the total sales achieved by different stores. Note the clean, simple structure: one column clearly identifies the distinct entities being compared (‘Store’), and the other contains the measurable metric (‘Sales’). This streamlined structure is perfectly optimized for generating a column chart where each individual bar accurately represents the aggregated sales value associated with a unique store.

Once the source data has been successfully connected and loaded into the Power BI data model, a critical verification step is necessary: ensuring that the ‘Sales’ column is correctly recognized by the system as a numerical data type (such as Decimal Number or Whole Number). This correct assignment is mandatory to allow for the automatic calculation of aggregation measures, including the arithmetic mean. If the data type is incorrectly specified—for instance, treated as text—the necessary aggregation functions required to calculate and plot the average line will either fail completely or, worse, produce inaccurate and misleading results. Proper data type assignment, therefore, ensures the accuracy and reliability of the subsequent visual analysis and calculation of the average line.

Step 2: Constructing the Base Visualization

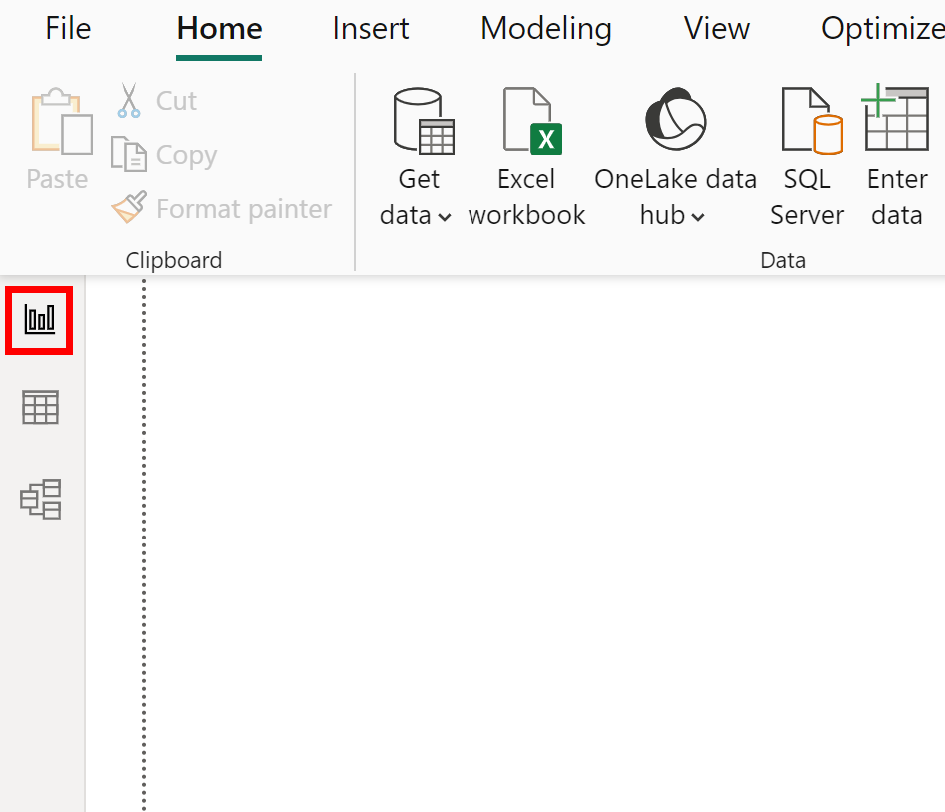

With the required data successfully loaded and validated, the subsequent phase involves initiating the report generation process and meticulously selecting the most appropriate visualization type for our comparison. Begin by navigating to the main canvas area within Power BI Desktop. Click the Report View icon, typically situated on the left-hand navigation pane of the application interface. This action transitions you to the design surface, which is the dedicated space where all visualizations are created, configured, and arranged into a cohesive report structure.

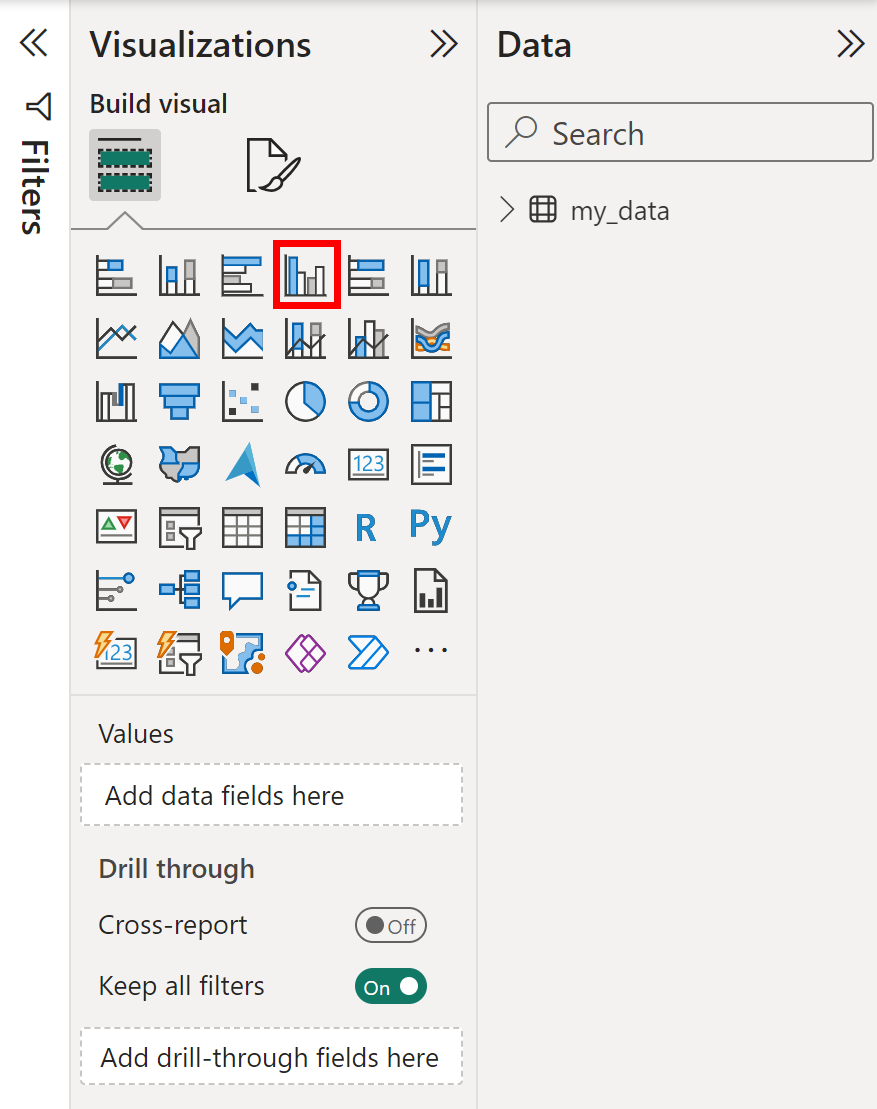

Next, locate the Visualizations pane, which is generally positioned on the right side of the screen. This pane catalogs the extensive array of chart types available in Power BI. For the specific goals of this tutorial—comparing discrete sales values across multiple stores—we require the Clustered column chart. Click on its corresponding icon to insert an empty template onto the report canvas. The clustered column chart is a highly robust and preferred choice for comparing discrete values across distinct categories, making it the perfect foundation for our store sales comparison analysis.

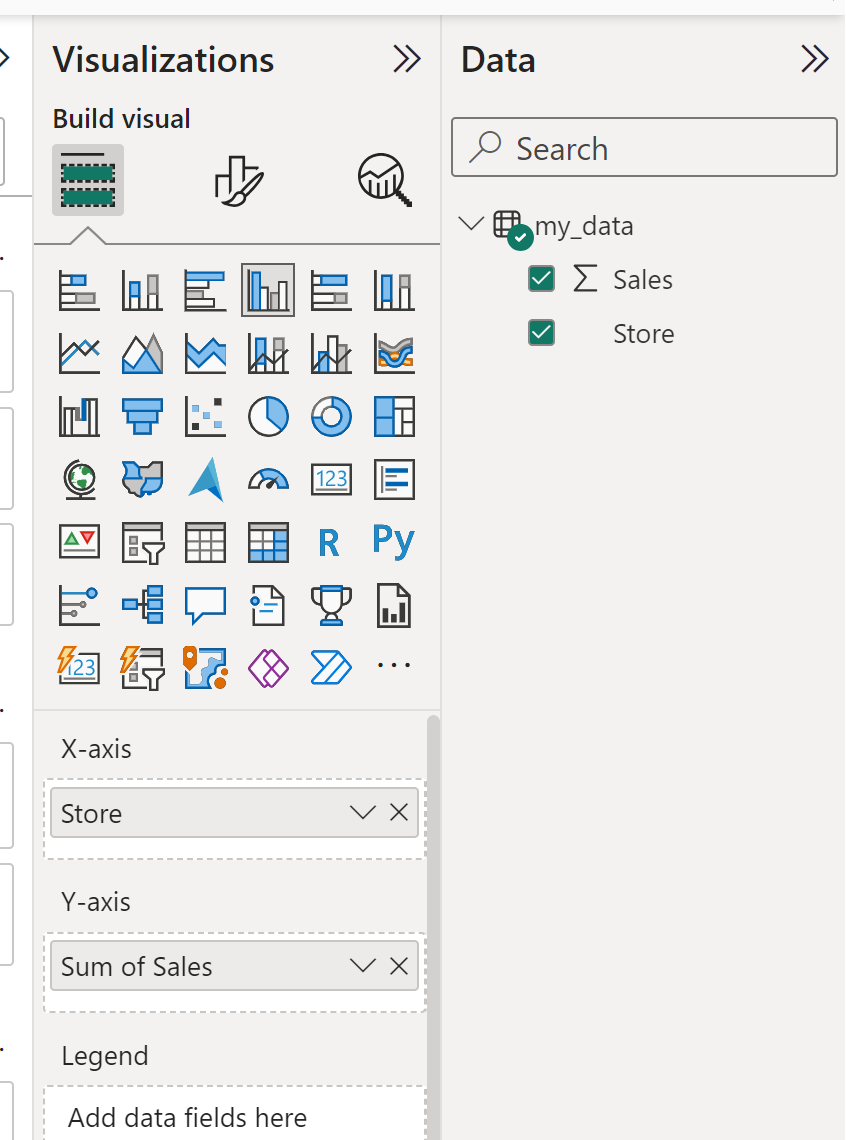

Once the empty visual placeholder is inserted, we must accurately map our data fields to the designated chart axes. Using the Fields pane, drag the categorical variable, Store, into the visual’s configuration area labeled X-axis. The X-axis fundamentally defines the categories or groups being compared. Subsequently, drag the numerical variable, Sales, into the visual configuration area designated for the Y-axis. The Y-axis represents the measurement scale. Power BI will automatically apply an aggregation function (summing the sales by default) for the Sales data across each corresponding store category.

Following the successful mapping of these two crucial variables, the clustered column chart will render the initial visualization. This chart provides a clear and immediate visual comparison of the total sales achieved across all participating stores present in the dataset. This foundational chart is now structurally complete and fully prepared for the next phase: the addition of the analytical reference line.

Step 3: Leveraging the Analytics Tab to Implement the Average Line

The next crucial and highly efficient step is accessing the specialized analytical capabilities within Power BI to introduce the average sales benchmark. First, ensure the newly created chart is actively selected on the report canvas. This selection is mandatory as it activates the specific formatting and analytical options tailored to that particular visual. The core functionality for adding various types of reference lines is located within the Analytics Tab, which is distinctly separated from the general ‘Format Your Visual’ tab.

To proceed, click on the Analytics Tab icon, which is typically depicted as a magnifying glass or a small trend line graphic, situated within the Visualizations pane. This tab grants access to a suite of advanced analytical features, including trend lines, min/max lines, and, most importantly for this task, the Average line option. Carefully scroll down the list of available analytics features until you locate the dedicated Average line section.

Expand the Average line section by clicking the dropdown arrow adjacent to its title. This action reveals the specific configuration settings required. To successfully activate the reference line, click the + Add line button. Power BI will immediately calculate the arithmetic mean of all ‘Sales’ values currently displayed on the chart’s Y-axis and seamlessly overlay a default-styled line representing that average value across the entire visualization. This instantaneous process is highly efficient, expertly eliminating the need for manual data calculation or the creation of custom DAX measures in most standard analytical scenarios.

Once successfully incorporated, the average line automatically and profoundly enhances the contextual understanding of the Clustered column chart. The line establishes a clear horizontal demarcation point, instantly partitioning the compared stores into two easily distinguishable groups: those performing above the calculated average sales threshold and those entities falling below it. This simplification of complex comparative data into a binary analytical structure is the major, undeniable benefit of utilizing Power BI’s powerful built-in analytical capabilities.

Step 4: Customizing and Interpreting the Average Line

While the default average line provides the necessary analytical function, customizing its appearance is essential for significantly improving the report’s professionalism, maximizing its visual impact, and enhancing overall readability. Within the same Analytics Tab, you gain access to customize a variety of visual properties of the reference line. Click the dropdown arrow next to the Line settings to adjust critical parameters such as the line’s color, thickness, and style (e.g., opting for solid, dashed, or dotted lines). Choosing a strong, contrasting color ensures that the reference line stands out clearly and unequivocally against the column chart data, typically guaranteeing maximum visual impact. For many formal business reports, a dashed black or bright red line often provides the ideal visual contrast.

Furthermore, adding a numerical label directly onto the reference line is highly recommended as it substantially enhances both precision and clarity. To implement this feature, locate and expand the Data label section within the Average line settings. Enable the data label feature, which will display the calculated mean value. You can then meticulously configure the label’s optimal position (above or below the line), its display unit (e.g., thousands or millions), and its precise value formatting. Displaying the exact average value—in our specific example, 40.33—eliminates any possible guesswork and provides the exact metric used for objective comparison, thereby solidifying the analytical integrity of the bar chart.

For our specific demonstration, we implemented a black dashed line and carefully activated the data label to prominently show the calculated average sales value of 40.33. This finalized visualization instantaneously conveys which specific stores are performing above and which are performing below the calculated mean, allowing stakeholders to focus their immediate attention on those entities requiring further deep analysis or, conversely, those warranting celebration. The resulting clear, customized visual is instrumental in facilitating rapid, informed decision-making processes across the organization.

Conclusion and Further Exploration

The capability to quickly, accurately, and contextually incorporate an average line into visualizations like the Clustered Column Chart represents a core strength of Power BI‘s comprehensive reporting tools. This straightforward addition elevates a basic data display into a sophisticated, contextualized analytical tool, ensuring that all performance metrics are consistently viewed in relation to the overall dataset mean. Crucially, this technique is easily repeatable and applicable across numerous standard Power BI visuals that accept continuous Y-axis data, thereby providing a consistent, high standard of analysis throughout your entire report suite.

Moving beyond the simple average line, the Analytics Tab offers several other invaluable reference lines designed to add further depth to your data narratives. These include the Median line, the Minimum line, the Maximum line, and the Constant line. Users are strongly encouraged to explore and master these additional features. For instance, adding a Constant line could be used to represent a fixed, organization-wide target goal or budget threshold, while utilizing a Median line might offer a more robust measure of central tendency in datasets that are prone to extreme outliers or highly skewed distributions. Mastering these versatile analytical overlays significantly elevates both the quality and the lasting impact of any professional Power BI report, transforming data into truly meaningful insights.
