Learning Power BI: How to Add Week Numbers to Date Hierarchies

Understanding Power BI’s Default Date Hierarchy

When analysts begin working with time-series data within Power BI, they quickly encounter a highly convenient, built-in feature known as the Date Hierarchy. This functionality is automatically activated for any column that the system recognizes as a date or datetime field within the underlying data model. The primary objective of this automated structure is to grant users immediate access to aggregated views across various temporal scopes—such as year-over-year or month-to-month trends—without necessitating manual preparation of date attributes. Typically, this default hierarchy provides levels for Year, Quarter, and Month, thereby facilitating standard chronological analysis and intuitive drill-down capabilities straight out of the box.

However, a frequently cited limitation by business intelligence professionals is the notable absence of the Week level within this standard, automatically generated Date Hierarchy. This omission poses a substantial challenge for organizations that operate, track performance, or report on granular weekly cycles. Such businesses require detailed insight into week-over-week performance metrics or short-term operational trends that cannot be effectively tracked solely using monthly or quarterly aggregations. Since the default mechanism prioritizes broader temporal dimensions for simplicity, incorporating the necessary weekly granularity demands a specific, custom solution engineered by the user.

As clearly demonstrated in the visualization below, when a raw date field is initially incorporated into a visual’s axis, the default structure confines the available drilling options strictly to the higher temporal levels. This standard configuration explicitly excludes the specialized weekly aggregation level often essential for precise operational reporting and detailed short-term forecasting.

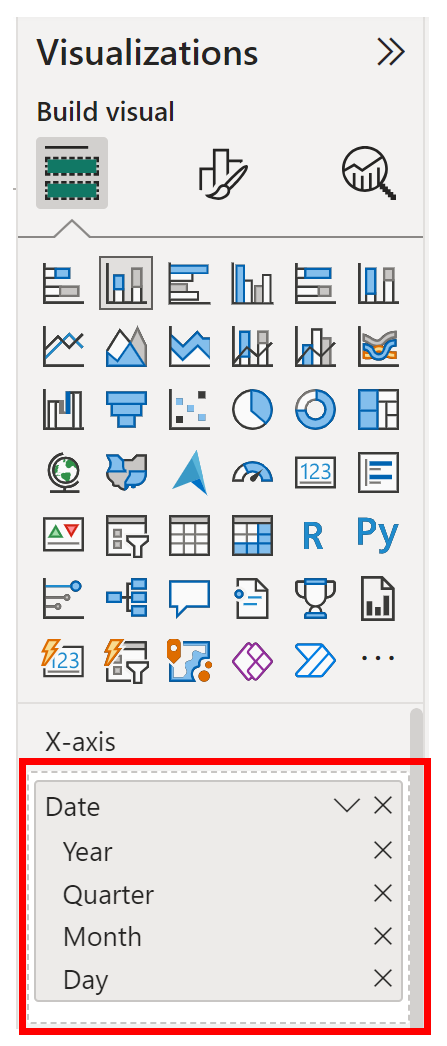

By default, when you add a date field to the x-axis of a visualization in Power BI there is no Week included in the date hierarchy:

Fortunately, integrating robust weekly analysis capabilities into your Power BI model is a highly achievable task, though it necessitates moving beyond the automatic hierarchy system. The most straightforward and effective solution involves the creation of a custom field—specifically, a Calculated Column—designed to accurately extract the week number from the existing date field. Once this new column is created, it can be seamlessly integrated into visualizations to either replace or effectively supplement the standard hierarchy, providing the essential weekly breakdown required for comprehensive and robust business analysis.

The Limitation of Automatic Date/Time Functionality

The automatic Date/Time feature in Power BI is engineered for user convenience, yet its scope is inherently limited. It relies on internal, standardized mechanisms that successfully segment dates into year, quarter, and month. The fundamental exclusion of the week number level stems partly from the inherent complexity of defining what constitutes the “first week” of the year, a definition that can vary substantially based on regional, legal, and business standards. For example, the definition might follow the strict ISO 8601 standards or alternative US standards. Since a single, universally applicable week definition is practically impossible to implement automatically and reliably across all business contexts, Power BI delegates this specific temporal dimension to the user, requiring explicit definition through the use of DAX (Data Analysis Expressions) formulas.

To effectively overcome this functional limitation and guarantee precise, business-specific weekly analysis, we must deliberately bypass the implicit hierarchy and instead construct an explicit Calculated Column. A Calculated Column serves to introduce new information into every row of an existing table, basing its values on an operation or formula applied to other columns within that same table. This direct, manual approach ensures that the week number is static, consistent, and fully aligned across the entire data model, ready to be utilized effectively as a primary dimensional attribute in any visualization. This technique represents a cornerstone of effective data modeling in Power BI, enabling the degree of customization that the automated system simply cannot provide.

This manual method provides significantly superior control over how time data is segmented and reported. By defining the week number ourselves using powerful DAX expressions, we can guarantee compliance with specific internal reporting cycles. This might involve strictly following the ISO week standard (where the week starts on Monday) or applying a custom standard where the week begins on Sunday, depending entirely on the unique needs of the business. We will leverage the built-in DAX function designed specifically for date extraction, ensuring that our final weekly data aggregation is both accurate and perfectly aligned with the organization’s definition of a business week.

Step-by-Step Guide: Creating the Calculated Week Number Column

We will now walk through a practical, step-by-step example using a representative sample dataset. For this scenario, let us assume we are tracking crucial sales data for a company, which is contained within a table named my_data. This core table includes a critical column containing the specific transaction dates. Our primary objective is to analyze the total sales figures, aggregated specifically by the week of the year, effectively treating the week number as a discrete dimension for reporting purposes.

Suppose we have the following table named my_data in Power BI that contains information about sales made on various dates by some company:

If we initially attempt to plot a column chart using the raw Date field on the X-axis and Sales on the Y-axis, Power BI will automatically default to its standard, implicit hierarchy (Year, Quarter, Month). This initial visualization confirms the critical missing ‘Week’ option, unequivocally highlighting the necessity of our custom column approach before we can proceed with any form of accurate weekly analysis.

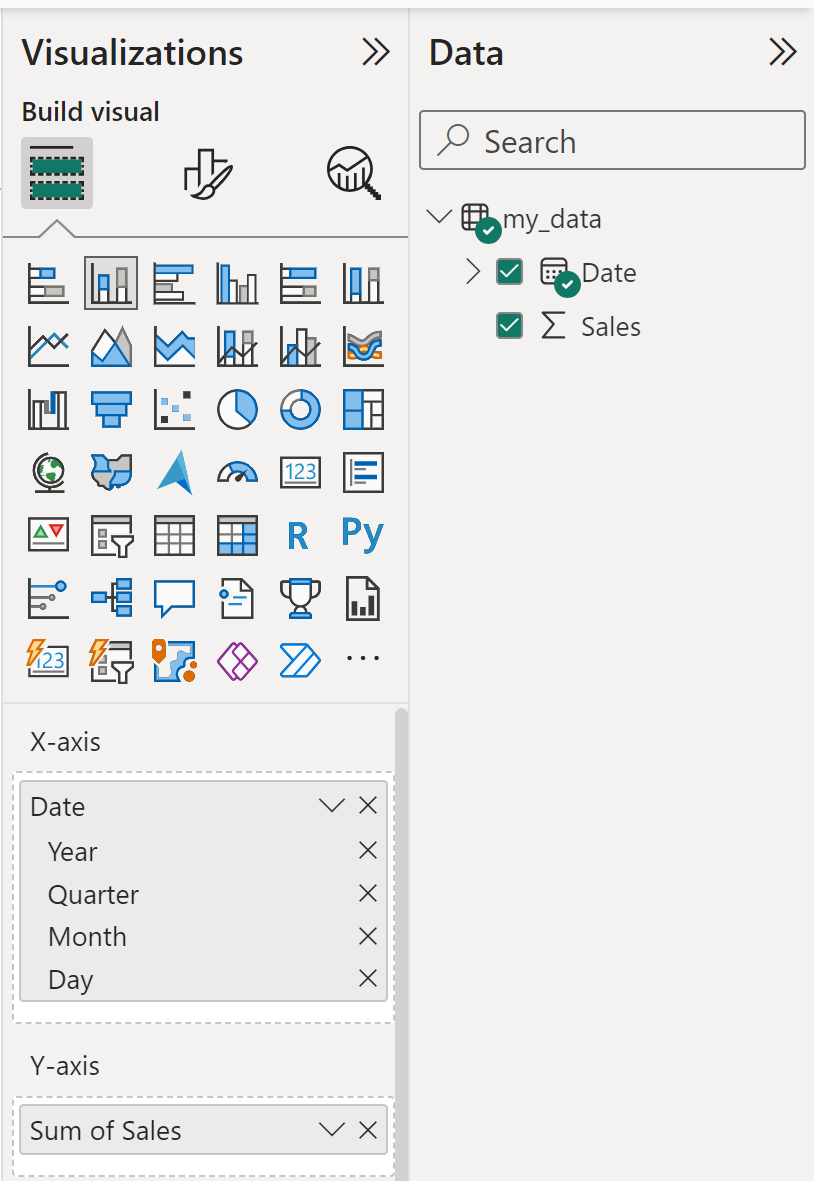

If we drag the Date field to the X-axis and the Sales field to the Y-axis, the date hierarchy for the Date field will not include Week by default:

To commence the process of introducing the week field, we must navigate away from the standard Report view and transition into the Data view (also known as the Table view) within Power BI Desktop. This specific view is where users interact directly with the underlying table structure to introduce new calculated measures and columns. Once you are in the Table view, locate the Table tools ribbon at the top of the interface. This ribbon provides essential data modeling utilities, including the crucial option used to define new columns, measures, or tables.

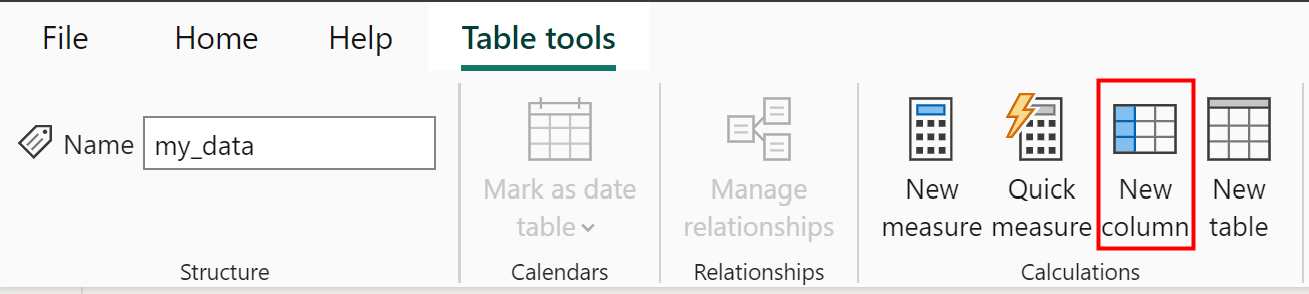

To add week to the date hierarchy, we must return to the Table view. Then click the Table tools tab and then click the New column icon:

Clicking the New column icon instantly activates the formula bar, enabling us to input the Data Analysis Expressions (DAX) necessary to perform the required data transformation. This moment is the pivotal step where the raw date is programmatically converted into a meaningful, standardized numerical week identifier that can be used consistently across all subsequent analyses and reports.

Implementing the WEEKNUM DAX Function

The technical core of this solution relies entirely on utilizing the highly effective WEEKNUM function, which is a key component of the extensive DAX function library. The WEEKNUM function accepts a date argument and reliably returns an integer value representing the sequential week of the year for that given date. It is specifically designed to handle the internal complexities of calculating week numbers relative to the commencement of the year, making it an extremely efficient tool for temporal data manipulation.

When defining the new Calculated Column, the user must precisely enter the specific DAX formula into the formula bar provided by Power BI. This formula must clearly establish the descriptive name of the new column and accurately specify the calculation logic, leveraging the existing date field from our source table.

Then type the following formula into the formula bar:

Week Number = WEEKNUM('my_data'[Date])

It is essential to understand the syntax employed here: Week Number is the descriptive name assigned to our new Calculated Column. The expression WEEKNUM('my_data'[Date]) instructs DAX to look specifically at the Date column within the my_data table and calculate the corresponding week number for every single row in the dataset. By default, if the optional second argument (known as return_type) is not specified, WEEKNUM employs a standard definition where the week containing January 1st is designated as the first week of the year, and the week itself commences on Sunday (return type 1).

If your specific organizational standards necessitate a different definition—for instance, if you strictly adhere to the internationally recognized ISO 8601 standard where the week starts on Monday and Week 1 is defined as the first week with four or more days falling into the new year—you would be required to include the optional second parameter in the WEEKNUM function call. Using a return type of 21, for example, explicitly forces adherence to the ISO standard. For many simple or internal use cases, however, the default parameter often proves sufficient. Executing this formula immediately and efficiently populates the new column across the entirety of the dataset, providing the foundation for weekly analysis.

This will create a new column named Week Number that contains the week number of the year for the corresponding date in the Date column:

The immediate result is a clean, integer-based column that is now fully prepared for utilization in any visual component within your report. It is paramount to verify that this new column, although derived from a date, is purely numerical. In the modeling view, it may be necessary to explicitly set the data type or categorization to ensure that Power BI treats these week numbers as distinct categorical labels rather than raw values intended to be summed or averaged during visualization creation.

Visualizing Data Using the New Week Field

Once the Week Number Calculated Column has been successfully created and populated within the data model, the next step is to return to the Report view to update our visualization. The crucial transformation at this stage is that we completely bypass the previously problematic default Date Hierarchy and instead utilize our robust custom dimension for all temporal aggregation needs.

In the visualization pane, first remove the original Date field from the X-axis to eliminate the implicit hierarchy that excluded the week level. Next, locate the newly created Week Number field in the Fields pane and drag it directly onto the X-axis (or the Axis well) of the column chart. Simultaneously, ensure that the Sales field remains correctly positioned on the Y-axis (or the Values well), configured to calculate the sum of sales amounts.

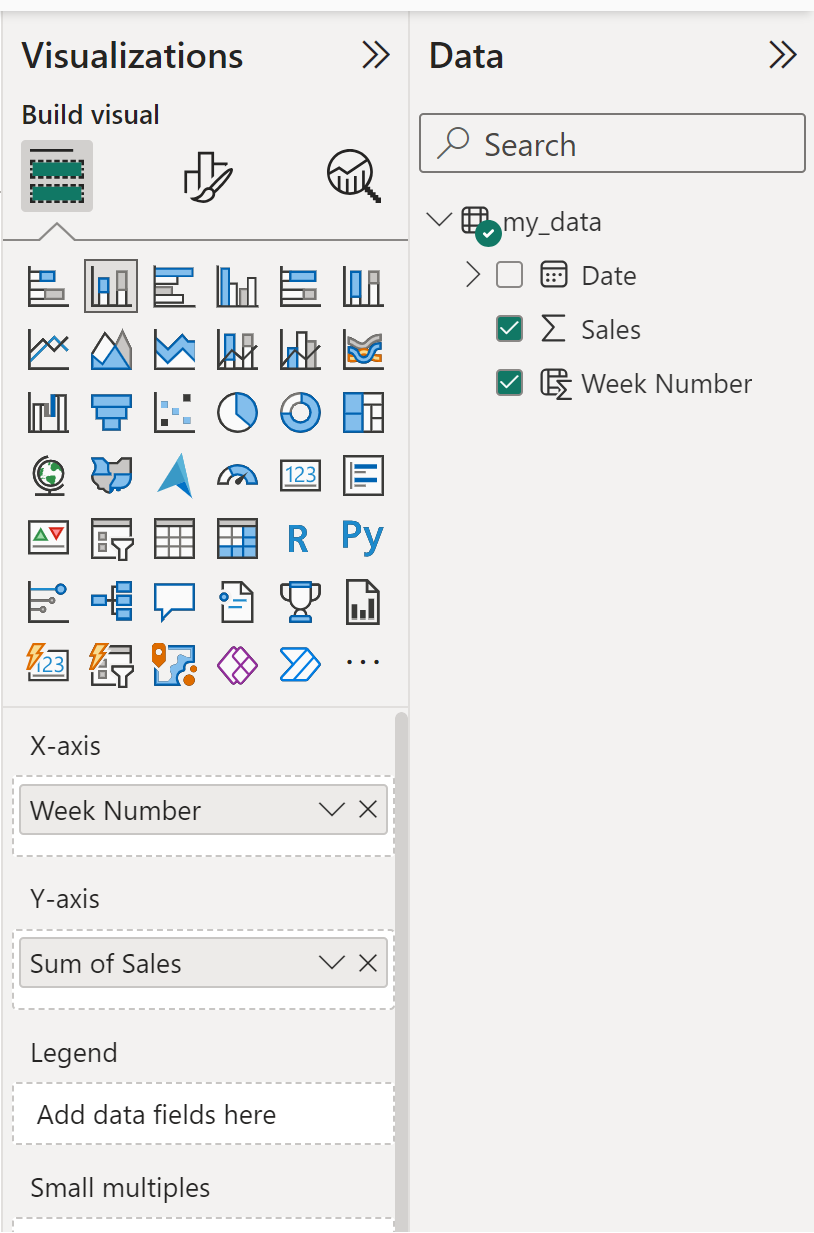

Then, we can drag the new Week Number field to the X-axis of the visualization and the Sales field to the Y-axis:

This simple modification instantly and profoundly transforms the visualization, delivering the highly desired weekly aggregation. Rather than displaying data segmented by Year, Quarter, or Month, the chart now accurately plots the total sum of sales corresponding specifically to each week number encountered throughout the dataset’s duration. This powerful shift enables precise weekly monitoring, identification of short-term trends, and granular operational reporting, all of which are fundamental requirements for effective business intelligence and reliable short-term forecasting.

This will produce the following column chart that displays the sum of sales by week number:

The final chart clearly maps the distinct Week Number (ranging from 1 through 52 or 53) on the horizontal axis against the corresponding Sum of Sales on the vertical axis. A critical consideration for reports spanning multiple years is the necessity of pairing the Week Number field with the Year field on the axis. This combination prevents the erroneous aggregation of data across different years, which would severely distort any multi-year trend analysis. This final configuration successfully completes the objective: the robust and accurate integration of the weekly dimension into the Power BI visualization environment.

Advanced Considerations and Data Modeling Best Practices

While the technique of employing the WEEKNUM function within a Calculated Column offers a quick and effective resolution for simple reporting needs, analysts focused on developing robust and scalable data models often adopt a more comprehensive approach: the creation and use of a dedicated Date Table. A custom Date Table grants modelers complete and centralized control over all date-related attributes. This includes not only the week number but also week start dates, financial period indicators, and custom sorting columns, which are essential for ensuring accurate chronological ordering, particularly when dealing with week numbers that naturally span across year boundaries.

A dedicated Date Table is typically marked as such within the Power BI model and is related to the fact tables (such as our my_data table) via the primary date column. This dimensional approach is highly recommended for all complex reports because it centralizes all time intelligence logic, simultaneously improving both report performance and analytical consistency across different visualizations and measures. Furthermore, establishing a dedicated date dimension is a prerequisite for executing more sophisticated DAX calculations, such as precise period-over-period comparisons or rolling aggregations, which are often challenging to implement reliably using just calculated columns directly on the fact table.

In conclusion, for straightforward, one-off analyses or dashboards with limited complexity, the quick WEEKNUM method described throughout this guide is perfectly adequate and efficient. However, if reporting needs are anticipated to expand to include year-over-year weekly comparisons, custom fiscal calendars, or complex time-based filtering requirements, then investing the necessary time in building a comprehensive Date Table—often constructed using advanced DAX techniques like the CALENDARAUTO function—will yield significant long-term benefits in model maintainability, accuracy, and analytical flexibility. Regardless of the complexity, the immediate takeaway remains clear: leveraging Calculated Columns is the required technical step necessary to break free from the inherent limitations of the default Date Hierarchy and successfully introduce the critical weekly dimension into your data model.
