Understanding and Interpreting Semi-Log Graphs: A Comprehensive Guide

A semi-log graph, often referred to as a semi-log plot, is a powerful data visualization tool that employs a unique scaling method. It utilizes a linear scale on one axis—typically the independent variable (X)—and a logarithmic scale on the other, usually the dependent variable (Y). This configuration is essential for displaying data that spans multiple orders of magnitude effectively.

We typically employ a semi-log plot when the range of values for the Y variable exhibits significantly greater variability or growth characteristics compared to the values for the X variable. This scale disparity makes interpretation difficult on a standard linear plot, where small initial changes are often compressed and invisible near the origin.

Crucially, this type of graph is exceptionally useful for clearly visualizing and comparing the rate of change, or percentage change, of some variable over time, rather than just the raw absolute change. Understanding this proportional relationship is fundamental in fields ranging from finance and economics to biology and engineering.

The following detailed examples will demonstrate how to accurately read and interpret these specialized plots, highlighting the distinct insights gained from the logarithmic transformation.

Understanding the Logarithmic Scale

To effectively read a semi-log plot, it is vital to first understand how the logarithmic scale functions compared to its linear counterpart. On a standard linear scale, equal physical distances on the axis represent equal absolute differences in value (e.g., the gap between 10 and 20 is the same as the gap between 90 and 100).

In contrast, the logarithmic scale is designed such that equal distances represent equal proportional differences or ratios. For instance, the physical distance between 10 and 100 (a tenfold increase) is identical to the distance between 100 and 1,000. This clever design compresses large numerical ranges, allowing proportional relationships that would otherwise appear obscured to be clearly visible and comparable.

When the Y-axis is logarithmic, the grid lines are not uniformly spaced. They are typically spaced according to powers of 10, creating distinct cycles or decades (e.g., 1 to 10, 10 to 100, 100 to 1,000). Because of this scaling, a constant slope on a semi-log graph indicates a constant proportional growth rate, which corresponds mathematically to exponential growth.

Interpreting Visual Patterns on a Semi-Log Plot

The primary analytical benefit of using a semi-log graph lies in the instantaneous diagnosis of the underlying growth or decay model simply by observing the shape of the plotted line. Analysts rely on these specific visual patterns to interpret the data:

• A Straight Line: If the data forms a straight line, the underlying process exhibits constant proportional growth or decay. This is the visual signature of exponential growth, meaning the variable increases by the same percentage change during each equal time interval.
• A Curve Bending Upward (Concave Up): This shape indicates that the rate of percentage growth is accelerating over time. The variable is growing faster than exponentially, suggesting a compounding or positive feedback mechanism is strengthening its rate of increase.
• A Curve Bending Downward (Concave Down): If the line flattens out or bends downward, the percentage growth rate is decelerating. The variable is growing sub-exponentially, often indicating that resource limitations, market saturation, or biological limits are slowing the rate of increase.

These distinctions are critically important in forecasting and modeling. For instance, a standard linear graph can make both an exponential trend and a polynomial trend look steeply curved, but only the semi-log plot will reveal which one is truly characterized by a constant rate of change or proportional growth.

Example 1: Semi-Log Graph for Biological Growth

Let us examine a scenario where a biologist tracks the physical growth of a plant over a 20-week period. The core biological question here is not merely the total height gained, but how the proportional efficiency of growth changes as the plant matures.

The initial visualization, using a standard linear scale on the Y-axis for height, appears as follows:

This chart clearly shows the raw increase in height. Notice how the line is relatively flat at the beginning but becomes drastically steeper toward the end. On a linear scale, this steepness suggests that the plant achieved the greatest absolute growth in the later stages (weeks 15 through 20). However, this interpretation focuses solely on absolute change, which can be misleading when assessing growth efficiency across different developmental stages.

To accurately visualize the proportional growth rate—the true biological efficiency—the biologist utilizes a semi-log graph:

By measuring height on a logarithmic scale, the shape of the line reveals that the proportional growth rate (the slope) is steepest during the early weeks. This indicates that the percentage growth of the plant is quickest when it is young. As the plant matures, the line curves significantly downward and flattens out. This deceleration signifies that while the plant is still gaining raw height, its proportional growth rate slows dramatically, likely due to resource diversion, increased structural needs, or biological limits.

Example 2: Visualizing Long-Term Investment Growth

Consider a second practical application involving financial analysis. An investor tracks the performance of a diversified investment portfolio over a 30-year span. In this critical context, the primary metric of interest is the consistency of the rate of return, not just the final dollar amount accumulated.

The investor’s initial analysis uses a standard linear scale for the investment value, which often results in a misleading visual representation:

On this standard plot, the growth appears parabolic, suggesting performance rapidly improved in the final years. This visual bias occurs because in the later years, the investment base is substantially larger; thus, even a small percentage gain translates into a massive absolute dollar change, making the line appear deceptively steep and accelerating.

To correctly visualize the annual growth rate—the compound percentage change—the investor must use a semi-log graph:

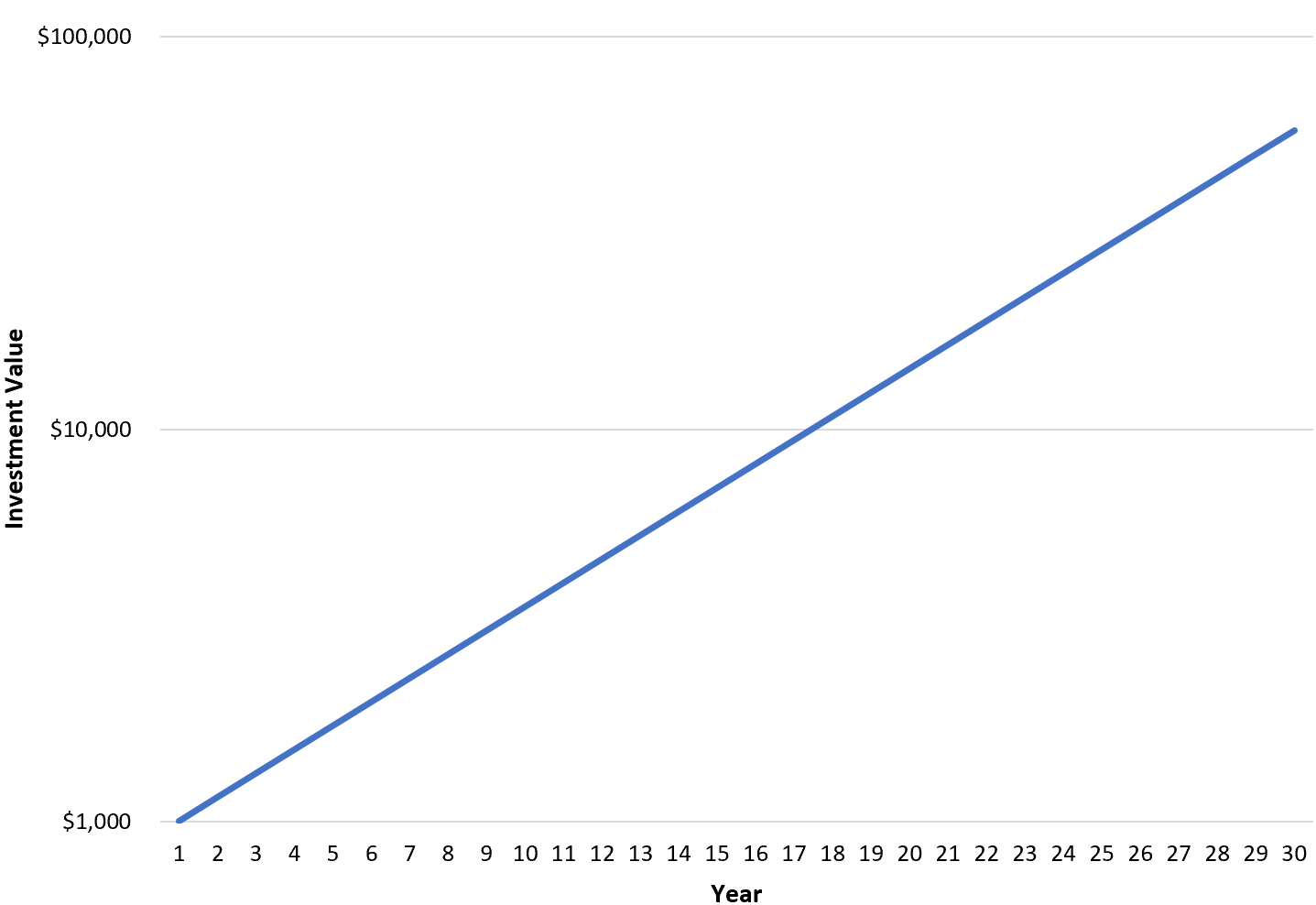

With the Y-axis now on a logarithmic scale, the line appears remarkably straight. This linearity is a crucial finding: it confirms that the investment’s proportional return has been consistent year-over-year. The portfolio followed a steady exponential growth path, meaning the investment’s performance rate did not dramatically accelerate or decelerate, despite the huge absolute dollar gains observed in the standard linear chart.

Summary of Key Advantages

The utility of semi-log plots makes them indispensable tools in disciplines where rates of change are more meaningful than absolute differences. They provide essential clarity and context in situations where linear visualizations fail:

1. Rate Visualization: They instantly transform exponential relationships into visually intuitive straight lines, allowing for easy identification and calculation of proportional growth rates.
2. Comparison Across Orders of Magnitude: They allow variables that range from single digits to millions to be plotted clearly on the same chart, effectively addressing issues of scale compression inherent in standard linear plots.
3. Forecasting and Modeling: By linearizing exponential trends, semi-log plots make it easier to perform linear regression and accurately extrapolate future growth based on known rates of change.

Additional Resources for Data Visualization

A strong understanding of scale transformation is essential for accurate data interpretation and sophisticated data analysis. For further exploration of these concepts and related plotting techniques, consult the following resources:

The following tutorials offer additional information on using log scales in plots:

• Deep dive into the mathematical properties of the logarithmic scale and its applications in physics and engineering.
• Guidance on distinguishing between semi-log, log-log, and linear plots for various dataset types.
