Understanding Logarithmic Scales in Data Visualization: When and How to Use Them

Defining the Logarithmic Scale in Data Visualization

Effective data visualization hinges on the judicious selection of the appropriate axis scale. Although the linear scale serves as the default and is often the most straightforward choice for conveying information, it frequently falls short when datasets exhibit extreme skewness or when the analytical focus shifts toward rates of change rather than absolute differences. In these specialized contexts, the logarithmic scale emerges as an indispensable tool, offering profound advantages for accurate interpretation.

Unlike the linear scale, where equidistant marks represent equal additive differences (e.g., 10, 20, 30), a log scale plots data points based on the logarithm of their magnitude. Crucially, equal distances along the logarithmic axis denote equal multiplicative ratios (e.g., 1, 10, 100, 1000). This fundamental transformation effectively rebalances the visual representation, making it uniquely valuable in numerous scientific, financial, and analytical disciplines where data spans several orders of magnitude.

To maximize clarity and insight, data practitioners must understand the specific conditions under which this non-linear approach is warranted. We will explore the two primary, compelling scenarios where adopting a logarithmic axis is not merely an option, but a necessary prerequisite for generating insightful and unbiased chart interpretations.

Scenario 1: Taming Extreme Data Skewness and Outliers

The first principal reason to shift from a linear to a log scale involves datasets plagued by enormous disparities in data range, often referred to as high skewness or the presence of significant outliers. When a small handful of data points are orders of magnitude larger than the rest, the standard linear scale struggles to accommodate the full range effectively. This compression of the lower end of the distribution renders differences among the smaller values almost impossible to distinguish, thereby obscuring critical detail.

Consider a practical example in business analytics: visualizing the annual revenue for a group of ten diverse companies. If two firms are global multinational corporations and the remaining eight are small or mid-sized enterprises, the revenue figures will vary drastically. Plotting this data on a traditional linear axis inevitably leads to visual dominance by the giants; their columns dwarf the others, flattening the bars representing the smaller companies to near-invisibility. This visual distortion defeats the purpose of comparative analysis, especially if the goal is to understand the relative performance differences among the smaller entities.

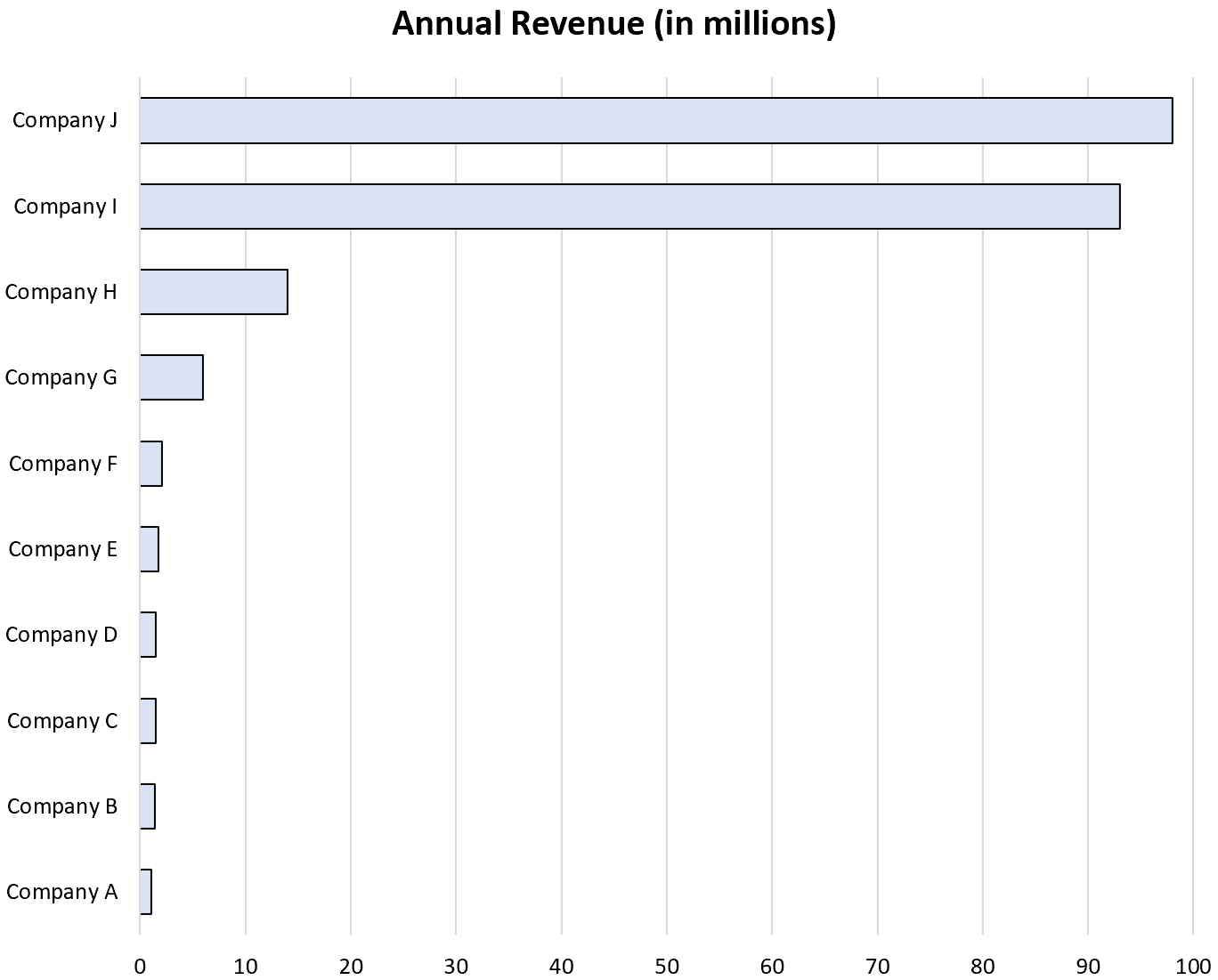

The issue is clearly illustrated when comparing disparate revenue figures. The chart below, utilizing a standard linear axis, demonstrates how the lower-magnitude data points are visually compressed, making any nuanced comparison among the majority of the companies impossible:

As evident in this visualization, the standard linear approach fails to provide a detailed view of the data points residing at the bottom of the magnitude hierarchy, severely limiting the chart’s analytical utility.

Visualizing Results: How the Log Scale Redistributes Data

By transforming the Y-axis into a logarithmic scale, we fundamentally mitigate the visual bias imposed by extreme outliers. This mathematical transformation effectively spreads out the smaller data values, granting them greater visual space, while simultaneously compressing the vast differences observed between the largest values. This allows for a more equitable and insightful comparison across the entirety of the dataset range.

The resulting chart provides a balanced perspective, where proportional differences are given consistent visual weight, regardless of the absolute starting size or magnitude of the values being measured. This is particularly powerful in fields like environmental science, income distribution analysis, or seismic activity measurement, where data naturally spans vast ranges.

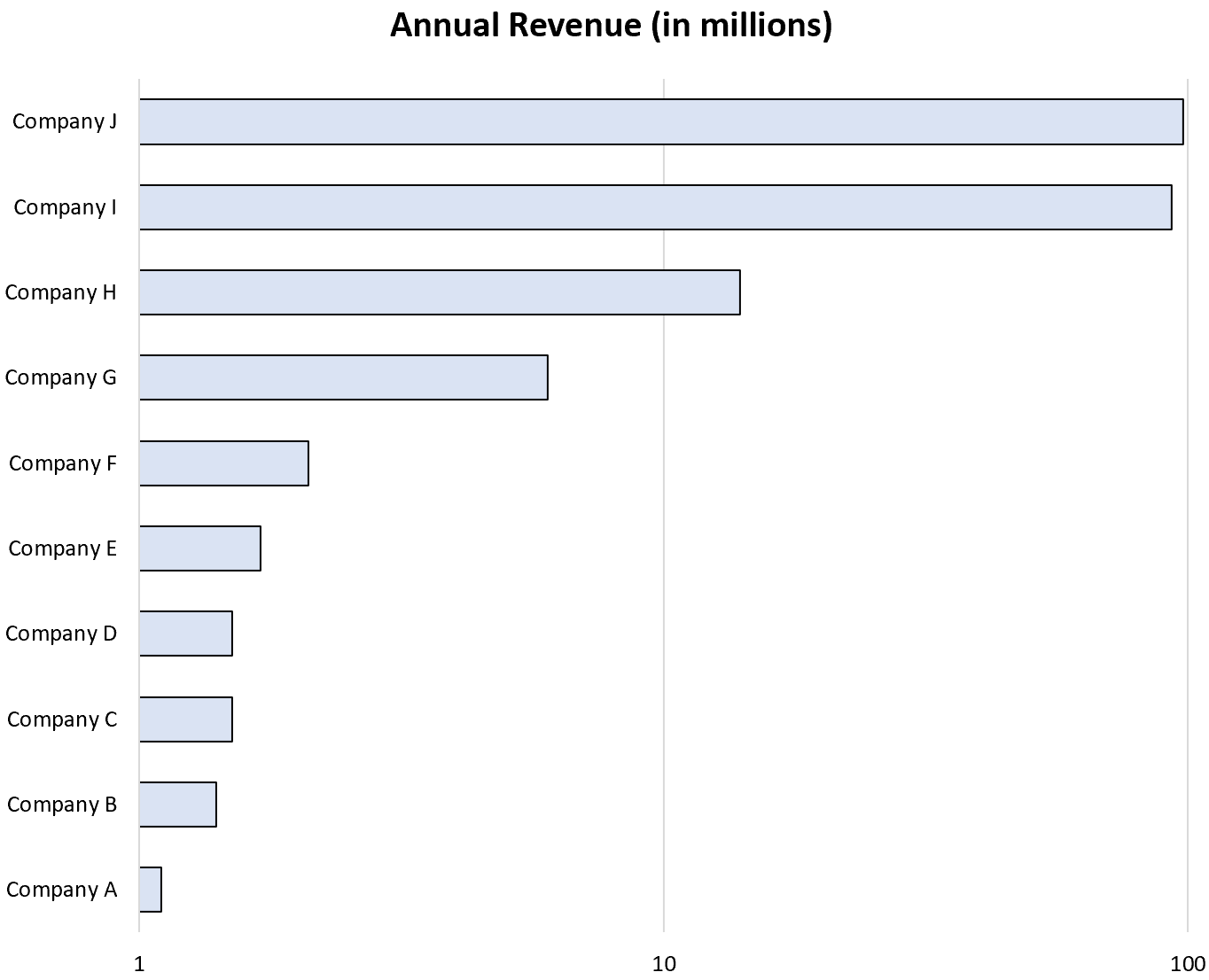

The following chart displays the exact same revenue data, but this time plotted using a logarithmic axis:

The difference is striking: the logarithmic transformation successfully brings the details of the lower-tier companies into sharp focus, making it significantly easier to differentiate and compare them. The log scale has successfully fulfilled its function of clarifying highly skewed distributions.

Scenario 2: Analyzing Proportional Change and Growth Rates

The second essential application of the log scale occurs when the primary analytical objective is to illustrate and compare proportional growth or percentage change, rather than the raw absolute magnitude of change. This scenario is paramount when dealing with variables that exhibit exponential growth, such as compound interest, the spread of viral information, or long-term macroeconomic indicators.

Consider an investment valued at $100,000 growing consistently at a 6% annual rate over three decades. While the proportional growth (6%) remains constant every year, the absolute dollar increase accelerates dramatically over time. The increase in the initial year might be a modest $6,000, but by the final year, the absolute increase could exceed $30,000, simply because the base value is much higher. Plotting this data on a linear scale creates an upward-curving line, which visually suggests that the rate of growth itself is accelerating, which is factually misleading if the annual percentage rate is stable.

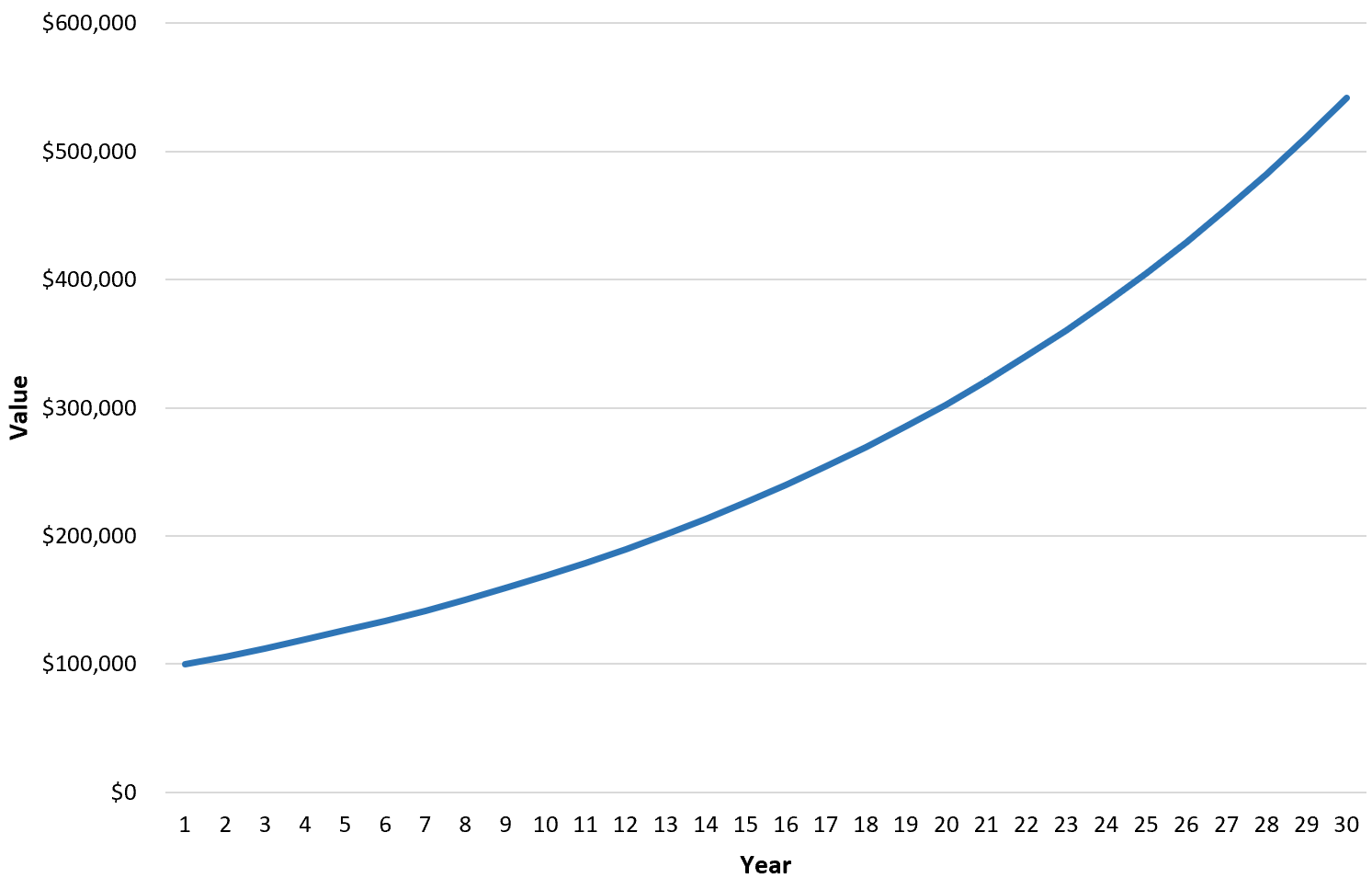

The linear chart below accurately reflects the raw dollar value accumulation, but visually misrepresents the underlying constancy of the 6% rate of return:

To correctly communicate that the growth rate is stable, we must leverage the unique properties of the logarithmic axis. Since equal vertical distances on a log scale represent equal proportional ratios, any variable experiencing a constant percentage change will appear as a straight line.

This straight line visualization is exceptionally powerful: it instantly confirms that the underlying rate of exponential growth has been constant throughout the observed period, irrespective of the initial capital or the final accumulated value. This clarity is essential when comparing the growth trajectories of multiple assets or populations over long durations.

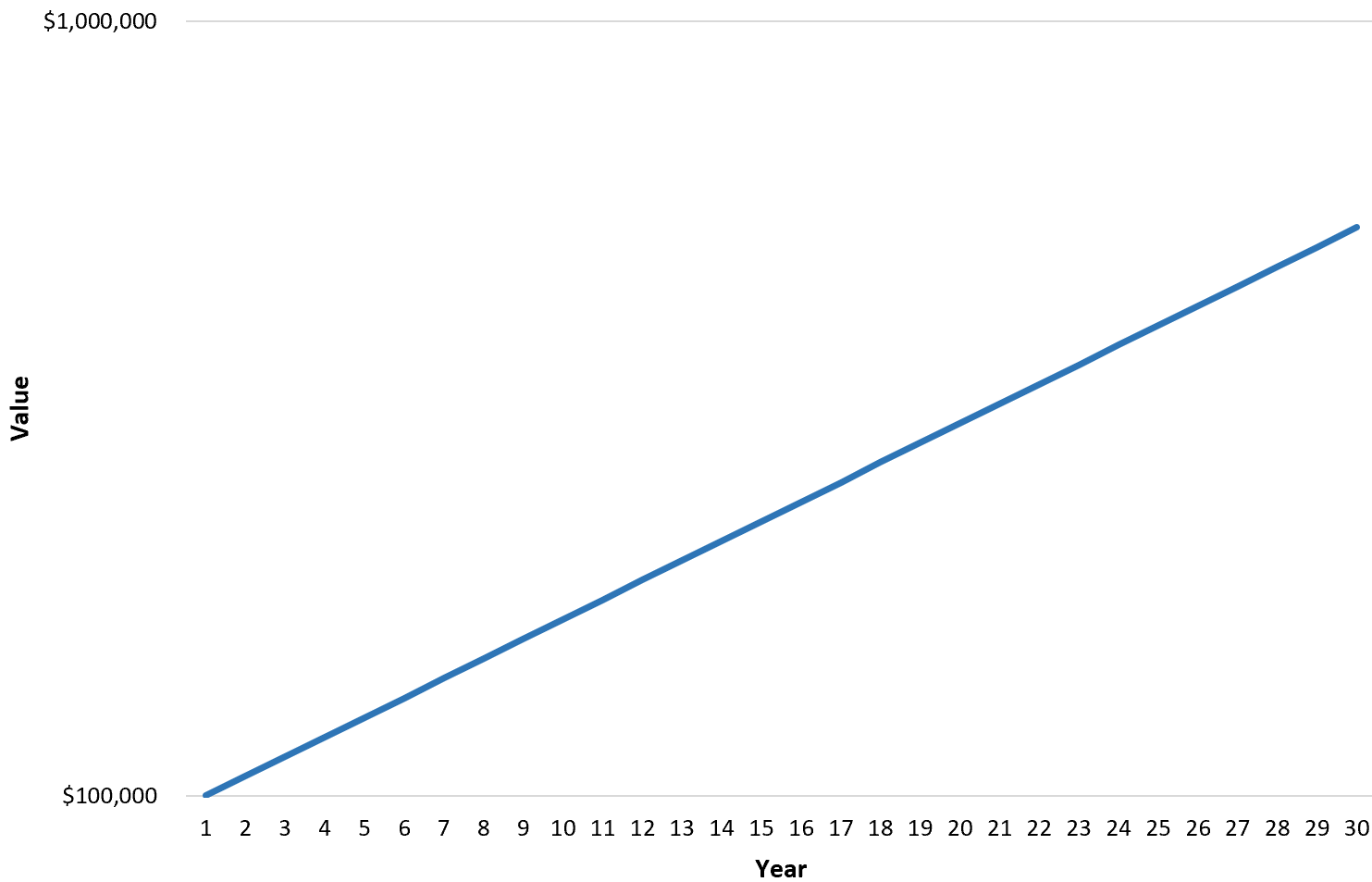

Here is the investment value data plotted using a log scale:

This chart unequivocally demonstrates that the slope, representing the proportional growth or percent change, remained constant across the entire 30-year period. This visualization technique is the standard for analyzing time-series data focused on rates of change.

Cautionary Notes and Best Practices for Logarithmic Charts

While the logarithmic scale is an invaluable instrument for managing vast data ranges and clearly illustrating exponential growth, its application requires careful consideration and responsibility. The primary caveat is that log scales transform the visual perception of absolute differences; differences between large numbers appear compressed compared to the differences between small numbers. This requires the analyst to ensure that the audience understands they are viewing relative, not absolute, magnitudes.

Furthermore, log scales are mathematically inappropriate for data that includes zero or negative values, as the logarithm function is either undefined or yields complex numbers for these inputs. Therefore, datasets must be strictly positive before logarithmic transformation can be applied. Most importantly, when presenting logarithmic charts, particularly to non-technical or general audiences, it is mandatory to clearly label the axes as “Logarithmic Scale” or “Log Scale.” Failure to do so often leads to significant misinterpretation, as most viewers instinctively process charts based on the default expectations of a linear scale.

In conclusion, the decision to use a log scale represents a sophisticated strategic choice in data visualization. It is specifically engineered to address distribution skewness and to isolate and highlight relative change when raw, absolute changes toward the end of a measurement period tend to visually overwhelm and obscure the true proportional rate of increase observed earlier in the series.
