Rotate Axis Labels in ggplot2 (With Examples)

When generating sophisticated data visualizations in R using the acclaimed ggplot2 package, analysts frequently encounter challenges related to visual clutter, especially when plotting categorical variables that possess lengthy names. The default horizontal orientation of axis labels often leads to significant overlap, rendering the graph difficult to read and unprofessional. This issue is particularly prevalent in datasets where descriptive labels are necessary for clarity, forcing the labels to collide at the base of the plot area. Fortunately, the ggplot2 framework provides an elegant and precise mechanism to resolve this: the rotation of axis labels.

This comprehensive tutorial serves as an expert, step-by-step guide, detailing the precise techniques required to effectively rotate X-axis labels. By leveraging the powerful theme() function within the Tidyverse ecosystem, we can ensure that your visualizations maintain optimal clarity, remain highly informative, and are easy for any audience to interpret, regardless of the length of the underlying category names. We will explore both 45-degree and 90-degree rotations, demonstrating how to achieve perfect alignment using critical justification parameters.

Mastering the theme() Function: Core Syntax for Label Manipulation

The foundation for customizing any non-data element within a ggplot2 plot—including titles, legends, and axis labels—is the theme() layer. To specifically target the appearance of the X-axis labels, we utilize the axis.text.x argument. This argument accepts output from the element_text() function, which is specifically designed to control textual elements such as font size, color, and, critically, orientation.

Understanding the standard syntax is essential for achieving immediate results. The rotation is controlled by specifying three key parameters within the element_text() function. The structure is concise and designed for rapid customization, allowing the user to seamlessly integrate aesthetic adjustments directly into their plotting pipeline. This single line of code holds the power to transform an illegible chart into a clean, professional display.

p + theme(axis.text.x = element_text(angle = 45, vjust = 1, hjust=1))

These three core arguments are the essential tools for controlling both the orientation and precise placement of the rotated labels, ensuring they align perfectly with their corresponding tick marks and do not interfere with the main plot area. Mastery of these parameters is the difference between a functional visualization and a truly polished one.

• angle: This parameter dictates the rotational degree applied to the text. Analysts commonly use values such as 45 degrees for a diagonal presentation or 90 degrees for a completely vertical orientation, depending on the length and number of the labels.
• vjust: Short for vertical justification, this controls the vertical alignment of the text relative to the specific point of rotation (the tick mark). Values typically span from 0 (bottom-aligned) to 1 (top-aligned).
• hjust: Short for horizontal justification, this controls the horizontal alignment. Values similarly range from 0 (left-aligned) to 1 (right-aligned).

It is crucial to recognize that merely adjusting the angle is rarely sufficient to fix alignment issues. A critical step in achieving professional-looking results involves simultaneously fine-tuning both vjust and hjust. These justification adjustments are necessary because the orientation of the text box changes relative to the axis line, and without correction, labels often appear detached, clipped, or incorrectly centered away from their corresponding data points.

Step 1: Structuring Data for Visualization Challenges

Prior to creating any visualization, it is essential to establish a simple, well-structured data frame in R. For demonstrative purposes, we will construct a small dataset containing intentionally long team names and their corresponding scores. These extended team names are specifically chosen to simulate the practical scenario where label rotation becomes an absolute necessity, demonstrating the problem before we implement the solution.

#create data frame
df = data.frame(team=c('The Amazing Amazon Anteaters',
                       'The Rowdy Racing Raccoons',
                       'The Crazy Camping Cobras'),
                points=c(14, 22, 11))

#view data frame
df

                          team points
1 The Amazing Amazon Anteaters     14
2    The Rowdy Racing Raccoons     22
3     The Crazy Camping Cobras     11

The successful creation of a well-formed data frame is the fundamental starting point for any successful visualization within the Tidyverse ecosystem. Observing the length of the strings in the team column immediately confirms that these category labels are too long to be plotted horizontally without significant overlap, setting the stage for the subsequent steps involving rotation.

Step 2: Establishing the Baseline Plot and Identifying Overlap

Next, we must load the necessary ggplot2 library and generate a basic bar plot. This initial visualization is crucial because it serves as our baseline, clearly illustrating the aesthetic and practical issue of overlapping X-axis labels when the category names are extensive. This step validates the need for the advanced thematic adjustment we are about to implement.

library(ggplot2)

#create bar plot
ggplot(data=df, aes(x=team, y=points)) +
  geom_bar(stat="identity")

The code above utilizes geom_bar(stat="identity"), instructing ggplot2 to plot the raw points values directly, rather than counting occurrences within the dataset. As vividly shown in the resulting image below, the long team names collide aggressively, rendering the X-axis completely illegible. This immediate visual failure underscores the necessity of implementing label rotation to restore meaning and professionalism to the chart.

Step 3: Implementing Strategic Axis Label Rotation

To decisively resolve the label overlap, we now apply the rotation syntax using the theme() layer. We will explore two of the most common and effective rotational degrees: 90 degrees (vertical) and 45 degrees (diagonal). Crucially, we will highlight how the accompanying justification parameters must be precisely adjusted for optimal visual alignment in each scenario.

Option A: 90-Degree (Vertical) Rotation for Maximum Clearance

Rotating the labels 90 degrees is frequently the simplest and most robust solution for categories with extremely long names, as this orientation ensures maximum separation between label strings. When utilizing angle=90, we typically set vjust to 0.5 (centering the label vertically relative to the tick mark) and hjust to 1 (aligning the text baseline precisely with the X-axis line). This setup maximizes vertical space utilization while keeping the label visually anchored to its corresponding bar.

library(ggplot2)

#create bar plot with axis labels rotated 90 degrees
ggplot(data=df, aes(x=team, y=points)) +
  geom_bar(stat="identity") +
  theme(axis.text.x = element_text(angle=90, vjust=.5, hjust=1))

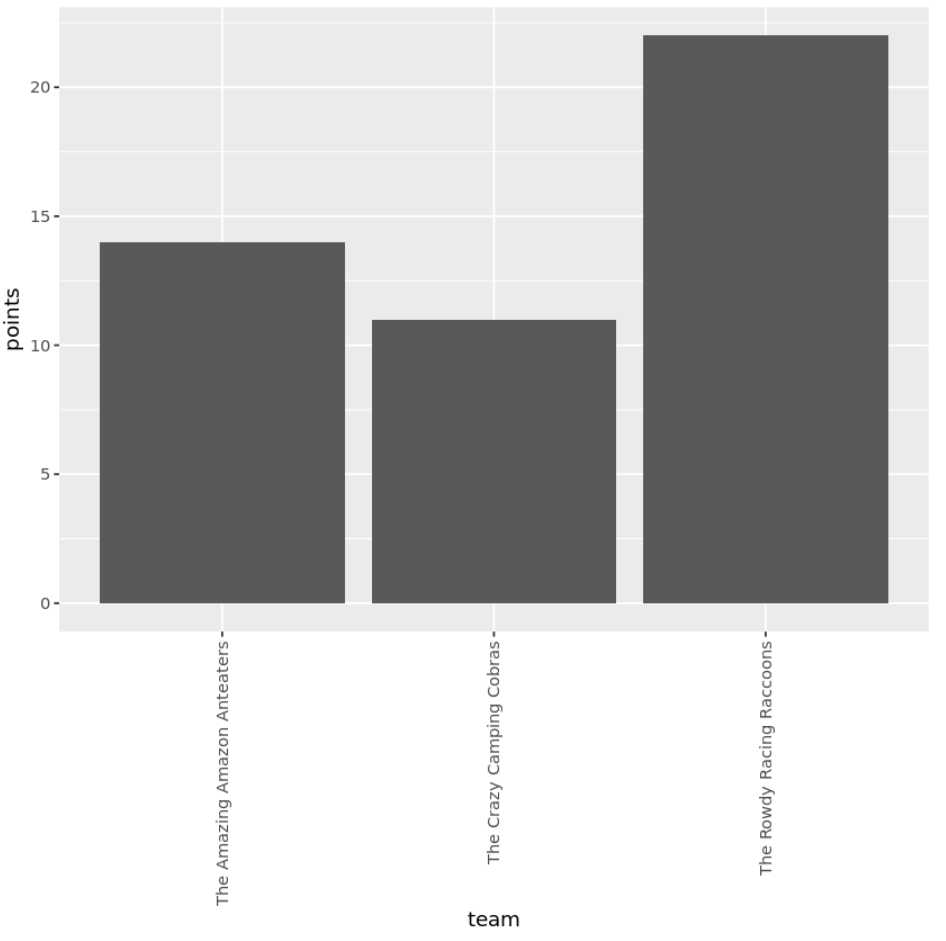

The resulting plot below clearly demonstrates perfect separation and immediate readability. It is important to note the subtle change in justification logic: when text is rotated 90 degrees, the concepts of vertical and horizontal justification effectively switch roles relative to the viewer’s horizontal orientation of the text, meaning hjust controls the distance from the axis line.

Option B: 45-Degree (Diagonal) Rotation for Aesthetic Balance

A 45-degree rotation is often the preferred choice for aesthetic reasons, as it consumes less vertical space than a full 90-degree rotation while still effectively resolving most overlap issues. This diagonal angle is most commonly employed when category names are moderately long, offering a visually pleasing compromise between horizontal and vertical text.

For angle=45, the established best practice is to set both vjust and hjust to 1. This specific configuration ensures that the right-most point of the label (the end of the text string) is anchored precisely at the tick mark. This alignment prevents the label from floating and keeps the connection between the category name and its data representation clear.

library(ggplot2)

#create bar plot with axis labels rotated 90 degrees
ggplot(data=df, aes(x=team, y=points)) +
  geom_bar(stat="identity") +
  theme(axis.text.x = element_text(angle=45, vjust=1, hjust=1))

The resulting 45-degree rotation, displayed below, provides excellent readability while maintaining a visually appealing diagonal slope, conserving valuable vertical real estate within the plot.

Best Practices: Fine-Tuning Justification Parameters (vjust and hjust)

The successful rotation of axis labels depends heavily on the careful interplay between the angle, vjust, and hjust parameters. If these justification values are not correctly set relative to the rotation angle, the labels may appear to float awkwardly far from the axis line, or they may clip aggressively into the main plot area, negating the benefit of rotation.

It is paramount to remember that when text is rotated, the visual interpretation of horizontal and vertical alignment shifts significantly. For example, if the text is rotated 90 degrees, the parameter controlling the horizontal alignment of the text box (relative to the viewer) is actually vjust, and hjust controls the alignment relative to the tick mark itself. This conceptual switch is often the source of confusion for new ggplot2 users.

A robust rule of thumb is to begin with recommended settings and then experiment slightly based on specific plot aesthetics. The following table provides reliable starting values for common rotation angles within the ggplot2 environment, designed to anchor the text effectively to the tick mark:

• 0 Degrees (Default): vjust=0.5, hjust=0.5 (Text is centered both vertically and horizontally).
• 45 Degrees: vjust=1, hjust=1 (Anchors the text end to the tick mark).
• 90 Degrees (Vertical): vjust=0.5, hjust=1 (Centers the text vertically, while right-aligning the baseline close to the axis line).

Depending on the precise angle you choose to rotate the labels, you may need to make minor adjustments to the vjust and hjust values. These subtle tweaks ensure that the labels are positioned optimally—close enough to the plot area for clear association and correctly aligned with their corresponding tick marks, resulting in a clean and highly readable final graph.

Conclusion and Further Resources

Mastering axis label rotation is an indispensable skill for anyone regularly producing data visualizations in R. By utilizing the theme(axis.text.x = element_text(...)) structure, you gain complete control over the presentation of lengthy categorical data, transforming cluttered plots into clear, actionable insights. This technique ensures that your presentation remains professional and accessible, regardless of the complexity of your data labels.
