Add a Quadratic Trendline in Excel (Step-by-Step)

Modeling Non-Linearity: The Power of Quadratic Relationships

When engaging in data analysis, researchers often begin by fitting a simple linear model to understand the relationship between two numerical variables. However, relying solely on straight-line models often leads to inaccurate conclusions, as a vast number of real-world processes exhibit non-linear behavior. A critical instance of this non-linearity occurs when the relationship between the independent variable (X) and the dependent variable (Y) forms a distinct parabolic curve. This characteristic curvature implies that the response variable initially moves in one direction—increasing or decreasing—reaches an extremum (a maximum or minimum point), and subsequently reverses its trajectory. In such scenarios, a simple linear model is fundamentally incapable of capturing the underlying structure of the data, leading to significant model misspecification and poor predictive performance.

To accurately model this specific form of non-linear dependency, where the change in the outcome is proportional to the square of the input, the appropriate statistical tool is the quadratic trendline. This analytical technique is formally known as second-order polynomial regression. By employing this method, we transition from fitting a straight line (first-order polynomial) to fitting a curve that precisely follows the parabolic shape suggested by the data points. This approach ensures that the statistical model accurately reflects the complex dynamics inherent in the relationship, rather than forcing a linear structure onto inherently curved data.

The visualization presented below offers a clear illustration of a dataset where the linear assumption would be wholly insufficient. The pronounced curvature of the data points immediately signals the need for a more sophisticated approach. The quadratic model, defined by the generalized equation Y = aX² + bX + c, is essential for achieving the best fit, as it accounts for the acceleration and deceleration observed in the dependent variable’s response to changes in the independent variable. Understanding this foundational concept is the first step toward robust and accurate data interpretation.

This comprehensive tutorial will provide a rigorous, step-by-step methodology detailing how to effectively implement, visualize, and interpret a quadratic trendline within a scatterplot using the powerful data analysis features embedded within Microsoft Excel.

Justifying the Selection of a Quadratic Model

The decision to move beyond simpler trendline types—such as linear, exponential, or logarithmic fits—and employ a quadratic model should always be underpinned by either strong theoretical justification concerning the process being analyzed or compelling visual evidence derived from the data’s distribution. A quadratic relationship is characterized by its specific curvature: it is either concave up (a U-shape, indicating a minimum point) or concave down (an inverted U-shape, indicating a maximum point). This shape is the statistical signature of a process where the rate of change is not constant but accelerates or decelerates in response to the input variable.

From a statistical perspective, the primary advantage of the quadratic model is its ability to significantly minimize the sum of squared errors between the observed data points and the fitted curve. When the underlying data pattern is genuinely parabolic, the second-order polynomial regression provides a superior representation of the variance compared to any linear approximation. This is crucial for obtaining unbiased parameter estimates. Practical applications where this modeling is essential include analyzing economic concepts such as cost curves (which often decrease initially due to economies of scale before increasing), modeling the trajectory of projectiles, or charting biological growth patterns that exhibit phases of rapid acceleration followed by eventual slowing.

By fitting a quadratic curve, analysts transition from basic predictive modeling to a more sophisticated form of statistical inference. This ensures that the estimated model parameters—the coefficients ‘a’, ‘b’, and ‘c’—are optimally calculated for the non-linear structure presented by the dataset. This foundational step is not merely about drawing a curve; it is about establishing a robust mathematical representation that facilitates accurate forecasting, reliable interpolation, and sound data interpretation.

Step 1: Structuring and Preparing the Data in Excel

The foundation of any successful trendline analysis is the meticulous structuring of raw data within the spreadsheet environment. For Excel to correctly interpret the data pairs and plot the resulting relationships, the input variables must be arranged in a specific, standardized format. The independent variable (X) must be placed in the column on the left, and its corresponding dependent variable (Y) must be placed immediately adjacent in the column on the right. This sequential arrangement is critical for Excel’s plotting mechanism to correctly assign the X and Y axes.

For the purpose of this demonstration, we will utilize a sample dataset intentionally designed to exhibit a pronounced quadratic pattern. Analysts must ensure their data is organized precisely as shown in the example below, typically beginning in the first few rows of the spreadsheet and including clear header labels (such as ‘X’ and ‘Y’ or descriptive titles) for ease of reference and data management.

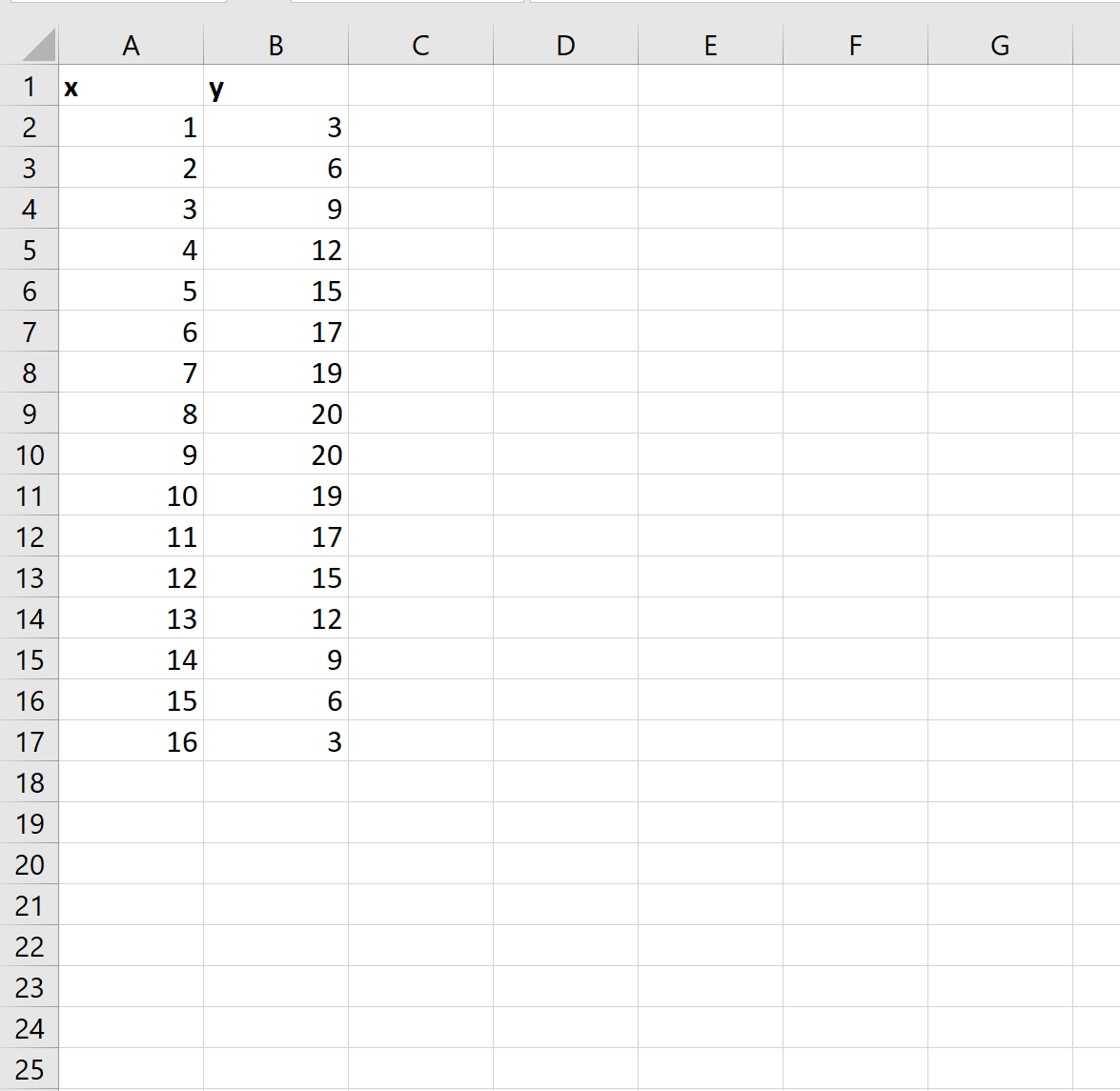

The following structure represents the essential data layout required. This example set provides the clear visual evidence needed to validate the subsequent fitting of a second-order curve:

Maintaining data integrity is paramount during this initial phase. Any errors in input, transposition mistakes, or misalignments between the X and Y variables will directly lead to a distorted scatterplot and a subsequent inaccurate trendline fit, rendering the entire modeling exercise invalid. Analysts must confirm the accuracy of the data pairs before proceeding to visualization.

Step 2: Generating the Foundational Scatterplot

With the data properly structured, the next logical and crucial step is to visualize the relationship between the X and Y variables using a scatterplot. The scatterplot is not merely a pretty picture; it serves as the essential empirical evidence supporting the choice of a quadratic model, as it visually reveals the characteristic curved pattern of the data distribution, confirming the presence of non-linearity.

To generate this fundamental visualization within the Excel interface, follow these precise steps:

1. Selection: Highlight the entire range of data pairs, including the numerical values for both X and Y. In this specific demonstration, this range corresponds to cells A2:B17.
2. Navigation: Locate and click the Insert tab situated on the top ribbon of the Excel application window.
3. Chart Group: Navigate to the Charts group within the Insert tab.
4. Chart Type: Click the option labeled Insert Scatter (X, Y) or Bubble Chart.
5. Final Selection: Choose the first chart option, typically represented by individual markers without connecting lines, to produce a clean, unambiguous scatterplot that clearly displays the distribution of the observed data points.

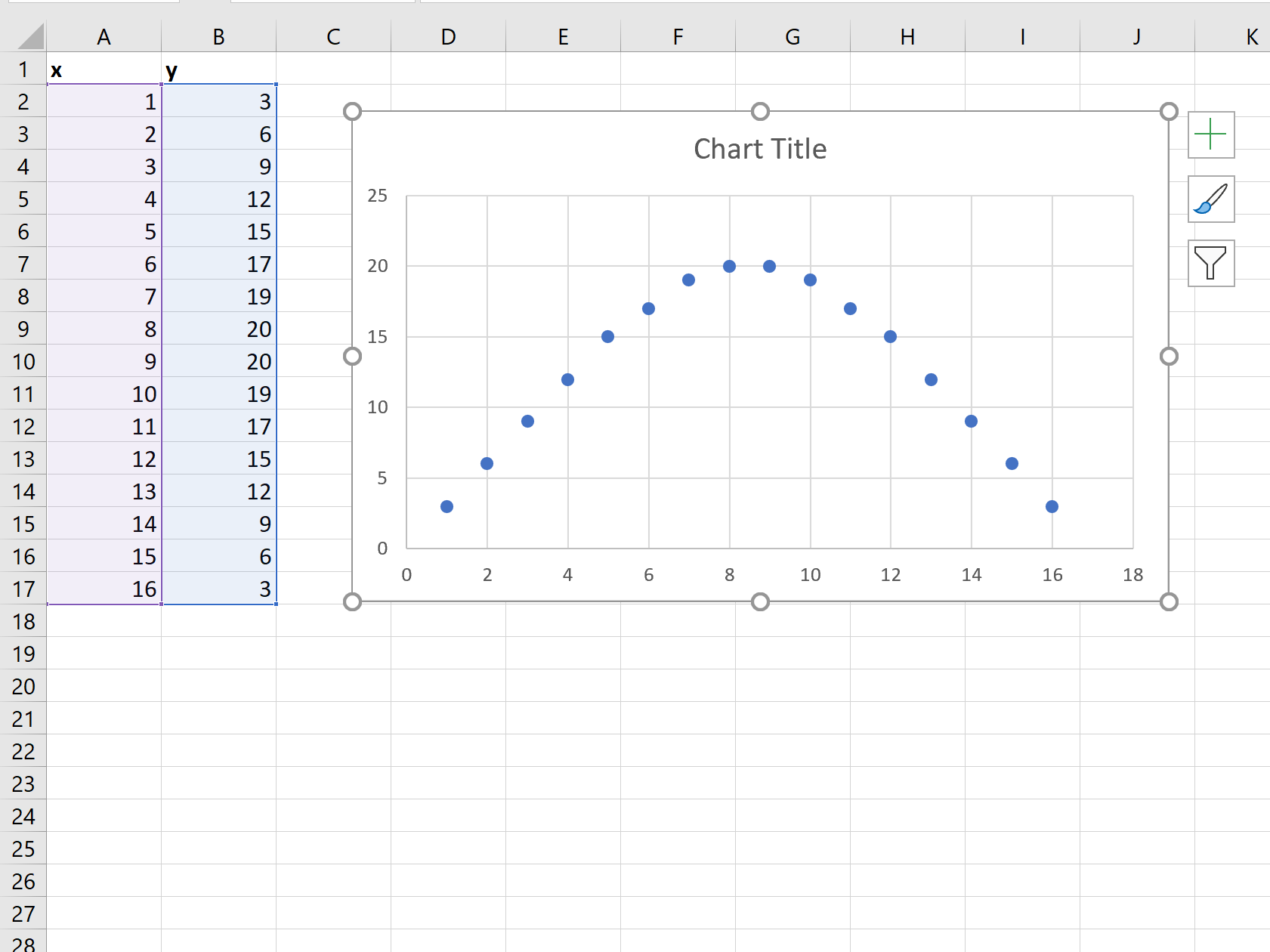

Once these actions are completed, the foundational visualization of your data will be automatically embedded onto the sheet. This visual confirmation is critical, as it immediately validates the initial distribution of the points and reinforces the necessity of fitting a curved model, rather than attempting to force a straight line through the parabolic data.

Step 3: Implementing and Fine-Tuning the Quadratic Trendline

The implementation of the trendline represents the most critical technical phase of the analysis. Excel’s built-in trendline feature allows users to directly overlay various types of regression models onto the chart visualization. Because a quadratic function is, by definition, a form of polynomial, we must explicitly specify the correct order (or degree) of the polynomial to ensure the application of a quadratic fit. Failing to adjust this setting will result in Excel defaulting to a linear trendline, which would severely misrepresent the data structure.

To begin the process of adding the non-linear trendline, click on the scatterplot area to activate the specialized chart design and formatting tools. Then, execute the following instructional sequence:

1. Access Chart Elements: Click the green plus symbol (+), which corresponds to the Chart Elements icon, located in the upper right corner of the active plot area.
2. Trendline Menu: Hover your mouse cursor over the Trendline option in the resulting menu, and then click the small arrow that appears to the right of the Trendline label.
3. Advanced Options: Select More Options from the extended menu. This crucial action opens the comprehensive “Format Trendline” pane, typically docked on the right side of the Excel application window, granting access to the advanced settings necessary for specifying non-linear regression types.

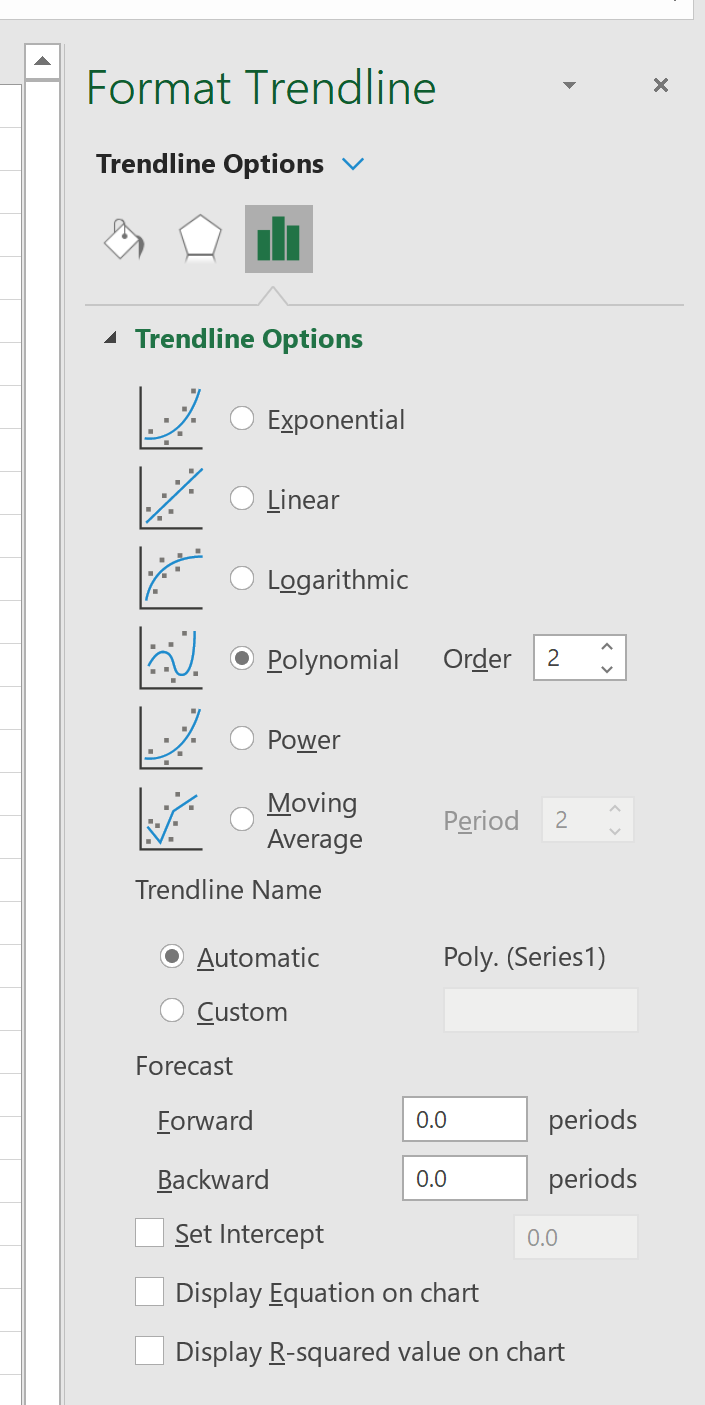

Once the “Format Trendline” pane is visible, the specific parameters for fitting the quadratic curve must be carefully defined. Recall that a quadratic equation is mathematically defined as a polynomial of the second degree. Therefore, follow these definitive steps to configure the model:

1. Select Model Type: In the “Format Trendline” pane, ensure you select the radio button labeled Polynomial.
2. Specify Degree: Most importantly, locate the Order input field and set its numerical value to 2. This designation explicitly instructs Excel to calculate and fit a second-degree curve, which is the precise definition of a quadratic function, thereby ensuring the model accurately captures the data’s parabolic nature.

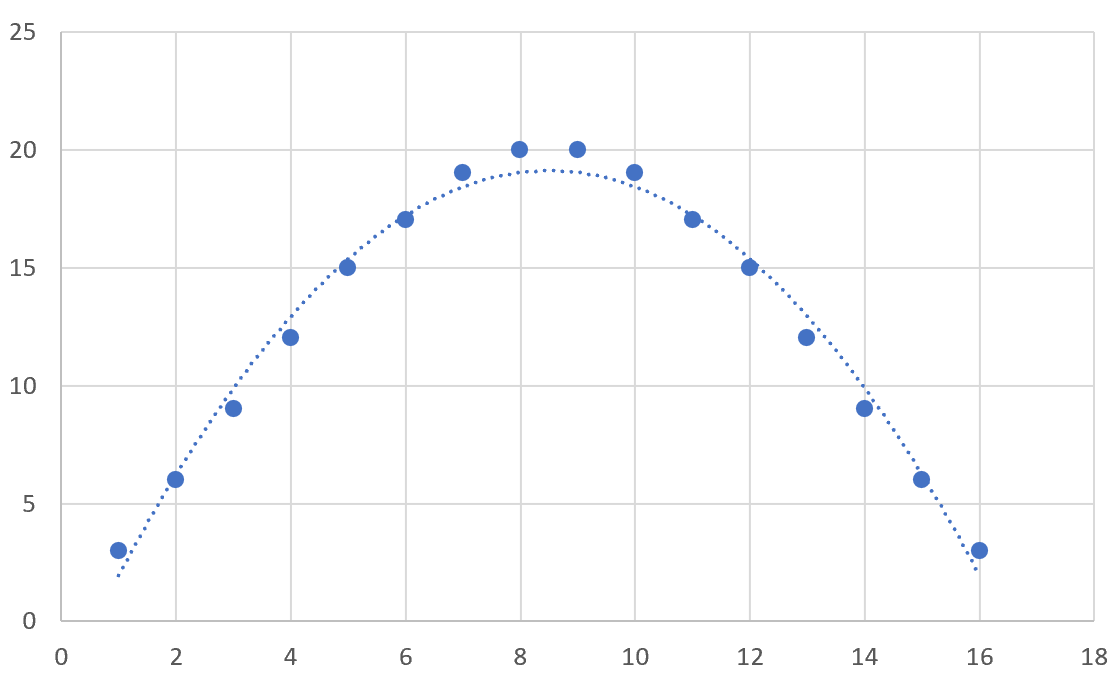

Following this successful configuration, Excel automatically calculates the coefficients using the method of least squares and displays the resulting quadratic trendline, superimposed as a smooth curve on the original scatterplot. This provides an immediate, visual interpretation of the best-fit curve for the observed data, confirming that the quadratic trendline successfully models the parabolic nature inherent in the dataset.

Interpreting the Fitted Regression Model Parameters

While the visual representation of the quadratic trendline provides immediate and intuitive insight, the true analytical value of this exercise is derived from understanding the underlying regression equation and assessing the model’s goodness of fit. To extract this vital information, analysts should select two additional options located within the “Format Trendline” pane: Display Equation on chart and Display R-squared value on chart.

The displayed equation will adhere to the form Y = aX² + bX + c. The coefficients ‘a’, ‘b’, and the intercept ‘c’ are the numerical parameters rigorously calculated by the least squares method. These coefficients are indispensable for analytical purposes; they allow for precise prediction of Y values based on new X inputs and provide critical insight into the specific rate and direction of curvature. For example, the sign of the ‘a’ coefficient is highly informative: a positive ‘a’ indicates a U-shaped curve (concave up), signifying that the dependent variable decreases to a minimum before increasing, whereas a negative ‘a’ indicates an inverted U-shape (concave down), where the variable increases to a maximum before decreasing.

The R-squared value (R²) is a statistical measure that indicates the proportion of the variance in the dependent variable that can be predicted or explained by the independent variable via the fitted model. For a strong, accurate quadratic fit, the R-squared value should ideally be close to 1.0. A high R² value robustly suggests that the quadratic polynomial model significantly outperforms a simpler model (such as merely using the mean of the dependent variable) in explaining the variability observed in the data.

Conclusion and Advanced Statistical Considerations

We have successfully executed the complete process for visualizing a non-linear relationship and fitting a second-order polynomial regression model, commonly referred to as a quadratic trendline, utilizing the functionalities of Excel. This technique is absolutely essential when the relationship between the observed variables is parabolic in nature, deviating significantly from a strictly linear path.

The core takeaway from this tutorial is the critical importance of manually overriding Excel’s default settings by specifying the trendline type as Polynomial and setting the Order parameter precisely to 2. Neglecting to manually adjust this setting will inevitably lead to the system applying a standard linear fit, which, in the presence of parabolic data, will severely misrepresent the underlying statistical structure and result in flawed modeling.

For analysts who require more rigorous statistical validation beyond the visual fit and the R-squared value, the subsequent step involves performing a formal analysis of variance (ANOVA) on the quadratic regression model. This advanced analysis is necessary to statistically test the significance of the quadratic term (aX²). While Excel provides an excellent platform for visualization and initial parameter estimation, comprehensive hypothesis testing related to the confidence and significance of the calculated coefficients often necessitates the use of more specialized statistical software packages.

Additional Resources for Deepening Regression Knowledge

To further enhance your mastery of regression analysis, non-linear modeling, and advanced trendline techniques, we recommend exploring the following related topics:

• Detailed comparative analysis contrasting the characteristics and applications of linear, quadratic, and cubic regression models.
• Rigorous methods for extrapolating data using established trendlines and a thorough understanding of the associated risks and limitations of prediction outside the observed data range.
• Effective utilization of the Data Analysis ToolPak add-in within Excel for the numerical calculation of comprehensive regression statistics, extending beyond basic visualization.
