The Complete Guide: Change Font Size in ggplot2

Creating high-quality, publication-ready data visualizations in the R environment demands meticulous attention to detail, particularly concerning textual elements and overall readability. The industry-standard ggplot2 package, a foundational component of the Tidyverse ecosystem, provides unparalleled control over aesthetic mapping and plot theming. While the default settings often suffice, adjusting font sizes is essential to ensure clarity, especially when scaling plots for different mediums like academic papers, high-resolution screens, or large presentation slides. This comprehensive guide details the precise methods required to manipulate text sizes across every element of your plot, ensuring your graphics deliver maximum impact.

The Foundational Tool: Mastering the theme() Function

To customize the non-data components of any ggplot2 visualization—such as titles, axes, and legends—we rely almost exclusively on the core theme() function. This function serves as the central hub for modifying the plot’s appearance outside of the geometric layers. Within the arguments of theme(), text properties are specifically managed by the element_text() helper function. Understanding which argument controls which specific text element is the key to successful, fine-grained customization.

The element_text() function accepts several arguments, but the most critical for scaling is the size parameter. The value assigned to size determines the final font scale. By targeting specific components within theme(), developers can precisely adjust the visual hierarchy of the plot.

The following comprehensive structure illustrates the primary arguments used to control font sizes across various textual components simultaneously. Note how each argument targets a distinct area of the plot’s theme:

p + theme(text=element_text(size=20), #change font size of all text
        axis.text=element_text(size=20), #change font size of axis text
        axis.title=element_text(size=20), #change font size of axis titles
        plot.title=element_text(size=20), #change font size of plot title
        legend.text=element_text(size=20), #change font size of legend text
        legend.title=element_text(size=20)) #change font size of legend title

While this code snippet demonstrates a uniform application, the real power lies in selectively applying these arguments to create a visual hierarchy. The subsequent examples will demonstrate how to apply these settings individually to achieve specific, targeted results and maximize the communication potential of your graphic.

Establishing the Baseline Visualization

To clearly illustrate the effects of font size modifications, we must first establish a simple base plot. We will generate a basic scatterplot using a small, custom data frame in R. This initial visualization will utilize the default ggplot2 theme settings, serving as our control group before any explicit text scaling is applied.

The following commands load the necessary library, structure the data, and generate the plot object, which we assign to the variable p. The plot includes a title, axis labels derived from the variable names, and a legend based on the color aesthetic.

library(ggplot2)

#create data frame
df <- data.frame(x=c(1, 2, 3, 4, 5, 6),
                 y=c(6, 8, 14, 19, 22, 18),
                 z=c('A', 'A', 'B', 'B', 'C', 'C'))

#create scatterplot
p <- ggplot(df, aes(x=x, y=y, color=z)) +
       geom_point(size=3) +
         ggtitle("This is the Title")

p

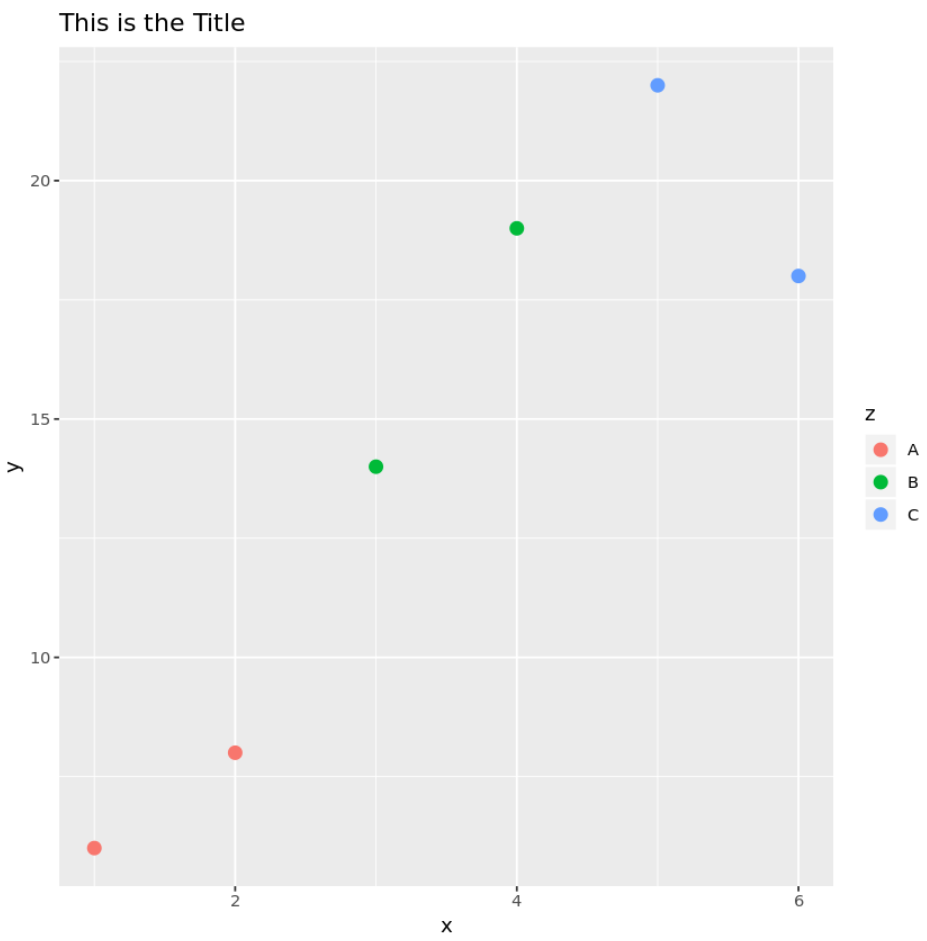

The resulting graph below demonstrates the default font sizes applied by ggplot2. Notice the relative scale of the axis titles compared to the main plot title and the legend text—all of which we will now learn to control.

Controlling All Text Elements Uniformly (Global Scaling)

For scenarios where the primary requirement is a rapid, universal increase or decrease in text size—such as preparing a plot for a large projector screen or a high-density print layout—the most efficient command is to target the global text argument within the theme() function.

The text argument acts as a master control. When defined, it dictates the size of every textual component in the plot, including the axis labels, tick marks, titles, and legend elements, provided those elements have not been explicitly customized using a more specific theme argument (like plot.title).

In the example below, we apply a size of 20 using element_text(size=20). Observe how every piece of text on the canvas scales up simultaneously, dramatically improving overall legibility without requiring multiple lines of code.

p + theme(text=element_text(size=20))

This technique is ideal for quick adjustments but sacrifices the ability to emphasize certain components over others. For nuanced control, granular customization is required.

Achieving Granular Control: Modifying Axis and Plot Titles

Effective data visualization often requires establishing a clear hierarchy of information. This means certain textual elements, like the main title or axis titles, should be significantly more prominent than others, such as the tick labels. ggplot2 facilitates this granular control by offering distinct theme arguments for each major text component.

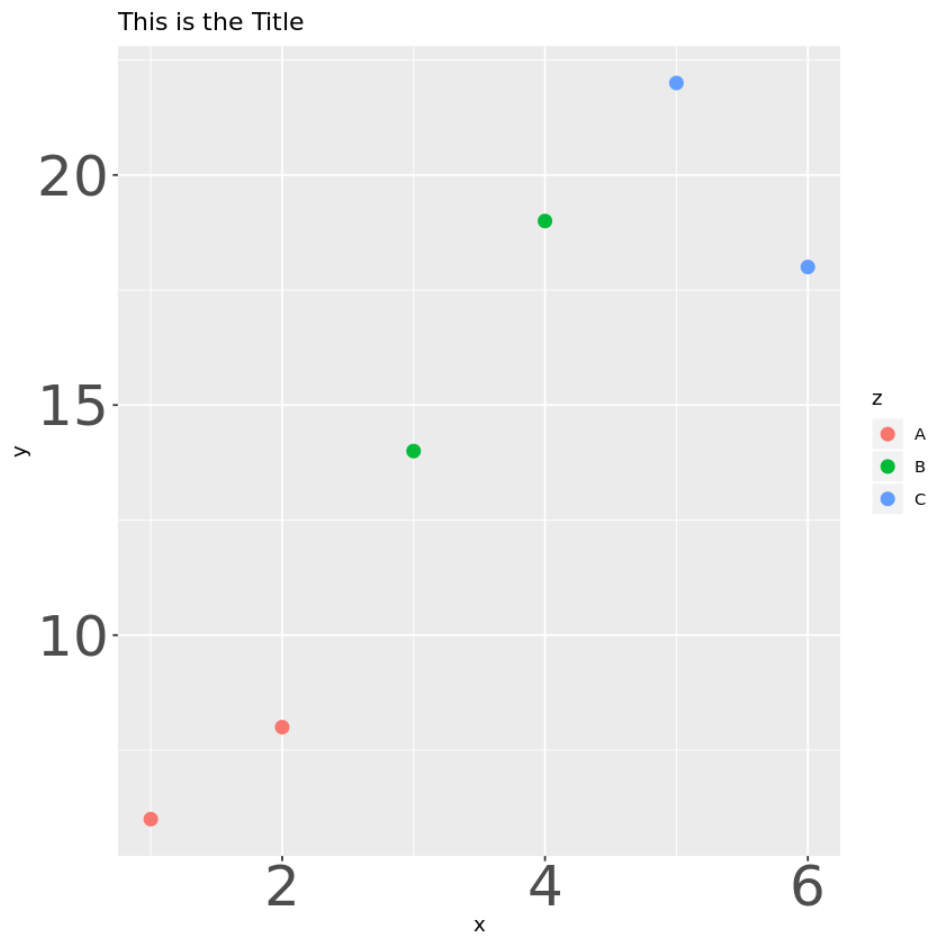

Changing Axis Text (Tick Labels)

The numerical or categorical labels that run along the X and Y axes are known as tick labels. These are controlled by the axis.text argument. It is crucial that these labels are readable, as they provide the critical scale for interpreting the data points. By setting this separately, you ensure the data scale remains accessible, even if you choose to minimize other plot text. We demonstrate a substantial increase in size (30) here:

p + theme(axis.text=element_text(size=30))

Notice that only the numerical values on the axes have increased in size; the axis titles and plot title remain at their default scale.

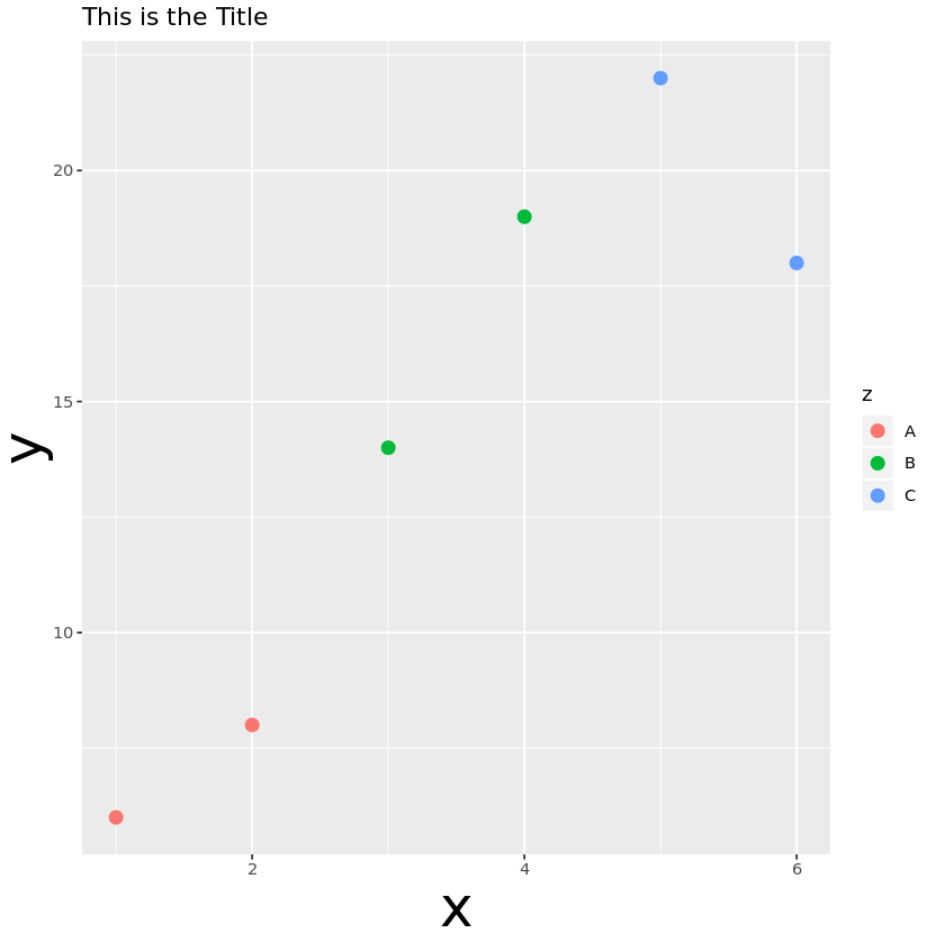

Changing Axis Titles (Labels for the Axes)

The text defining what the axes represent (typically set via xlab() and ylab() or derived from the data column names) is modified using the axis.title argument. Since these titles provide essential context, they are frequently scaled larger than the tick marks themselves to draw attention to the variables being plotted.

p + theme(axis.title=element_text(size=30))

This allows the user to immediately understand the dimensions of the data being presented.

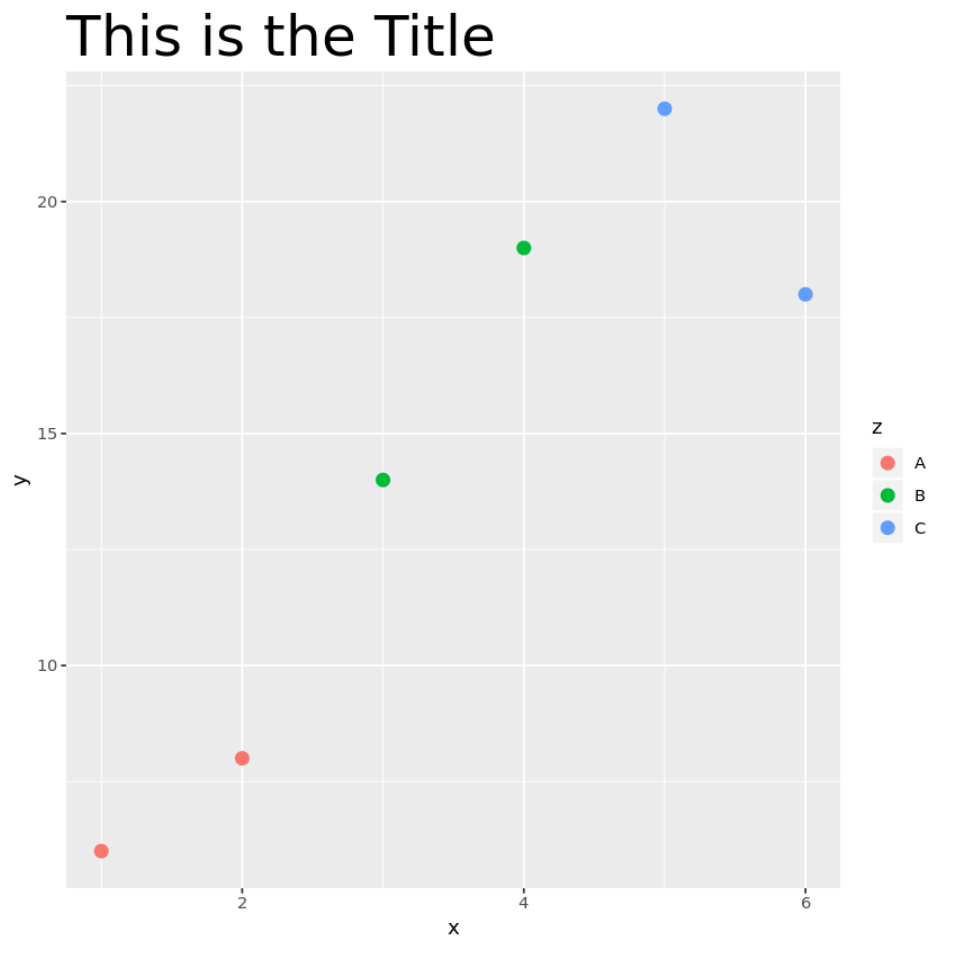

Changing the Plot Title

The main title of the visualization, set via ggtitle(), is arguably the most important textual element, as it frames the entire context of the plot. Customization is handled by the plot.title argument. To ensure maximum visibility and impact, the plot title is often set to the largest font size of all elements.

p + theme(plot.title=element_text(size=30))

This customization ensures that the purpose and scope of the visualization are immediately clear to the audience.

Customizing Legend Elements for Clarity

Legends are critical metadata components that explain the aesthetic mappings within the plot (e.g., what colors represent different categories). Balancing legend size—making it readable without dominating the main plot area—is a common design challenge. We control the text within the legend using two distinct, powerful arguments: legend.text and legend.title.

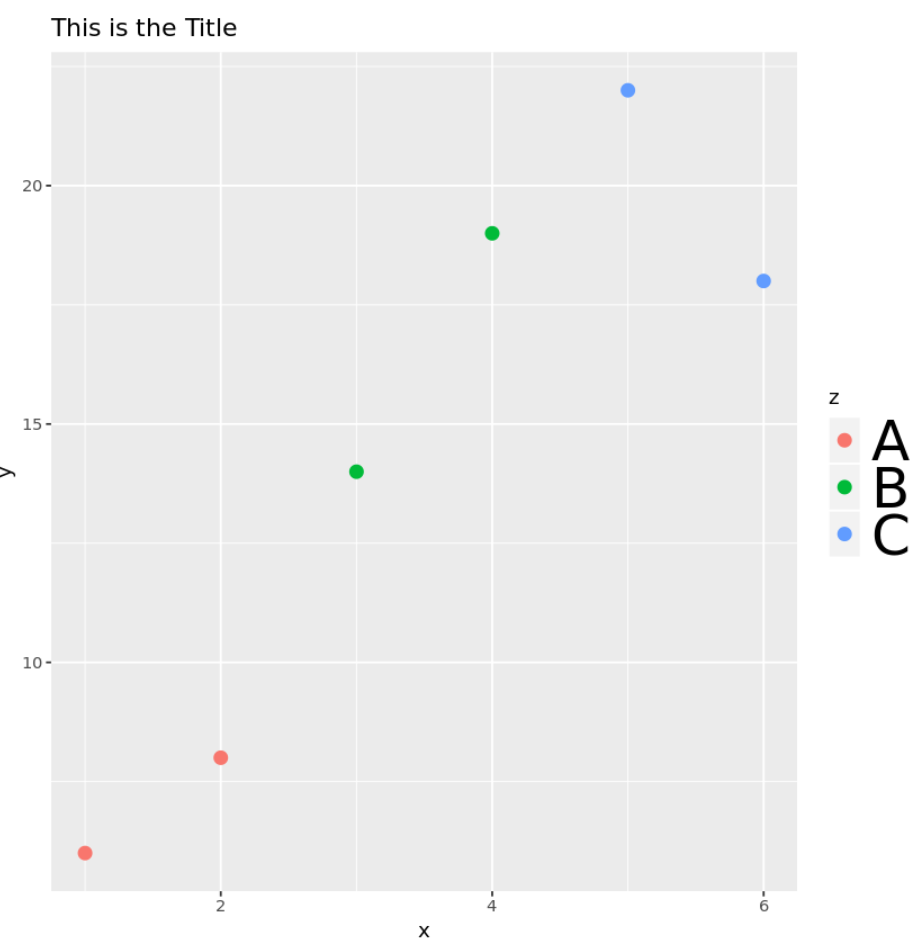

Changing Legend Text (Key Labels)

The individual labels corresponding to the categories or keys within the legend (e.g., ‘A’, ‘B’, ‘C’ in our example) are governed by legend.text. Ensuring these labels are appropriately sized is essential for correctly interpreting the data points.

p + theme(legend.text=element_text(size=30))

By increasing the size of the key labels, we improve the connection between the visual elements and their categorical definitions.

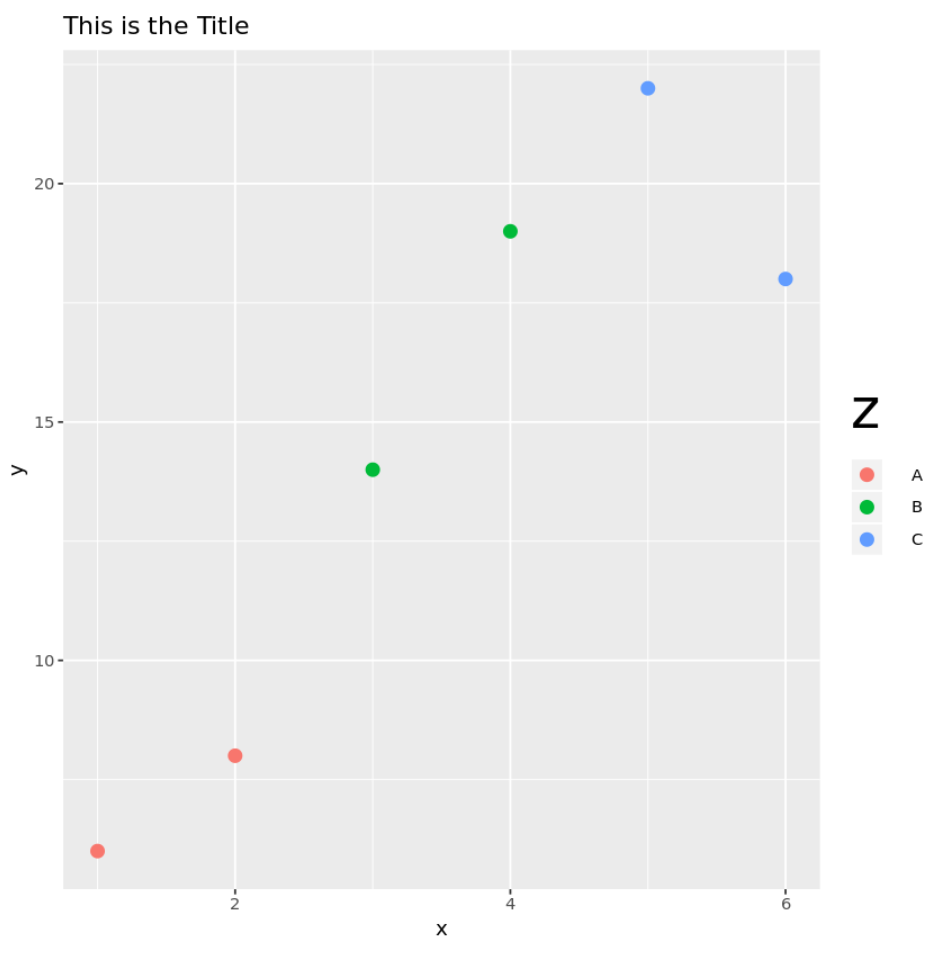

Changing Legend Title

The title of the legend—which describes the variable being mapped (in our case, ‘z’)—is controlled using legend.title. This helps clarify the overall meaning of the aesthetic mapping, and as such, should often be slightly larger than the key labels to serve as a proper heading.

p + theme(legend.title=element_text(size=30))

This final customization allows for complete control over all textual components of the visualization.

Summary of Text Customization Best Practices

Mastering font customization using the theme() and element_text() functions in ggplot2 is fundamental for producing accessible, polished, and professional visualizations. While global scaling offers convenience, targeted modification is necessary to establish a clear visual hierarchy that guides the reader’s interpretation.

When preparing graphics for publication or presentation, developers should adhere to the following general guidelines to optimize readability and informational flow:

• Maximize Readability: Always prioritize the legibility of the data-interpreting elements. This includes the axis tick labels (controlled by axis.text) and the legend key labels (legend.text). These must be large enough to be easily read under various viewing conditions.
• Establish Hierarchy: Create a logical visual order. The main plot title (plot.title) should typically be the largest element, followed closely by the axis titles (axis.title) and legend titles (legend.title). This draws the audience’s attention to the most important contextual information first.
• Ensure Consistency: For projects involving multiple graphics, it is strongly recommended to consolidate your font settings, along with other aesthetic choices, into a reusable custom theme() object. Applying this custom theme universally ensures a consistent and professional style across all graphics generated in R.

For developers seeking to delve further into advanced theme adjustments, including changing font families (e.g., using Google Fonts) or manipulating text colors and justification, consult the extensive official documentation for the theme() function and related aesthetic settings.
