Learning to Control Axis Limits in Matplotlib Plots

Understanding Axis Control in Matplotlib

When generating statistical plots using the Matplotlib library, the system typically employs an automatic scaling mechanism. This default behavior calculates the axis boundaries based strictly on the minimum and maximum values present within the input data. While convenient for rapid prototyping, this auto-scaling often leads to suboptimal visual results, potentially resulting in figures that either excessively crop important data features or, conversely, include substantial, distracting white space. Such issues fundamentally compromise the integrity and effectiveness of accurate data visualization.

Gaining mastery over the axis range—which dictates the exact viewport displayed on your chart—is an essential competency for any analyst utilizing Python for scientific and quantitative plotting. By precisely defining the minimum and maximum values for both the X (horizontal) and Y (vertical) axes, you ensure that the resulting visual representation is perfectly aligned with the intended analytical narrative. This precise control is critical, as it allows the audience to immediately focus on relevant trends and relationships without being distracted by irrelevant areas of the coordinate system.

To facilitate this granular control, Matplotlib provides specialized functions housed within the core pyplot module. Specifically, plt.xlim() is designated for controlling the horizontal axis, and plt.ylim() is used for managing the vertical axis. These functions are highly efficient to implement and provide instantaneous, high-precision command over the plot’s final aesthetic and analytical presentation.

Establishing the Core Syntax for Plot Boundaries

The mechanism central to adjusting plot boundaries involves supplying two mandatory arguments to the appropriate function: the desired minimum coordinate value and the desired maximum coordinate value. These two parameters collectively define the exact extent of the visible coordinate system. Crucially, the boundaries are enforced regardless of whether data points exist outside of the specified range; any data points falling outside these limits will simply not be rendered visually.

The syntax itself is remarkably intuitive, relying on the standard plt object, which is conventionally imported from matplotlib.pyplot. A solid understanding of this fundamental structure is the prerequisite for moving toward more complex plot customization and figure manipulation within the Matplotlib environment.

The following standard syntax illustrates the clarity and efficiency inherent in the library’s design, demonstrating how to explicitly set the axis limits for any generated plot. Note the straightforward assignment of numerical bounds to the respective functions:

#specify x-axis range
plt.xlim(1, 15)

#specify y-axis range
plt.ylim(1, 30)

In this snippet, plt.xlim(1, 15) ensures the visible X-axis spans precisely from 1 to 15, while plt.ylim(1, 30) sets the visible Y-axis range from 1 to 30. It is vital to consistently remember that while the data points outside these boundaries still exist within the underlying dataset, they will be clipped and remain visually absent from the final rendered chart. The subsequent examples provide practical demonstrations of integrating this syntax into a full plotting workflow.

Example 1: Defining Both Axes Ranges Simultaneously

In most professional plotting scenarios, the objective is to simultaneously specify custom boundaries for both the horizontal and vertical dimensions. This practice is particularly critical when generating multiple comparative plots that necessitate sharing the exact same visual scale, ensuring strict visual consistency and facilitating fair comparisons across figures. By employing both plt.xlim() and plt.ylim() together, the developer achieves comprehensive control over the plot’s viewing window.

For this initial example, we define a limited set of (X, Y) coordinates where the data naturally ranges from X=[1, 10] and Y=[5, 27]. If we were to rely on Matplotlib’s default auto-scaling, the axes would tightly wrap the data, perhaps extending slightly to X=11 and Y=28. Instead, we deliberately impose expanded custom limits (X: 1 to 15, Y: 1 to 30). This expansion is intentional, providing crucial context, ample visual padding around the data points, and space for potential future data additions.

The code block below demonstrates the necessary steps: importing the library, defining the data, initializing the plot, and then explicitly applying the expanded ranges. This methodology represents a standard practice when preparing plots for formal presentation, publication, or documentation where adherence to precise visual specifications is a requirement.

import matplotlib.pyplot as plt

#define x and y
x = [1, 4, 10]
y = [5, 11, 27]

#create plot of x and y
plt.plot(x, y)

#specify x-axis and y-axis range
plt.xlim(1, 15)
plt.ylim(1, 30)

The resulting visualization clearly displays a controlled line graph where the axes extend well beyond the data envelope. Observe the professional and clean appearance achieved by providing sufficient visual breathing room around the data points, which is a direct consequence of manually increasing the range on both the horizontal and vertical scales relative to what the raw data would strictly demand.

Example 2: Isolating Control of the X-Axis

There are many analytical scenarios where only one axis requires manual intervention while the other benefits significantly from Matplotlib’s adaptive automatic scaling. For example, if the X-axis represents a controlled independent variable, such as time or iteration number, standardizing its span (e.g., 0 to 100 units) might be necessary for consistency, regardless of the observed data spread. Conversely, if the Y-axis, representing the dependent variable, exhibits high variability or unpredictable extremes, allowing it to auto-scale guarantees that all data points remain fully visible and uncensored.

This example specifically demonstrates the isolated application of plt.xlim(). We enforce the X-axis range to span precisely from 1 to 15. Crucially, the call to plt.ylim() is intentionally omitted. By leaving the vertical axis undefined, Matplotlib automatically calculates its limits to perfectly accommodate the minimum (5) and maximum (27) values in the y dataset, typically incorporating a small, aesthetically pleasing buffer above and below those extremes.

This selective technique is exceedingly valuable when the primary focus must be directed toward a specific domain or segment of the independent variable, simultaneously ensuring that the full range of the dependent variable is always displayed. This prevents the accidental truncation of critical high or low data points on the vertical scale.

import matplotlib.pyplot as plt

#define x and y
x = [1, 4, 10]
y = [5, 11, 27]

#create plot of x and y
plt.plot(x, y)

#specify x-axis range
plt.xlim(1, 15)

As is evident in the resultant figure, the X-axis successfully extends precisely to the boundary of 15, matching our explicit command. The Y-axis, however, has been dynamically determined by the Matplotlib engine, likely ranging from a value near 4 up to approximately 28. This outcome perfectly illustrates the power and flexibility of combining selective manual control with the efficiency of automatic data fitting.

Example 3: Fixing the Y-Axis Boundaries

The third foundational plotting scenario involves fixing the vertical range while intentionally allowing the horizontal range to adjust dynamically. This approach is frequently indispensable in formal statistical reporting where the Y-axis represents standardized key metrics—such as normalized scores, probabilities, or percentages—which must be consistently visualized against a standard, fixed scale (e.g., a 0-to-1 probability range, or a 0-to-100 percentile scale).

In this demonstration, we utilize plt.ylim() to define the minimum and maximum boundaries for the vertical scale, setting them explicitly from 1 to 30. We deliberately omit the plt.xlim() function call. This omission permits the X-axis to dynamically adapt to the full spread of the input x data points, guaranteeing that the entire domain of the independent variable is visible without requiring any manual guesswork or intervention.

This method is highly effective when the X-data points might vary significantly across different datasets or execution runs, but the visual comparison of the Y-values must remain rigorously consistent across all plots. It provides a crucial balance between standardization of the dependent variable and responsiveness to the independent variable’s distribution during the plotting process.

import matplotlib.pyplot as plt

#define x and y
x = [1, 4, 10]
y = [5, 11, 27]

#create plot of x and y
plt.plot(x, y)

#specify y-axis range
plt.ylim(1, 30)

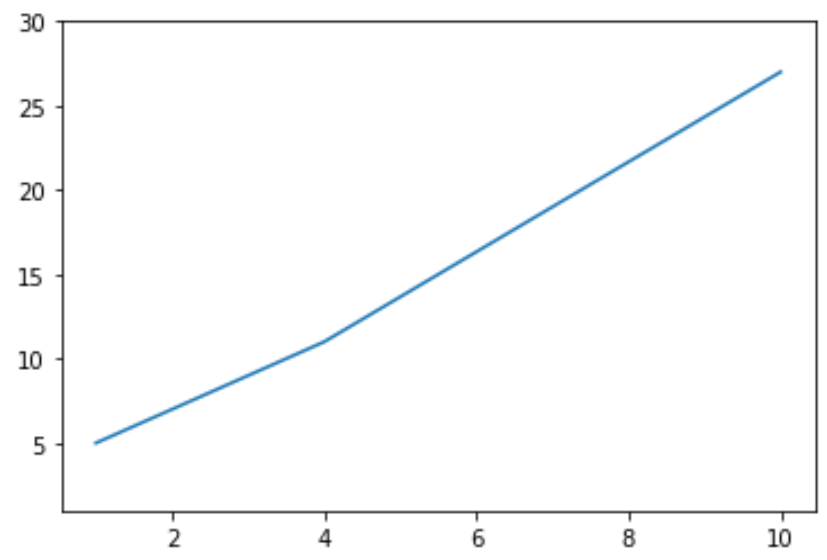

The output plot confirms that the Y-axis is rigidly fixed between 1 and 30, exactly as requested. The X-axis, however, has automatically scaled to optimally accommodate the data range (1 to 10), likely extending slightly past 10 to provide a minimal visual buffer, thereby demonstrating successful, isolated control of the vertical axis.

Advanced Considerations and Object-Oriented Best Practices

While plt.xlim() and plt.ylim() serve as the primary functions for setting fixed ranges in procedural Matplotlib code, advanced users should familiarize themselves with several best practices and alternative methods designed to enhance plotting quality, robustness, and code maintainability, especially within complex Python analytical environments.

A critical consideration is the maintenance of data integrity. When implementing manual axis limits, it is paramount to ensure that no critical data points or significant outliers are inadvertently clipped from the visualization. If a tight limit is applied carelessly, it could lead to severe misrepresentation of the data’s true distribution. Furthermore, when constructing comparative plots, such as complex subplots, it is analytically essential to enforce the exact same axis limits across all related charts to prevent visual deception—a common and serious pitfall in flawed data communication.

An alternative, concise function available is plt.axis(), which enables the user to set both X and Y limits in a single function call. This function requires a list or tuple containing four ordered elements: [xmin, xmax, ymin, ymax]. Although less explicit than separate xlim and ylim calls, plt.axis([1, 15, 1, 30]) can significantly streamline code when defining all four boundaries simultaneously, achieving the exact same visual output as demonstrated in Example 1.

Finally, it is essential to internalize that all plt functions operate on the current active Axes object. For visualization workflows involving subplots, which are typically initialized using fig, ax = plt.subplots(), the community standard and best practice is to utilize the methods directly attached to the Axes object (ax). This object-oriented approach provides clearer control and enhanced stability, using syntax such as ax.set_xlim(1, 15) and ax.set_ylim(1, 30). Employing these object-oriented methods is strongly preferred for complex, multi-panel visualizations.

Expanding Your Data Visualization Toolkit

Mastery of basic axis control is merely the starting point for creating truly compelling and informative visualizations. We strongly encourage all readers to explore the rich ecosystem of additional features offered by Matplotlib and related libraries to further refine and professionalize their plotting techniques.

Key areas identified for continued study that build upon fundamental axis control include:

• Customizing Ticks and Labels: Learning to precisely control the density, numerical formatting, and physical placement of tick marks can dramatically improve the readability of a plot, especially when dealing with complex datasets like time-series data or specialized logarithmic scales.
• Interactive Plotting: Exploring libraries like Plotly or Bokeh, which specialize in dynamic zooming and panning capabilities. These offer a flexible alternative to rigidly fixed axis limits, proving invaluable for initial exploratory analysis.
• Subplots and Figure Layouts: Gaining a deeper understanding of how to use powerful tools like plt.subplots() or the more sophisticated GridSpec to efficiently arrange and manage multiple related plots on a single comprehensive figure for powerful comparative analysis.

The official documentation for both the xlim and ylim functions offers deeper technical insights into their optional parameters. These parameters can be leveraged, for instance, to control auto-scaling behavior when only one boundary (either the minimum or the maximum) is explicitly provided. Consistent and deliberate practice with these core functions will significantly elevate both the precision and the visual quality of your resulting statistical plots.
