Learning Matplotlib: How to Change Tick Label Font Size for Clear Data Visualizations

When generating professional-quality data visualizations using the Matplotlib library, ensuring chart readability is paramount. One of the most critical elements affecting how an audience interprets a graph is the clarity and size of the axis labels. If the default font size for the tick labels is inadequate, viewers may struggle to accurately gauge the scale of the data, potentially undermining the entire visualization’s effectiveness. Addressing this common challenge requires precise control over axis aesthetics, which Matplotlib is exceptionally designed to provide.

Fortunately, Matplotlib offers a highly flexible and powerful tool for this purpose: the plt.tick_params() function. This function is specifically engineered for controlling the appearance of ticks, tick lines, and, most importantly, tick labels. Using plt.tick_params(), developers can precisely manage the font size for both the X and Y axes simultaneously, or customize them individually based on the specific visual requirements of the chart. Mastering this function is essential for creating publication-ready plots.

The fundamental syntax used to adjust the font size of tick labels across different axes configurations relies on three core parameters: axis, which, and labelsize. Below is an overview of how these parameters are applied to target specific axes within a Python script:

import matplotlib.pyplot as plt

#set tick labels font size for both axes
plt.tick_params(axis='both', which='major', labelsize=20)

#set tick labels font size for x-axis only
plt.tick_params(axis='x', which='major', labelsize=20)

#set tick labels font size for y-axis only
plt.tick_params(axis='y', which='major', labelsize=20)

The subsequent sections will thoroughly explore the roles of these critical parameters and provide practical, runnable Python examples. These demonstrations illustrate how to implement these styling adjustments effectively, ensuring your data visualizations achieve maximum impact and clarity.

Dissecting the plt.tick_params Function in Pyplot

The plt.tick_params() function serves as the central control mechanism for fine-tuning the aesthetic properties of axis ticks within Matplotlib plots. To effectively leverage its power, it is vital to understand how its primary arguments interact to target specific elements of the tick system. This function is part of the Pyplot module, which provides a state-machine interface for generating plots quickly.

The three key parameters utilized for font size adjustment—axis, which, and labelsize—must be used in concert to achieve the desired formatting. The axis parameter is used to specify the scope of the modification, accepting the values 'x', 'y', or 'both'. While the default behavior often applies customizations universally, explicitly setting the axis ensures precision and prevents unexpected side effects. This explicit targeting is fundamental when creating complex, customized plots where only one axis needs adjustment.

The which parameter dictates which set of ticks should be modified. In plotting, two types of ticks are common: major ticks (the primary labels typically displaying values) and minor ticks (intermediate, often unlabeled marks for finer grid detail). By setting which='major', we ensure that only the main numeric or categorical labels are affected by the size change. Although specifying which is not always mandatory for font size, it is considered a best practice for maintaining robust and predictable customization across different plots.

Finally, the labelsize argument is the direct control for font sizing. It accepts an integer or float value that represents the desired font size in points. For example, setting labelsize=20 dramatically increases the size of the tick labels, substantially improving their visibility, which is especially crucial for figures destined for large-format outputs or presentations. Beyond font size, plt.tick_params() also provides extensive control over visual elements such as tick mark length, thickness, color, and padding, confirming its role as the go-to function for detailed axis customization.

Example 1: Uniform Font Sizing Across Both Axes

The most frequent requirement for improving readability involves adjusting the size of all tick labels simultaneously. When preparing a visualization for a formal report or a presentation where the chart might be scaled down, guaranteeing large, unambiguous axis labels is essential for conveying the data accurately. This first example demonstrates the straightforward implementation of universal font size adjustment.

We begin by setting up the necessary modules, defining a minimal dataset (X and Y coordinates), and creating a basic line plot. The crucial step is the introduction of the specific parameters into plt.tick_params() before the plot is displayed. By using axis='both', we explicitly instruct Pyplot to apply the specified labelsize modification—in this case, 20—to both the horizontal (X) and vertical (Y) axes. This single function call streamlines the process of ensuring visual consistency across the entire figure.

As observed in the resulting output, the numerical labels on both axes are significantly larger than Matplotlib‘s default setting. This immediate increase in size ensures that the scale and magnitude of the data are instantly recognizable to the viewer, serving as an indispensable technique for maximizing the clarity and professional finish of any visualization project.

import matplotlib.pyplot as plt

#define x and y
x = [1, 4, 10]
y = [5, 11, 27]

#create plot of x and y
plt.plot(x, y)

#set tick labels font size for both axes
plt.tick_params(axis='both', which='major', labelsize=20)

#display plot
plt.show()

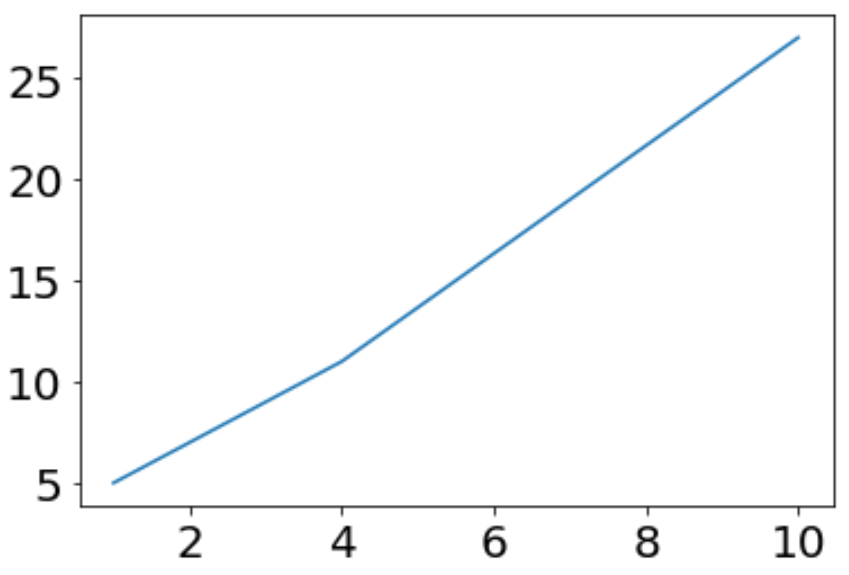

The visualization confirms the successful application of the larger font size to both the X-axis and Y-axis tick labels, dramatically improving the overall readability and professional appearance of the chart.

Example 2: Targeted Font Sizing for the X-Axis

In many data visualization contexts, only one axis may require enhanced visual prominence. This is frequently the case when the X-axis represents detailed categorical data, lengthy timestamps, or specific identifiers that demand larger text for easy differentiation. By applying the adjustment exclusively to the horizontal axis, we can strategically prioritize visual weight without unnecessarily cluttering the vertical scale.

To achieve this targeted focus, we utilize the flexibility inherent in the axis parameter of plt.tick_params(), setting it specifically to 'x'. This singular change isolates the modification, ensuring that the labelsize adjustment applies solely to the X-axis labels. The Y-axis labels will automatically retain their default size or any previously set styling, resulting in a hierarchical visual structure.

The underlying structure of the Python script remains consistent, but the focused call to plt.tick_params(axis='x', which='major', labelsize=20) demonstrates the granular control offered by the Pyplot module. This capability allows chart creators to make strategic design decisions, highlighting the variable or dimension that holds the most analytical importance in the current visualization.

import matplotlib.pyplot as plt

#define x and y
x = [1, 4, 10]
y = [5, 11, 27]

#create plot of x and y
plt.plot(x, y)

#set tick labels font size for both axes
plt.tick_params(axis='x', which='major', labelsize=20)

#display plot
plt.show()

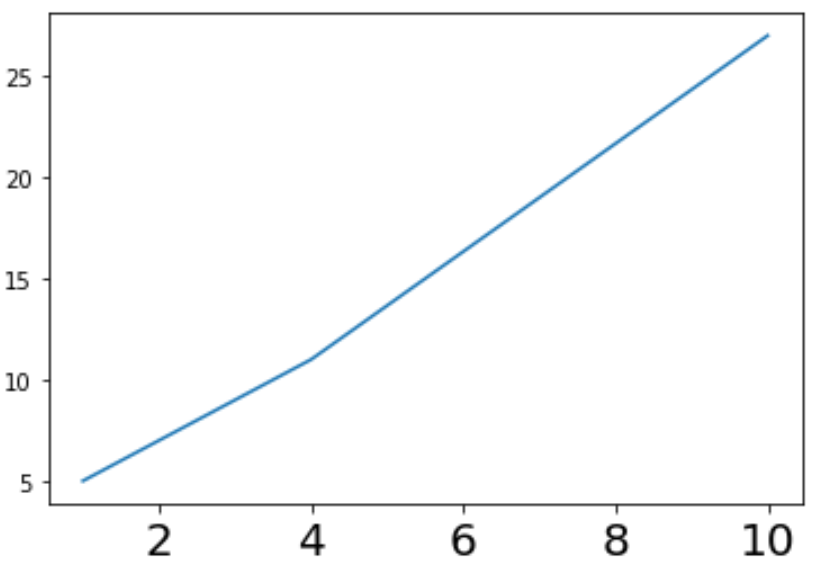

As evidenced by the resulting graph, only the tick labels along the X-axis have been enlarged to size 20, while the Y-axis labels remain at their default size, perfectly demonstrating the power of targeted, axis-specific customization.

Example 3: Prioritizing the Y-Axis Scaling

Conversely, a developer might need to draw explicit attention to the magnitude, range, or scale represented on the Y-axis. This technique is particularly valuable in scientific plots, financial charts, or when visualizing changes in frequency where the vertical dimension conveys the primary analytical insight. By focusing the font size increase solely on the Y-axis, we guide the viewer’s eye toward the variability in the data values rather than the categorical or temporal context on the X-axis.

To implement this visual strategy, we simply set the axis parameter to 'y' within the plt.tick_params() function call. This modification ensures that the labelsize=20 property is applied exclusively to the vertical axis labels, leaving the X-axis labels untouched at their default size. This precise control avoids visual noise and reinforces the intended message of the data.

This example beautifully illustrates the modularity of Matplotlib styling. Even when utilizing a single function like tick_params, minor adjustments to the parameters enable vastly different and highly tailored visual outcomes, aligning the chart’s appearance with specific communication goals. Mastering these subtle controls is an essential skill for advanced chart generation in Python data analysis workflows.

import matplotlib.pyplot as plt

#define x and y
x = [1, 4, 10]
y = [5, 11, 27]

#create plot of x and y
plt.plot(x, y)

#set tick labels font size for both axes
plt.tick_params(axis='y', which='major', labelsize=20)

#display plot
plt.show()

The resulting plot clearly shows the larger font size applied only to the Y-axis tick labels, providing visual emphasis on the vertical scaling of the data points.

Advanced Considerations and Best Practices

While increasing font size is the simplest way to boost readability, developers must carefully balance size adjustments against the overall dimensions and density of the chart. If tick labels become excessively large, they can overlap with adjacent elements, leading to clutter and confusion. Adhering to specific best practices ensures that font size customization enhances, rather than detracts from, the visualization’s quality.

One critical factor is the size of the Matplotlib figure itself. If you opt for a significantly increased labelsize (e.g., 20 points or higher), it is essential to simultaneously increase the figure dimensions using plt.figure(figsize=(width, height)). Providing ample room prevents the larger text from encroaching upon the axis titles, graph margins, or the primary plotting area, maintaining a clean and professional layout.

Furthermore, consider differentiating between the sizes of major and minor ticks. If minor ticks are enabled, it is usually advisable to keep their labels (if present) smaller and less visually prominent than those of the major ticks. The which parameter makes this control possible, allowing you to execute separate calls to plt.tick_params() to set distinct labelsize values for 'major' and 'minor' ticks, thereby establishing a clear visual hierarchy.

Finally, for projects requiring a consistent visual theme across numerous plots, a more global approach is often preferred over individual tick_params() calls. You can permanently adjust the default configuration using rcparams. For example, setting plt.rcParams['xtick.labelsize'] = 14 updates the default font size for X-axis labels for all subsequent plots in that session. This powerful technique is indispensable for maintaining uniformity throughout a large-scale Python analysis or reporting project.

Conclusion and Further Exploration

Adjusting the font size of axis tick labels is a fundamental and often necessary step in creating clear, impactful data visualizations. By leveraging the versatile plt.tick_params() function in Matplotlib, developers gain the precise control required to manage the readability of their charts. Whether the goal is to modify both axes universally or to apply focused visual emphasis on a single axis, the combination of the axis, which, and labelsize parameters provides a robust solution.

Implementing these techniques ensures that the critical scaling information conveyed by the ticks is easily accessible and interpretable by the audience, thereby maximizing the overall analytical impact of the visualized data. For those looking to deepen their expertise within the Python data visualization ecosystem, the following curated resources offer comprehensive guides on advanced styling, custom formatters, and managing complex layouts within Pyplot.

Additional Resources for Matplotlib Customization

• Official Matplotlib Documentation: The definitive source for all functions and parameters, including in-depth usage examples for tick_params.

• Matplotlib Axis and Ticks Tutorial: Provides step-by-step guidance on complex tick formatting, locator objects, and advanced styling techniques.

• Python Data Visualization Libraries: Explore other libraries such as Seaborn or Plotly for alternative approaches to aesthetic customization and interactive visualization.
