Learning to Visualize Correlation Matrices with corrplot in R

Visualizing the intricate relationships between variables constitutes a fundamental and often mandatory step in comprehensive data analysis workflows. Within the powerful statistical programming environment of R, data scientists and analysts routinely leverage the highly specialized corrplot function, which is sourced from the dedicated corrplot package. This tool is indispensable for generating highly informative graphical representations of a Correlation Matrix derived from an input data frame. Such visualizations are crucial for rapidly identifying patterns of linear dependence, redundancy, and independence among a collection of numerical variables, thereby guiding subsequent modeling and exploratory data analysis efforts.

The corrplot function is celebrated for its exceptional versatility. It provides a substantial array of arguments that empower users to meticulously control and customize every aspect of the visualization, including the matrix’s appearance, the ordering of variables, and the specific graphical method employed. A deep understanding of these modifiable parameters is the key to producing graphics that are not only statistically accurate but also clear, aesthetically pleasing, and ready for publication. In the following sections, we will systematically explore four of the most fundamental and frequently utilized visualization methods provided by this function, demonstrating how minor adjustments in the R syntax can profoundly alter the visual output and enhance the interpretability of the analytical results.

The Versatility of the corrplot Package

The corrplot package is engineered to support multiple visualization methods, each purposefully designed to highlight distinct characteristics of the underlying structure of the correlation coefficient. The optimal choice of method is highly dependent on the target audience and the specific insights the analyst intends to communicate. These techniques range from depicting relationships through simple geometric shapes, which offer an intuitive visual summary, to displaying the precise numerical values of the coefficients themselves, which prioritize accuracy.

Effective correlation analysis typically begins by calculating the matrix of correlation values. The `corrplot` function requires this matrix as its primary input. We will demonstrate the necessary syntax for four distinct primary visualization techniques that collectively showcase the flexibility and depth of the package’s capabilities. It is important to note that, in all subsequent examples, the function cor(df) is invoked first to compute the matrix of Pearson correlation coefficients from the input data frame df. This calculated matrix is then passed directly as the argument to the corrplot() function, enabling the subsequent graphical rendering.

Method 1: Visualizing Relationships Using the Default Circle Method

The circle method is the default and most commonly encountered visualization technique within corrplot, providing an excellent balance between visual aesthetics and statistical rigor. In this configuration, the strength and magnitude of the correlation are represented intuitively by the size (area) of the circle placed within the corresponding matrix cell. Simultaneously, the color or hue of the circle systematically indicates the direction of the relationship: typically, shades of blue are used for positive correlations, while shades of red denote negative correlations.

This approach delivers an immediate, intuitive graphical overview of the inter-variable relationships, making it ideal for initial exploratory data analysis. The visual encoding allows for rapid identification of the strongest and weakest linear associations without the need for detailed examination of numerical outputs. A larger, more intensely colored circle signifies a stronger correlation (closer to 1 or -1), regardless of the sign.

library(corrplot)

#create correlation matrix with circles shown inside matrix (Default method)
corrplot(cor(df))

Method 2: Enforcing Order for Consistency (Alphabetical Arrangement)

By default, corrplot often organizes variables based on their original sequence within the input data frame, or it may apply a rudimentary reordering technique. However, for analysts requiring rigorous standardization across multiple plots or seeking simplified reference, a consistent ordering scheme is often preferred. The order argument grants precise control over how variables are displayed along both the X and Y axes of the matrix. While advanced methods like hierarchical clustering (‘hclust’) are available to group highly correlated variables, sometimes a simple, predictable arrangement is necessary.

Setting the argument order='alphabet' forces the variables to be arranged in a clear, standardized alphabetical sequence. Although this alphabetical arrangement does not optimize the visual clustering of correlated variables—a primary goal of statistical reordering methods—it significantly enhances the plot’s utility as a quick reference tool. This method ensures that variables are easily locatable, promoting consistency and clarity, especially when comparing plots from different analyses.

library(corrplot)

#create correlation matrix with variables in alphabetical order
corrplot(cor(df), order='alphabet')

Method 3 & 4: Prioritizing Precision (Numbers) and Visual Impact (Color)

The method argument is exceptionally powerful, allowing the analyst to toggle between numerical exactitude and pure visual pattern recognition. These two methods—’number’ and ‘color’—demonstrate the duality of correlation matrix visualization, catering to distinct analytical requirements depending on whether the primary goal is reporting precise values or identifying large-scale structural patterns within the Correlation Matrix.

When the setting method='number' is applied, the graphical representation is essentially converted into a highly readable numerical table. Each cell displays the calculated correlation coefficient, where the size and color of the displayed text can still reflect the magnitude and sign of the relationship. This approach is paramount in scenarios demanding absolute precision, such as formal statistical reporting, technical documentation, or performing detailed quantitative checks where the exact decimal value of the correlation is critical. While it may be less visually stimulating than geometric methods, the numerical display eliminates any ambiguity regarding the exact strength of the linear relationship.

library(corrplot)

#create correlation matrix with correlation coefficients shown inside matrix
corrplot(cor(df), method='number')

Conversely, setting method='color' generates a powerful heat map visualization. In this configuration, each cell is rendered as a solid, shaded rectangle where the intensity and hue of the color are directly proportional to the magnitude and sign of the correlation, respectively. This heat map format boasts a high visual impact, making it exceptionally effective for quickly identifying overall correlation patterns, visualizing clusters of strong associations, and discerning structural breaks in the data. This method avoids the visual complexities introduced by geometric shapes and is often preferred in exploratory analysis or presentations where immediate pattern recognition is prioritized over numerical accuracy.

library(corrplot)

#create correlation matrix with shaded cells inside matrix
corrplot(cor(df), method='color')

Essential Preparation: Setting up the R Environment and Sample Data

To provide concrete and reproducible demonstrations of the four visualization methods discussed above, it is first necessary to prepare the analytical environment. This involves ensuring the required R package is loaded and initializing a suitable dataset. For our purposes, we will construct a small, simulated data frame containing hypothetical performance statistics for a group of eight basketball players. This dataset, though small, is deliberately structured to possess sufficient variability and non-trivial relationships among its metrics (such as assists, rebounds, points, and steals) to produce a meaningful and interpretable Correlation Matrix.

The following R script initializes the data frame named df. Before proceeding with the correlation analysis, analysts must always examine the composition and structure of their data. Understanding the ranges and distributions of these metrics—which include performance indicators like points scored and rebounds collected—is fundamental to correctly interpreting the resulting correlation plot and ensuring that the calculated relationships are statistically sound and logically coherent.

#create data frame
df <- data.frame(assists=c(4, 5, 5, 6, 7, 8, 8, 10),
                 rebounds=c(12, 14, 13, 7, 8, 8, 9, 13),
                 points=c(22, 24, 26, 26, 29, 32, 20, 14),
                 steals=c(5, 6, 7, 7, 8, 5, 3, 4))

#view data frame
df

  assists rebounds points steals
1       4       12     22      5
2       5       14     24      6
3       5       13     26      7
4       6        7     26      7
5       7        8     29      8
6       8        8     32      5
7       8        9     20      3
8      10       13     14      4

Practical Application 1: Interpreting the Default Circle Plot

The default visualization method in corrplot, utilizing circles, provides an immediate and comprehensive statistical snapshot of the relationships within the dataset. As previously noted, this method encodes the strength of the linear relationship through the circle’s size, which is proportional to the absolute magnitude of the correlation coefficient (r). Concurrently, the color gradient visually signifies the sign: deep blue for strong positive correlation (r ≈ 1) and deep red for strong negative correlation (r ≈ -1).

This visual approach is highly advantageous for initial data exploration, enabling the analyst to quickly pinpoint which variable pairs exhibit the most pronounced linear relationships without needing to consult a numerical table. For instance, if the correlation between ‘assists’ and ‘steals’ results in a large, dark blue circle, it immediately suggests a strong positive association. Conversely, if ‘points’ and ‘rebounds’ show a large, dark red circle, a strong inverse relationship is indicated. Small, lightly colored or white circles suggest weak or negligible correlation (r ≈ 0), implying minimal linear dependence between those variables.

library(corrplot)

#create correlation matrix with circles shown inside matrix
corrplot(cor(df))

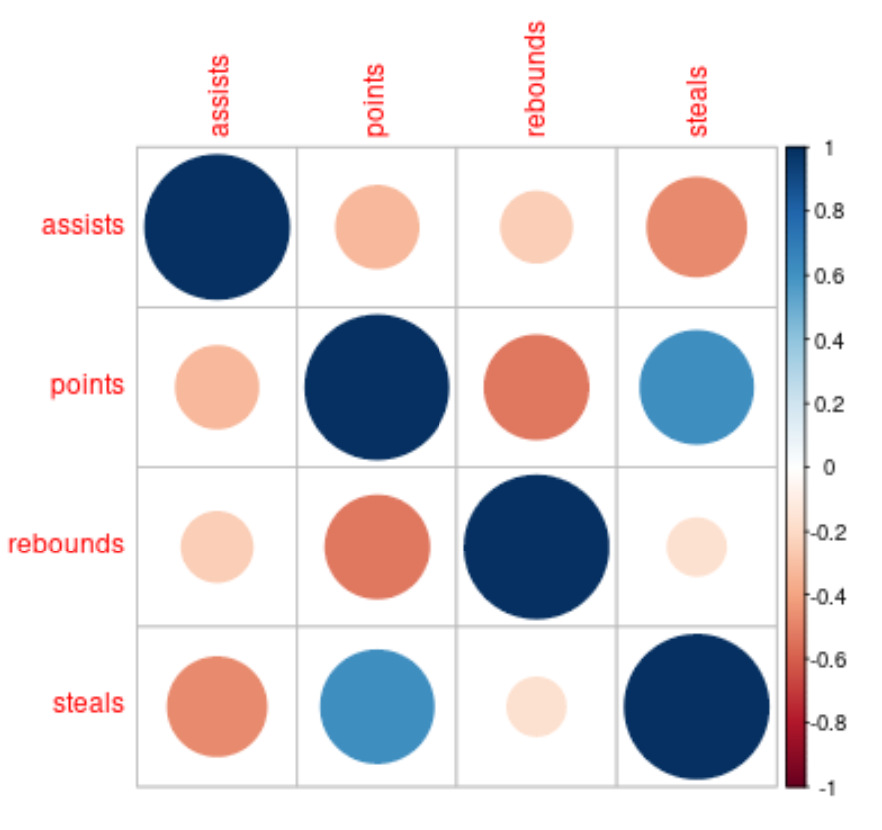

Practical Application 2: Enhancing Reference with Alphabetical Ordering

While the default variable order in a Correlation Matrix typically reflects the sequence found in the original data frame, forcing a standardized order is often beneficial, particularly in large-scale multivariate statistics projects. By employing the order='alphabet' argument, we override any default sequencing and enforce a predictable arrangement (assists, points, rebounds, steals) across both the horizontal and vertical axes. This simple standardization enhances clarity and provides a stable framework for referencing variables.

Although alphabetical ordering sacrifices the efficiency of clustering methods (like ‘hclust’, which groups highly correlated variables adjacent to each other), its strength lies in providing a predictable, easily locatable arrangement. For an analyst frequently switching between raw data tables and visualizations, this consistent, easily memorized structure significantly aids in quick cross-referencing and ensures that comparisons between different correlation plots or datasets remain straightforward and unambiguous.

library(corrplot)

#create correlation matrix with variables in alphabetical order
corrplot(cor(df), order='alphabet')

Practical Application 3 & 4: Numerical Exactitude vs. Heatmap Intuition

The final two examples highlight the functional dichotomy within corrplot: the need for precise numerical data versus the desire for immediate, intuitive visual patterns. Both the 'number' and 'color' methods, manipulated via the method parameter, are essential tools in the analyst’s arsenal, depending on the stage and purpose of the analysis.

When method='number' is used, the resulting graphic functions primarily as a statistical table. The plot displays the exact Pearson correlation coefficients, allowing for precise quantitative assessment. The accompanying image demonstrates this transformation: the plot is now suited for environments where numerical values are paramount, such as preparing data for regression modeling or verifying statistical assumptions. This method ensures that the analyst possesses the exact magnitude of the linear relationship, leaving no room for interpretation error based on visual size or shading.

library(corrplot)

#create correlation matrix with correlation coefficients shown inside matrix
corrplot(cor(df), method='number')

In contrast, the method='color' plot excels in visual communication. By generating a heat map of shaded cells, it provides a highly effective summary. The intensity of the shading directly corresponds to the correlation strength, providing a fast visual summary that is excellent for presentations or initial exploratory analysis. This method allows the viewer to instantly grasp the overall pattern of relationships and identify clusters of highly correlated variables based solely on color concentration, thereby offering a powerful, immediate interpretation without requiring the reader to process individual numerical values.

library(corrplot)

#create correlation matrix with shaded cells inside matrix
corrplot(cor(df), method='color')

Conclusion and Further Exploration

Mastering the diverse visualization capabilities within the corrplot package is an essential skill for any R user focused on exploratory data analysis and multivariate statistics. The ability to quickly switch between geometric representations (like circles), numerical precision (numbers), and intuitive heat maps (color) ensures that the analyst can select the most appropriate visual tool for communicating specific findings about variable relationships. These methods are foundational for advanced analytical techniques. For those seeking to delve deeper into customizing these visualizations or exploring other common statistical operations within the R environment, the following resources provide valuable context and instruction:
