Learning to Visualize Error Bars with geom_errorbar() in ggplot2

Introduction to Error Bars in Statistical Visualization

Error bars are an absolutely fundamental element of rigorous scientific and statistical visualization. Their primary function is to clearly communicate the inherent variability or the precision associated with aggregated data points. When analyzing data, plotting only the central tendency, such as the mean value, often fails to account for the actual spread of underlying observations. This omission can potentially lead to incomplete or even misleading conclusions regarding group differences or the reliability of an estimate. By strategically incorporating error bars, analysts provide essential context concerning the precision of their statistical estimates or the overall dispersion within the data distribution.

The renowned ggplot2 package, which is the cornerstone of modern data visualization in R and is constructed upon the theoretical framework of the Grammar of Graphics, offers powerful tools for generating elegant and highly informative plots. To integrate these crucial indicators of data uncertainty, we utilize the specialized geometry function, geom_errorbar(). This specific geometry allows developers to define both the upper and lower boundaries of the error region. These bounds are typically derived from key statistical metrics, including the standard deviation, the standard error of the mean (SEM), or calculated confidence intervals (CIs).

Acquiring proficiency in the correct implementation of the geom_errorbar() function is indispensable for any professional analyst or data scientist operating within the R ecosystem. The forthcoming comprehensive tutorial walks through the entire process, beginning with the necessary steps for processing raw data using the efficient dplyr package. The guide culminates in the creation of a polished graphical output, demonstrating how to effectively deploy geom_errorbar() within the broader ggplot2 framework to create compelling visualizations of variability.

Setting Up the R Environment and Preparing Sample Data

Prior to visualizing the variability inherent in our data, the initial and necessary step involves configuring a functional R environment and loading the specific dataset slated for analysis. For the purpose of this practical tutorial, we will employ a constructed scenario involving hypothetical scores attained by basketball players, categorized and grouped by their respective teams. This common data structure is ideal because it mirrors real-world analytical requirements where summary statistics must be calculated across distinct categories before generating plots that incorporate error bars.

Our process begins with the creation of a basic R data frame, which will house the raw point totals for three distinct hypothetical teams, designated A, B, and C. The foundational structure of this initial data frame encompasses two primary variables: team, which is the categorical grouping variable, and points, which represents the continuous outcome variable we intend to summarize and visualize.

The subsequent code snippet provides a clear illustration of how to instantiate this sample data structure in R. It is worth noting the consistent arrangement where each of the three teams has exactly four recorded point values. This design ensures we have adequate data points to accurately calculate and assess both the central tendency (average score) and the measure of spread (variability) for every group.

#create data frame
df = data.frame(team=rep(c('A', 'B', 'C'), each=4),
                points=c(8, 12, 4, 6, 26, 21, 25, 20, 9, 18, 14, 14))

#view data frame
df

   team points
1     A      8
2     A     12
3     A      4
4     A      6
5     B     26
6     B     21
7     B      25
8     B     20
9     C      9
10    C     18
11    C     14
12    C      14

Calculating Summary Statistics for Visualization

A prerequisite for successfully utilizing geom_errorbar() in a ggplot2 context is that the necessary summary statistics must be pre-calculated and organized within a separate summary data frame. Specifically, this summary table must contain the center point (such as the mean) and the defined error boundaries (such as upper and lower limits based on the standard deviation). This requirement exists because ggplot2 is designed to plot the values exactly as they are provided in the data source; it does not typically execute complex, on-the-fly group calculations required for geometries like error bars.

To handle this data preparation efficiently, we rely heavily on the functionalities provided by the dplyr package, an integral component of the Tidyverse suite. The process involves grouping the initial raw data by the categorical team variable. Subsequently, we apply the summarise_at function to compute two critical metrics for the points column: the aggregated group mean and the associated standard deviation (sd).

The resultant summary table, named df_summary, is structured to contain all the required coordinates for our forthcoming plot. It includes the team identifier, the calculated central value (mean), and the measure of spread (sd). These three columns are directly mapped during the plotting phase: the team identifier handles the X-axis mapping, the mean defines the Y-axis position, and the standard deviation is used to calculate the vertical extent of the error bars.

library(dplyr)

#calculate mean and standard deviation of points by team
df_summary <- df %>%
  group_by(team) %>%
  summarise_at(vars(points), list(mean=mean, sd=sd)) %>%
  as.data.frame()

#view results
df_summary

  team  mean       sd
1    A  7.50 3.415650
2    B 23.00 2.943920
3    C 13.75 3.685557

Implementing geom_errorbar(): The Basic Plot

With our necessary summary statistics calculated and organized, we are now prepared to construct the foundational visualization using the ggplot2 package. The core structure of this plot involves defining the data source (df_summary) and setting the global aesthetic mappings (aes) for the base plot. Specifically, we map the categorical team variable to the X-axis and the calculated mean score to the Y-axis.

The most critical step in this process is adding the geom_errorbar() layer. This function is unique in its requirement for two distinct aesthetic mappings: ymin and ymax. These aesthetics are responsible for defining the precise vertical extent of the error bar for each aggregated group. In this introductory example, we establish the error range to span one standard deviation both above and below the calculated mean value. Consequently, the ymin aesthetic is mapped to the expression mean - sd, and the ymax aesthetic is mapped to mean + sd.

The following R code produces a clean visualization where the vertical lines explicitly represent the score variability within each team category. It is important to note that the basic geom_errorbar() function draws only these vertical lines and their caps; it does not automatically include a centralized marker point, which will be addressed in the subsequent refinement section.

library(ggplot2)

#create plot to visualize mean points by team with error bars
ggplot(df_summary, aes(x=team, y=mean)) +
  geom_errorbar(aes(ymin=mean-sd, ymax=mean+sd))

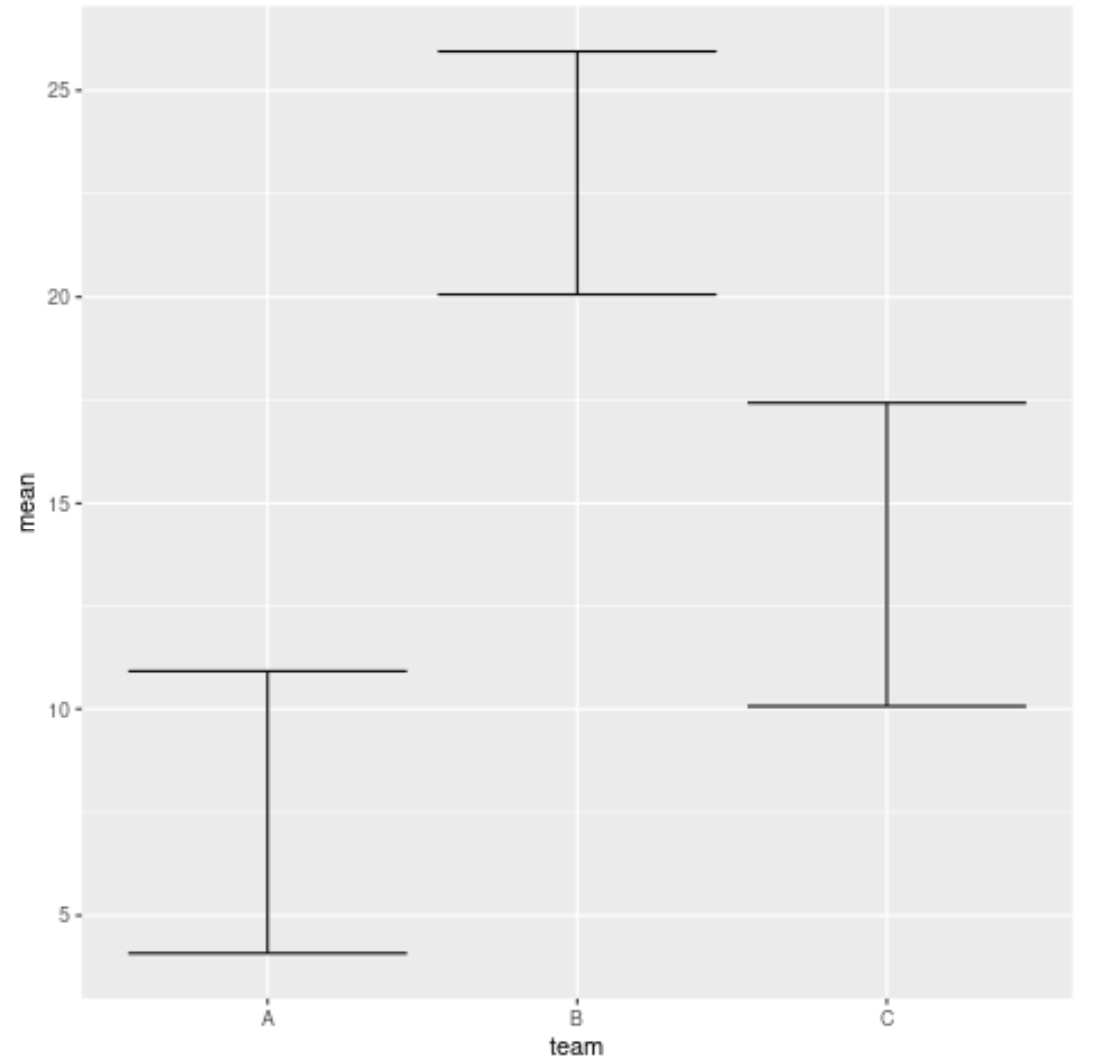

As visually confirmed by the resulting graph, the error bars for each team clearly correspond to their calculated variability. For instance, Team B, which achieved the highest mean score, also exhibits the smallest measure of spread, resulting in a relatively short error bar. Conversely, Team C displays a larger standard deviation, which translates directly into a visually longer error bar, indicating greater score dispersion.

Enhancing Visualization with geom_point() and the width Argument

While the fundamental error bar plot effectively communicates statistical variability, visualizations are often significantly improved by incorporating additional visual cues for clarity and aesthetic appeal. It is considered best practice to include a central marker that explicitly highlights the mean value, serving as the pivot point around which the error bars extend. This is easily achieved by layering the geom_point() function onto our existing plot structure.

Furthermore, we can drastically improve the aesthetic quality and readability of the plot by adjusting the horizontal span of the T-shaped caps found at the extremities of the vertical error bars. This customization is managed using the width argument, which is applied directly within the geom_errorbar() function call. The width parameter accepts a numerical value, typically ranging from 0 to 1, which dictates the proportion of the X-axis unit that the cap should occupy. Utilizing a larger width makes the caps more noticeable, while a smaller width contributes to a cleaner, less visually distracting design.

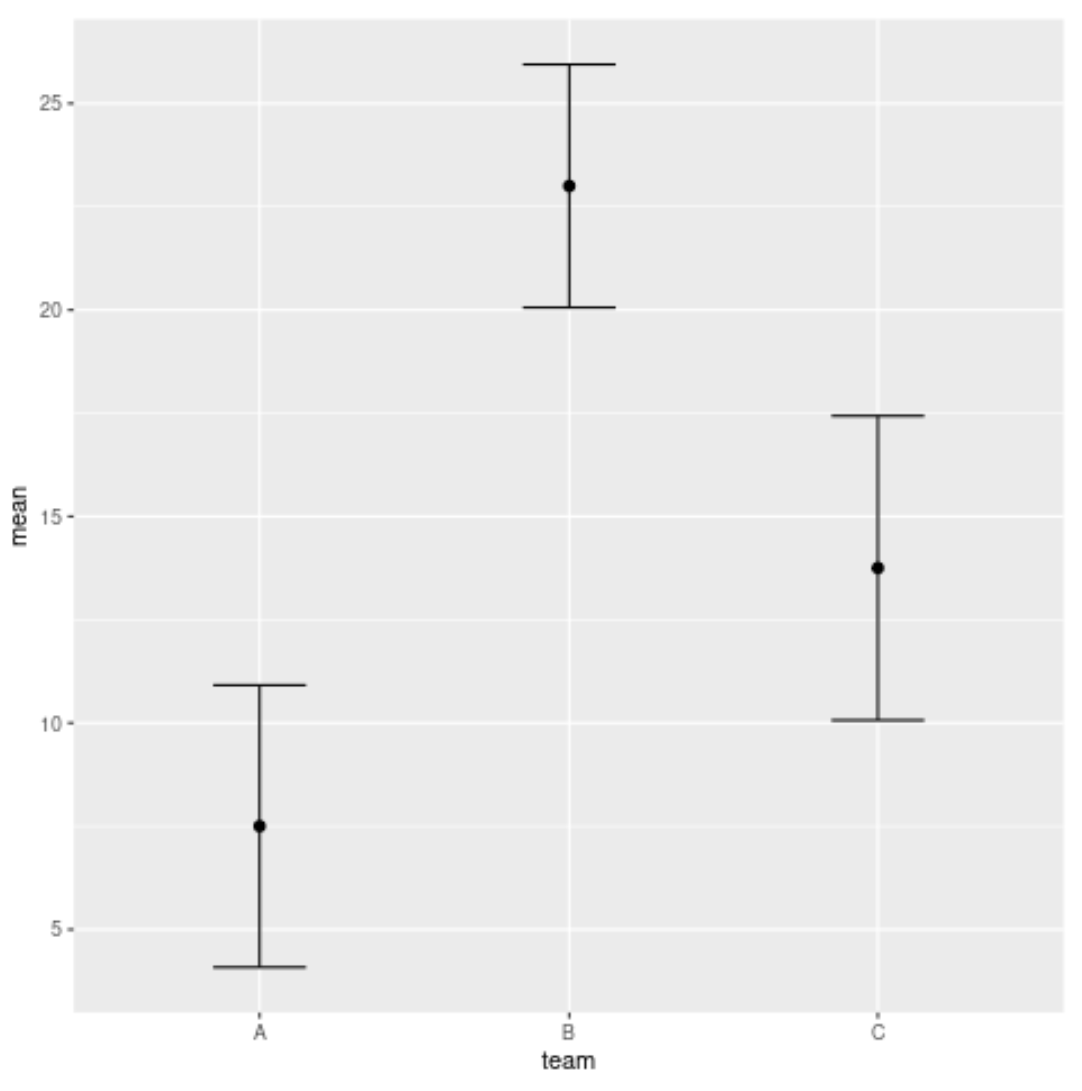

The refined syntax provided below integrates both geom_point() to clearly denote the mean position and sets the width of the error bar caps to 0.3. This value represents an effective compromise, balancing the need for clear visibility with the desire for a refined, non-cluttered design.

library(ggplot2)

#create plot to visualize mean points by team with error bars
ggplot(df_summary, aes(x=team, y=mean)) +
  geom_errorbar(aes(ymin=mean-sd, ymax=mean+sd), width=0.3) +
  geom_point(size=2)

Advanced Customization and Interpretation

The capacity to fine-tune the width of the error bar caps represents an important aspect of controlling visualization aesthetics. For scenarios where the categorical groups on the X-axis are closely spaced or where the overall plot space is highly constrained, decreasing the width value (e.g., setting it to 0.1) is often necessary to prevent visual overlap and maintain data clarity. Conversely, if the plot is sparse and the categories are widely separated, increasing the width (e.g., to 0.5) can impart more visual weight to the error bars, improving their prominence. Analysts should approach this value experimentally, selecting the optimal presentation based on the specific density and layout of their data.

It is also essential to recognize the inherent flexibility of the geom_errorbar() function regarding the statistics it can represent. While we utilized the standard deviation (SD) throughout this tutorial, many specialized fields prefer metrics like the Standard Error of the Mean (SEM) or 95% Confidence Intervals (CI) to communicate the precision of the estimated mean more accurately. Should the goal shift to plotting CIs, the initial data calculation phase utilizing dplyr would require modification to calculate the specific lower (LCL) and upper (UCL) confidence limits. These newly calculated columns would then be mapped directly to the ymin and ymax aesthetics in the geom_errorbar() call, respectively.

In summary, the successful deployment of the geom_errorbar() geometry hinges upon the execution of three distinct and crucial steps:

1. Data preparation, which involves calculating the necessary summary statistics: the center point, the lower bound, and the upper bound of the error region.

2. Setting up the base ggplot2 structure, ensuring the X and Y aesthetics are correctly mapped to the categorical variable and the central measure (e.g., the mean).

3. Adding the geom_errorbar() layer, where the calculated ymin and ymax values must be explicitly mapped in the aesthetics, often complemented by the optional width argument and the inclusion of geom_point() for enhanced visualization.
