Learning the Empirical Cumulative Distribution Function (ECDF) in R

Introducing the Empirical Cumulative Distribution Function (ECDF)

The Empirical Cumulative Distribution Function (ECDF) serves as a cornerstone of modern statistical analysis, offering a robust, non-parametric method to estimate the underlying probability distribution of a dataset. Unlike traditional parametric methods that presuppose a specific theoretical model, such as the Normal or Poisson distributions, the ECDF is derived directly and exclusively from the observed data points. It essentially provides a functional summary of the sample, quantifying the exact proportion of observations that are less than or equal to any specified value. This data-driven approach is particularly invaluable in exploratory data analysis and situations where making strong distributional assumptions is either impossible or unreliable, solidifying its critical importance in non-parametric statistics.

Formally, the Empirical Cumulative Distribution Function acts as an estimate of the true Cumulative Distribution Function (CDF) that hypothetically generated the data. For any value x, the ECDF returns the estimated probability of randomly selecting an observation from the dataset that is less than or equal to x. This function is defined mathematically as a step function, meaning its value only changes (steps up) precisely at the locations of the observed data points. The magnitude of each vertical step is uniform, calculated as 1/n, where n represents the total number of observations in the sample. A key theoretical result in statistics demonstrates that as the sample size increases indefinitely, the ECDF rigorously converges to the true underlying theoretical CDF, validating its use as a reliable estimator.

The practical utility of the ECDF extends across numerous analytical tasks, including visually comparing two or more distributions, conducting rigorous goodness-of-fit tests, and accurately estimating population quantiles. By leveraging the built-in ecdf() function available in the powerful statistical environment of R, data scientists can efficiently transform raw data into a clear, actionable visual and functional estimate of the distribution. This automation of what would otherwise be a labor-intensive manual calculation allows researchers and analysts to dedicate their focus to the critical stages of interpretation and decision-making rather than burdensome computational processes.

Utilizing the ecdf() Function within the R Environment

The core mechanism for generating the ECDF within the R computing environment is the foundational ecdf() function. This function is designed to accept a numeric vector of observations as its primary input. A critical characteristic of ecdf() is that its output is not a static numerical value or a pre-rendered plot; rather, it returns a dynamic function object belonging to the class "ecdf". This returned function is highly versatile, behaving just like any other native function in R, which means it can be invoked with specific arguments (i.e., evaluated at arbitrary points) or seamlessly passed to other generic functions, such as plotting utilities.

The standard workflow for implementing ecdf() involves a simple, yet powerful, two-step procedure that encompasses both the calculation and the immediate visualization of the empirical distribution. The following code snippet illustrates this fundamental structure, which is vital for quick exploratory data analysis in R:

# Step 1: Calculate the empirical cumulative distribution function (ECDF)
p = ecdf(data)

# Step 2: Plot the empirical cumulative distribution function
plot(p)

In this sequence, the variable data represents the input vector containing the observations. The resulting ECDF function object is stored in the variable p. When p is subsequently passed to the generic plot() function, R intelligently recognizes that p is an ECDF object and automatically renders the appropriate step plot, thereby providing an immediate visual summary of the empirical distribution. This streamlined process underscores R’s effectiveness and efficiency for rapid and sophisticated data exploration, transforming raw data into meaningful graphical insights with minimal code.

It is essential for analysts to distinguish clearly between the ECDF object (p) and its subsequent graphical representation. The ECDF object is fundamentally a computational tool, offering far more utility than just visualization. For instance, if an analyst needs to determine the exact cumulative probability corresponding to a specific observed value, say x, they can simply execute p(x). This inherent flexibility allows the ECDF function to serve as both a powerful visualization aid and a direct computational engine for complex tasks like precise quantile estimation and rigorous distributional comparison across different samples.

Practical Demonstration: Generating Synthetic Data in R

To provide a concrete illustration of the ecdf() function’s application, we must first establish a reproducible and manageable dataset. For the purposes of this walkthrough, we will generate a synthetic vector containing 1,000 random values drawn specifically from a standard normal distribution. This distribution is characterized by a mean of 0 and a standard deviation of 1. Utilizing simulated data ensures that the results are perfectly reproducible, guaranteeing that any user executing this code will obtain the exact same random sample and, consequently, the identical ECDF plot.

The following code block initiates our demonstration by first setting a randomization seed using the set.seed() function. Reproducibility is paramount in statistical research, and setting the seed ensures that the subsequent call to rnorm() (Random Normal) always produces the same sequence of 1,000 data points. Following the data generation, we use the head() function to inspect the initial few elements of the newly created vector, confirming the successful compilation of our dataset and its numerical structure:

# Ensure the example is reproducible across multiple sessions
set.seed(1)

# Create a vector of 1,000 random values from a standard normal distribution
data = rnorm(1000)

# View the first six values in the vector to verify data creation
head(data)

[1] -0.6264538  0.1836433 -0.8356286  1.5952808  0.3295078 -0.8204684

The output confirms that the vector, named data, has been successfully populated with values that are statistically consistent with a standard normal distribution, exhibiting values centered near zero. This dataset, now comprising 1,000 observations, is optimally prepared for analysis using the ECDF function. It is important to note that generating a sample size of this magnitude is a critical step; the accuracy of the ECDF as an estimator for the true CDF is directly proportional to the sample size. Smaller datasets often yield a jagged or less representative ECDF, which may poorly reflect the characteristics of the population distribution from which the data was drawn.

Calculating and Generating the Base ECDF Visualization

Once the data preparation is complete and the sample data is validated, the subsequent step of calculating and plotting the Empirical Cumulative Distribution Function is exceptionally straightforward, requiring only the two concise lines of code previously introduced. We begin by applying the ecdf() function to our data vector. This crucial step generates the functional ECDF object, which we assign to the variable p. Following the creation of this object, we pass it directly to the standard R plot() function to produce the visualization.

Executing these commands in the R console rapidly generates the foundational ECDF plot:

# Calculate the ECDF function object
p = ecdf(data)

# Generate the default ECDF plot
plot(p)

The resulting graphical output is a distinctive step function, which is the defining characteristic of the ECDF plot. Since our data was simulated specifically from a standard normal distribution, the generated ECDF visualization should clearly display the classic S-shape curve that is intrinsically associated with cumulative normal probabilities. This graphical representation immediately and intuitively illustrates how the cumulative probability accumulates across the entire range of observed data points. This initial, uncustomized visualization is highly effective, providing rapid insight into the central tendency, spread, and overall distributional shape of the data sample.

Customizing ECDF Plots for Enhanced Statistical Communication

While the default graph produced by plot(ecdf_object) is computationally accurate and functionally sufficient, generating high-quality visualizations for formal reports, academic publications, or professional presentations necessitates careful customization of the plot aesthetics. Fortunately, the R plot() function is highly flexible, accepting a wide array of graphical parameters that allow users to meticulously control titles, labels, colors, and line styles. The most critical arguments for ensuring clarity and interpretability are xlab (controlling the x-axis label), ylab (controlling the y-axis label), and main (specifying the overall plot title).

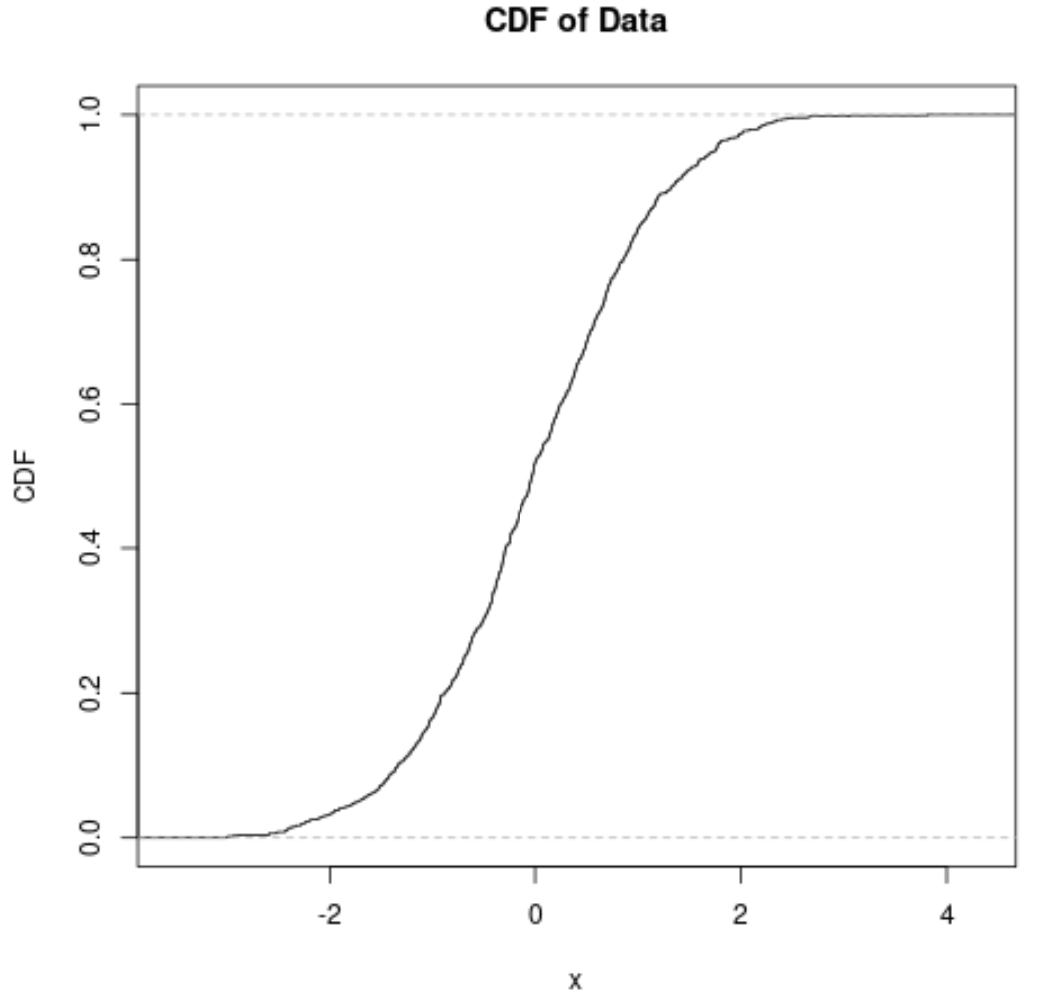

By integrating these descriptive arguments directly into the plot() function call, we dramatically improve the context and interpretability of the graph for the reader, transforming a basic plot into a publication-ready figure:

# Calculate the ECDF function object
p = ecdf(data)

# Plot the ECDF with descriptive axis labels and a clear title
plot(p, xlab='x', ylab='CDF', main='ECDF of Simulated Normal Data')

Beyond simple labeling, analysts frequently employ other parameters for more advanced visual refinement. For example, parameters such as col (defining the color of the line), lwd (controlling the line width), and lty (specifying the line type, e.g., solid or dashed) can be manipulated to refine the appearance of the step function itself. Furthermore, in scenarios requiring the comparison of multiple distributions—such as plotting the ECDF for two different experimental groups—the lines() function is essential for overlaying additional ECDF curves onto the existing plot, often utilizing contrasting colors or line types to maintain visual distinction. Mastering these plotting parameters is absolutely crucial for effective statistical communication among data professionals working in R.

Interpreting the ECDF Plot: Key Distributional Insights

Accurate interpretation of the ECDF plot hinges entirely on a clear understanding of its two axes. The horizontal axis (x-axis) represents the observed raw data values, spanning the range from the minimum observed data point up to the maximum. These values are the direct input used in the ECDF calculation. Therefore, the x-axis provides the domain over which the cumulative probability is calculated, reflecting the actual measurements obtained from the sample.

The vertical axis (y-axis) consistently displays the cumulative probability, which is the value of the Cumulative Distribution Function (CDF). This axis is strictly bounded, always ranging from 0 to 1. The height of the function at any specific point x directly quantifies the proportion of the dataset that is less than or equal to that value. For instance, if the ECDF curve achieves a height of 0.5 when x = 0, it immediately informs the analyst that 50% of the observed data points in the sample are less than or equal to 0. This pivotal crossing point, where the ECDF equals 0.5, defines the exact location of the sample median.

Since the ECDF is inherently a step function, it only increases vertically at the precise locations of the observed data points. The visual steepness, or density, of these steps offers crucial insight into the underlying probability density function. Regions where the steps are closely clustered together and the function rises rapidly indicate high data density; conversely, long flat segments suggest data sparsity over that specific range of values. The function must logically begin at 0 (as 0% of the data is below the minimum value) and ultimately terminate at 1 (as 100% of the data is below the maximum value). This detailed interpretation is fundamental for performing tasks such as identifying potential outliers, assessing the symmetry or skewness of the data, and rigorously comparing the empirical sample distribution against known theoretical benchmarks.
