Learning to Reshape Data in R: A Practical Guide to the cast() Function

Understanding Data Structure: Long vs. Wide Formats

The capacity to efficiently restructure and reorganize data is perhaps the most fundamental skill required for effective data analysis in R. Data analysts routinely face situations where raw data must be converted from one organizational paradigm to another to enable specialized statistical tests, high-quality visualizations, or seamless integration into machine learning pipelines. At the core of data organization within statistical programming are the concepts of the long format and the wide format. Understanding the distinctions between these two structures is crucial before attempting any reshaping operations.

The wide format, sometimes called “spreadsheet format,” organizes data such that every unique observation or subject corresponds to a single, distinct row. All measured variables related to that subject are then stored across multiple columns. Importantly, in a wide dataset, identifier variables (such as ‘Patient ID’ or ‘Team Name’) appear only once per row, ensuring uniqueness in the primary column. This structure often appears more intuitive for human review and is specifically required for certain classical statistical models, particularly those involving fixed effects or simple regressions where variables are treated independently.

In sharp contrast, the long format, often championed as the “tidy” format, stacks measured variables vertically. In this arrangement, identifier variables must necessarily repeat, as each observation point (e.g., a measurement taken at a specific time) gets its own row. A typical long structure includes a dedicated column defining the type of measurement taken (the “key” variable) and another column containing the actual numerical result (the “value” variable). This stacked structure is invaluable for iterative data processing, time-series analysis, and is the standard input requirement for sophisticated plotting libraries such as ggplot2, making it highly flexible for modern data manipulation workflows.

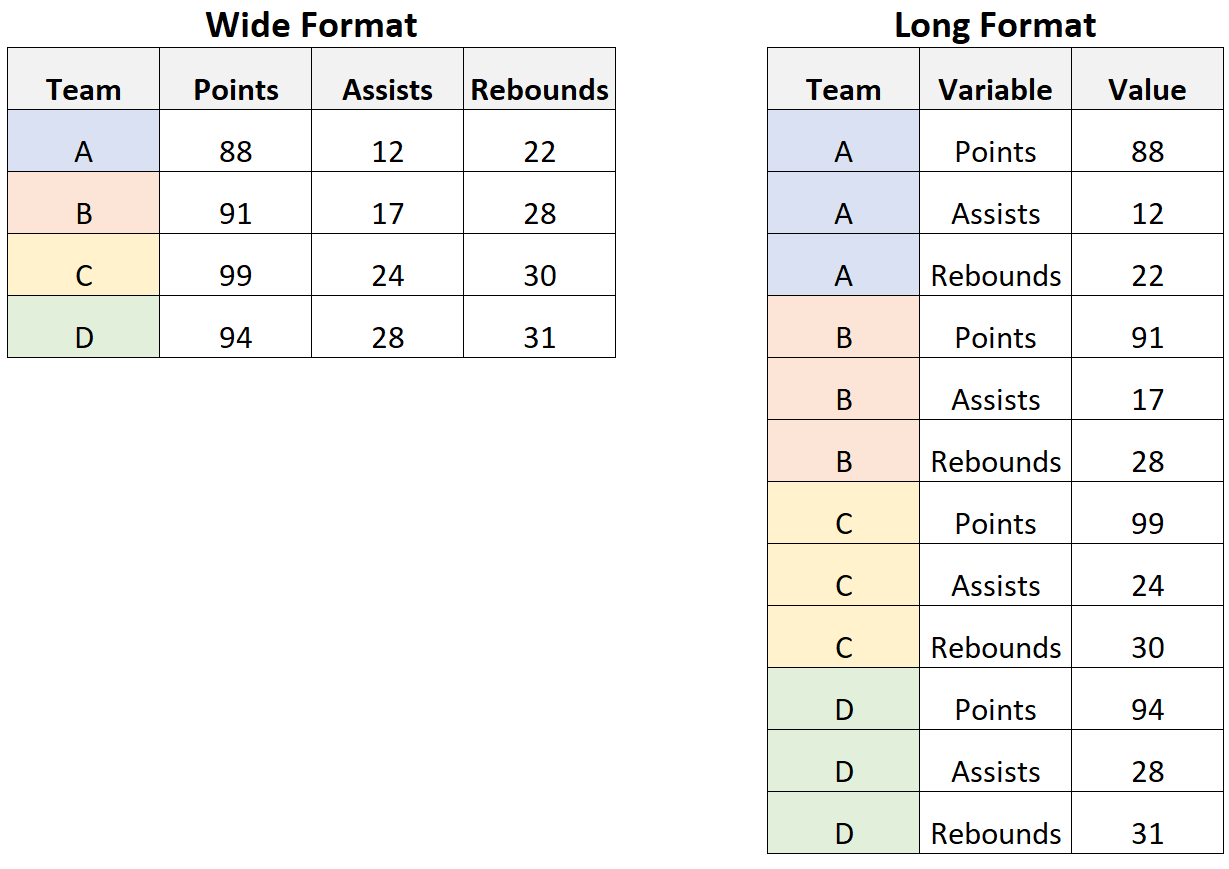

To solidify this essential structural difference, examine the visualization below. It clearly illustrates how the exact same underlying data points are represented when expressed in both the wide and the long organizational formats:

Introducing the reshape2 Package and the cast() Family

The crucial task of pivoting data—converting data from long to wide, or vice versa—demands specialized, efficient tools. In the R ecosystem, this need is expertly addressed by the reshape2 package. Developed by the influential R programmer Hadley Wickham, reshape2 introduced a powerful, consistent methodology known as “melt and cast.” The melt() function handles the transformation from wide format to the long (tidy) format, while the family of cast() functions performs the reverse operation: converting data from long back to wide.

While an older, generic cast() function existed, modern usage mandates the employment of its specialized variants: dcast() and acast(). These functions were meticulously engineered to optimize the process of moving from a stacked, long format structure to a spread-out, wide format structure. This operation is indispensable when preparing aggregated summary reports, performing cross-tabulations, or integrating legacy datasets that require a wide format for compatibility with specific analysis tools.

The fundamental objective of utilizing these casting functions is to take the unique values residing within one key variable (typically the measurement type column in the long format) and transform them into distinct new column headers in the resulting wide format. This process requires the user to precisely specify which identifier variables must remain fixed to anchor the output rows, defining the unique subjects or observations.

Detailed Syntax and Arguments of the cast() Function

The cast() family of functions operates using an elegant, formula-based syntax, a common convention for high-level data manipulation tools in R. Mastering this syntax is paramount for correctly instructing the function on how the complex reshaping operation should be executed. At its simplest, the function requires three core pieces of information: the input data, the transformation formula, and an optional aggregation function if the pivoting process leads to data collision.

The generalized structure for the casting operation is explicitly defined as:

cast(data, formula, fun.aggregate)

The core of the operation lies within the formula argument, which uses the tilde operator (~) to delineate the variables that define the rows from those that define the columns. Variables listed to the left of the ~ specify the identifier columns that will anchor the rows in the output. Conversely, variables listed to the right of the ~ specify the variable whose values will be pivoted to become the new column headers in the wide format.

The arguments are defined rigorously as follows:

• data: This specifies the name of the input data structure. Crucially, this input must be in the necessary long format for dcast() or acast() to execute the transformation correctly.
• formula: This is the essential argument that dictates the structural rearrangement. It specifies the relationship between the row identifiers (left side) and the variables to be spread into columns (right side).
• fun.aggregate: This is an important optional argument requiring an aggregation function (e.g., sum, mean, or length). This function must be supplied if, after reshaping, multiple input observations attempt to map onto the exact same cell in the wide output structure. Without an aggregation function in such cases, the cast operation will fail or produce an error, as R cannot determine which value to assign to that cell.

It is critical to reiterate the distinction between the two primary functions based on their output requirements. You must employ the dcast() function if the required output is a standard data frame, which is the most common and versatile output format for subsequent statistical analysis, manipulation, and visualization within R. However, the acast() function is required if the desired result is a lower-dimensional structure such as a vector, or a higher-dimensional structure like a matrix or multi-dimensional array, formats frequently needed for specialized mathematical operations or inputs for advanced modeling packages.

Practical Example: Transforming Data from Long to Wide Format in R

To demonstrate the functional mechanics of the dcast() function, we will proceed through a comprehensive, practical example. We begin by constructing a sample dataset that is intentionally structured in the long format. This example dataset tracks three distinct performance metrics—points, assists, and rebounds—for four hypothetical teams (A, B, C, and D). Since each team must appear once for each metric, the data inherently possesses the necessary stacked, long structure.

First, we execute the R code to generate and subsequently display this sample dataset:

#create data frame in long format
df <- data.frame(team=rep(c('A', 'B', 'C', 'D'), times=3),
                 variable=rep(c('points', 'assists', 'rebounds'), each=4),
                 points=c(88, 91, 99, 94, 12, 17, 24, 28, 22, 28, 30, 31))

#view data frame
df

   team variable points
1     A   points     88
2     B   points     91
3     C   points     99
4     D   points     94
5     A  assists     12
6     B  assists     17
7     C  assists     24
8     D  assists     28
9     A rebounds     22
10    B rebounds     28
11    C rebounds     30
12    D rebounds     31

Analyzing this data frame, we observe that the team column contains repeating values, and the variable column holds the name of the performance metric (the key). The final points column contains the numerical outcome (the value). Our explicit objective is to pivot the values currently stored in the variable column (points, assists, rebounds) so they transform into three new, independent column headers, while the team column remains the unique identifier for each row.

To achieve this transformation, we load the essential reshape2 library and then invoke the dcast() function. We define the transformation formula as team ~ variable. This clear specification instructs R to maintain the values in the team column as the fixed row identifiers (left side of the tilde) and to utilize the contents of the variable column to create the new column headers (right side of the tilde). Since the combination of team and variable is unique in the input data, there is no need to supply a fun.aggregate argument.

library(reshape2)

#use cast() to convert data frame from long to wide format
wide_df <- dcast(df, team ~ variable)

#view wide data frame
wide_df

  team assists points rebounds
1    A      12     88       22
2    B      17     91       28
3    C      24     99       30
4    D      28     94       31

The output confirms the successful conversion of the data structure. The resulting wide format data frame now presents each team on a single row, with the three metrics (assists, points, and rebounds) logically organized into their own dedicated columns. This restructured data is immediately ready for subsequent analyses that inherently require this flattened, wide configuration, such as calculating summary statistics across metrics or preparing input for specific statistical modeling techniques.

Choosing Between dcast() and acast()

While dcast() serves as the standard function for most general data manipulation tasks due to its data frame output, the choice between dcast() and acast() must be rigorously dictated by the desired output class. If the final structure must be tabular, containing descriptive column and row names, and easily compatible with common R functions (like those in visualization packages or other data handling tools), dcast() is the unambiguous choice, guaranteeing a standard data frame.

However, acast() provides highly specialized utility when the analytical goal is to produce a pure numeric structure, devoid of the overhead associated with data frame attributes. For example, if the reshaped output is intended for direct use in complex linear algebra, eigen decomposition, or any computationally intensive task that benefits significantly from the performance of native R matrices or multi-dimensional arrays, acast() is the superior and more efficient option.

The core functional difference is centered on dimensionality and object class. dcast() is restricted to producing a two-dimensional object (a data frame), which is perfectly suited for standard row-by-column tables. In contrast, acast() offers true flexibility, capable of generating objects with three or more dimensions (arrays) if the input formula incorporates multiple variables defining the rows or columns. This flexibility makes acast() essential for handling complex reshaping tasks involving higher-order data tensors or multi-way contingency tables.

Additional Resources for Data Reshaping in R

Mastering the art of data reshaping is fundamental to working efficiently and effectively in R. The reshape2 package, and specifically the dcast() and acast() functions, provide robust and consistent solutions for pivoting and restructuring data, enabling analysts to rapidly prepare their datasets for diverse and demanding analytical requirements. Continuing to explore these methods will significantly enhance your productivity in R. The following tutorials explain how to perform other common data manipulation tasks:
