Learning Guide: Customizing the X-Axis with scale_x_continuous() in ggplot2

In the demanding world of data visualization using the ggplot2 package, achieving precise control over plot aesthetics is essential for producing graphs that are both informative and visually compelling. A crucial element of this control is the ability to tailor the axes to represent continuous data accurately. The powerful scale_x_continuous() function provides a robust and highly flexible mechanism within ggplot2 for customizing the x-axis of any plot. This function allows users to define everything from the specific positions of tick marks and the overall display limits to the formatting of labels.

This comprehensive guide will explore the versatile capabilities of scale_x_continuous(), detailing how to leverage its key arguments to gain fine-grained mastery over your visualizations. We will walk through practical, detailed examples demonstrating how to set custom axis breaks, specify the desired number of breaks, apply unique text labels, and precisely define the range of the x-axis. By mastering this function, you will significantly enhance the clarity, accuracy, and interpretability of your ggplot2 plots, ensuring your data storytelling is effective and professional.

The Role of scale_x_continuous() in ggplot2

ggplot2 is recognized as an elegant and immensely powerful data visualization package for R, fundamentally built upon the principles of the Grammar of Graphics. This underlying philosophy enables users to construct plots systematically, adding layers of data, aesthetics, geoms, and scales, thereby offering unparalleled flexibility in design. When dealing with continuous scales, which are typically found on the x-axis when mapping numerical data, the default settings provided by ggplot2 are often a good starting point. However, relying solely on defaults frequently falls short when a visualization needs to convey a precise message or adhere to specific reporting standards.

The scale_x_continuous() function serves as the definitive tool for customizing the horizontal axis when the data mapped to it represents continuous numerical values. It belongs to a specialized family of scale functions within the package, each designed to control the transformation and mapping of data values onto visual properties of the plot. Understanding the nuance of its various arguments is paramount to unlocking its full potential for advanced data presentation.

Crucially, scales in ggplot2 handle the critical translation between data space and aesthetic space. By utilizing scale_x_continuous(), you are not merely adjusting cosmetic elements; you are dictating how numerical values are perceived spatially on the canvas, ensuring that your visualization accurately reflects the underlying data distribution and emphasizing critical ranges or points of interest.

Understanding the Core Arguments of scale_x_continuous()

While the basic syntax for using scale_x_continuous() is straightforward, it encompasses several potent arguments that allow for profound modifications to the appearance and behavior of the x-axis. Mastering these parameters is essential for effective axis manipulation. Below is a closer look at the function’s structure and the most frequently utilized parameters:

p +
  scale_x_continuous(breaks, n.breaks, labels, limits, ...)

Let’s examine the specific purpose and application of each key argument in detail:

• breaks: This parameter requires a numeric vector that explicitly defines the exact numerical positions where tick marks and their corresponding labels must appear on the x-axis. It offers the highest degree of precision for placing individual breaks. If this argument is set to NULL, the break positions are automatically calculated and determined by ggplot2‘s internal algorithms.
• n.breaks: This argument accepts an integer vector (usually a single integer) suggesting the desired, approximate number of total breaks to be displayed on the axis. ggplot2 attempts to place roughly this many aesthetically appropriate breaks, although the final count may be adjusted slightly to ensure optimal visual presentation and readability. This is highly useful when the goal is to control the density of tick marks without manually specifying every single value.
• labels: This parameter takes a character vector. Each string element in this vector corresponds sequentially to a break defined by the breaks argument (or the automatically generated breaks). It allows you to replace standard numerical axis values with custom, descriptive text, which is extremely valuable for enhancing clarity, particularly when dealing with specialized units or domain-specific concepts that benefit from non-numerical representation. Setting it to NULL reverts to default numeric labels.
• limits: This is a numeric vector of length two, used to define the minimum and maximum values for the visible range of the x-axis. This action effectively crops the plot to focus on a specific range or extends the axis beyond the data’s natural extent. It is important to note that any data points falling outside these defined limits will be excluded from the plot view, making this crucial for maintaining consistency across comparative plots.

Data Preparation: Establishing a Sample Data Frame in R

To effectively illustrate the various customization techniques achievable with scale_x_continuous(), we must first establish a foundation. We will create a simple data frame in R that will serve as the consistent basis for all subsequent visualization examples. This structure, named df, will contain two numerical variables: points (which will be mapped to the x-axis) and assists (mapped to the y-axis). These variables represent straightforward continuous data suitable for demonstration in scatterplots.

#create data frame
df <- data.frame(points=c(5, 7, 12, 13, 15, 19, 22, 25),
                 assists=c(4, 3, 2, 3, 7, 8, 5, 7))

#view data frame
df

  points assists
1      5       4
2      7       3
3     12       2
4     13       3
5     15       7
6     19       8
7     22       5
8     25       7

The resulting data frame provides a small but highly effective dataset for showing how scale adjustments impact the visual representation. Since the points variable is continuous and spans a modest range (5 to 25), it is perfectly suited for showcasing the fine-tuning capabilities of continuous scale functions.

Example 1: Defining Explicit Axis Breaks with breaks

One of the most frequently required customizations is the ability to dictate the precise locations of tick marks and labels. The breaks argument within scale_x_continuous() is designed for this exact purpose, accepting a specific numeric vector of desired positions. This technique is invaluable when the goal is to emphasize key thresholds, align the axis with predefined milestones, or simplify an overly dense default axis.

The following R code demonstrates how to construct a scatterplot from our df data frame and subsequently apply scale_x_continuous() using the breaks argument to enforce custom x-axis breaks at the specific values of 5, 15, and 25.

library(ggplot2)

#create scatterplot with custom x-axis breaks
ggplot(df, aes(x=points, y=assists)) +
  geom_point(size=2) +
  scale_x_continuous(breaks=c(5, 15, 25))

As clearly illustrated in the resulting plot, the x-axis now exclusively displays tick marks and labels at the specified values (5, 15, and 25). This explicit control ensures that only the most relevant or critical points along the axis are highlighted, significantly improving the focus and narrative of the visualization.

Example 2: Controlling Break Density with n.breaks

While the breaks argument offers absolute position control, there are many scenarios where you simply need to adjust the overall density of tick marks without manually defining every location. The n.breaks argument is the ideal solution for this, allowing you to suggest an approximate total number of breaks that ggplot2 should aim to place. This provides a quick and effective method for achieving a visually balanced axis when the exact numerical value of each break is secondary to the overall rhythm and readability of the scale.

In this example, we will generate a scatterplot and instruct scale_x_continuous(), via the n.breaks argument, to place approximately 12 axis breaks across the horizontal range. This demonstrates a transition from minimal ticks to a much finer granularity.

library(ggplot2)

#create scatterplot with custom number of breaks on x-axis
ggplot(df, aes(x=points, y=assists)) +
  geom_point(size=2) +
  scale_x_continuous(n.breaks=12)

The resulting visualization clearly features a significantly denser distribution of tick marks, providing a higher granularity across the axis range. This effectively showcases the utility of n.breaks for rapidly adjusting the level of detail on your axis without the cumbersome task of manually calculating and specifying every single break point value.

Example 3: Applying Custom Descriptive Labels

While numerical axis labels are standard, substituting them with custom, descriptive text can dramatically enhance the clarity and contextual understanding of a plot, especially for non-technical audiences. The labels argument within scale_x_continuous() makes this possible, enabling the replacement of numerical values with any desired character string. This is a potent technique for integrating domain-specific terminology directly into the visualization.

In this setup, we will create a scatterplot and utilize both the breaks and labels arguments simultaneously. We first define specific numerical break points (5, 15, 25) and then assign corresponding meaningful string labels (‘five’, ‘fifteen’, ‘twenty-five’) to these points, thereby enhancing the interpretability of the horizontal scale.

library(ggplot2)

#create scatterplot with custom labels on x-axis
ggplot(df, aes(x=points, y=assists)) +
  geom_point(size=2) +
  scale_x_continuous(breaks=c(5, 15, 25), labels=c('five', 'fifteen', 'twenty-five'))

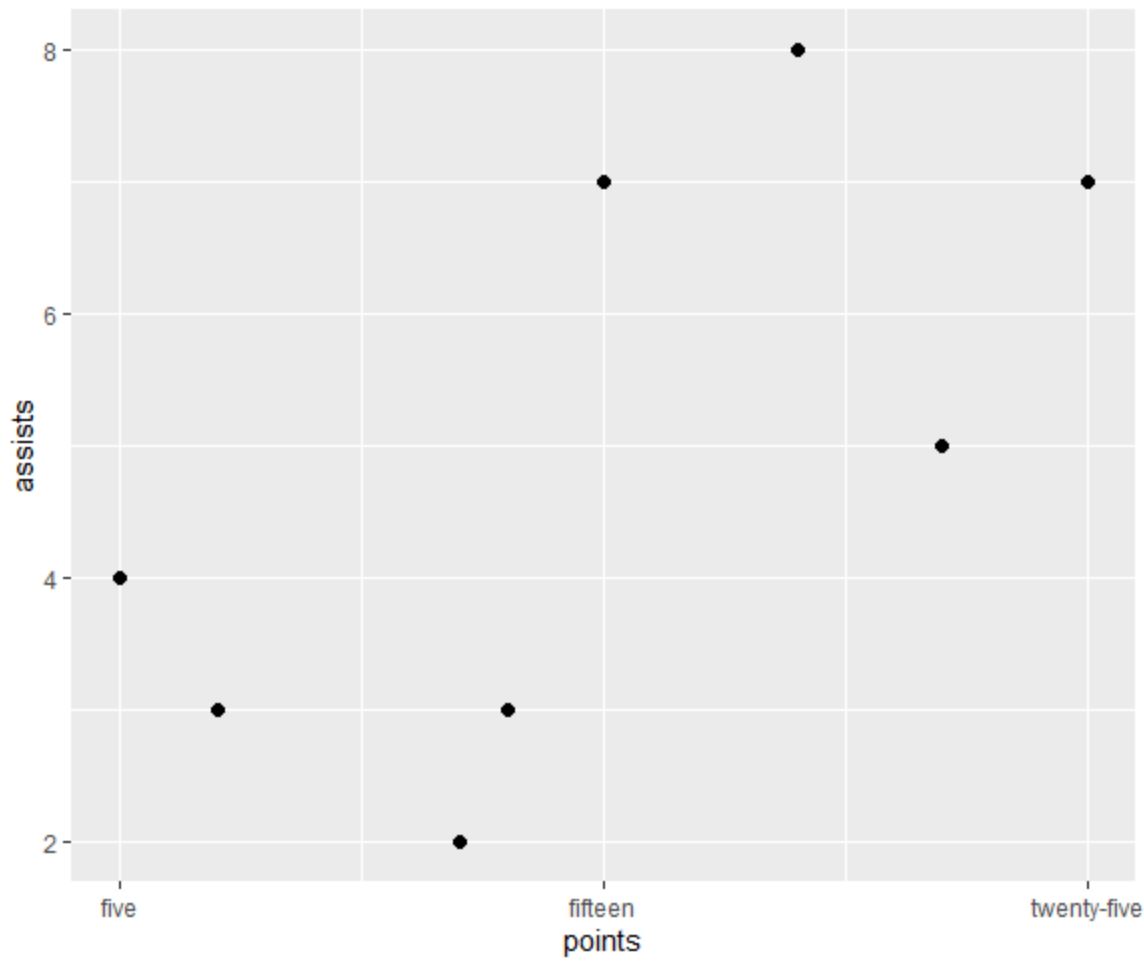

The plot above vividly demonstrates the effect of custom labeling. The numerical values are replaced with textual descriptions at the defined break points. This method is crucial for visualizations where the underlying numerical data represents qualitative stages or categories that are better understood through descriptive text than raw numbers.

Example 4: Setting Precise Display Limits with limits

Controlling the exact minimum and maximum values displayed on your x-axis is fundamental for managing the visible range of the data and guaranteeing consistent comparisons across multiple visualizations. The limits argument within scale_x_continuous() enables you to specify these boundaries precisely, allowing you to effectively zoom in on a data subset or provide necessary padding. Any data points that fall outside these established limits are clipped and excluded from the plotted area.

In this final illustration, we will construct a scatterplot and then apply scale_x_continuous() using the limits argument to enforce an x-axis range spanning from 0 to 40. This demonstrates how to expand the axis far beyond the natural range of the data (which ends at 25 in our data frame) to standardize the scale.

library(ggplot2)

#create scatterplot with custom x-axis limits
ggplot(df, aes(x=points, y=assists)) +
  geom_point(size=2) +
  scale_x_continuous(limits=c(0, 40))

As clearly displayed, the x-axis now extends visually from 0 to 40, ensuring ample space around the existing data points and setting a standardized baseline. This functionality is absolutely essential for comparative analysis, where maintaining identical scales across multiple plots is necessary for drawing accurate conclusions, regardless of the individual data range.

Conclusion: Mastering Continuous Axis Customization in ggplot2

The scale_x_continuous() function stands as an indispensable tool within your ggplot2 toolkit, granting unmatched control over the visual presentation and behavior of your continuous horizontal axis. By expertly utilizing its core arguments—specifically breaks, n.breaks, labels, and limits—you can transform standard, default plots into highly refined, informative, and professional-grade visualizations.

Whether your goal is to highlight specific data milestones, enforce a calculated density of tick marks, replace numerical values with descriptive text, or define precise display ranges for consistency, scale_x_continuous() provides the necessary flexibility. Integrating these nuanced customization techniques will undoubtedly raise the standard of clarity and polish in your data storytelling within the R environment.

We encourage further exploration of ggplot2 by studying other scale functions (such as those for discrete or logarithmic data) and advanced theme modifications. A deep understanding of how to manipulate both x-axis and y-axis properties is the bedrock upon which compelling and accurate data representations are built.
