Learning to Customize Y-Axis Scales with scale_y_continuous() in ggplot2

Welcome to this comprehensive guide on mastering the customization of the vertical axis in ggplot2, the leading visualization package in R. In the realm of data visualization, the ability to finely tune plot aesthetics is essential for conveying complex information clearly and effectively. This tutorial focuses on the highly versatile function, scale_y_continuous(), which provides granular control over the y-axis specifically when plotting continuous data.

The scale_y_continuous() function is the definitive tool for customizing how numerical data is represented vertically. Its capabilities extend far beyond simple defaults, allowing users to define specific break points, control the density of ticks, assign context-specific labels, or set explicit visual limits for the axis range. Proficiency with this function is critical for generating professional and insightful statistical graphics, guaranteeing that visualizations accurately represent the underlying data and minimize misinterpretation. Throughout this guide, we will dissect its core arguments using practical, step-by-step examples designed to illustrate the power and flexibility inherent in refining your plots.

The Role of scale_y_continuous() in ggplot2

The effectiveness of scale_y_continuous() stems directly from ggplot2‘s underlying design philosophy: the Grammar of Graphics. This powerful theoretical framework dictates that plots are constructed by mapping raw data variables to visual properties, and scales are the fundamental mechanism for this translation. Specifically for the vertical dimension, scale_y_continuous() governs the transformation and visual representation of continuous numerical input, offering crucial flexibility when default automated scaling fails to meet specific editorial or analytical requirements. Utilizing this function moves beyond standard plot generation and enables precise control over the visual narrative.

Understanding the syntax and the purpose of each argument is essential for effective axis manipulation. The function is appended to the base plot object (p) and accepts several primary arguments that dictate the visual appearance and range of the y-axis. Mastery of these parameters allows the user to define precisely how the data is framed and interpreted, ensuring the visualization supports the intended statistical message.

The basic structure for invoking this function is demonstrated below, followed by a detailed explanation of its most frequently used arguments:

p +
  scale_y_continuous(breaks, n.breaks, labels, limits, ...)

Here is a detailed breakdown of the critical arguments available within scale_y_continuous():

• breaks: This argument requires a numeric vector where each element specifies an exact vertical position for an axis tick and its corresponding label. This tool provides the highest level of control, ideal for emphasizing predefined thresholds, benchmarks, or specific data intervals crucial to the analysis.
• n.breaks: This integer value suggests the desired approximate number of major breaks on the y-axis. Unlike breaks, which demands explicit values, n.breaks directs the underlying algorithms in ggplot2 to intelligently determine aesthetically pleasing and evenly spaced tick values that best fit the data range while adhering to the requested count.
• labels: This takes a character vector used to assign custom textual descriptions to the axis break points. When used in conjunction with the breaks argument, the length of the labels vector must match the length of the breaks vector. This feature is invaluable for replacing raw numerical output with descriptive or categorized text.
• limits: This is specified as a numeric vector of length two (e.g., c(min, max)), which strictly defines the minimum and maximum data values displayed on the y-axis. It is crucial to remember that data points falling outside these specified limits will be silently excluded (filtered out) from the plot, effectively cropping the visualization.

The optional ... argument serves as a catch-all, allowing advanced users to pass further customization parameters directly to the underlying continuous_scale function. However, for the majority of common plotting tasks, mastering the four primary arguments listed above provides more than sufficient control for effective axis management.

Setting Up the Environment and Sample Data

To provide clear, practical demonstrations of scale_y_continuous() in action, we will utilize a concise example data frame created within the R environment. This dataset, which we name df, is designed to simulate simple performance metrics, containing two continuous variables: points (representing offensive output) and assists (representing playmaking ability). Using a small, easily verifiable dataset ensures that the effects of our axis customizations are immediately apparent and traceable, avoiding obfuscation by data complexity.

The structure of this data allows us to focus entirely on the mechanics of axis scaling. The assists variable, which spans from 2 to 8, will serve as our primary y-axis variable throughout the subsequent examples. We will systematically apply different arguments of scale_y_continuous() to this axis to demonstrate how each parameter alters the visual display.

The following code snippet demonstrates the creation and structure of the df data frame:

# Load necessary packages and create the sample data frame
df <- data.frame(points=c(5, 7, 12, 13, 15, 19, 22, 25),
                 assists=c(4, 3, 2, 3, 7, 8, 5, 7))

# Display the structure of the data
df

  points assists
1      5       4
2      7       3
3     12       2
4     13       3
5     15       7
6     19       8
7     22       5
8     25       7

The data frame df successfully holds 8 paired observations. With the data prepared, we can now proceed to the practical application of scale_y_continuous(), beginning with the highly specific task of defining custom tick locations.

Example 1: Defining Explicit Axis Tick Locations (breaks)

In many analytical contexts, it is necessary to highlight specific numerical values on the axis, perhaps corresponding to established performance tiers, regulatory thresholds, or quartiles. The breaks argument within scale_y_continuous() is the primary mechanism for achieving this level of control. It allows the user to pass a vector of exact values, ensuring that axis ticks and corresponding labels appear precisely at those positions, thereby eliminating clutter and directing the viewer’s attention to meaningful data points.

For our first illustration, we generate a standard scatterplot to visualize the relationship between player points (x-axis) and assists (y-axis). We will then utilize the breaks argument to restrict the y-axis ticks exclusively to the values 2, 5, and 8. This configuration focuses the plot strictly on these critical assist levels, irrespective of other values present in the data range.

library(ggplot2)

# Create scatterplot with custom y-axis breaks at 2, 5, and 8
ggplot(df, aes(x=points, y=assists)) +
  geom_point(size=2) +
  scale_y_continuous(breaks=c(2, 5, 8))

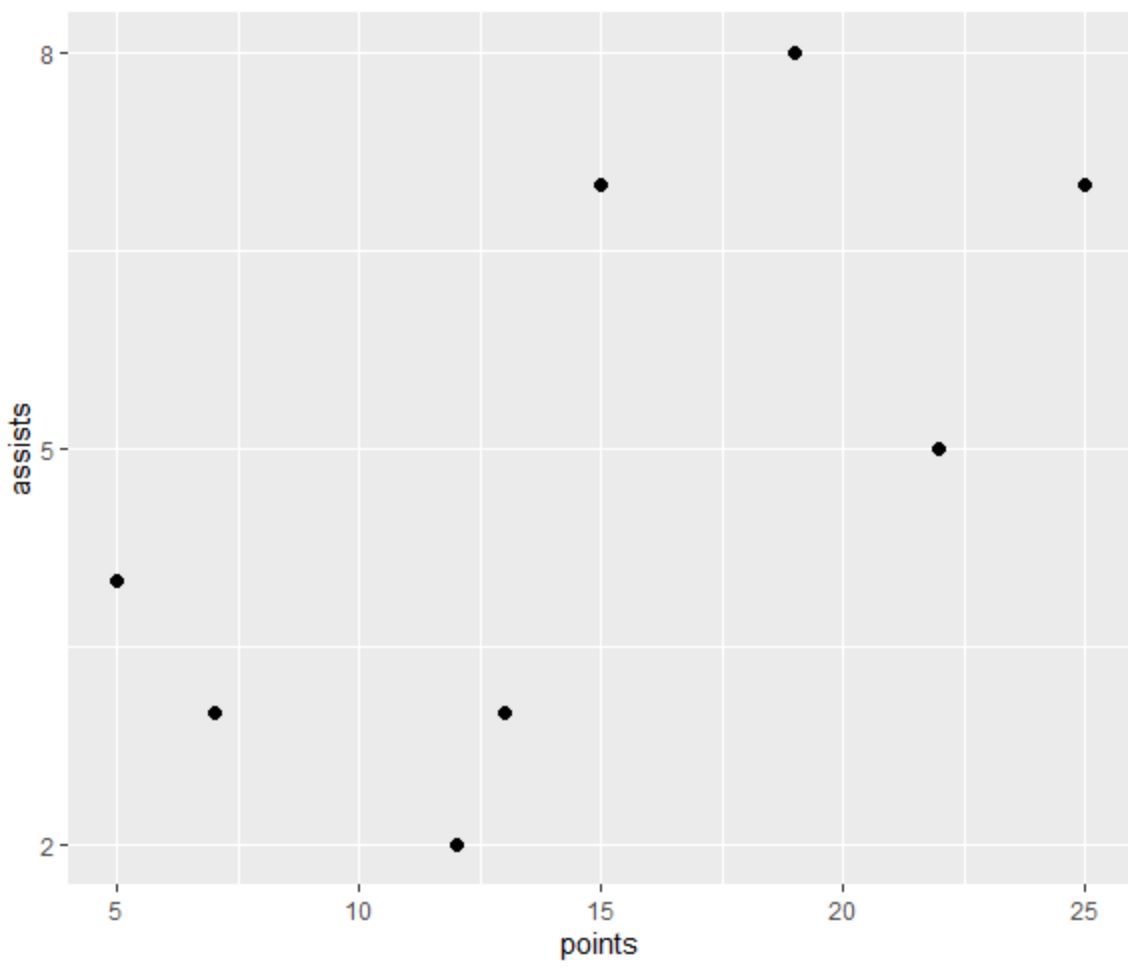

Observation of the output confirms that the vertical axis only displays tick marks and labels at the specified numerical values (2, 5, and 8). This example effectively demonstrates how the breaks argument provides granular, manual control over axis segmentation. This method is highly effective for enhancing the clarity of the plot, particularly when certain numerical thresholds hold significant analytical importance within the context of the data visualization.

Example 2: Controlling Axis Density (n.breaks)

While manual specification using breaks offers precision, many scenarios require controlling only the overall visual density of the axis ticks, rather than their exact numerical values. The n.breaks argument is designed precisely for this purpose. It accepts an integer, suggesting to ggplot2 the approximate number of major breaks desired. This function relies on an internal algorithm to determine the most visually appropriate and readable values for the ticks, making it ideal for maintaining aesthetic consistency across dynamic or automatically generated plots.

For this demonstration, we plot the same `points` versus `assists` scatterplot. Instead of listing specific values, we pass the argument n.breaks = 2. This tells the plotting engine to intelligently select and display only two major tick marks on the y-axis. The key takeaway here is that ggplot2 handles the determination of the actual numerical positions, simplifying the code while controlling density.

library(ggplot2)

# Create scatterplot requesting approximately two major breaks
ggplot(df, aes(x=points, y=assists)) +
  geom_point(size=2) +
  scale_y_continuous(n.breaks=2)

The resulting visualization confirms that the y-axis now displays exactly two major axis breaks, which ggplot2 calculated as 2 and 8, optimally spanning the range of the `assists` data. The n.breaks argument thus provides excellent flexibility, allowing you to achieve a desired visual flow without the user needing to predefine the numerical scale, which is especially valuable during exploratory data visualization phases.

Example 3: Applying Descriptive Text Labels (labels)

In advanced data visualization, simply displaying raw numbers on an axis may not be sufficient. Replacing numerical ticks with descriptive, qualitative text can dramatically enhance plot interpretation, particularly when numbers represent defined categories, performance tiers, or temporal stages. The labels argument within scale_y_continuous() facilitates this transformation, mapping a character vector of custom names directly onto the axis breaks.

This example requires combining two arguments for maximum effect: we first use the breaks argument to specify the locations (2, 5, and 8), and then we use the labels argument to supply corresponding custom text strings. It is mandatory that the length of the labels vector exactly matches the length of the breaks vector to ensure correct one-to-one mapping. This technique allows us to replace the literal numerical values with meaningful descriptive terms, such as “Low,” “Medium,” and “High” performance indicators.

library(ggplot2)

# Create scatterplot with custom textual labels
ggplot(df, aes(x=points, y=assists)) +
  geom_point(size=2) +
  scale_y_continuous(breaks=c(2, 5, 8), labels=c('two', 'five', 'eight'))

The resulting chart clearly displays the specified textual labels—”two,” “five,” and “eight”—in place of the default numerical ticks. This demonstrates the seamless integration of qualitative descriptions onto a continuous scale, significantly boosting the readability and immediate comprehension of the visualization. This ability to replace numerical values with narrative-driven text is a powerful technique for creating publication-quality statistical graphics.

Example 4: Defining the Axis Range and Clipping Data (limits)

Establishing a fixed, intentional range for your axes is paramount for maintaining visual integrity and comparability across different plots. The limits argument in scale_y_continuous() gives the user complete control over the minimum and maximum values displayed on the y-axis. This feature is commonly employed to standardize scales, accommodate future data growth, or deliberately exclude extreme outliers that might otherwise compress the visual space dedicated to the main data distribution. It is the definitive method for managing the scope of data presentation.

In this final practical example, we construct our standard `points` vs. `assists` scatterplot, but we apply limits = c(0, 20). Since our data only ranges from 2 to 8, this argument significantly expands the upper and lower bounds of the axis. It is vital to reiterate the critical side effect of using limits within a scale function: any data observation whose value falls outside the defined range (e.g., above 20 or below 0) will be entirely excluded from the plotted visual space.

library(ggplot2)

# Create scatterplot with a rigid y-axis range from 0 to 20
ggplot(df, aes(x=points, y=assists)) +
  geom_point(size=2) +
  scale_y_continuous(limits=c(0, 20))

The generated plot, the y-axis now spans from 0 to 20, exactly as defined by the limits argument. Although the data points themselves occupy only a small portion of this range, the scale has been successfully extended. This technique is invaluable when preparing visualizations for comparison where different datasets must share the same reference scale. Users must exercise caution, however, as limits acts as a filter; if data points were present outside 0 and 20, they would not be visible, potentially misleading the viewer if not properly documented.

Best Practices and Advanced Axis Control

Having explored the core functionalities individually, it is crucial to consider how these arguments interact and how to strategically select the right tool for optimal data visualization. The most refined plots often result from combining arguments; for example, coupling breaks and labels provides the highest degree of customization, allowing you to manually set tick positions and assign specific, descriptive text, which is essential for creating high-fidelity, publication-ready graphics.

A key decision point lies between breaks and n.breaks. If your analytical goal requires marking exact, predetermined numerical values (such as 0, 10, 100), then breaks is the appropriate choice. Conversely, if the requirement is simply to manage the visual clutter or density of the axis ticks—for instance, ensuring roughly five ticks are present regardless of the data range—then n.breaks offers a more dynamic and adaptive solution. Choosing correctly ensures that the plot serves its intended purpose without unnecessary manual intervention.

Furthermore, users must be aware of the data-clipping behavior inherent in the limits argument of scale_y_continuous(). Setting limits here permanently removes data points outside the specified range before rendering the plot. If the objective is merely to “zoom in” on a section of the plot without discarding any underlying data, the proper function to use is coord_cartesian(), setting the vertical limits via coord_cartesian(ylim = c(min, max)). Understanding this distinction between scaling (which filters data) and coordinating (which zooms the view) is fundamental for accurate reporting in ggplot2.

Next Steps in ggplot2 Customization

While mastering scale_y_continuous() represents a significant step toward proficiency, the customization of plot axes is but one facet of ggplot2‘s extensive visualization toolkit. To evolve from a competent user to an expert plot designer, we encourage deeper exploration into advanced concepts such as coordinate systems, theme adjustments, and layering complex geometries. Continuous learning and experimentation are key to unlocking the full potential of this powerful package.

To further complement your expertise in axis scaling, the following resources and related tutorials cover other essential tasks within the ggplot2 framework:
