Learning VBA: A Comprehensive Guide to INDEX MATCH for Excel Data Lookup

The INDEX MATCH pairing is universally recognized as the definitive method for dynamic data retrieval within Excel. Offering superior flexibility compared to the traditional VLOOKUP function, this combination allows users to perform lookups across non-contiguous columns and execute “leftward” searches effortlessly. When integrated into VBA (Visual Basic for Applications), the utility of INDEX MATCH is amplified, transforming routine spreadsheet operations into fully automated, high-performance data processing workflows. This mastery is crucial for advanced users and developers aiming to construct scalable and resilient data management solutions directly within their Excel environment.

By embedding sophisticated lookup logic directly into VBA code, developers can effectively circumvent the inherent limitations of cell-based formulas. Creating custom macros allows for the execution of complex logic at remarkable speeds, even when processing massive datasets. This programmatic approach drastically reduces the heavy recalculation times that commonly plague large Excel workbooks saturated with thousands of volatile formulas. This level of automation is indispensable for tasks involving repetitive data consolidation, extensive reporting, and rigorous data validation where both speed and absolute reliability are critical requirements.

The subsequent sections will meticulously detail the exact VBA syntax necessary to successfully execute the powerful INDEX MATCH operation. Acquiring this foundational knowledge is the critical first step toward developing more intricate and efficient VBA solutions, guaranteeing precise and dynamically retrieved data across any demanding Excel platform. We initiate this exploration with a fundamental code example that demonstrates the mechanism for invoking native spreadsheet functions via the dedicated WorksheetFunction object.

Sub IndexMatch()

    Dim i As Integer

    'Perform index match
    For i = 2 To 11
    Cells(i, 5).Value = WorksheetFunction.Index(Range("A2:A11"), _
    WorksheetFunction.Match(Cells(i, 4).Value, Range("B2:B11"), 0))
    Next i
End Sub

This initial code snippet establishes a loop designed to process rows 2 through 11 sequentially. During each iteration, the procedure retrieves a lookup value from column D (the fourth column) and attempts to find its exact corresponding position within the designated lookup array, which is specified as B2:B11. The relative position is determined precisely by the MATCH function. Subsequently, the INDEX function leverages this position to retrieve the required data element from the result array, A2:A11. The final calculated result is then seamlessly injected into column E (the fifth column) of the active worksheet, automating what would typically be a laborious manual data entry task.

Deconstructing the INDEX and MATCH Functions

Before seamlessly integrating these powerful functions into VBA code, it is imperative to possess a comprehensive understanding of the individual operational mechanics and the synergistic power of INDEX and MATCH within the native Excel environment. The primary reason this combination has largely surpassed VLOOKUP is its unique ability to decouple the search column from the return column. This critical separation allows lookups to occur in any direction and eliminates the stringent requirement that the lookup column must be the leftmost column in the designated data range, which was a fundamental constraint of the older lookup function.

The functions operate independently but are designed to work together to achieve complex lookups. The INDEX function is solely responsible for data retrieval, returning a value from a specified range based on a numerical row (and optional column) position. Conversely, the MATCH function serves as the intelligent position locator, identifying the relative numerical index of a lookup value within a defined one-dimensional range.

• The INDEX function is the core data selector. Its role is to return the content of a cell within a given array (range) based on a supplied row position. It requires two main arguments: the array containing the potential results, and the numerical row index within that array. For example, the expression =INDEX(A1:A10, 5) will retrieve the value located at the fifth position within the range A1:A10, which corresponds to the value in cell A5, clearly illustrating its reliance on a specific numerical input for positional accuracy.

• The MATCH function acts as the locator. It scans for a specific item (the lookup value) within a defined one-dimensional range (the lookup array) and outputs the relative numerical position of that item. Crucially, it returns the index, not the value itself. By setting the match type argument to 0, we enforce an exact match, ensuring data accuracy. Thus, =MATCH("Product X", B1:B10, 0) would return the index number (e.g., 7) indicating the row where “Product X” is first located within the range B1:B10.

The true efficiency and power of this approach are unlocked when the MATCH result—the calculated row position—is dynamically nested as the row argument within the INDEX function. This feedback loop instructs INDEX precisely which item to retrieve from a potentially entirely separate result column. This highly flexible and elegant architecture firmly establishes INDEX MATCH as the preferred methodology for constructing dynamic, high-performance lookup solutions in modern data analysis and reporting.

The Strategic Advantage of VBA Integration

While the INDEX MATCH formula is robust on its own, its utilization within VBA yields significant benefits that standard worksheet formulas simply cannot replicate. The most immediate and compelling advantage is full automation. Instead of the cumbersome process of manually applying the formula to potentially thousands of cells—a process susceptible to range lock errors if absolute references are mismanaged—a macro executes the entire lookup operation programmatically across the defined dataset with a single, efficient command. This transition from labor-intensive formula maintenance to automated scripting dramatically reduces processing time, particularly crucial when dealing with datasets that are frequently refreshed or updated.

A second, equally vital benefit is the significant enhancement in performance and efficiency, especially relevant in large, highly complex Excel workbooks. When a worksheet is burdened with thousands of volatile formulas, Excel must continuously recalculate them, often resulting in noticeable lag when users input data or navigate between sheets. VBA macros perform the calculation internally, leveraging the speed of the script engine, and then write only the final, static values directly back to the cells. This compiled execution is substantially faster than relying on native formula recalculation, ensuring a much more responsive user experience for workbooks containing massive data volumes.

Furthermore, integrating lookups into VBA provides vastly superior error handling capabilities. A standard worksheet formula that fails to locate a match returns the generic #N/A error, which usually necessitates wrapping the entire formula in additional functions like IFERROR for management. In contrast, VBA enables the use of structured error handling commands. These commands allow the developer to gracefully manage non-matches, preventing the macro from crashing and providing the flexibility to insert custom, user-friendly outputs such as “Data Missing,” or simply leaving the target cell blank. This programmatic control over error states ensures the automated solution is far more resilient and professional.

Dissecting the Core VBA Lookup Script

To effectively tailor and deploy advanced automated lookup solutions, it is essential to analyze the core components of the VBA code used to execute the INDEX MATCH operation. The overall structure is fundamentally built upon core VBA concepts that govern iteration control and seamless interaction with the Excel application object model.

• Sub IndexMatch(): This declaration marks the beginning of a Sub procedure, which serves as the standard container for a self-contained macro designed to execute a specific action. All code enclosed within this structure will be executed sequentially when the macro is initiated.

• Dim i As Integer: The Dim keyword is utilized here to declare the variable i, which functions as the row counter for iteration, assigned the Integer data type. Crucially, for workbooks handling data exceeding 32,767 rows—common in modern Excel—it is best practice to upgrade this declaration to the Long data type to effectively prevent potential overflow errors.

• For i = 2 To 11 ... Next i: This construct defines the operational boundaries of the For Loop. The loop dictates that the embedded block of code must execute repeatedly, beginning with row 2 and terminating after processing row 11. The loop variable i automatically increments by one in each cycle, ensuring every row within the specified range is processed automatically.

• Cells(i, 5).Value = ...: This segment precisely identifies the destination cell for the lookup result. The Cells property is exceptionally beneficial for iterative programming because it accepts numerical coordinates for both the row (i) and the column (5, which corresponds to column E). Setting the .Value property ensures that the calculated result is written directly as static data, rather than being inserted as a formula string.

The central function call, WorksheetFunction.Index(...), serves as the vital bridge, linking the execution environment of VBA with the powerful, built-in functions of Excel. The WorksheetFunction object is absolutely required to access standard Excel functions such as INDEX and MATCH. The syntax perfectly mirrors the native worksheet formula: Index(Range("A2:A11"), Match(...)). The result array is defined by Range("A2:A11").

Nested within the INDEX function is the expression WorksheetFunction.Match(Cells(i, 4).Value, Range("B2:B11"), 0). This segment instructs the code to search for the value located in the current row (i) of the fourth column (D) within the designated lookup range Range("B2:B11"), specifically requiring an exact match (indicated by the final 0 argument). The numerical output of this MATCH operation—the relative row index—is seamlessly passed to the parent INDEX function, thereby completing the dynamic lookup process and retrieving the corresponding result from the return range.

Practical Implementation: Automating Data Retrieval

To tangibly demonstrate the efficiency gains achieved by employing VBA INDEX MATCH, we will apply the macro to a standard data management scenario: retrieving associated details based on a primary key identifier. Imagine working with a structured dataset in Excel that holds a master list of athlete data, including Team Name, Player ID, and Player Name. Our specific task is to populate a results column with the correct team names for a secondary list of players provided elsewhere on the sheet.

The typical initial setup involves master data residing in columns A, B, and C (e.g., Team Name, Player ID, Player Name). Column D contains the list of player names for which we need to fetch the corresponding team name. The illustrative image below captures this starting configuration, where column E is currently empty and designated to receive the automated lookup results.

Our objective is to use the player names listed in column D as the key lookup values, search for their exact matches in the designated lookup range (column B, Player ID, though the example uses D against B for the match), and then retrieve the corresponding team name from column A. This operation is perfectly suited for automation, as manually performing these cross-references for potentially hundreds or thousands of records is both time-consuming and highly susceptible to human error.

To execute this task with maximum efficiency, the provided code must be implemented within the VBA Editor (accessible by pressing Alt + F11 in Excel). After inserting a new Module, the following macro is pasted and subsequently executed:

Sub IndexMatch()

    Dim i As Integer

    'Perform index match
    For i = 2 To 11
    Cells(i, 5).Value = WorksheetFunction.Index(Range("A2:A11"), _
    WorksheetFunction.Match(Cells(i, 4).Value, Range("B2:B11"), 0))
    Next i
End Sub

Upon execution, the VBA code rapidly iterates through the specified rows, performing a high-speed lookup for each player’s name. The immediate outcome is an updated worksheet where column E is instantaneously populated with the accurate corresponding team names, clearly demonstrating the efficacy of automated data injection.

As illustrated in the resulting image below, the macro has successfully located the correct team names linked to the players listed in column D and written these results into column E. This process definitively validates the speed, accuracy, and efficiency of deploying the INDEX MATCH technique within an automated VBA loop, achieving complex data manipulation tasks in a fraction of the time required by manual methods.

Customizing Output and Implementing Robust Error Management

A primary functional benefit of leveraging VBA over static worksheet formulas is the inherent ease with which developers can modify the destination of the output without needing to alter the foundational lookup logic. The precise placement of the resulting data derived from the INDEX MATCH operation is regulated entirely by the column index specified within the Cells property, allowing for swift adaptation to diverse or evolving reporting layouts.

In the preceding demonstrations, the calculated results were systematically directed to column E via the statement Cells(i, 5).Value, where the numerical argument 5 designates the fifth column. Should reporting needs necessitate placing the output in column F (the sixth column), the developer only needs to adjust this single numerical argument. This minor modification instantly reroutes the output of the entire macro, showcasing the granular and powerful control VBA provides over the Excel object model.

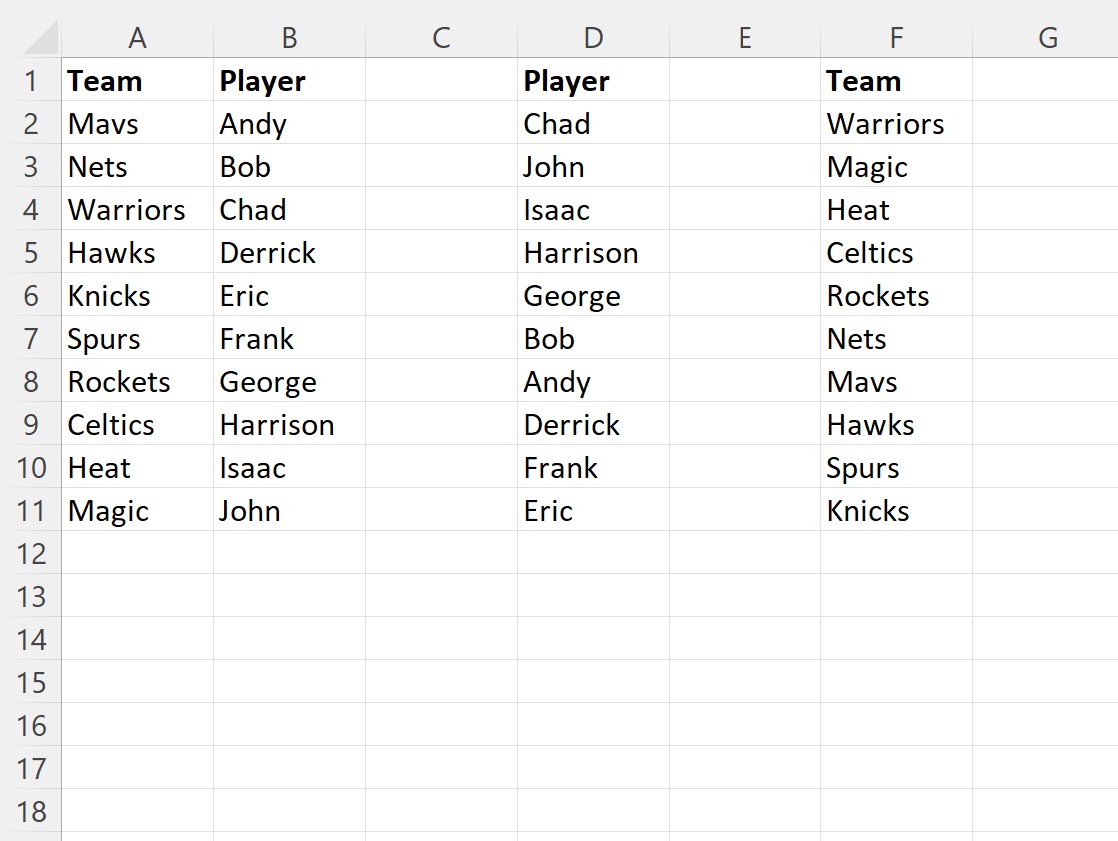

To visualize this modification, the following VBA code snippet displays the updated loop structure, where the target column index has been changed from 5 to 6. This simple adjustment shifts the resultant data one column to the right, placing the retrieved team names into column F:

Sub IndexMatch()

    Dim i As Integer

    'Perform index match
    For i = 2 To 11
    Cells(i, 6).Value = WorksheetFunction.Index(Range("A2:A11"), _
    WorksheetFunction.Match(Cells(i, 4).Value, Range("B2:B11"), 0))
    Next i
End Sub

Beyond simple placement customization, professional VBA development requires robust error handling. Since the WorksheetFunction object will trigger a run-time error if the lookup fails to find a match, the proper implementation of On Error Resume Next before the lookup line—followed by checking the Err.Number property—enables developers to catch non-matches. This technique prevents the entire macro from crashing and allows for the insertion of a predefined default value (such as “N/A” or a blank string), making the automated solution significantly more reliable in production environments.

Conclusion and Future Development Paths

Mastering the INDEX MATCH technique within VBA represents a pivotal achievement in automating and optimizing data analysis tasks in Excel. This combined methodology offers a demonstrably superior alternative to older lookup functions by providing unparalleled flexibility—allowing lookups across any column—and delivering critical performance improvements when processing massive, complex datasets. By encapsulating this logic within an iterative macro, developers can guarantee data consistency, virtually eliminate manual input errors, and dramatically accelerate overall processing times.

The detailed deconstruction of the basic VBA code, alongside practical examples illustrating customization of output placement and the absolute necessity of robust error handling, establishes a firm foundation for developing professional-grade automated solutions. The programmatic ability to control range references dynamically and to gracefully manage exceptions where data is missing or not found is what elevates a simple script into a resilient and trustworthy business intelligence tool.

For those dedicated to advancing their proficiency, the next logical steps involve exploring more advanced VBA concepts. Consider concentrating efforts on techniques such as dynamically determining Range boundaries (to remove hardcoded row numbers like 11), implementing array processing for ultra-fast lookups executed entirely in memory, or extending the lookup criteria to efficiently handle multi-conditional searches. These sophisticated skills will unlock even greater potential for optimizing and integrating VBA automation across the entire Microsoft Office suite, moving beyond single-spreadsheet tasks.

Essential Resources for Advanced VBA Development

To assist in further expanding your expertise beyond the core INDEX MATCH implementation, we strongly recommend studying these critical topics in depth to refine your VBA development skills:

• Mastering the Range and Cells Objects for Precise Data Interaction in VBA

• Implementing Highly Efficient Dynamic Lookups Utilizing VBA Arrays

• Techniques for Gracefully Handling Run-Time Errors in VBA Macros
