VBA Tutorial: Mastering INDEX MATCH for Data Lookups with Multiple Criteria

Harnessing the Flexibility of INDEX MATCH within VBA

The synergy between the INDEX and MATCH functions in Excel provides users with the most powerful and flexible mechanism available for complex data lookups. This pairing fundamentally overcomes the intrinsic limitations associated with functions like VLOOKUP, which rigidly restrict the lookup column to the far left of the data range. The combined power of INDEX MATCH grants the ability to search for values in any column and retrieve corresponding data from any other column, regardless of their spatial relationship. This exceptional adaptability is not merely a convenience; it becomes an absolute requirement when navigating large, complex datasets that demand precise data retrieval based on multiple specified criteria.

When the scope of work shifts from manual spreadsheet operations to the realm of automation using VBA (Visual Basic for Applications), it is essential to translate these sophisticated lookup techniques into programmatic code. While simple, single-dimensional lookups transition easily into the automated environment, the implementation of complex conditional lookups—those requiring a match against two or more attributes simultaneously—demands a specialized and nuanced approach. Standard VBA syntax does not inherently support the array logic required to link multiple conditions together efficiently, necessitating a method that leverages Excel’s native calculation engine.

This comprehensive guide is dedicated to detailing the precise technical method for executing an advanced INDEX MATCH operation that incorporates multiple criteria directly within your VBA subroutines. By mastering the integration of Excel’s powerful worksheet functions into a programmatic context, developers can unlock superior automation capabilities. This integration allows for the creation of dynamic and highly intelligent macros, perfectly tailored to handle the most demanding and sophisticated data retrieval requirements.

The Limitations of Traditional Lookups in Multi-Criteria Scenarios

In the field of professional data analysis, relying on a single identifier for data retrieval is often insufficient. Real-world requirements frequently dictate the need for a lookup based on the intersection of several distinct attributes. For example, a user might need to locate the exact inventory count of a specific item only if it is simultaneously designated as Large in Size and Red in Color. This scenario demonstrates a requirement for a logical AND operation across multiple data columns, a task that simple, traditional lookup functions are not designed to handle.

Functions such as the basic MATCH function are fundamentally designed to scan a single column or row range and return the relative position of the very first occurrence of a specific value. They operate on a one-dimensional logic and lack the inherent structure to process the simultaneous combination of multiple lookup values spread across different columns. Attempting to use a standard lookup in this context will inevitably lead to incorrect or incomplete results, failing to satisfy the need for precision driven by multiple conditional requirements.

To effectively overcome this significant limitation when programming in VBA, we must implement a method that simulates the behavior of an array formula lookup, which is the standard mechanism for handling multiple criteria directly within an Excel cell formula. The programmatic solution involves performing separate MATCH operations for each condition required and then mathematically combining the resulting row indices. This complex calculation ensures that the outer INDEX function receives a definitive, singular row number that uniquely satisfies all defined conditions simultaneously, thereby guaranteeing accurate data extraction.

Implementing the Array Formula Logic via VBA’s WorksheetFunction

The key to unlocking the power of complex INDEX MATCH operations within VBA lies in correctly utilizing the WorksheetFunction object. This critical object acts as a bridge, granting your macro direct access to nearly all of the native Excel worksheet functions, allowing them to be executed seamlessly and powerfully during runtime. By calling these functions via the WorksheetFunction object, we can integrate the complex calculation logic necessary for multi-criteria lookups into our automated procedures.

The essential syntax structure for a multi-criteria lookup involves nesting several function calls. Specifically, we embed two or more MATCH function calls within the row argument of a single INDEX function call. The result of each inner MATCH function is the relative row index where its respective condition is met. By adding these indices together, we are creating a cumulative index, but this sum requires a specific mathematical adjustment to accurately pinpoint the final, correct row.

The necessity of understanding this underlying mathematical necessity—the translation of complex conditional logic into numerical index manipulation—cannot be overstated. Since each MATCH operation returns an index relative to its own search range, and since these search ranges typically start on the same row, summing the indices results in an inflated number. To correct this, we must subtract (N-1), where N is the number of criteria being matched. In the common case of two criteria, we subtract 1 from the sum of the two MATCH results. This crucial step compensates for the double-counting of the starting row index, ensuring the final calculation feeds the precise row number into the outer INDEX function, thereby completing the accurate lookup.

Detailed Breakdown of the Multi-Criteria INDEX MATCH Syntax

The following VBA subroutine provides the concrete implementation of the dual-criteria lookup technique discussed above. It is designed to demonstrate how the WorksheetFunction object is used to seamlessly integrate the complexity of two nested MATCH functions into a single INDEX call, effectively retrieving a value based on two simultaneous conditions.

Sub IndexMatchMultiple()
    Range("F3").Value = WorksheetFunction.Index(Range("C2:C10"), _
    WorksheetFunction.Match(Range("F1"), Range("A2:A10"), 0) + _
    WorksheetFunction.Match(Range("F2"), Range("B2:B10"), 0) - 1)
End Sub

Let us dissect this critical piece of code. The objective is to retrieve a value from the data range and deposit it into the output cell, F3. The process begins with the outer INDEX function, which is operating on the return range C2:C10. The row argument for this INDEX function is where the multi-criteria logic is constructed.

The first inner function, WorksheetFunction.Match(Range("F1"), Range("A2:A10"), 0), instructs the system to search for the value contained in cell F1 within the first lookup range (A2:A10). Simultaneously, the second function, WorksheetFunction.Match(Range("F2"), Range("B2:B10"), 0), performs a parallel search for the value in cell F2 within the second lookup range (B2:B10). The resulting row indices from these two separate MATCH operations are then added together, yielding a preliminary index value.

The final, and most crucial, element of the calculation is the - 1 at the end. This mathematical adjustment is essential because the two MATCH operations both calculate their index relative to the start of the data set. By subtracting 1, we normalize the combined index back to the true relative row number within the data range C2:C10 where both conditions are satisfied, thereby ensuring the outer INDEX function retrieves the correct corresponding data point.

Practical Case Study: Automating Data Retrieval in a Dynamic Dataset

To fully appreciate the efficiency and precision of this method, let us explore a concrete, real-world application. Consider a scenario involving the management of a specialized dataset, such as a roster of basketball players. The objective is to rapidly and accurately locate a specific player’s name based on two distinct, mandatory attributes: their Team Affiliation and their Court Position. This requirement perfectly encapsulates the need for a precise multi-criteria lookup, guaranteeing that the extracted data is highly accurate and unambiguous.

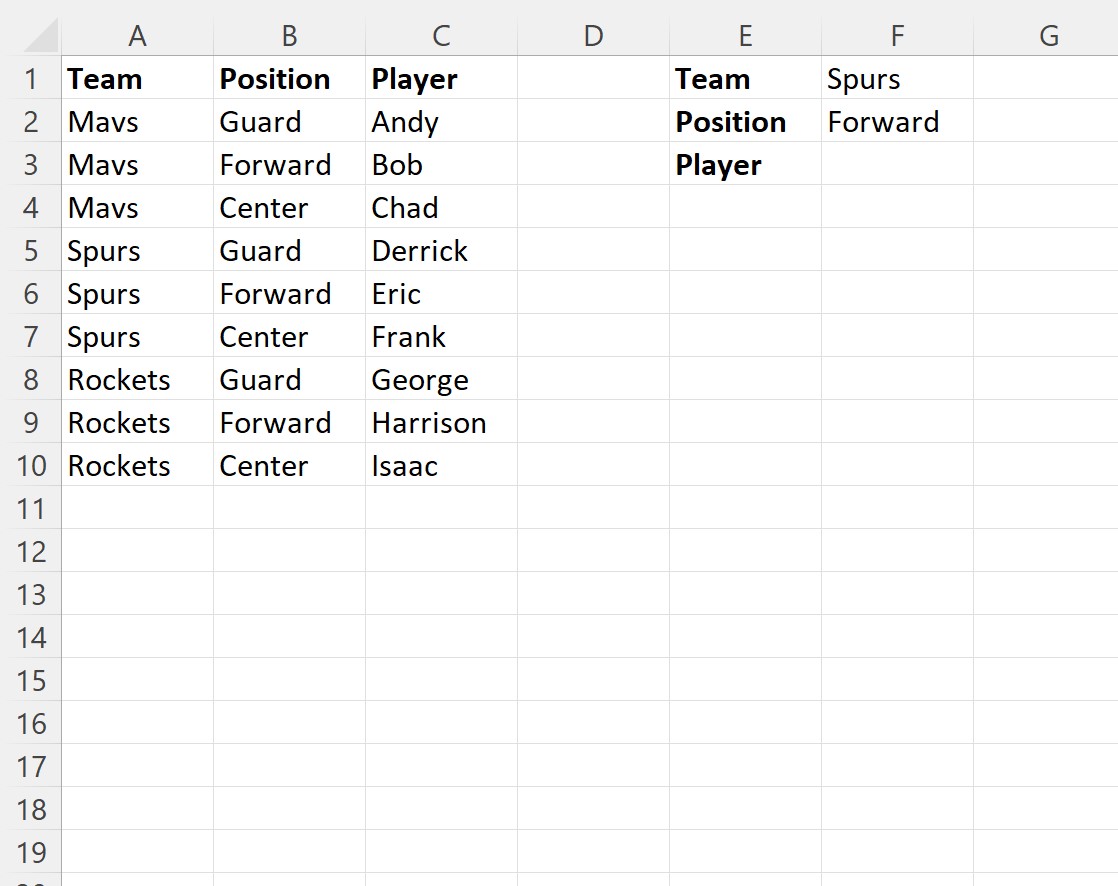

We begin by structuring our Excel worksheet to support this dynamic lookup mechanism. We designate specific cells to serve as input fields for the user’s search criteria: cell F1 is designated for the desired Team, and cell F2 is designated for the desired Position. Subsequently, cell F3 is designated as the output field, where the name of the matching player will be instantaneously displayed upon execution of the macro. The underlying dataset structure is key to the successful execution:

By integrating the previously detailed VBA code snippet, we automate the entire querying process. The code systematically evaluates the values supplied in the input cells, F1 and F2, against the corresponding columns (Team and Position) within the primary dataset. This automated setup is highly advantageous for scenarios demanding rapid, repetitive lookups where manual interaction with complex array formulas would be cumbersome and error-prone. The implementation relies on the exact syntax detailed in the previous section, showcasing its immediate utility in a structured data context.

Sub IndexMatchMultiple()
    Range("F3").Value = WorksheetFunction.Index(Range("C2:C10"), _
    WorksheetFunction.Match(Range("F1"), Range("A2:A10"), 0) + _
    WorksheetFunction.Match(Range("F2"), Range("B2:B10"), 0) - 1)
End Sub

Dynamic Execution, Analysis, and Responsiveness

Upon initiating the macro, the lookup process is executed instantly. The system takes the input criteria from cells F1 and F2, calculates the precise combined row index using the nested MATCH operations, and then uses this index to retrieve the corresponding data point from the Player Name column. The successful result is immediately written to cell F3, providing immediate validation of the successful multi-criteria match.

Let us consider a specific test scenario for validation. We deliberately input “Spurs” into cell F1 (Team) and “Forward” into cell F2 (Position). When the subroutine is run, the resulting output clearly confirms the macro’s exceptional accuracy and speed in resolving the intersection of these two conditions within the dataset:

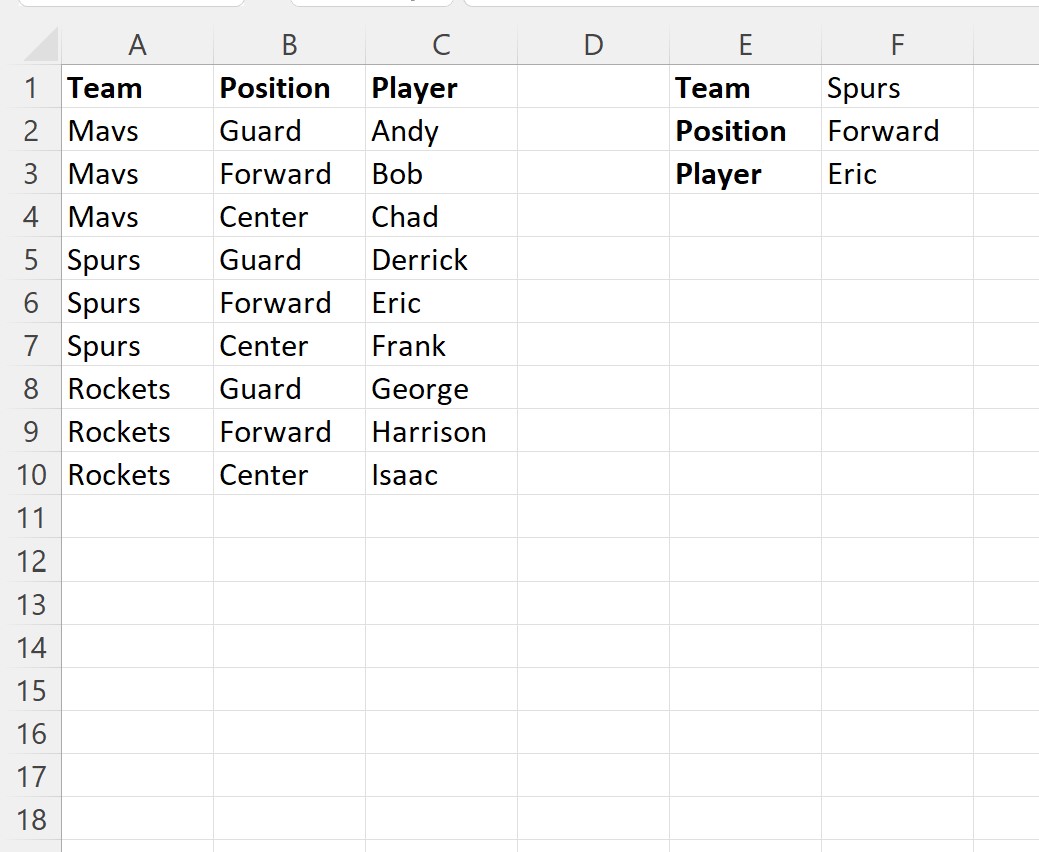

As visually demonstrated, the macro correctly identifies the unique row where the “Spurs” team and the “Forward” position intersect. It retrieves the corresponding player’s name, “Eric,” and efficiently displays it in the designated output cell, F3. This immediate, automated, and precise retrieval capability highlights the fundamental efficacy of employing nested INDEX MATCH functions within the VBA environment for handling complex conditional lookups that would otherwise require tedious manual data filtering or complex array formulas.

A substantial advantage gained by embedding this sophisticated lookup logic within a VBA macro is the inherent flexibility and responsiveness provided to the user. Unlike static Excel formulas that rely on recalculation triggers, this automated solution allows the end-user to rapidly update the lookup parameters in cells F1 and F2 and simply rerun the macro to instantaneously generate a completely new result, adapting immediately to evolving or iterative data analysis requirements.

For example, should the user decide to search for a player under a different set of conditions, they only need to update the input fields. If we modify the team criterion to “Mavs” in cell F1 and the position criterion to “Center” in cell F2, re-executing the subroutine triggers a fresh, comprehensive multi-criteria evaluation of the entire dataset:

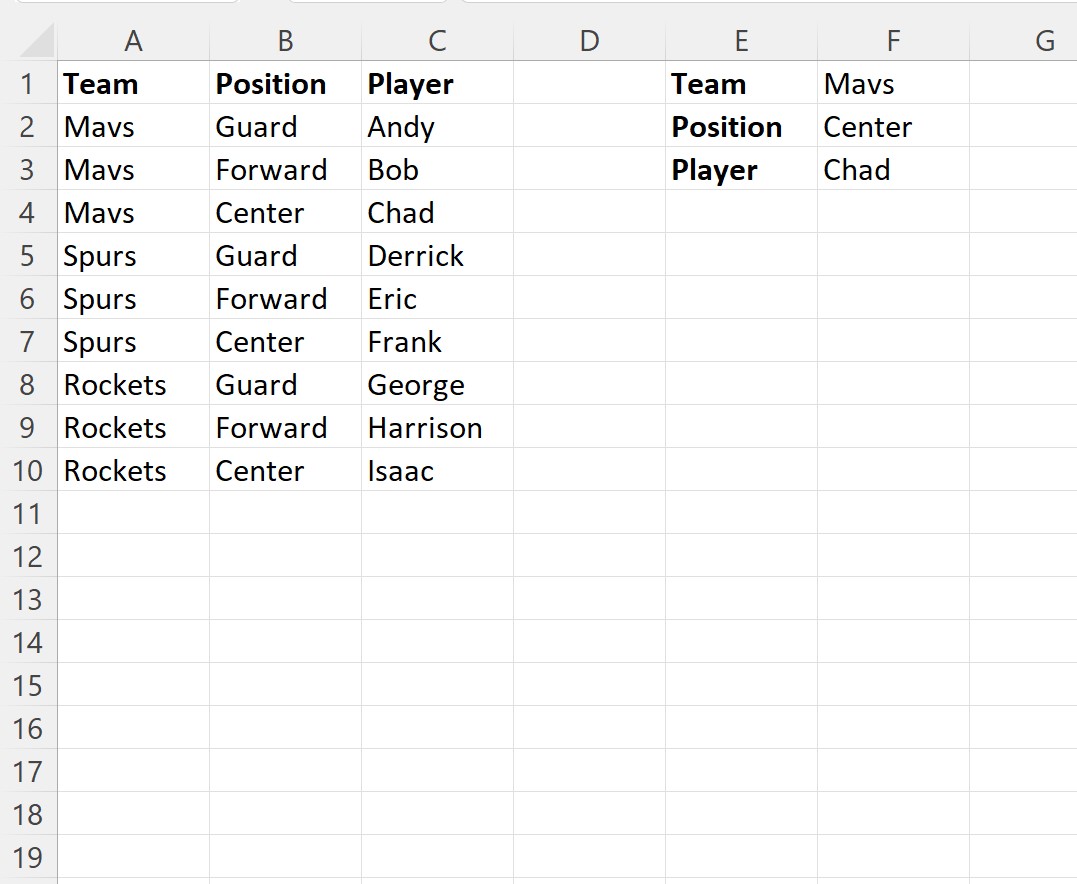

In this revised scenario, the macro successfully locates the unique intersection of “Mavs” and “Center,” accurately returning the name “Chad” in cell F3. This demonstrable dynamic behavior emphatically underscores why the programmatic implementation of the INDEX MATCH method within VBA is considered an indispensable tool for developing automated, robust, and responsive data analysis applications in any professional spreadsheet environment.

Expanding Your VBA Automation Capabilities

Mastering the technique of multi-criteria lookups is a significant milestone, but it represents just one step on the path toward maximizing productivity and efficiency using VBA. By continuing to explore and implement more advanced functionalities, you can transform simple spreadsheets into highly efficient, self-managing data management tools capable of automating increasingly complex tasks.

We strongly encourage readers who are dedicated to enhancing their programming skills to delve into additional tutorials and documentation focused on extending VBA capabilities beyond simple data retrieval. Key areas for further development include:

• Techniques for robust error handling and effective debugging in complex VBA environments.
• Optimization methods aimed at improving macro performance, particularly when processing or iterating over exceptionally large datasets.
• The development and implementation of custom user forms (UserForms) to create professional, interactive interfaces for enhanced input and output control within your applications.
