Learning VBA: Mastering Multi-Column Sorting in Excel

Efficient and accurate data management forms the core foundation of effective business analysis, especially when navigating large, complex datasets within Excel. While built-in sorting options suffice for small, static tables, dynamic reporting and extensive data compilation demand a significantly more advanced and automated methodology. When data requires structuring based on multiple, hierarchical criteria—such as segmenting records first by Region and then ordering entries by Revenue—relying on tedious, manual sorting processes becomes inefficient and highly susceptible to human error. This is precisely the operational gap filled by VBA (Visual Basic for Applications), which provides the critical capability to programmatically define and automate intricate sorting rules. Automating this process not only dramatically accelerates data processing time but also guarantees the consistent application of sorting logic, which is vital for maintaining data integrity and producing reliable reports essential for critical decision-making.

For developers, analysts, and power users seeking to extend beyond the inherent limitations of basic filters and sort buttons, mastering the programmatic control offered by VBA is paramount. This comprehensive guide is specifically designed to empower you by providing a detailed, step-by-step walkthrough for implementing robust multi-column sorting operations. We will meticulously explore the foundational syntax of the core sorting method, delve into the precise function of its key parameters, apply this specialized knowledge in practical, real-world scenarios, and examine advanced techniques necessary for building resilient and flexible macros that manage data of any scale or complexity.

Mastering the Range.Sort Method Syntax

The primary mechanism for programmatic data organization within VBA is the highly versatile Range.Sort method. This powerful instruction is applied directly to a designated Range object—which defines the exact scope of the data to be organized—and supports highly customizable operations. It allows users to execute tasks ranging from simple single-column sorts to complex multi-column hierarchical structuring. Crucially, it ensures that secondary and tertiary criteria are applied only when values in the preceding key columns are identical, preserving the desired order of precedence. The fundamental syntax requires defining the target range and then supplying optional but essential parameters that specify the sorting keys, their corresponding sort orders, and how the routine should properly handle header rows.

To fully grasp the structure of a multi-tiered sort operation, it is best to examine a foundational code snippet. The following example demonstrates how to efficiently sort a designated area of an Excel worksheet using two distinct criteria. This illustrates the necessary parameters for defining both the scope of the data set and the required sorting hierarchy:

Sub SortMultipleColumns()
    Range("A1:B11").Sort Key1:=Range("A1"), Order1:=xlAscending, _
                         Key2:=Range("B1"), Order2:=xlDescending, _
                         Header:=xlYes
End Sub

In this specific instance, the code establishes the cell range A1:B11 as the scope for the sorting operation. The process follows a strict hierarchy: the primary sort is defined by Key1:=Range("A1"), meaning the entire range is first organized based on the values in column A, arranged in ascending order (Order1:=xlAscending). Critically, if two or more rows share an identical value in column A, a secondary sort is automatically invoked. This secondary criterion, defined by Key2:=Range("B1"), sorts those tied rows using the values in column B, but this time in descending order (Order2:=xlDescending). This precise, multi-tiered approach ensures that data organization strictly aligns with complex business or analytical priorities.

Furthermore, the parameter Header:=xlYes is essential for preserving the structural integrity of the dataset. This instruction explicitly directs Excel to recognize the first row of the specified range (Row 1) as containing descriptive column headers or labels. By ensuring this row is excluded from the actual sorting operation, you prevent critical labels from being treated as data records and misplaced within the newly sorted data. Using this parameter correctly is a fundamental best practice in VBA development, as failing to set it can lead to corrupted datasets where headers are inadvertently sorted alongside the values they are meant to describe, rendering the spreadsheet confusing and unreliable.

Deconstructing the Sort Parameters for Precision

Executing precise and reliable sorting operations requires a thorough comprehension of the various parameters available within the Range.Sort method. Each argument serves a distinct, vital function in shaping the ultimate sorting logic and the resulting organization of your data. While many parameters are optional, defining the key criteria is mandatory for any multi-column sorting requirement.

• Key1, Key2, …, KeyN: These parameters establish the specific columns used for sorting and define their order of precedence. Key1 always dictates the primary sorting column, Key2 determines the secondary sort (applied only when Key1 values are identical), and so forth. Each Key must reference a Range object, typically just a single cell within the desired column, such as Range("A1") to designate column A. While the original VBA Sort method syntax historically featured explicit support for up to three keys (Key1 through Key3), modern versions of Excel now allow utilizing the SortFields collection object to accommodate up to 64 distinct keys, enabling highly complex and granular sorting hierarchies across all data types (text, numbers, dates, etc.).
• Order1, Order2, …, OrderN: Paired directly with their corresponding Key arguments, these parameters dictate the direction of the sort for that specific criterion. Correctly specifying the order for each key is crucial for achieving the desired hierarchical organization.
  • xlAscending: This constant organizes data from the lowest value to the highest. For text fields, this corresponds to A to Z; for numeric fields, smallest to largest; and for dates, oldest to newest.
  • xlDescending: This constant sorts data from the highest value to the lowest. This results in Z to A for text, largest to smallest for numbers, and newest to oldest for dates.

  These order constants provide the precise instruction needed to organize data according to value magnitude or alphabetical position.

• Header: This is a critical parameter that directs Excel on how to handle the first row of the designated sort range.
  • xlYes: The recommended setting for structured datasets, explicitly indicating that the first row contains headers and must be excluded from the sorting process.
  • xlNo: Specifies that the first row is part of the actual data and should be included in the sort. This is typically used only when the dataset genuinely begins at the very first row without any descriptive labels.
  • xlGuess: Allows Excel to attempt automatic detection of a header row. While convenient for manual operations, explicit declaration with xlYes or xlNo is strongly preferred in VBA macros to ensure predictable and robust behavior.

  Beyond these core elements, the Sort method includes specialized options for unique sorting needs. The MatchCase parameter is a Boolean value (True or False) that determines if the sort should be case-sensitive, which is vital when differentiating between text values like “Project A” and “project a”. The Orientation parameter, which typically defaults to row-based sorting (xlSortRows), can be switched to xlSortColumns if the requirement is to sort columns horizontally instead of rows vertically. Finally, parameters like SortMethod (which accepts constants such as xlPinYin or xlStroke) allow for specialized textual sorting tailored for specific languages, offering unparalleled control over complex data types.

  Practical Application: Implementing Hierarchical Sorting

  To demonstrate the efficiency and straightforward implementation of the VBA Sort method, let us apply it to a common analytical challenge. Imagine a scenario involving a sports dataset detailing basketball players, their respective teams, and their individual point scores. The primary goal is to organize this raw data efficiently for analysis, such as quickly identifying top performers within specific teams.

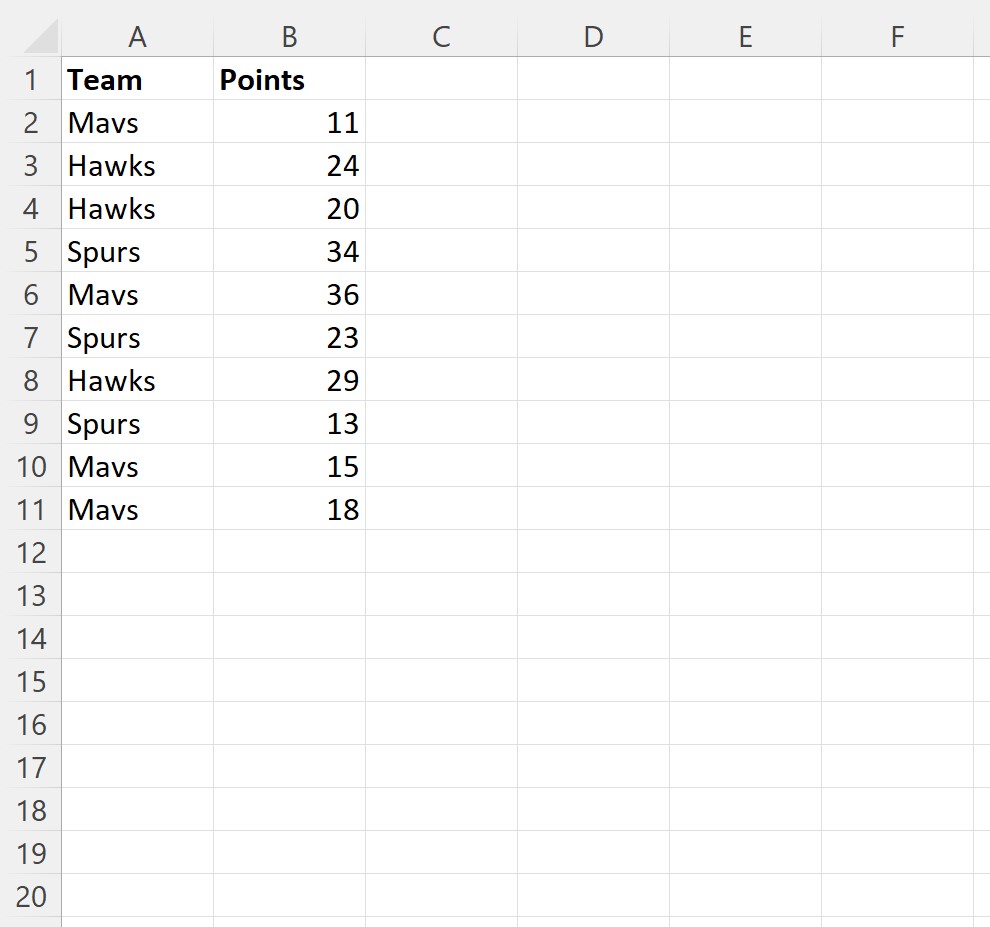

  Suppose your Excel sheet currently holds the following unsorted information, typically encountered after importing or compiling raw data:



  Our objective is to impose a structured hierarchy on this data. We require the primary organization to be by team, and the secondary organization to be by performance. Specifically, we define the sorting requirements as follows: First, sort all records by the Team column (Column A) in ascending order (alphabetical A to Z) to group all team members together. Second, within each resulting team group, sort the players by their Points column (Column B) in descending order (highest score to lowest) to rank performance internally.

  To implement this logic, you must first create a VBA macro. Open the VBA editor by pressing Alt + F11. Inside the editor, navigate to the Insert menu and select Module. This action opens a new, blank code module, providing the necessary environment to define your custom Sub procedure. Paste the following concise block of code, which perfectly translates our sorting criteria into executable VBA instructions:

  Sub SortMultipleColumns()
      Range("A1:B11").Sort Key1:=Range("A1"), Order1:=xlAscending, _
                           Key2:=Range("B1"), Order2:=xlDescending, _
                           Header:=xlYes
  End Sub

  This macro efficiently addresses all requirements. Key1:=Range("A1") sets the Team column as the primary key, with Order1:=xlAscending ensuring alphabetical order. The secondary key, Key2:=Range("B1"), designates the Points column, and Order2:=xlDescending ensures that within each team, the scores are arranged from highest to lowest. Finally, the inclusion of Header:=xlYes is essential here, guaranteeing that the descriptive labels “Team” and “Points” in Row 1 are correctly identified and excluded from the reorganization, preserving the dataset’s structure.

  Executing the Macro and Interpreting the Results

  After successfully defining the sorting Sub procedure in the module, the next step is execution. To run the macro, simply place your cursor anywhere within the Sub...End Sub block in the VBA editor and press the F5 key. For frequent use or integration with user interfaces, a more convenient approach is to insert a button control onto the Excel worksheet and assign this macro to the button’s click event. Upon execution, the Excel worksheet will instantly update, reflecting the newly imposed hierarchical organization:



  The resulting visual output offers compelling proof of the effectiveness of the multi-column sorting logic. First, the data is flawlessly grouped by the primary key: all players are clustered by their team name in alphabetical order (“Lakers,” then “Nets,” and finally “Warriors”). This initial segmentation provides immediate clarity. Second, within each of these team groupings, the secondary key takes effect: players are sub-sorted by their points in descending order. For example, under the “Lakers,” the player with 30 points is correctly positioned above the one with 28 points, despite their proximity in the original data. This hierarchical arrangement delivers immediate analytical insight, making it easy to rank performers within specific categories without any manual intervention. Such structured data is paramount for standardized reporting and presenting clear, actionable information to stakeholders.

  Advanced Techniques for Robust VBA Sorting

  While the fundamental two-key sort is highly useful, integrating advanced techniques and best practices is essential for developing macros that are robust, flexible, and performant across varying data sizes and structures. The following considerations move beyond simple fixed ranges and introduce dynamism and efficiency into your VBA solutions.

  • Sorting by More Than Two Columns: Although the standard syntax highlights Key1 and Key2, the Sort method can easily be extended to include subsequent sorting criteria. By adding Key3, Order3, and continuing this pattern, you can achieve highly granular control over data organization, leveraging the capacity for up to 64 keys in modern Excel environments. For instance, if you wished to sort by Team (ascending), then Points (descending), and finally by Player Name (ascending, to break ties on points), the code structure would simply extend:

    Sub SortThreeColumns()
        ' Assuming data includes a Player Name column at C
        Range("A1:C11").Sort Key1:=Range("A1"), Order1:=xlAscending, _
                             Key2:=Range("B1"), Order2:=xlDescending, _
                             Key3:=Range("C1"), Order3:=xlAscending, _
                             Header:=xlYes
    End Sub

    This tiered approach ensures absolute precision in data ordering based on multiple attributes.

  • Dynamic Range Selection: Relying on hardcoded ranges like "A1:B11" is inherently risky because the size of real-world datasets frequently changes. A far more robust and scalable solution involves dynamically detecting the actual boundaries of the data. Methods like using the CurrentRegion property (if the data is contiguous) or the End(xlUp) and End(xlToLeft) properties are excellent for automatically defining the precise sort range:

    Sub SortDynamicRange()
        Dim ws As Worksheet
        Set ws = ThisWorkbook.Sheets("Sheet1") ' Adjust sheet name as needed
        Dim lastRow As Long
        lastRow = ws.Cells(ws.Rows.Count, "A").End(xlUp).Row ' Finds the last non-empty row in Column A
        Dim lastCol As Long
        lastCol = ws.Cells(1, ws.Columns.Count).End(xlToLeft).Column ' Finds the last non-empty column in Row 1
        Dim sortRange As Range
        Set sortRange = ws.Range("A1", ws.Cells(lastRow, lastCol)) ' Defines the entire data range dynamically

        sortRange.Sort Key1:=sortRange.Cells(1, 1), Order1:=xlAscending, _
                       Key2:=sortRange.Cells(1, 2), Order2:=xlDescending, _
                       Header:=xlYes
    End Sub

    This technique ensures that your macro consistently sorts the entire dataset, maintaining reliability regardless of how many rows or columns are added or removed over time.

  • Performance Optimization: For extremely large datasets, the constant screen updating and automatic formula recalculations performed by Excel during VBA execution can drastically slow down the process. A best practice for performance enhancement is to temporarily disable these features at the start of your macro and meticulously re-enable them before the procedure concludes:

    Sub OptimizeSortPerformance()
        Application.ScreenUpdating = False
        Application.Calculation = xlCalculationManual

        ' Your sorting code here
        Range("A1:B11").Sort Key1:=Range("A1"), Order1:=xlAscending, _
                             Key2:=Range("B1"), Order2:=xlDescending, _
                             Header:=xlYes

        Application.Calculation = xlCalculationAutomatic
        Application.ScreenUpdating = True
    End Sub

    This method minimizes overhead from visual redraws and background calculations, resulting in significantly faster execution times for intensive sorting operations.

  Conclusion and Further Learning

  The capability to automate complex, multi-column sorting using VBA is an essential skill set for anyone performing extensive data manipulation in Excel. By harnessing the power and flexibility of the Range.Sort method, you gain programmatic control over data organization, transforming tedious manual tasks into swift, reliable, and repeatable automated processes.

  We have provided a comprehensive overview, starting with the fundamental syntax and a detailed dissection of crucial parameters such as Key1, Order1, and the necessary Header argument. We then moved through a practical, real-world example demonstrating how to implement a hierarchical sort, and finally explored advanced topics, including dynamic range selection and essential performance optimization techniques. This specialized knowledge equips you to build robust and efficient sorting macros that adapt seamlessly to changing data sizes and complexity.

  To truly master VBA sorting, continual experimentation is key. We strongly encourage consulting the official Microsoft documentation for the Sort method for a complete reference on all available parameters and their detailed usage. By experimenting with diverse sorting criteria and dynamic range definitions, you will unlock the full potential of VBA and streamline your daily workflow in Excel.
