A Comprehensive Guide to Using VLOOKUP with VBA in Excel

Integrating VLOOKUP for VBA Automation

The VLOOKUP function is an established cornerstone of Excel, universally recognized for its ability to execute complex vertical searches and retrieve specific data points from large, structured datasets. While its application directly within worksheets is common, embedding this lookup logic into code via VBA (Visual Basic for Applications) fundamentally expands its utility. This powerful integration enables developers to construct dynamic, repeatable, and robust solutions that move far beyond the inherent limitations of static worksheet formulas.

By leveraging VBA, data processing tasks can be comprehensively streamlined, reducing the need for manual intervention and ensuring absolute consistency across complex workflows. This guide is crafted to provide a precise roadmap for utilizing the VLOOKUP function within your programming environment. We will meticulously detail the necessary syntax, offer practical, step-by-step examples, and, critically, explore best practices for deploying resilient error handling mechanisms.

Achieving mastery over the programmatic integration of VLOOKUP is an essential skill for professionals seeking to elevate their Excel abilities and develop highly efficient, automated solutions. To allow VBA code to access Excel’s native calculation functions, including VLOOKUP, we must interface with the WorksheetFunction object. This object serves as the primary gateway, granting your code the capability to execute the exact same lookup and calculation tools that you typically use directly on the spreadsheet grid.

Accessing VLOOKUP via the WorksheetFunction Object

When initiating any lookup operation within VBA, the function is executed as a method belonging to the WorksheetFunction object. The required arguments closely parallel the structure of the standard Excel function, but instead of relying on simple cell text references, we pass dynamic variables and Range objects. This methodology provides powerful, programmatic control over all the lookup parameters.

The fundamental syntax for incorporating VLOOKUP into a macro is straightforward. A critical difference in the VBA environment is that the function’s result is immediately assigned to a target destination, which can be the Value property of a specific cell or a predefined variable.

Sub VlookupExample()
   Range("DestinationCell").Value = WorksheetFunction.Vlookup(LookupValue, TableArray, ColIndexNum, RangeLookup)
End Sub

To ensure accurate and reliable data retrieval, a thorough understanding of the function’s arguments is paramount. Each parameter within the WorksheetFunction.Vlookup method precisely defines the scope and criteria of the search.

• LookupValue: This is the specific item or key that the function attempts to locate. Within VBA, this is typically provided as a variable containing a value or as a reference to a cell, such as Range("E2").
• TableArray: This parameter defines the entire block of data where the lookup will be performed. It is mandatory that the first column of this Range object contains the LookupValue. A typical definition in VBA might be Range("A2:C11").
• ColIndexNum: This is a numerical index specifying which column within the defined TableArray holds the data you wish to return. The counting begins at 1 for the leftmost column of the array.
• RangeLookup: This boolean argument (True or False) controls the matching method used during the search.
  • True (or omitted): Activates an approximate match. This mode requires the first column of the TableArray to be sorted. If an exact match is not found, the function returns the next largest value that is less than the LookupValue.
  • False: Enforces an exact match. This is the preferred setting for precise lookups. If the exact value is absent, the function will generate an #N/A error, which must be handled programmatically in VBA to prevent crashing.

Implementing a Simple VLOOKUP Macro

Moving beyond theoretical syntax, let us examine a foundational VBA code block that demonstrates the simplest application of the VLOOKUP function. This practical example clearly illustrates how to define all parameters using explicit Range references and subsequently write the retrieved data to a specified destination cell within the active worksheet.

Sub SimpleVlookup()
   Range("F2").Value = WorksheetFunction.Vlookup(Range("E2"), Range("A2:C11"), 3, False)
End Sub

In this dedicated Sub procedure, appropriately named SimpleVlookup, the following specific operations are executed to perform the data retrieval:

• The LookupValue is retrieved directly from cell E2. The value contained within this cell dictates the entire search query.
• The TableArray is definitively set to the range A2:C11. The lookup is strictly confined to the first column (Column A) of this defined range.
• The ColIndexNum is fixed at 3, instructing the function to extract the resulting data from the third column relative to the start of the TableArray (Column C).
• The final argument is set to False, compelling the function to find an exact, identical match to the input in E2. If no match is found, this particular implementation will result in an immediate runtime error, underscoring the necessity of proper error handling, which we will address shortly.
• The retrieved value is written directly to the destination cell, F2, finalizing the automated lookup process.

This straightforward structure provides the essential foundation for building far more sophisticated macros. By thoroughly understanding how each component of the syntax interacts with Excel’s objects, you gain the critical ability to customize this code to solve diverse data analysis and retrieval challenges within your automated solutions.

Case Study: Dynamic Data Retrieval in Excel

To fully grasp the enhanced efficiency offered by integrating VLOOKUP within VBA, let us apply this knowledge to a standard data analysis scenario. Consider a dataset containing fictional performance statistics for several basketball teams, including the team name, total points scored, and total assists.

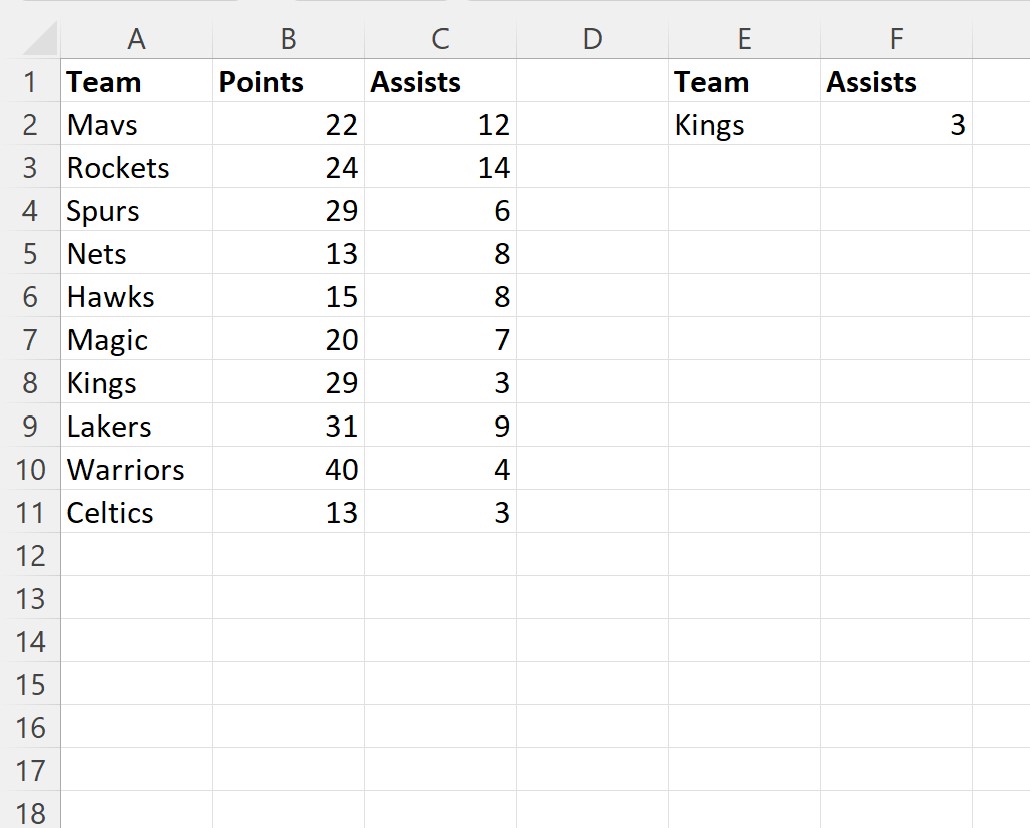

The following image provides a visual reference for our sample dataset, which is located in the range A2:C11 of the worksheet:

Our objective is to dynamically search for a team name entered by a user in cell E2 and, based on that input, retrieve the corresponding number of assists, placing the final result in cell F2. This task is ideally suited for a reusable macro. To execute this, open the VBA editor (Alt + F11), insert a new module, and input the following code block:

Sub GetTeamAssists()
   Range("F2").Value = WorksheetFunction.Vlookup(Range("E2"), Range("A2:C11"), 3, False)
End Sub

To view the dynamic capability of this script, ensure cell E2 contains the team name “Kings.” Next, execute the macro (using Alt + F8, selecting GetTeamAssists, and clicking “Run”). The resulting output clearly demonstrates the accurate retrieval of the corresponding data point:

As the visual indicates, the macro successfully located “Kings” in the first column of the specified range A2:C11 and returned the value from the third column, which is 3 assists, placing it into cell F2. This performance confirms the precision of an exact match lookup under direct programmatic control. Furthermore, a central benefit of VBA is its inherent dynamism. If you change the input in cell E2—for example, to “Warriors”—and rerun the GetTeamAssists macro, the output automatically updates:

This level of reusability highlights how a single VBA script can efficiently execute countless lookups based on changing input values, dramatically enhancing workflow efficiency, particularly for repetitive reporting and data validation tasks.

Implementing Robust Error Handling

Developing reliable and professional VBA solutions requires anticipating and gracefully handling runtime errors. When a VLOOKUP operation is unable to locate the specified LookupValue within the first column of the TableArray, it results in the generation of the common #N/A error. Critically, if this error occurs while executing a method of the WorksheetFunction object, the entire macro will unexpectedly terminate. To counteract this potential crash, we must implement structured error handling, which is typically achieved through two primary methods.

1. Using On Error Resume Next: This command temporarily instructs VBA to ignore the line that caused the error and proceed immediately to the next instruction in the code block. After attempting the VLOOKUP, we then check the returned value using the IsError function to determine if the lookup was unsuccessful.

Sub VlookupWithErrorHandling1()
    Dim result As Variant
    On Error Resume Next
    result = WorksheetFunction.Vlookup(Range("E2"), Range("A2:C11"), 3, False)

    If IsError(result) Then
        Range("F2").Value = "Not Found"
    Else
        Range("F2").Value = result
    End If
    On Error GoTo 0 ' Reset error handling
End Sub

In this approach, if the lookup fails, the result variable will contain an error value. The conditional If statement successfully detects this error and writes a user-friendly message, “Not Found,” to cell F2 instead of allowing the program to crash. The final line, On Error GoTo 0, is vital as it restores standard error handling for the remainder of the Sub procedure.

2. Using Application.VLookup: This second method is often regarded as the superior and cleaner way to manage lookup errors in VBA. By using Application.VLookup instead of WorksheetFunction.Vlookup, if a match is not found, the function returns the standard Excel error constant (such as #N/A) to the receiving variable without triggering a runtime error. This eliminates the necessity of using On Error Resume Next, allowing the value to be checked directly using the IsError function.

Sub VlookupWithErrorHandling2()
    Dim result As Variant
    result = Application.Vlookup(Range("E2"), Range("A2:C11"), 3, False)

    If IsError(result) Then
        Range("F2").Value = "Team not found"
    Else
        Range("F2").Value = result
    End If
End Sub

This method is strongly recommended by experienced VBA developers for its cleaner syntax and superior error management capabilities, which are essential for creating professional and dependable applications.

Key Advantages of Automating VLOOKUP with VBA

Embedding VLOOKUP functionality within the VBA environment provides substantial benefits that significantly enhance data handling, extending far beyond the limitations of static cell formulas. These advantages are particularly critical when managing extremely large datasets, performing lookups across multiple files, or addressing complex, recurrent reporting needs.

• True Automation of Repetitive Tasks: When a data retrieval process necessitates executing hundreds or even thousands of lookups across numerous worksheets or external workbooks, a macro can execute these tasks instantly and consistently. This capability eliminates the tedious, high-effort manual process and drastically minimizes the potential for human error associated with manually managing formulas or modifying cell references.
• Dynamic and Flexible Range Definition: VBA grants the ability to define the lookup values and table arrays dynamically. Parameters can be based on variable data sizes, fluctuating row counts, or direct user input. This means your script can automatically adapt to expanding datasets, search data located in different workbooks, or construct sophisticated lookup keys from concatenated values, ensuring the solution remains robust irrespective of underlying data changes.
• Superior Error Management and User Feedback: As demonstrated, VBA provides essential mechanisms to gracefully handle common functional errors, such as the #N/A error. Instead of displaying cryptic error codes, your script can output custom, context-aware messages (“Data Missing”), log the failure for later review, or even trigger alternative data retrieval logic, resulting in a significantly more professional and polished user experience.
• Seamless Integration into Comprehensive Workflows: A lookup driven by VBA is not an isolated function; it is a component that can be seamlessly combined with other advanced VBA tasks. This includes filtering data, generating complex reports, applying conditional formatting based on retrieved values, or even initiating external processes. This holistic approach facilitates the creation of complete, end-to-end data processing solutions executed directly within the Excel environment.

Conclusion

The capacity to execute VLOOKUP within the powerful VBA environment fundamentally revolutionizes the efficiency and scope of data retrieval in Excel. By making effective use of the WorksheetFunction object—or preferably, the more robust Application object for reliable error handling—you gain complete programmatic control over one of Excel’s most powerful analytical functions.

Throughout this guide, we have established the core syntax, provided practical demonstration through a dynamic case study, and detailed crucial techniques for error management. While the basic implementation is highly accessible, the true power of VBA-driven lookups is realized when you incorporate dynamic range addressing and robust error checking. These practices ensure that your automated applications are not only highly efficient but also exceptionally reliable and user-friendly for any consumer. We strongly encourage continued practice with these techniques and exploration of advanced lookup scenarios to solidify your foundation in automated data management.

For further detailed specifications regarding arguments and advanced usage, we highly recommend consulting the official Microsoft documentation for the VBA VLookup method.
