Learning VBA: A Step-by-Step Guide to Using VLOOKUP Across Multiple Excel Worksheets

Automating Cross-Sheet Data Retrieval with VBA and VLOOKUP

The VLOOKUP function stands as a foundational pillar of data manipulation in Microsoft Excel. Its primary role is straightforward: to search for a value in the leftmost column of a specified data range and return a corresponding value from a designated column in the same row. However, while essential for standard worksheet tasks, the true power of this function is unlocked when integrated with Visual Basic for Applications (VBA). This powerful combination allows developers and advanced analysts to move beyond static formulas, enabling the automation of complex lookup procedures, dynamic management of expansive data ranges, and the embedding of robust lookup logic directly into powerful macros.

Leveraging VBA to execute VLOOKUP operations provides significant advantages, particularly when dealing with repetitive tasks or analyzing data structures that span multiple worksheets or even entirely separate workbooks. Rather than relying on manual formula entry, which is prone to error, or constantly updating cell references, a programmatic approach ensures instantaneous execution of the retrieval process. This automation guarantees high data consistency, dramatically reduces the probability of human error, and is crucial for streamlining reporting workflows, constructing reliable dashboards, and efficiently handling any data manipulation scenario that demands precise, high-speed retrieval across sheets.

Accessing Excel Functions via the WorksheetFunction Object

Within the environment of VBA, standard Excel functions—including VLOOKUP—cannot be called directly by their name alone. Instead, they must be accessed through the specialized WorksheetFunction object. This object acts as a critical bridge, allowing VBA code to seamlessly utilize the vast majority of Excel’s built-in worksheet functions, translating the syntax requirements of the application into the object-oriented structure required by the programming language.

When setting up a VLOOKUP operation that sources data from a separate worksheet, the procedure requires precise programmatic definition of the core components. These components mirror the function’s native arguments: the specific lookup value to search for, the absolute location and dimensions of the data source (known as the table array), and the index number of the target column. All these parameters must be managed efficiently and referenced correctly within a structured VBA subroutine, ensuring the code knows exactly where to look and what to return, regardless of which sheet is currently active.

Dissecting the Basic Syntax for Cross-Sheet VLOOKUP in VBA

To successfully implement a VLOOKUP operation that retrieves information from a worksheet distinct from the one where the result is placed, developers utilize the WorksheetFunction.Vlookup method. The required syntax is highly efficient, allowing all necessary parameters—including the explicit reference to the external sheet—to be specified programmatically in a single, powerful line of code. This method is the standardized and most reliable way to interact with Excel’s core lookup engine via automation.

The following code snippet illustrates the fundamental VBA syntax used to execute a cross-sheet VLOOKUP. In this example, the code retrieves data from a worksheet explicitly named “Sheet2” and places the computed result onto the currently active sheet:

Sub Vlookup()
    Range("B2").Value = WorksheetFunction.Vlookup(Range("A2"), Sheets("Sheet2").Range("A2:C11"),3,False)
End Sub

A detailed understanding of each parameter within this command line is absolutely essential for successful implementation, debugging, and modification in real-world applications. The structure intentionally mirrors the native Excel function, but requires precise object referencing (such as the explicit `Sheets(“Sheet2”)` reference) mandated by VBA to ensure the correct workbook objects are targeted.

• Range("B2").Value: This segment designates the final destination cell. The result returned by the VLOOKUP function will be written directly to cell B2 on the currently active worksheet where the macro is run.
• WorksheetFunction.Vlookup(...): This command explicitly calls the VLOOKUP function itself, accessing it through the necessary WorksheetFunction object within the VBA environment.
• Range("A2"): This defines the lookup_value argument. It specifies the item that the function will search for in the first column of the data table. In this specific scenario, it uses the content found in cell A2 of the active sheet.
• Sheets("Sheet2").Range("A2:C11"): This is the crucial table_array argument for all cross-sheet operations. By explicitly referencing Sheets(“Sheet2”), we ensure the lookup targets the correct external worksheet. The data table containing the source information is defined as the range from A2 to C11 on that external sheet.
• 3: This is the col_index_num, which indicates that the desired corresponding value should be returned from the third column within the defined table_array (A2:C11). Column 3 corresponds to column C.
• False: The final argument, range_lookup, is set to False, which demands an exact match for the lookup_value. If no exact match is found in the source column, the function will raise an error, providing precision in data retrieval.

In essence, this single VBA statement achieves a high level of data retrieval efficiency: it takes the value from the current sheet’s cell A2, searches for it in the first column of the range A2:C11 on Sheet2, retrieves the corresponding value from the third column, and then deposits the final result into cell B2 of the current sheet.

Practical Demonstration: Setting Up the Lookup Scenario

To solidify the understanding of this powerful cross-sheet technique, let us walk through a concrete, step-by-step example using two separate worksheets. Our workbook is structured with Sheet1 (the querying sheet) and Sheet2 (the source data sheet). Our primary objective is to automatically fetch specific player statistics contained in Sheet2 and display them on Sheet1 using an automated macro.

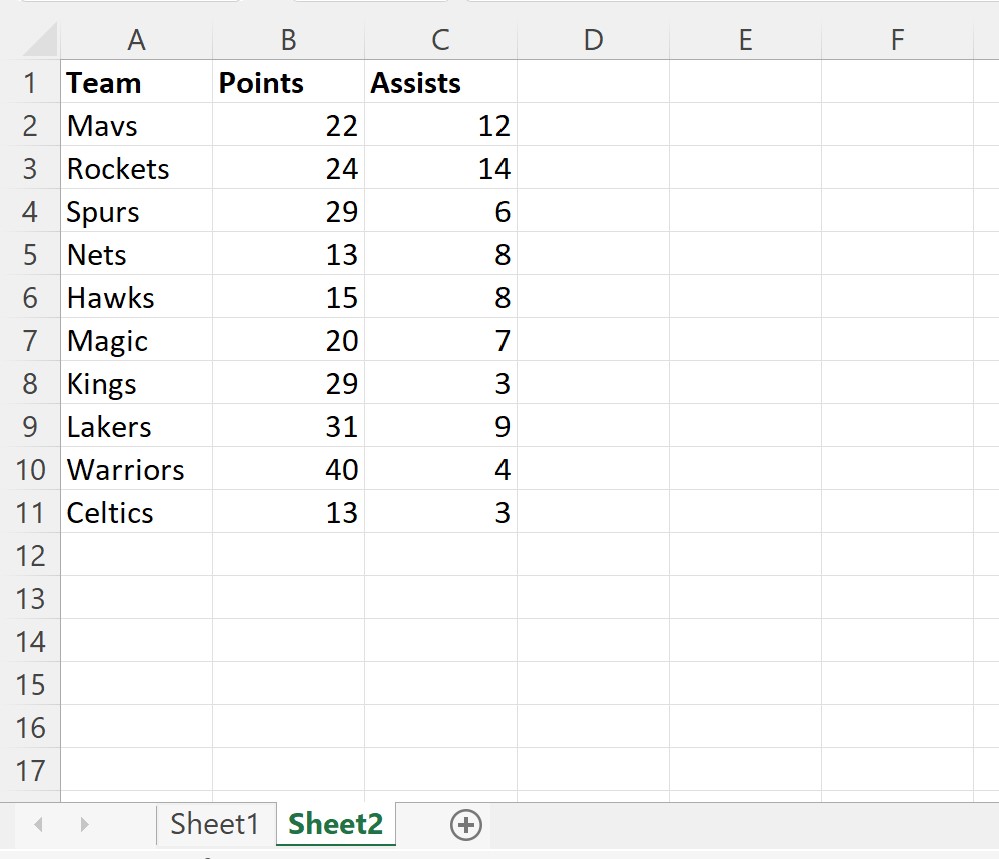

We begin by examining the source dataset located in Sheet2. This worksheet contains comprehensive basketball player information, organized across three columns: team names, points scored, and assists made. This structured table is crucial, as it forms the table array that our lookup operation will search through.

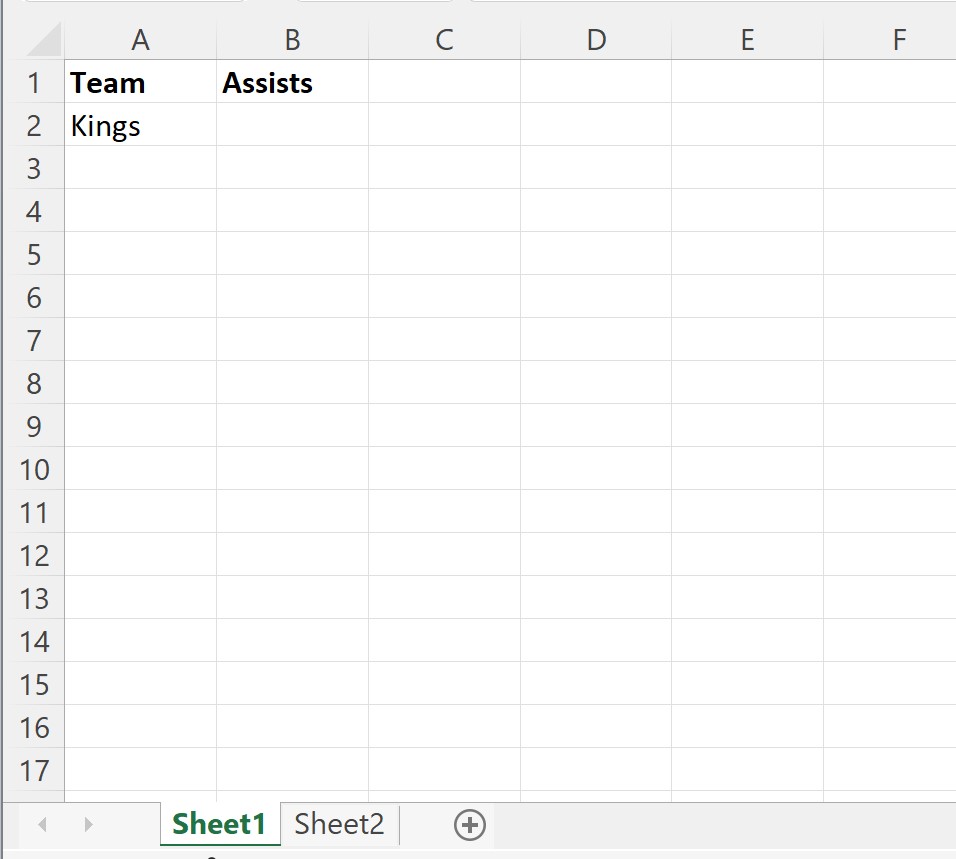

Next, we turn our attention to Sheet1, which holds the lookup criterion. For this initial test, suppose we need to determine the number of assists attributed to the team “Kings,” and this team name is manually entered into cell A2. Our programmatic task is to use the VBA VLOOKUP method to locate the value “Kings” within the external Sheet2 dataset and retrieve the corresponding assist count, placing the result neatly into cell B2 on Sheet1.

Developing and Executing the VBA Routine

To execute this precise cross-sheet lookup, we must first develop a macro within the Excel environment. The development process requires opening the Visual Basic Editor (VBE), which can be accessed quickly by pressing Alt + F11 within the Excel application. Once inside the editor, the user must navigate to Insert > Module. This action creates a new, blank module where the VBA code defining our automated task will be stored, separate from the worksheets themselves.

Within this newly created module, we enter the specific VBA code designed for this operation. The macro is structured to dynamically read the team name provided in cell A2 of the active sheet (Sheet1), search for that team name within the defined player data range on Sheet2, and subsequently output the corresponding assist value into cell B2 of Sheet1.

Sub Vlookup()
    Range("B2").Value = WorksheetFunction.Vlookup(Range("A2"), Sheets("Sheet2").Range("A2:C11"),3,False)
End Sub

After the code is accurately entered, the macro can be executed either by returning to Excel (Developer tab > Macros > Run) or, more rapidly, by executing the code directly from the VBE by ensuring the cursor is positioned within the Sub...End Sub block and pressing F5. Upon successful completion, the output on Sheet1 will confirm that the VLOOKUP successfully identified the lookup value “Kings” in Sheet2 and retrieved its associated statistical data, exactly as intended by the programming logic.

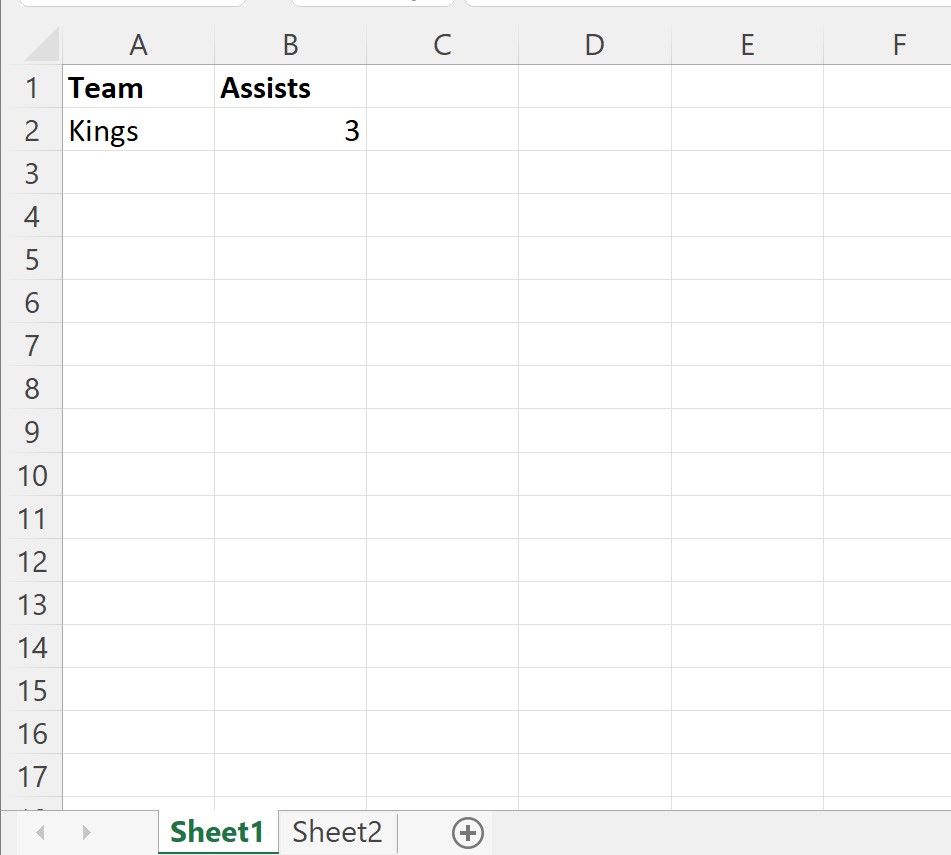

The result shows that cell B2 is accurately populated with the value 3, which corresponds precisely to the assist count for the “Kings” team found in the Sheet2 source data table. This verification confirms that the cross-sheet VBA VLOOKUP method has successfully retrieved the necessary information from the specified external sheet and placed it correctly on the querying sheet.

Leveraging Dynamic Lookups for Enhanced Efficiency

One of the most compelling advantages of automating lookup procedures using VBA is the inherent support for truly dynamic lookups. If the lookup value in cell A2 on Sheet1 is modified—for instance, if the user decides to search for a different team—running the exact same macro will automatically update the result in cell B2. This instant refresh reflects the new search criteria instantly, entirely eliminating the manual effort involved in updating formula references or copying results, leading to significant workflow enhancements and faster analysis cycles.

To illustrate this dynamic functionality, let us change the team name in cell A2 of Sheet1 from “Kings” to “Warriors”. When the macro is executed again, the code automatically performs a fresh search for “Warriors” in the Sheet2 dataset and retrieves the corresponding assist data for this new criterion.

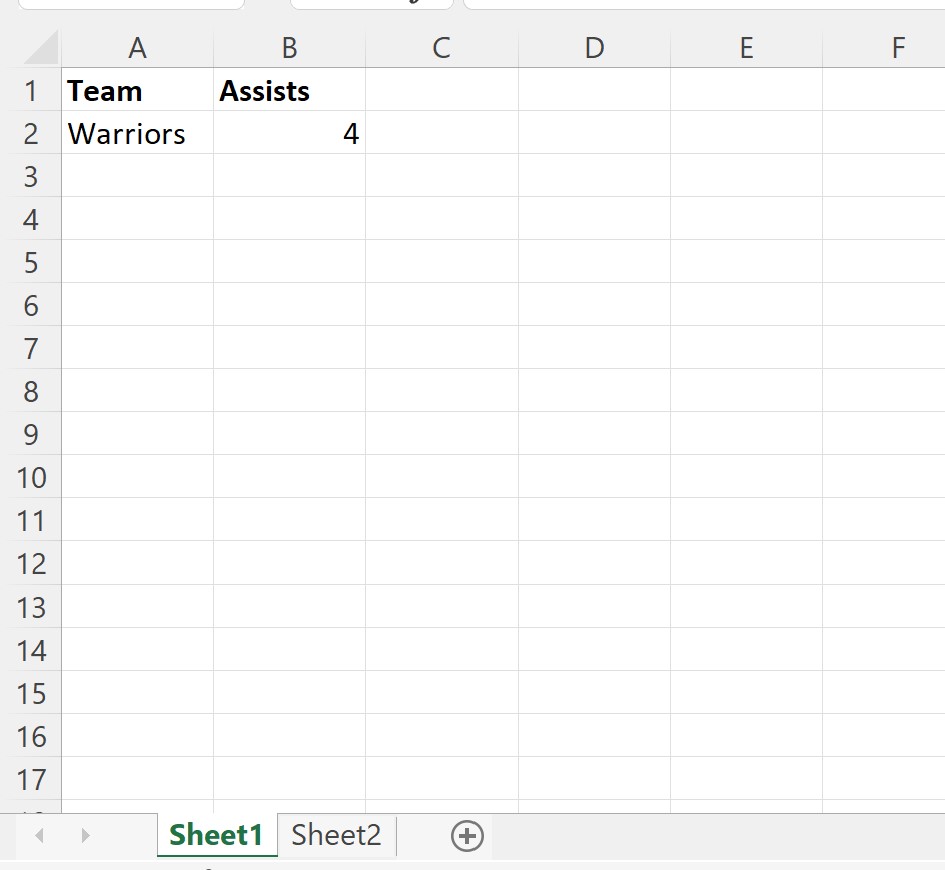

After rerunning the macro with the new lookup value, “Warriors,” cell B2 on Sheet1 updates immediately to the value 4. This value accurately matches the assist count attributed to the “Warriors” team within the Sheet2 source data. This inherent flexibility and continuous adaptability underscore why automated VLOOKUP operations are highly valued in professional data environments that require rapid, repeatable data retrieval.

Best Practices: Error Handling and Performance Considerations

While the WorksheetFunction.Vlookup method is powerful and effective, adopting several key best practices ensures that your VBA code remains robust, efficient, and maintainable over the long term. Robust error handling is paramount when dealing with lookups. If the specified lookup_value cannot be located in the table_array, the Vlookup function will trigger a runtime error, which will immediately halt your macro execution.

To prevent unexpected crashes, implement error trapping using structured statements like On Error Resume Next, followed by checks to see if an error occurred (e.g., checking if the result is an error value using If IsError(...) Then ...). Proper error management ensures that your macro manages scenarios where a match is missing gracefully, perhaps by outputting a descriptive “Data Missing” message instead of causing the program to fail.

For large-scale projects involving massive datasets, repeatedly invoking WorksheetFunction.Vlookup within a loop can lead to noticeable performance degradation due to the overhead of accessing the function repeatedly. In these high-volume situations, it is often significantly more efficient to employ Excel’s built-in INDEX-MATCH combination or, if your version of Excel supports it, the advanced XLOOKUP function. These alternatives can also be accessed via the WorksheetFunction object, offering superior flexibility and often better performance, especially when the lookup column is not strictly the leftmost column of the array.

Furthermore, strive to make your macro code highly adaptable by utilizing variables for sheet names and data ranges instead of hardcoding static values like “Sheet2” and “A2:C11”. This dynamic approach, using VBA Range and Sheets objects, ensures the code automatically adapts to minor changes in the workbook structure without requiring constant manual modification. Always fully qualify your references (e.g., ThisWorkbook.Sheets("DataSheet").Range("A1:Z100")) to guarantee that your macro consistently operates on the intended workbook and sheet, thereby preventing unpredictable behavior when multiple Excel files are simultaneously open.
